Hybrid Racing K Swap Fullsize Radiator for 92-95 Civic

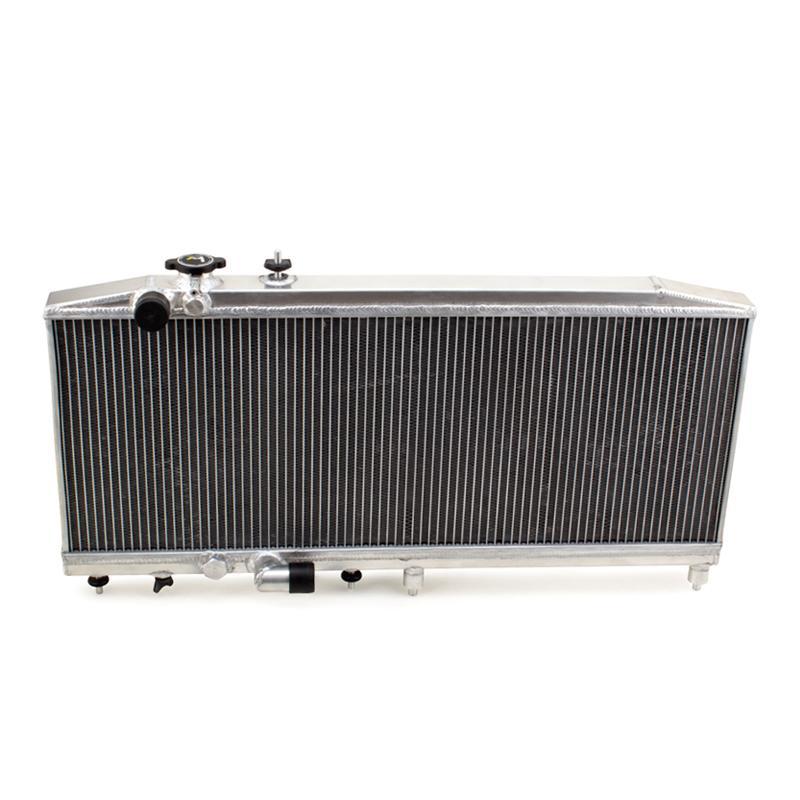

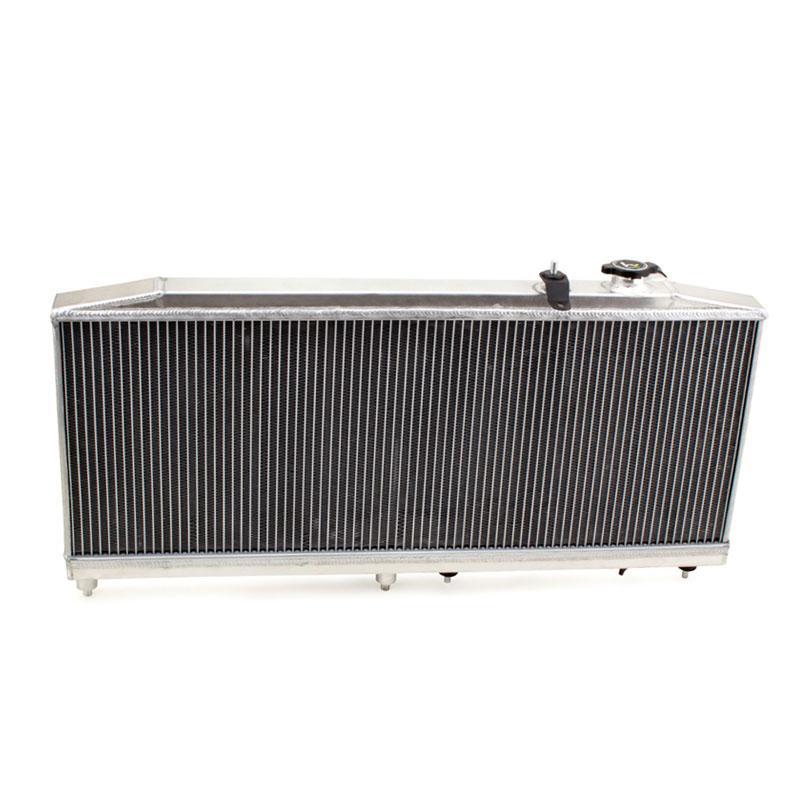

Hybrid Racing K Swap Full-Size Radiator for 92-95 Civic/93-97 Del Sol

Upgrade your cooling system with the Hybrid Racing K-Series full-size radiator for the 1992-1995 Honda Civic and 1993-1997 Honda Del Sol. Each radiator is specifically designed to fit your chassis while accommodating the K-Series motor's coolant inlet and outlet, simplifying your K-Series engine swap and eliminating the need for custom mounting brackets.

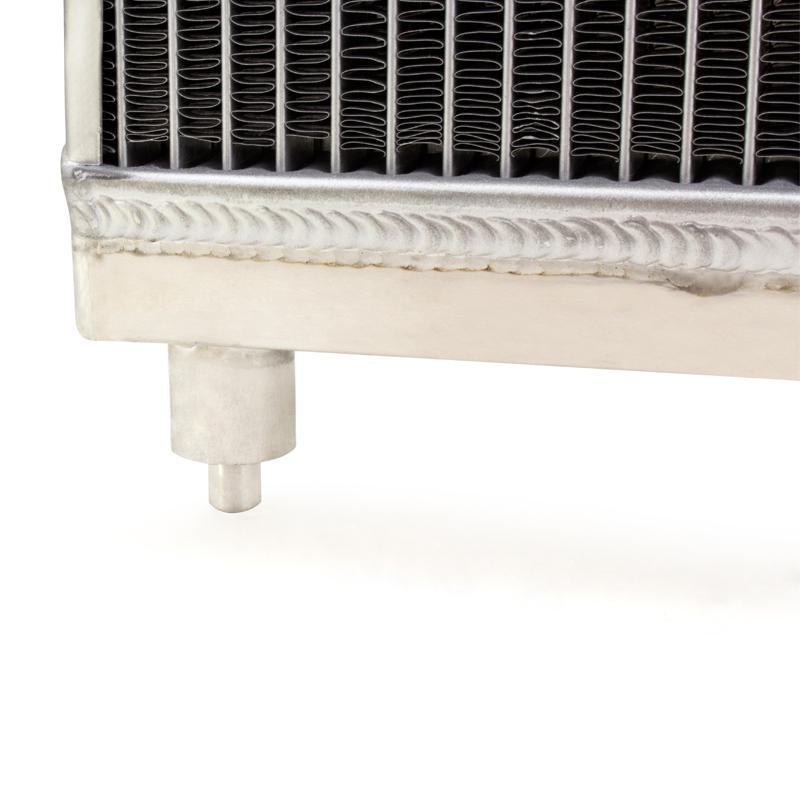

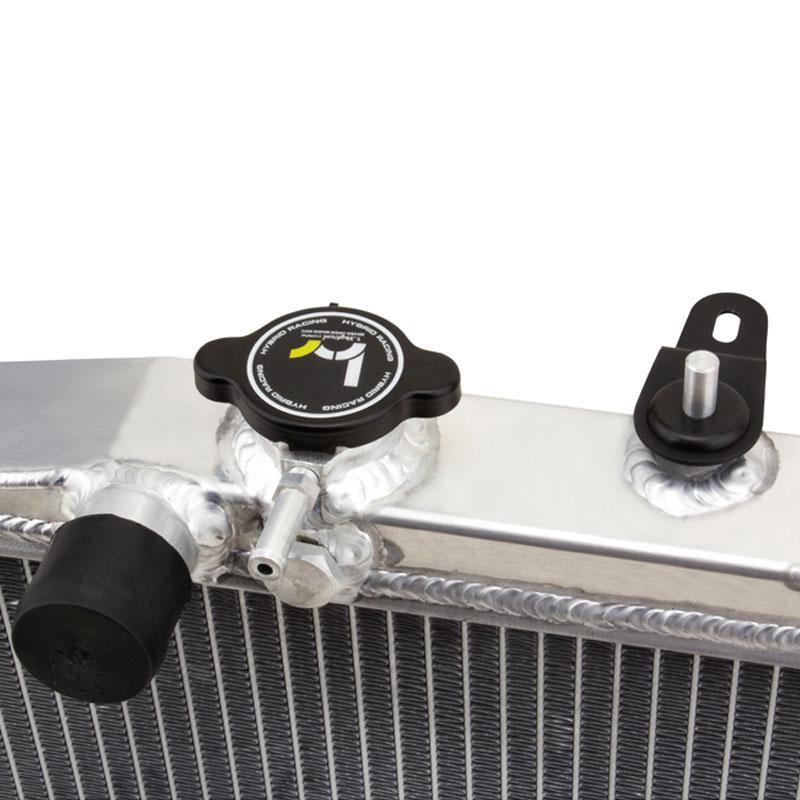

All Hybrid Racing radiators feature dual-core, all-aluminum construction with high-precision TIG welds. This radiator integrates the necessary ports for the Coolant Temperature Sending Unit and the Fan Switch, eliminating the need for special adapters and inserts.

How is this radiator better than the OEM radiator?
This question has several answers. First, this Hybrid Racing full-size K-Swap radiator features all aluminum, and fully TIG welded construction. As a result, it is less likely to leak or crack like the OEM unit, which uses an aluminum core and plastic end tanks. Second, the coolant ports on all Hybrid Racing K-Swap radiators are relocated to allow the use of shorter coolant hoses when used in conjunction with a K-Series motor.

Do I have to modify my chassis to make this radiator fit?

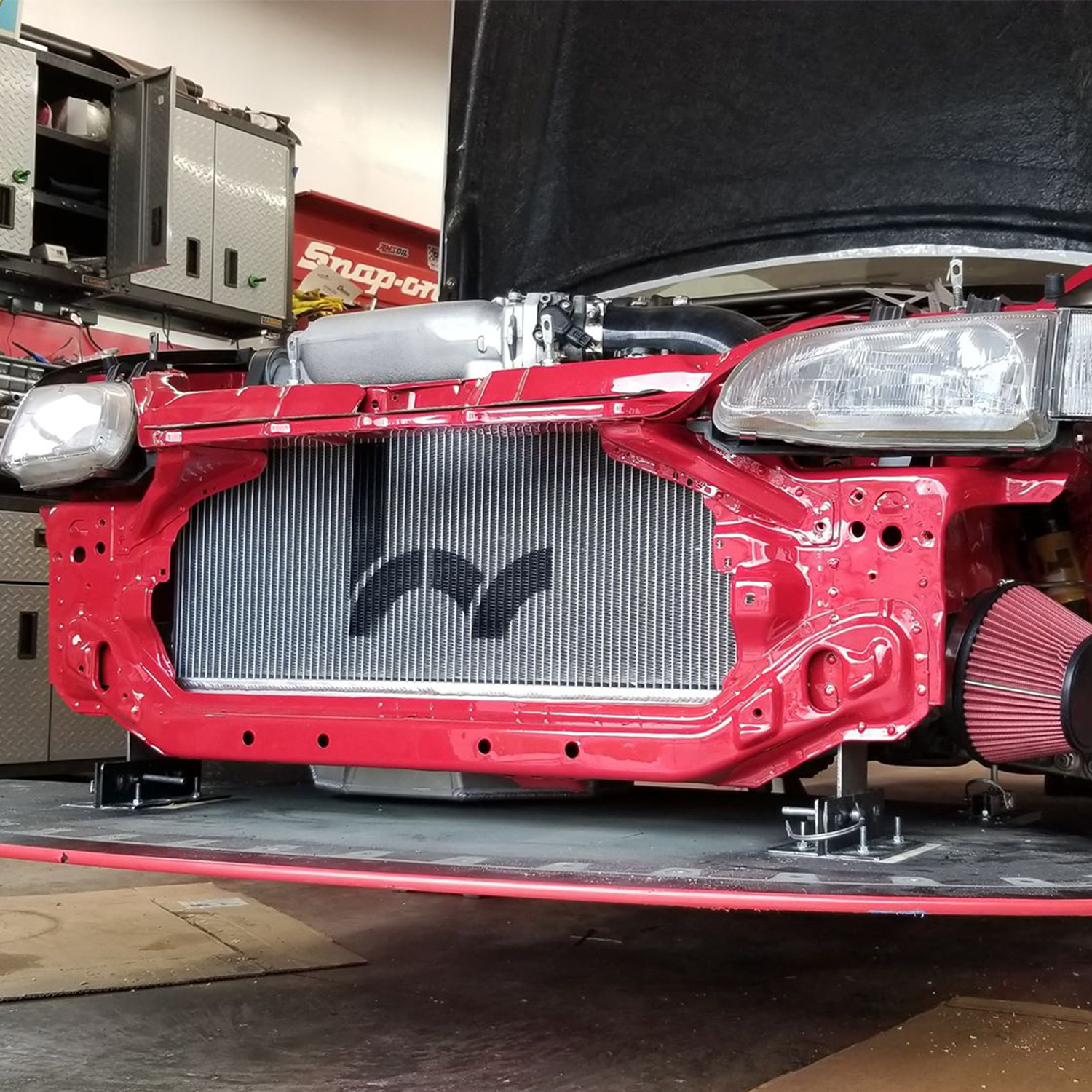

No. This radiator is a complete bolt-on part. It mounts to the factory lower support tabs. We recommend using two high-speed ten-inch cooling fans.

Is this radiator compatible with the Hybrid Racing AC kit for my chassis?
NO. This unit is not compatible with the Hybrid Racing conversion AC kit. If you want to use AC, you must use the Hybrid Racing Half-Size radiator so the AC condenser has room to fit.

Key Features

• Full size K-Series radiator for 1992-1995 Honda Civic and 1993-1997 Honda Del Sol
• Dual-core, all-aluminum construction with TIG welds
• Integrated ports for Coolant Temperature Sending Unit and Fan Switch
• Relocated coolant ports for shorter hoses with K-Series motor
• Complete bolt-on fitment with no chassis modifications required
• Recommended for use with two 10-inch high-speed cooling fans
• Not compatible with Hybrid Racing conversion AC kit (use Half-Size radiator for AC)

Dimensions

• Core: 29" x 11.5" x 2"
• Inlet / Outlet: 1.25"
