PRODUCT DETAILS
If you are putting a K24 engine together or planning a swap, consider upgrading the oil pump. The K24 oil pump is heavy and has balance shafts that rob horsepower. Not to mention, they aren't as efficient at maintaining pressure as you increase your redline. Be sure you have access to factory manuals to get exact step-by-step and specs.
To make things easier for those customers looking to add an RSX Type S Oil Pump to their setup, we now offer pump cutting services so you can get the part installed faster!

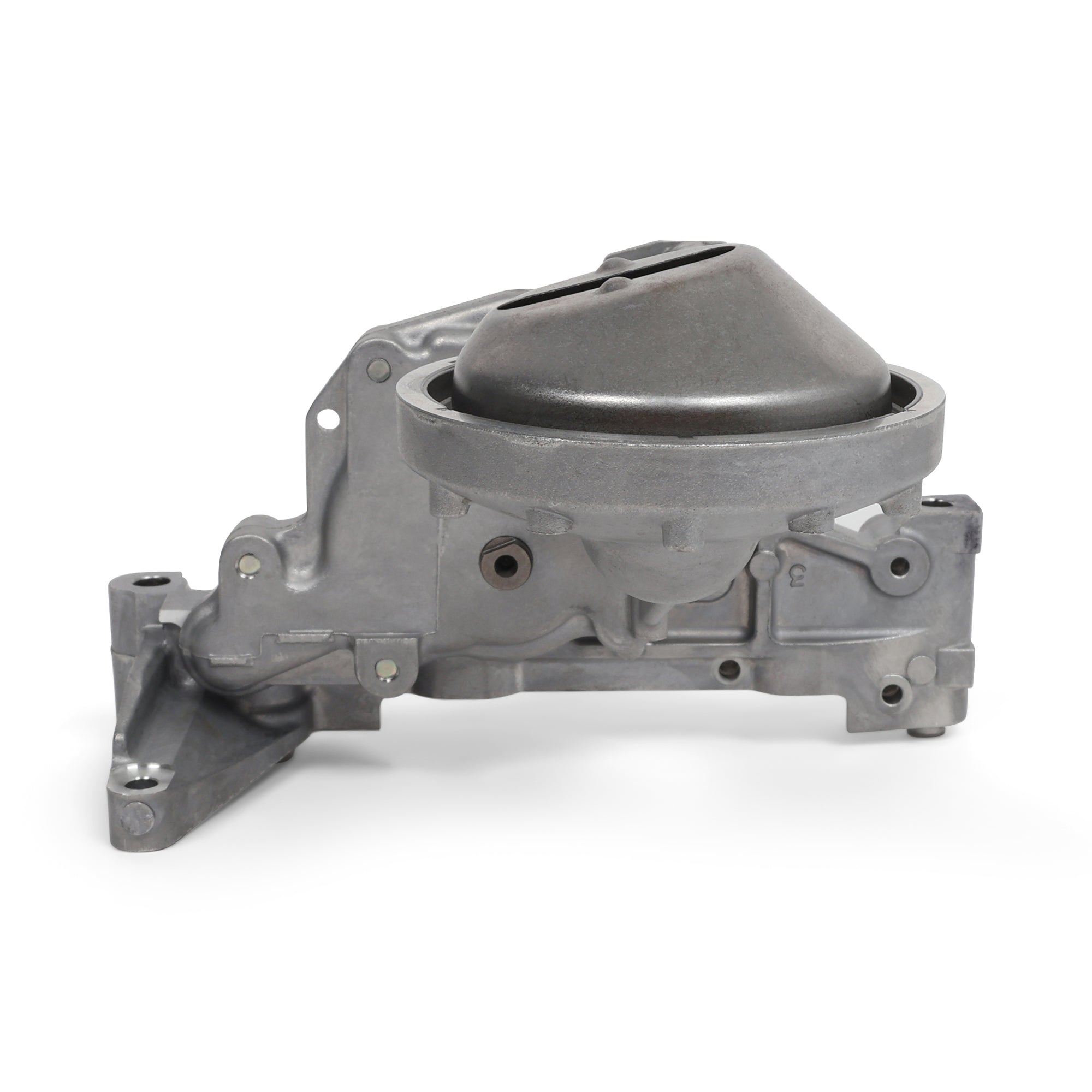

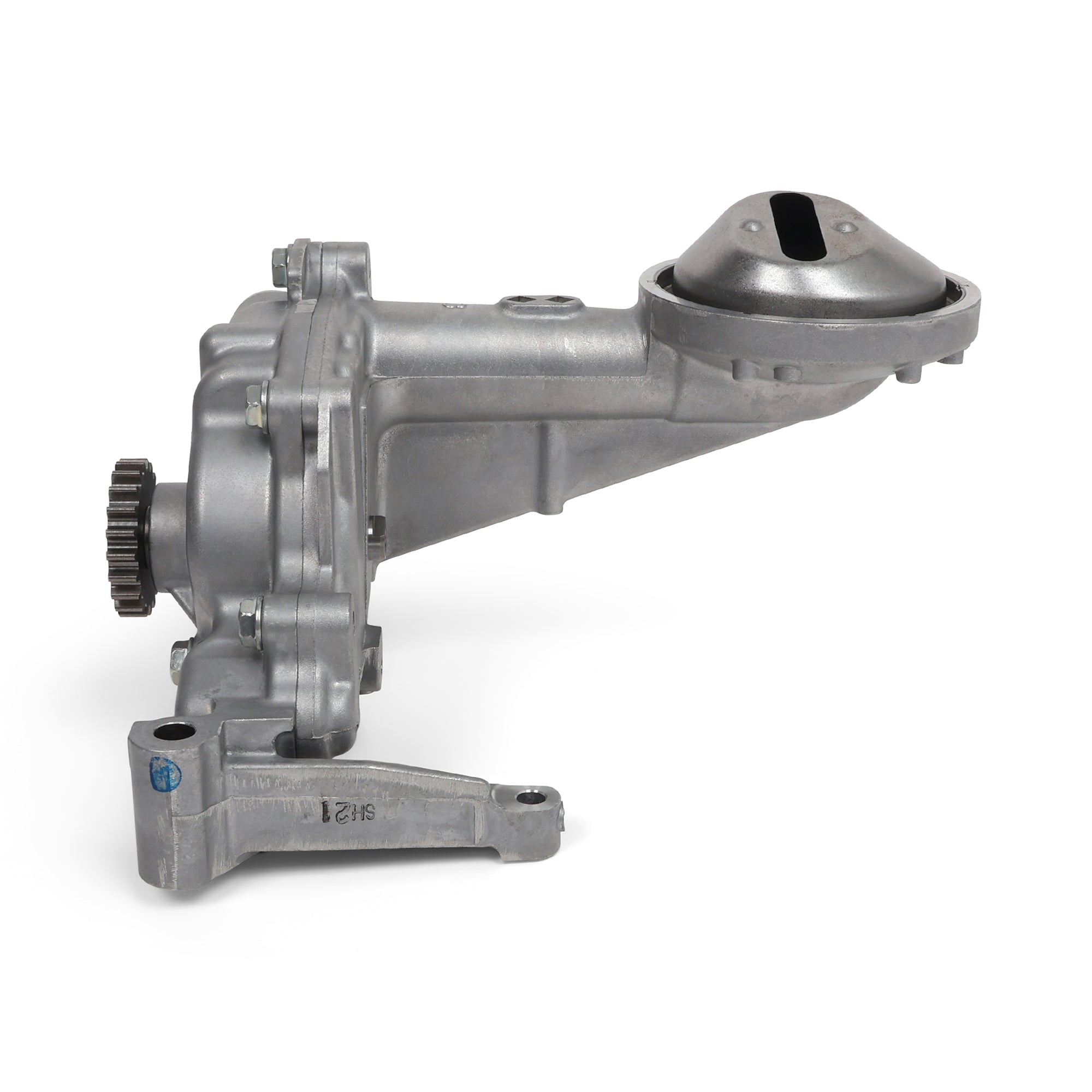

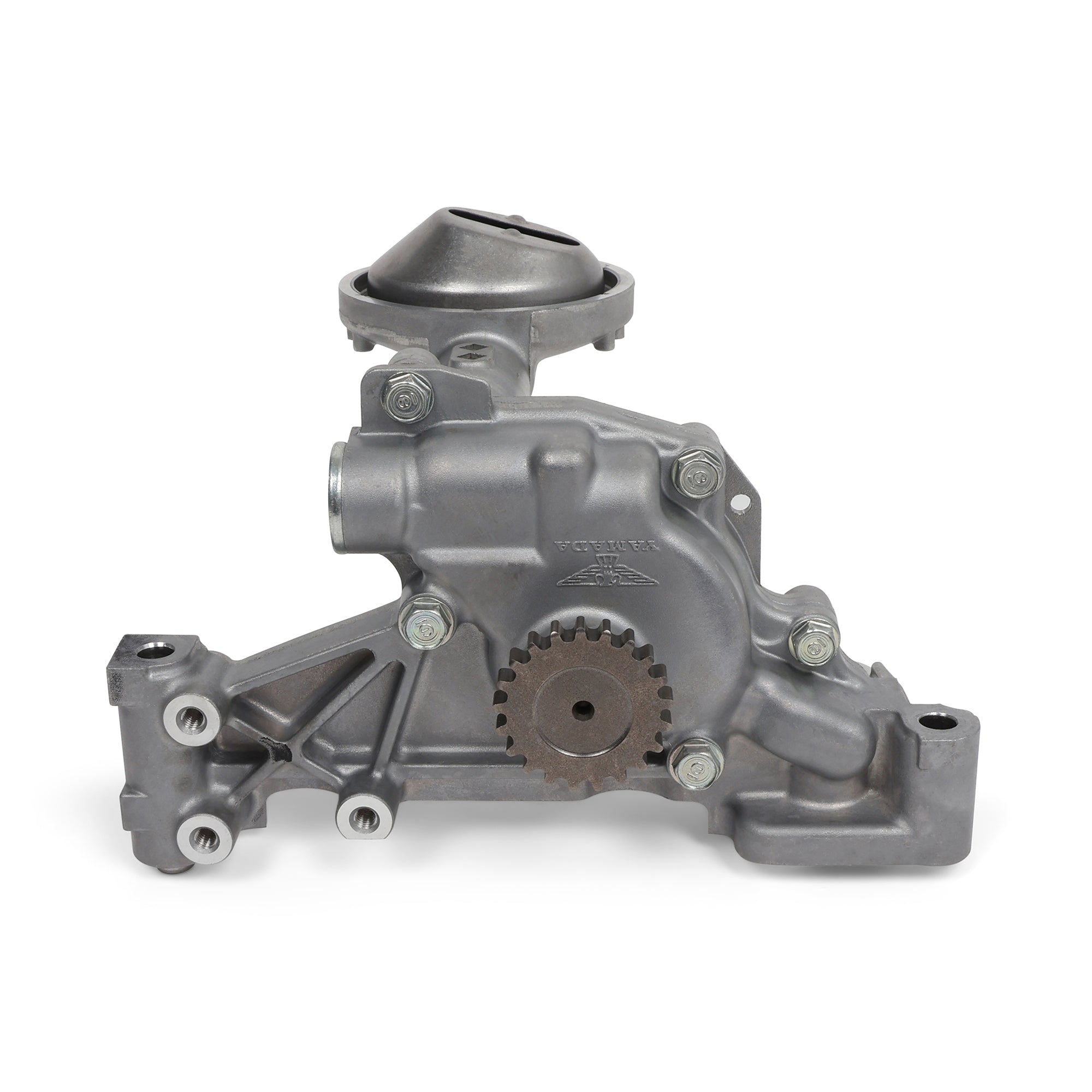

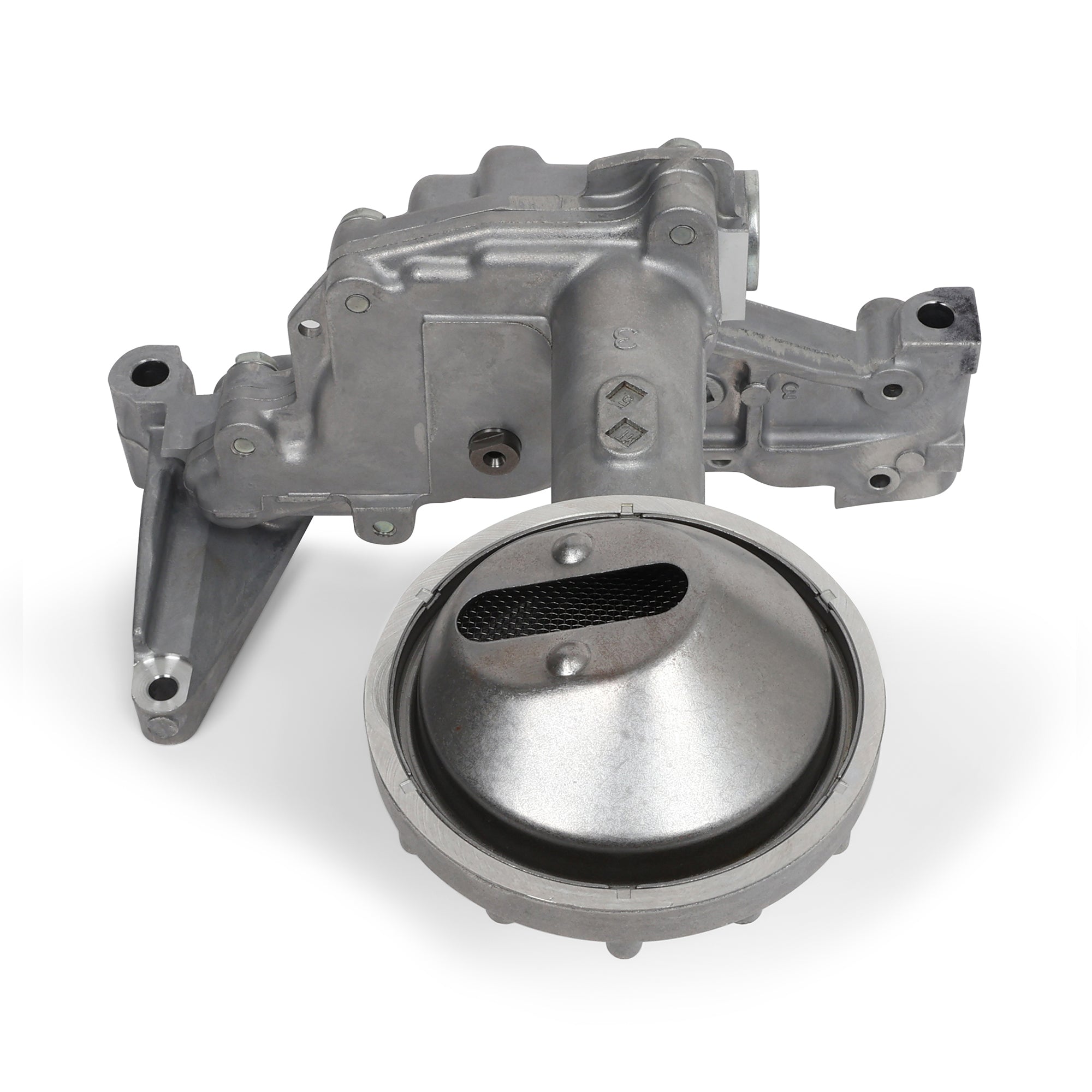

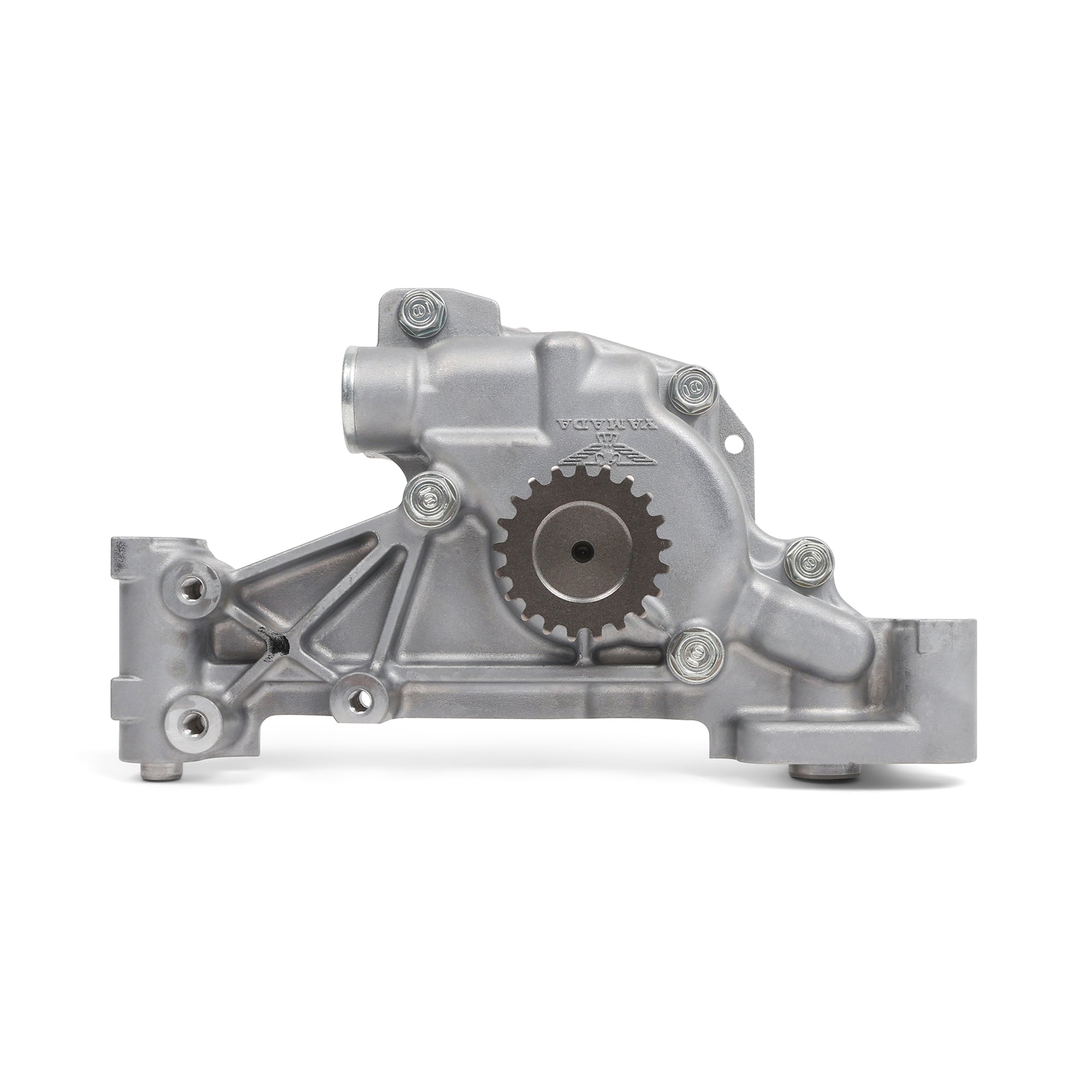

*Images show the new cut variant of the oil pump.
Items we used in this video:
Items we used in this video:
- K20A2 Oil Pump Assembly - OHA-15100-PRB-A01 (This part)
- K20A2 Windage Tray - 11221-PNC-000
- Windage Tray bolts (x6) - 95701-06014-08
- K20A2 Oil Pump Chain - 13441-PCX-004
- K20A2 Oil Pump Chain Guide - 13460-PNC004
- K20A2 Oil Pump Chain Tensioner - 13450-RAA-A02
- K20A2 Oil Pump Hardware:
- (x1) 95701-06025-08
- (x1) 95701-08050-08
- (x1) 95701-08075-08
2002-2006 Acura RSX
2004-2008 Acura TSX
2002-2011 Honda Civic Si
2003-2007 Honda Accord
2002-2006 Honda CRV
2003-2011 Honda Element
