Whiteline Rear Upper Control Arm Bushings for RSX/Civic/CRV

Whiteline Rear Upper Control Arm Bushings for RSX/Civic/CRV

Whiteline Rear Upper Control Arm Bushings replace the factory rear upper control arm outer bushings at the rear knuckle or hub connection on select Honda and Acura multi link rear suspensions. This joint is a primary pivot for the rear upper arm and it directly affects how consistently rear camber and toe are held under load because it locates the knuckle relative to the chassis through the upper link.

In factory form, this location typically uses bonded rubber bushings. Rubber compliance can allow the rear alignment to move as suspension load changes, and aged rubber can further increase unwanted movement at the knuckle pivot. W63383 is a polyurethane replacement bushing set intended to restore this pivot with a firmer, serviceable bushing design while retaining the factory geometry when installed in the standard orientation.

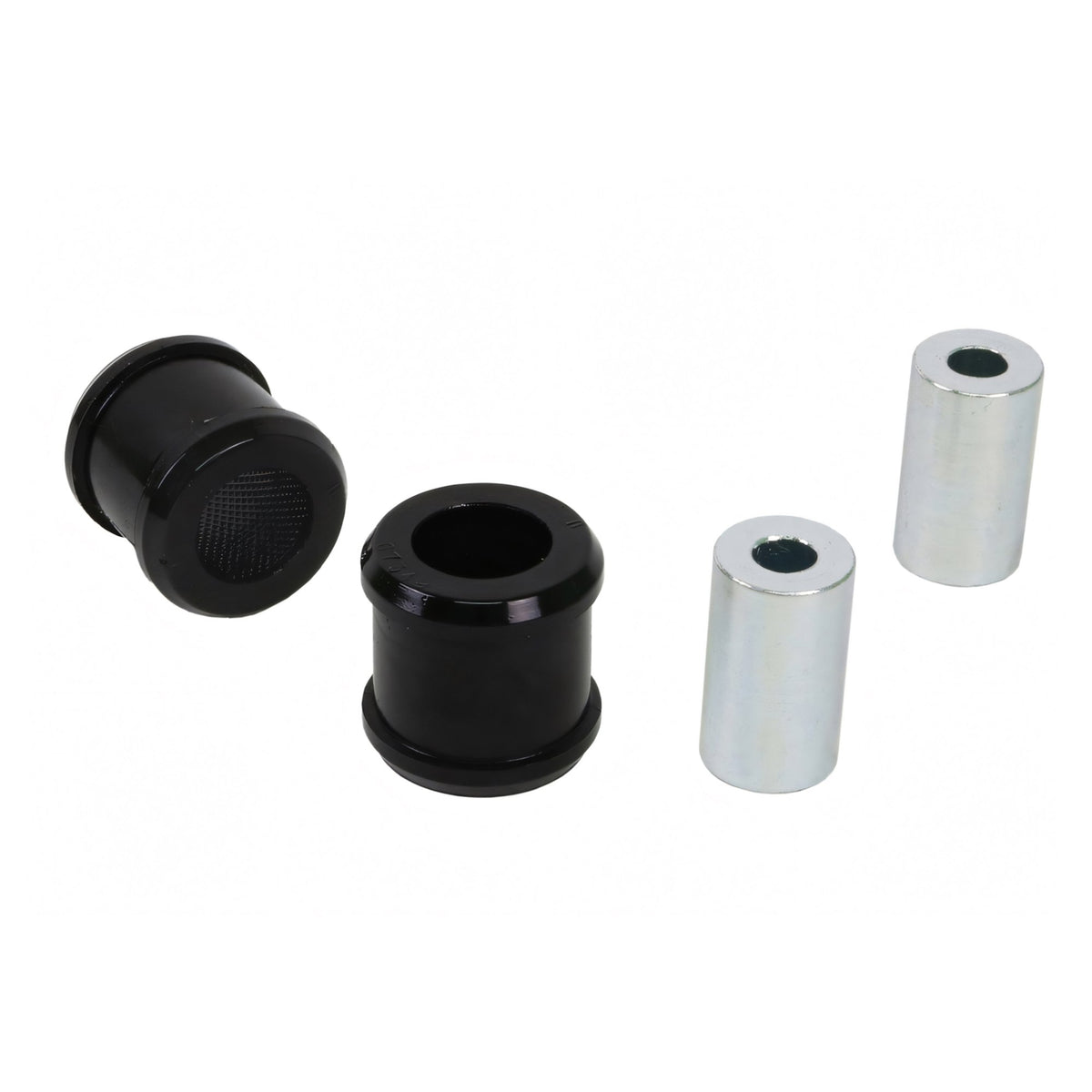

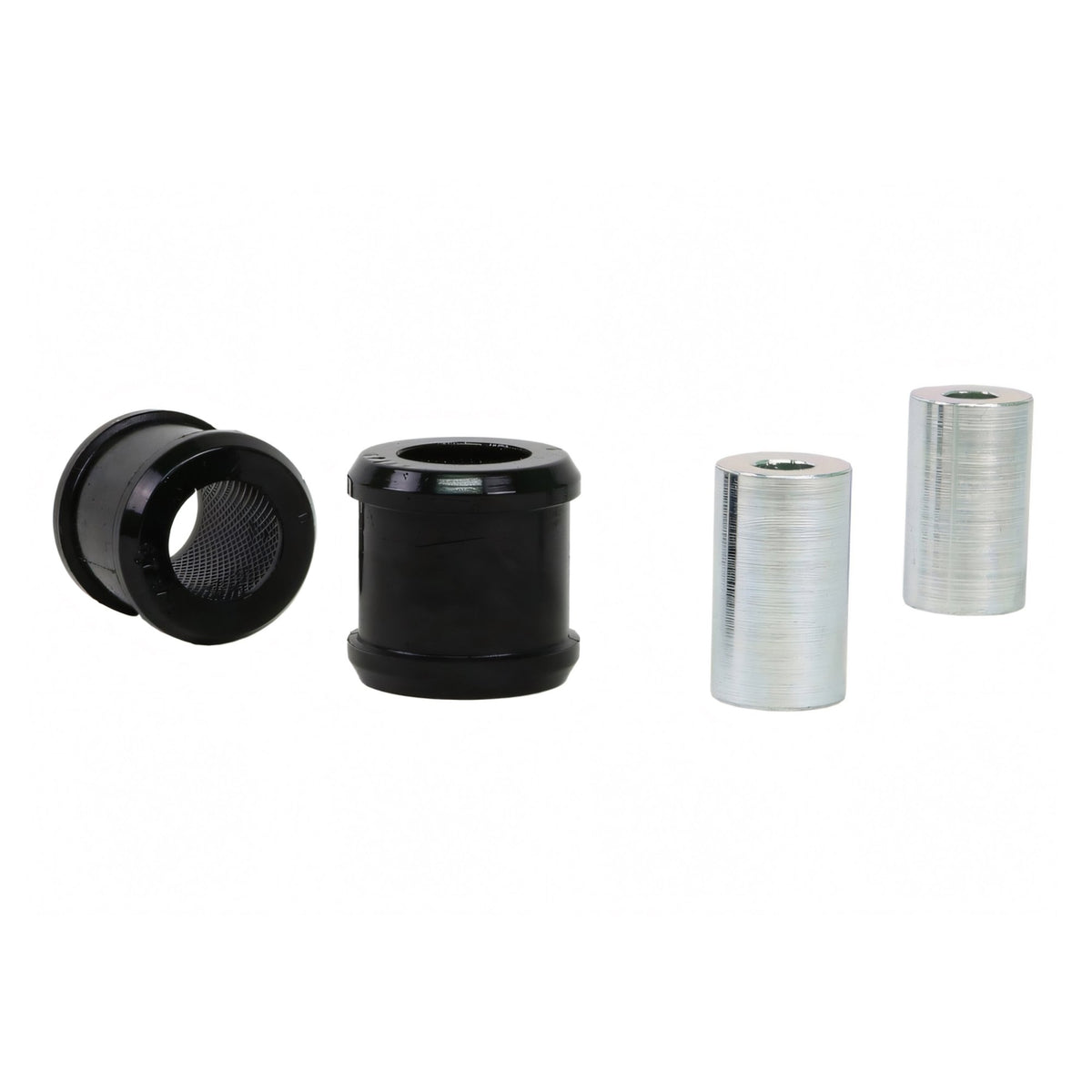

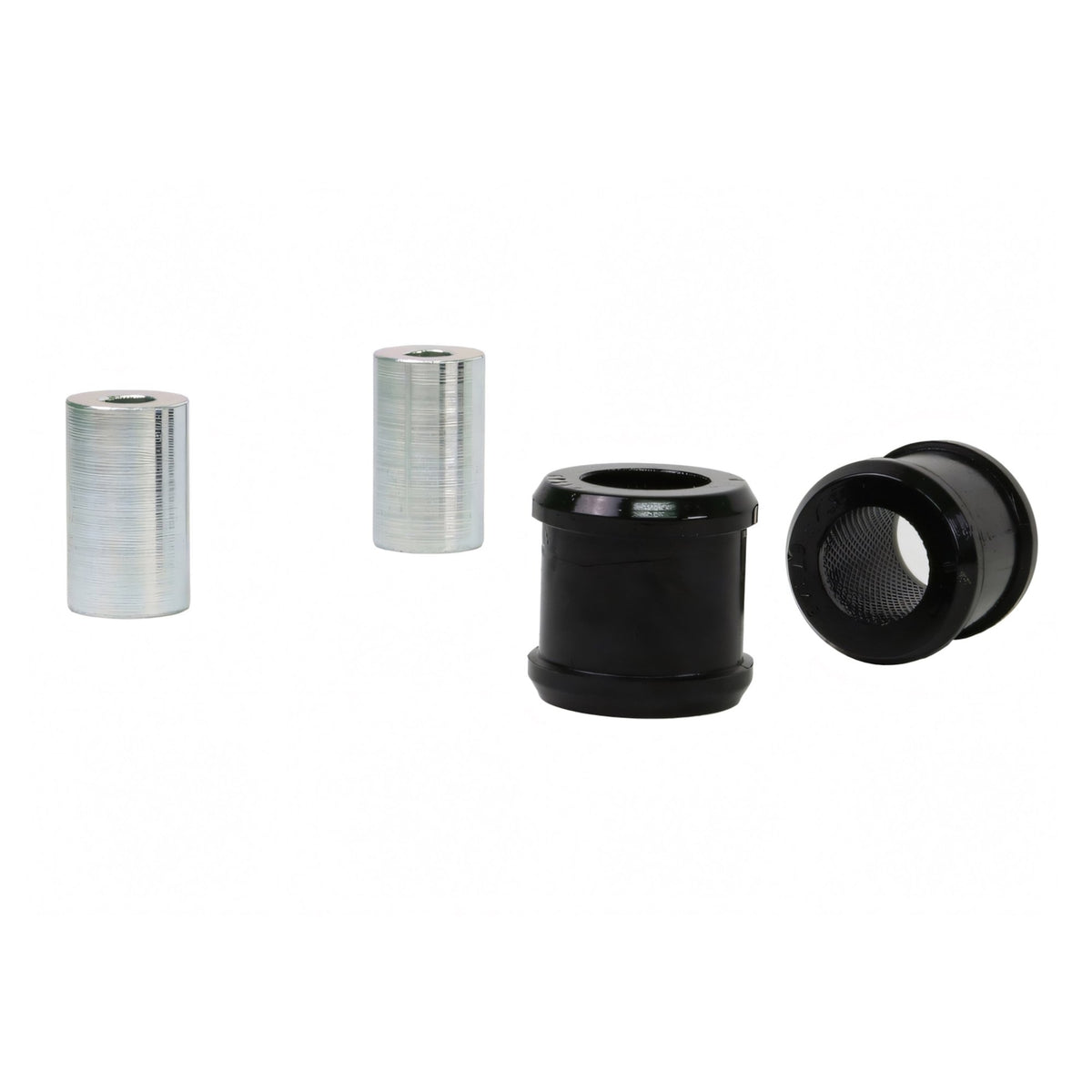

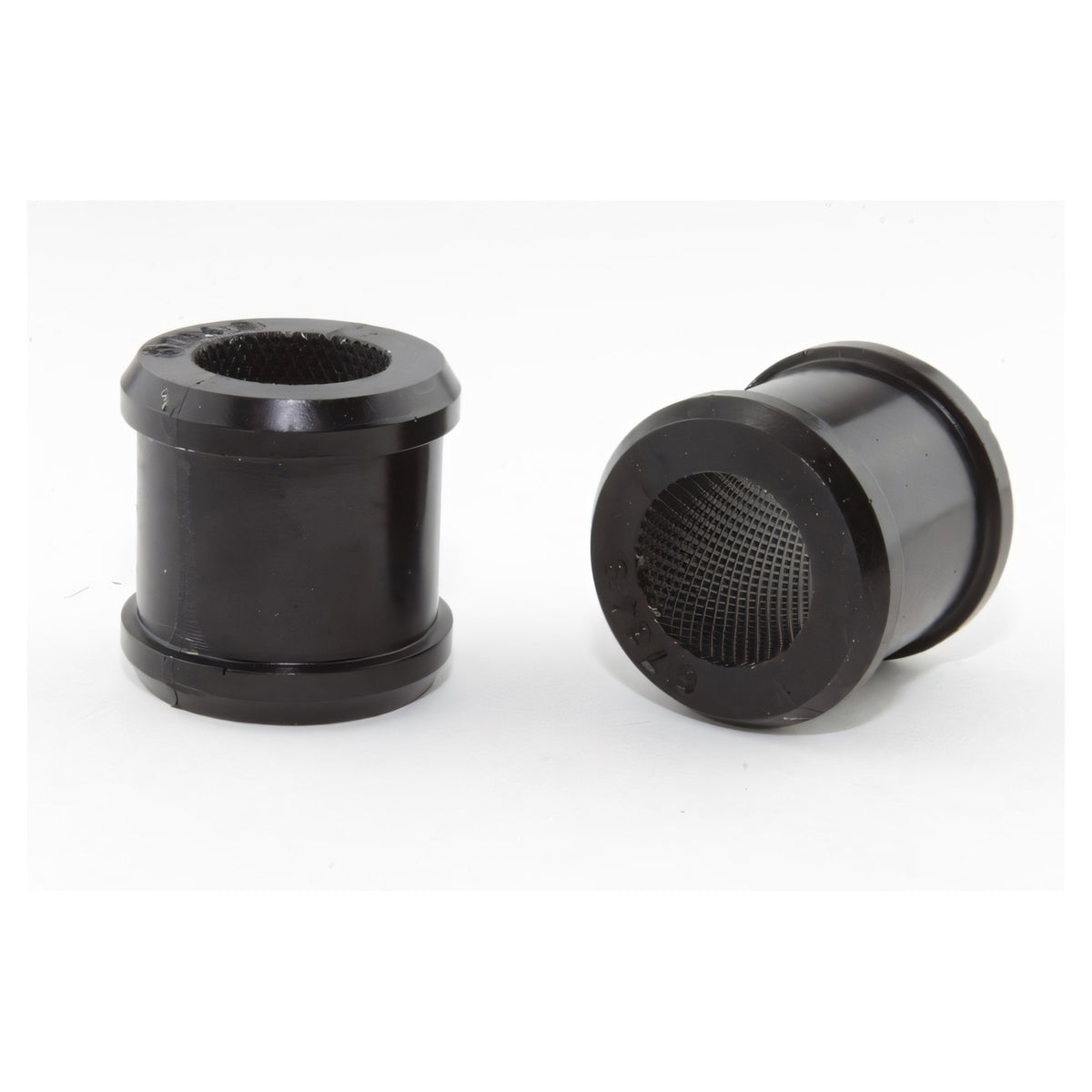

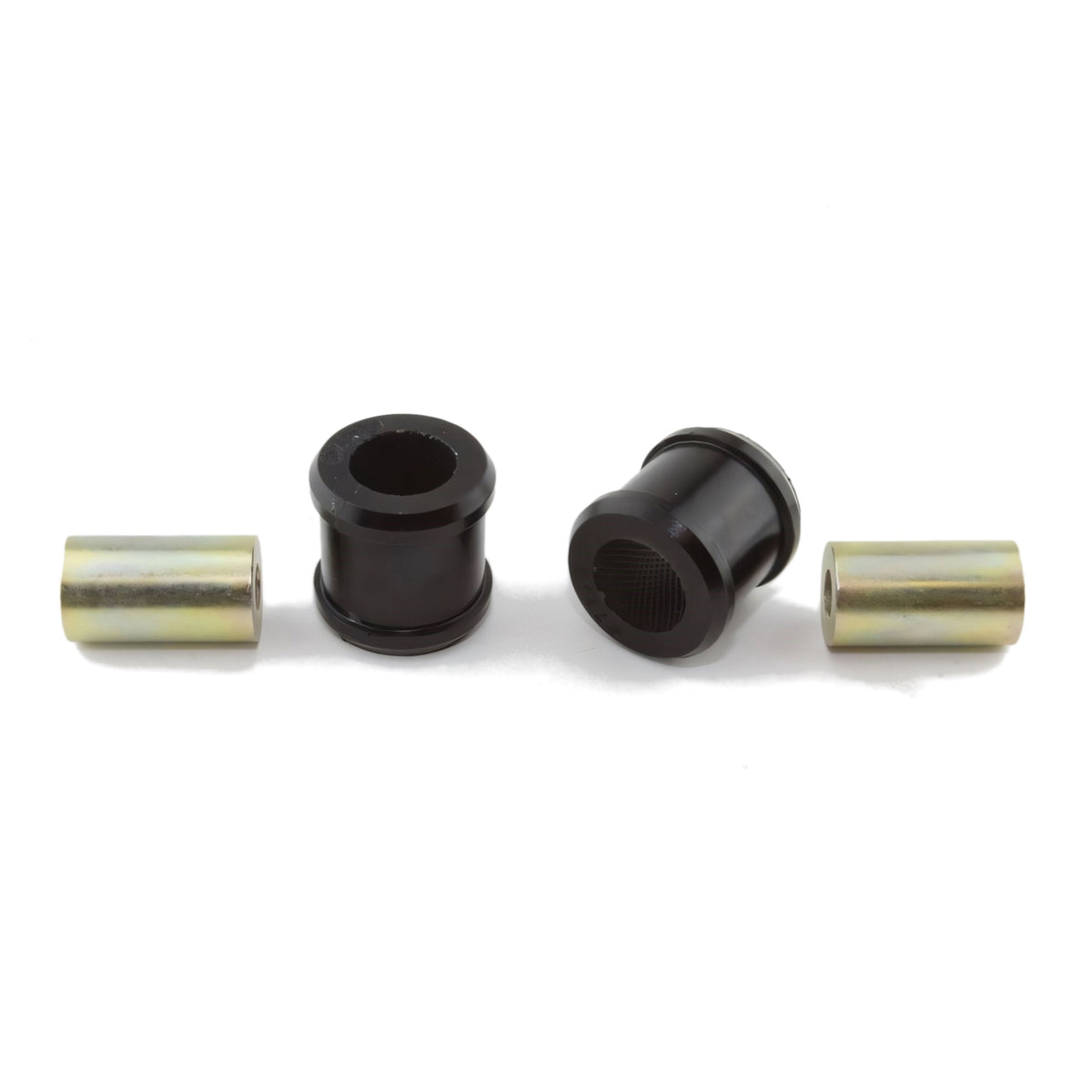

Functionally, the kit uses a two piece polyurethane bushing arrangement with steel crush tubes. The bushing halves are pressed into the knuckle or hub bushing bore after removal of the original bushing and outer shell. Supplied grease is applied to the bushing inner diameter and faces during assembly, and final tightening of suspension fasteners is intended to be performed at normal ride height per standard suspension service practice.

W63383 is selected when you want a direct replacement for the rear upper outer pivot without introducing a camber change. If rear camber correction or added camber adjustment range is required, Whiteline documents a separate eccentric camber adjustment bushing part number for the same location.

Key Features

• Part number W63383
• Position Rear upper control arm outer bushing at the knuckle or hub connection
• Type Polyurethane replacement bushing kit with steel crush tubes
• Geometry effect Standard replacement with no intended camber change when used in the standard replacement configuration
• Lubrication Uses supplied grease on bushing inner diameter and bushing faces during installation
• Installation scope Requires removal of the original bushing and outer shell and installation of the new polyurethane components, typically with a press and appropriate tooling

Fitment

• Acura RSX 2002 to 2006
• Honda Civic 2000 to 2005, non Si
• Honda CR V 2001 to 2006
