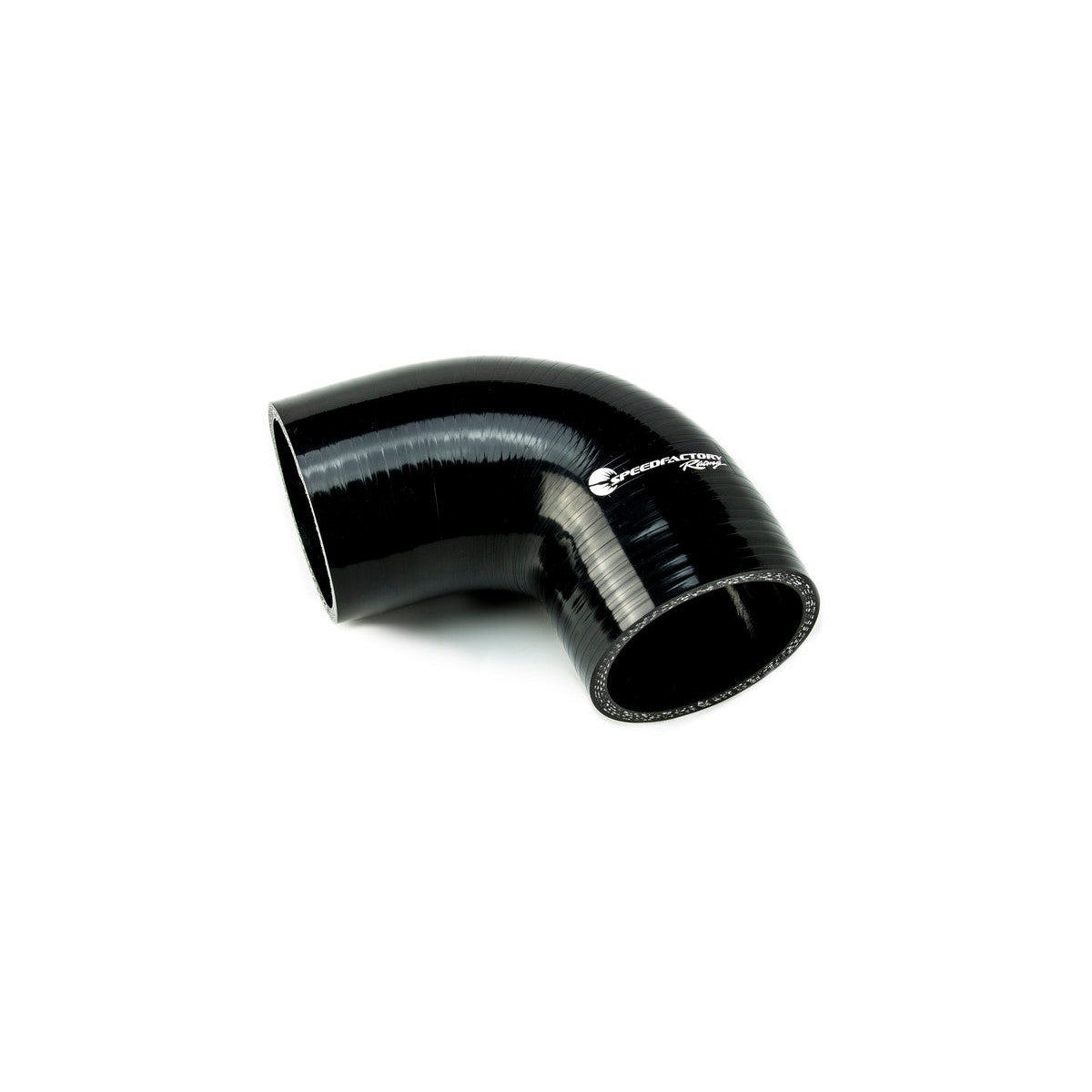

SpeedFactory Silicone 90 Degree Couplers from 2 to 3 Inch

SpeedFactory Silicone 90 Degree Couplers

Intercooler piping on a FWD Honda is a game of corners. The charge pipe drops off the turbo, dives behind the bumper, crosses the core, and climbs back to the throttle body, and nearly every one of those direction changes happens in space you can barely get a hand into. These SpeedFactory 90 degree couplers are built for exactly those joints, with the same 4 ply construction as the rest of their coupler line and enough leg length to actually work with.

What It Is and Why It Works

Each elbow is molded silicone reinforced with four plies of polyester and manufactured to the SAE J20 specification, the standard OEM charge-air hoses are built to. Temperature rating is -76°F to +376°F continuous, so they'll live right at the turbo if that's where your corner falls, and burst pressure is over 200 PSI, a ceiling that keeps the coupler from ever being the weak point at any boost level a street or drag build actually runs.

The detail that matters on a 90 is leg length: each leg is 3 inches. That's enough material to trim to fit, which turns one elbow into a range of joint geometries instead of a single fixed shape, and it gives your clamps a full sealing band even after trimming. A molded 90 also holds its shape under boost and vacuum, unlike a straight coupler forced around a corner, which kinks, stresses at the clamp line, and eventually fails there.

Five options cover the common cases. Three are same-size elbows in 2, 2.5, and 3 inch, and two are reducer elbows, 2 to 2.5 inch and 2.5 to 3 inch, that turn the corner and step the pipe size in one molded piece. On a typical turbo Honda that reducer elbow replaces a straight reducer plus a separate 90, which means one less joint, two fewer clamps, and one less place to chase a leak.

Specs

Available Sizes

Fitment

Universal. Size each end to the outside diameter of the pipe it joins. If your corner is gentler than a right angle, a 45 degree coupler will sit with less stress than a 90 forced open, and if the joint is straight, use a straight coupler and save a few bucks. Match the shape of the coupler to the shape of the joint and the piping stays sealed; fight the geometry and it won't.

What to Know Before You Buy

Trim the legs to fit your routing rather than living with extra length, since a 90 with long legs flopping past the joint transfers engine movement into the clamp line. T-bolt clamps over worm gears on anything boosted, one per leg, and remember the reducer elbows need two different clamp sizes. Seat each clamp fully on the silicone, recheck torque after a few heat cycles, and the corner is handled for good.
