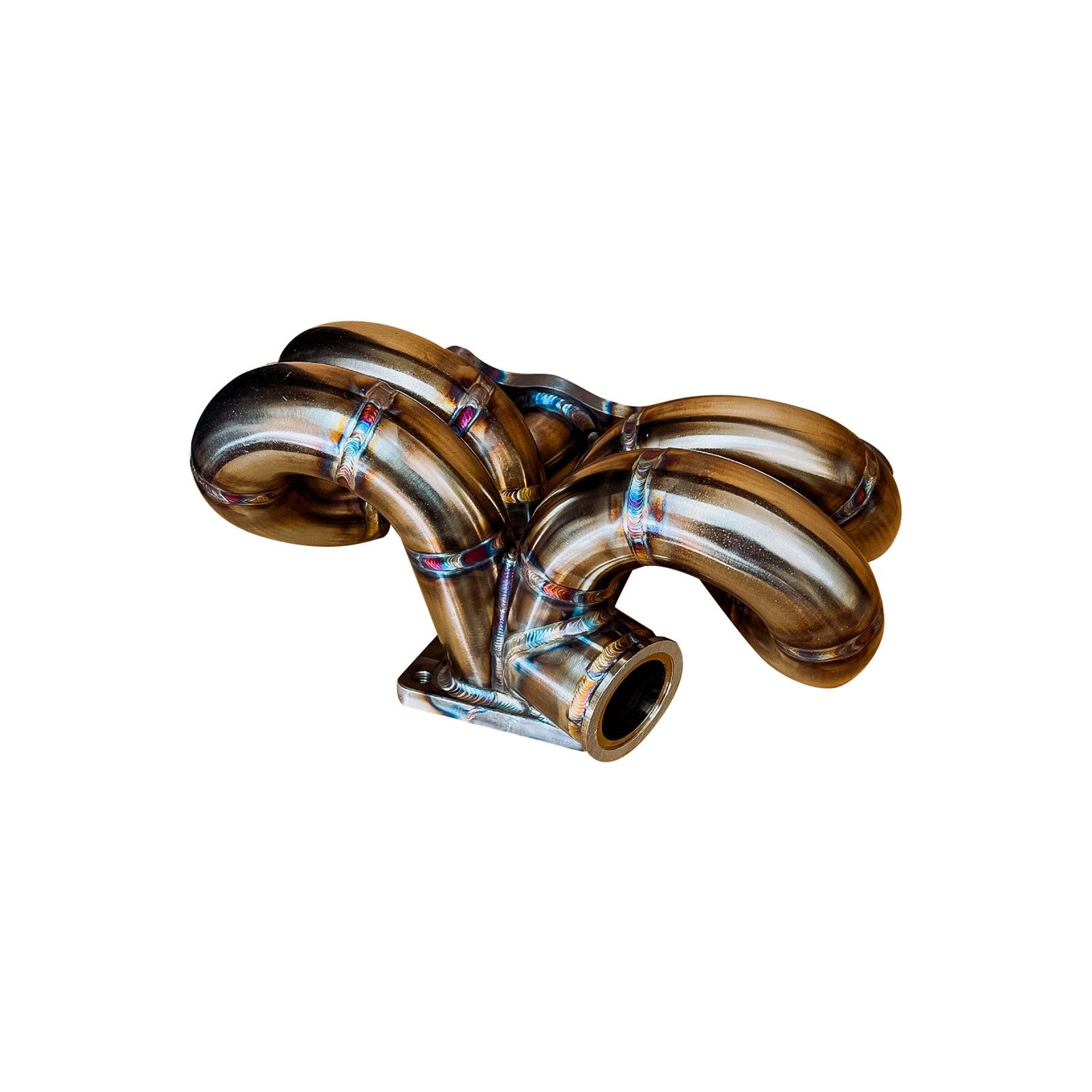

SpeedFactory Ram Horn Turbo Manifold for 06-11 Civic Si

SpeedFactory Ram Horn Turbo Manifold for the 06-11 Civic Si

The 8th gen Civic Si is one of the cheapest ways into a genuinely fast K series car, and the K20Z3 takes boost far better than its 197 factory horsepower suggests. If you're building an 8th gen Civic Si turbo setup around a big turbo, the manifold decides whether that power shows up early or all at once at redline. The SpeedFactory Ram Horn is the equal length option for FG2 and FA5 owners chasing serious numbers.

What It Is and Why It Works

This is an equal length, TIG welded turbo manifold for the 2006-2011 Civic Si, built from 1.5 inch Schedule 40 stainless steel and back purged during welding. Back purging keeps the inside of each weld from oxidizing, which is where thermal cracks start on manifolds that see sustained exhaust heat. The cylinder head, wastegate, and turbine inlet flanges are CNC machined from half inch 1018 steel plate with machined-flat mating surfaces, so you're not chasing exhaust leaks from a warped flange.

The equal length runner design is the point of a ram horn. Every cylinder's exhaust pulse travels the same distance to the collector, which keeps the pulses evenly spaced and drives the turbine harder at lower RPM. In practice that means this manifold spools even large frame turbos quickly and carries a broad powerband to the top of the K20's rev range instead of trading all your midrange for a peak number. SpeedFactory positions it for high power and drag race applications, and that's the honest read: this is the manifold for the build where a bolt-on kit's mid-frame turbo isn't the end goal.

Platform context matters here. A stock-bottom-end K20Z3 with a proper tune lives happily in the mid 300whp range on pump gas at conservative boost. Past roughly 500whp you're into lower compression and built internals territory, and this manifold has flow headroom well beyond that. If your target is a modest daily-driver setup around 300whp, the Ram Horn still works, but you're paying for capacity you may never use.

Specs

Fitment

SpeedFactory confirms fitment for the 06-11 Civic Si with both K20 and K24 engines, so K24 swap and stroker builds in the 8th gen chassis are covered, not just the factory K20Z3. This manifold is chassis-specific: it is not the same part as SpeedFactory's EG/EK/DC swap manifolds, and it won't cross over.

What to Know Before You Buy

Do not heat wrap this manifold. SpeedFactory's warranty covers welding defects only, for the original purchaser, and is voided on any manifold that's been heat wrapped or run with an improper downpipe or dump tube. Wrap traps heat in the tubing and cracks stainless manifolds, which is exactly why the exclusion exists. If you need to manage underhood temps, ceramic coating is the path that doesn't void anything.

Build the whole exhaust side right. A large frame turbo on any tubular manifold needs a downpipe that supports its own weight instead of hanging it off the collector, and the wastegate dump needs proper routing. SpeedFactory asks for photos of the installed setup on warranty claims, and an unsupported turbo is the fastest route to a cracked manifold and a denied claim.

Plan the supporting build before the manifold ships. These are made to order by SpeedFactory and typically take several weeks, sometimes more than a month. Use that window to sort the external wastegate for the 44/46mm V-band flange, fuel system, clutch, and engine management, because a K20Z3 under real boost needs a proper tune on FlashPro or equivalent before it sees full throttle. If you're unsure whether your turbo, gate, and boost target play well with this manifold, talk to us before ordering. A made-to-order part is a bad thing to guess on.
