SpeedFactory Racing Aluminum Tucked Radiator for Honda/Acura
SpeedFactory Racing Aluminum Tucked Radiator for Honda/Acura
SpeedFactory Racing Aluminum Tucked Radiator for Honda/Acura
SpeedFactory Racing Aluminum Tucked Radiator for Honda/Acura

SpeedFactory Racing Aluminum Tucked Radiator for Honda/Acura

  • Race and street application

  • Pressure tested

  • TIG welded

  • Compact design

$728.69 $728.69 $728.69 /
Subscription

Select an option to add this to your cart

On Backorder Only Available Available 40+ in stock Available

PRODUCT DETAILS

SpeedFactory Racing Aluminum Tucked Radiator for Honda/Acura B/D/H/F/K/J Series Engines

Maximize engine bay space and upgrade your cooling system with the SpeedFactory Racing Aluminum Tucked Radiator, engineered for high-performance Honda and Acura applications. Whether you’re building a street car, track machine, or showpiece, this tucked radiator provides reliable cooling with a clean, minimalist look that clears space for turbo kits, custom piping, and wire tucks.

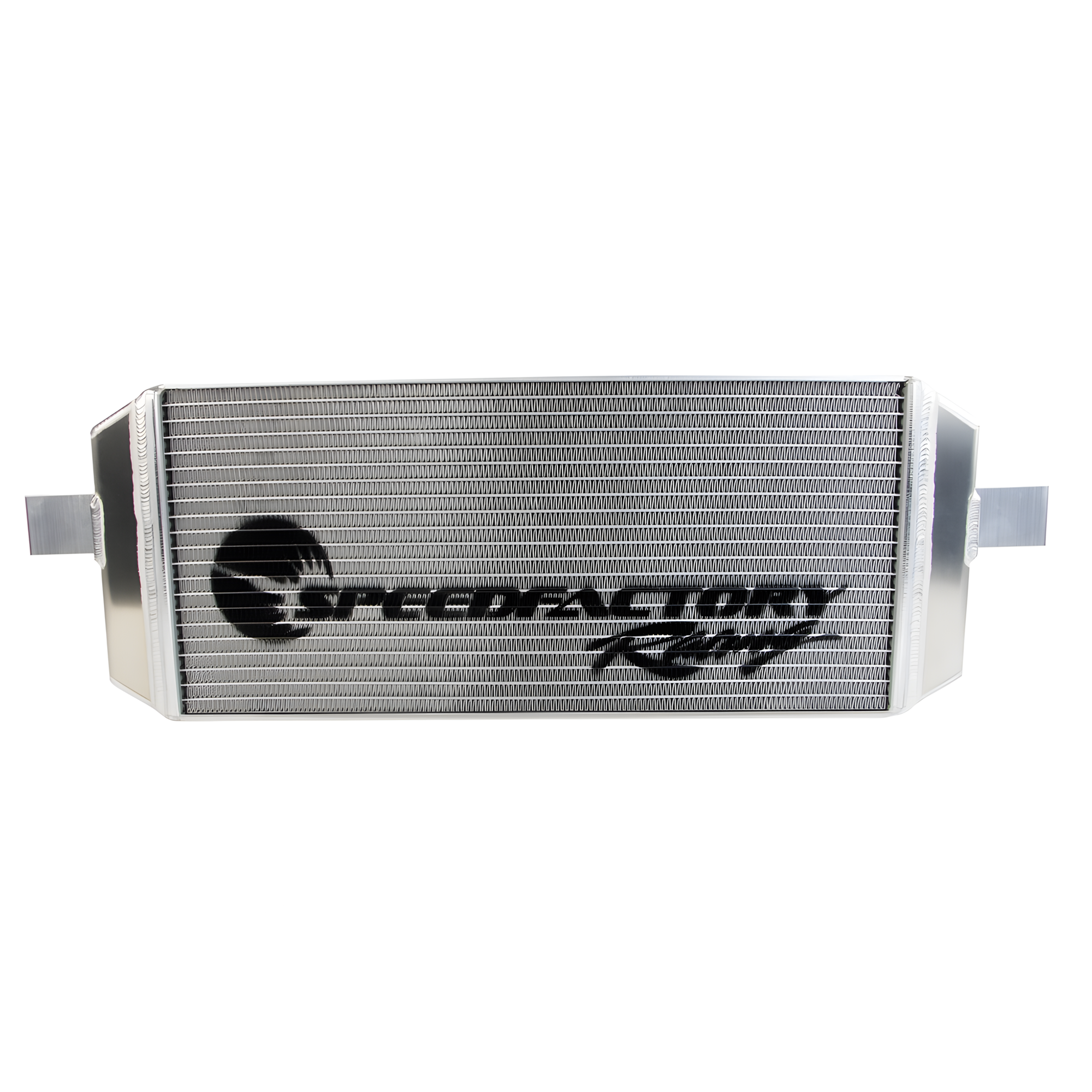

This radiator features a dual pass, dual row core design for improved heat dissipation over factory units. Constructed from high-quality H-3 5052 aluminum, the tanks are CAD designed and precision formed for a perfect fit and optimal strength. Every unit is professionally TIG welded and pressure tested to ensure leak-free performance under demanding conditions.

Key Features:

  • Compatible with Honda/Acura B, D, H, F, K, and J series engines
  • Dual row core with dual pass design for maximum cooling efficiency

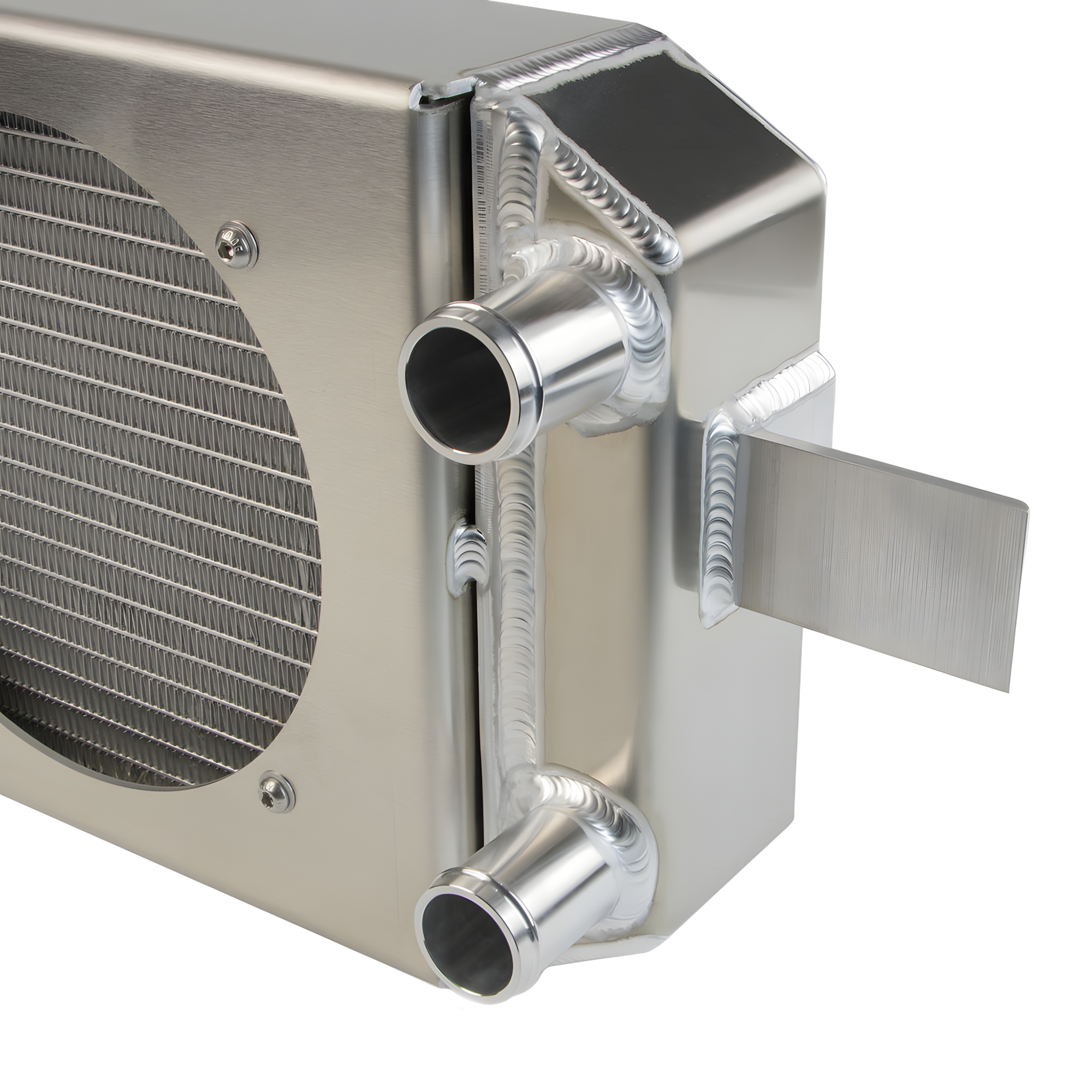

  • Available with 32mm hose fittings or -16AN male fittings for custom setups

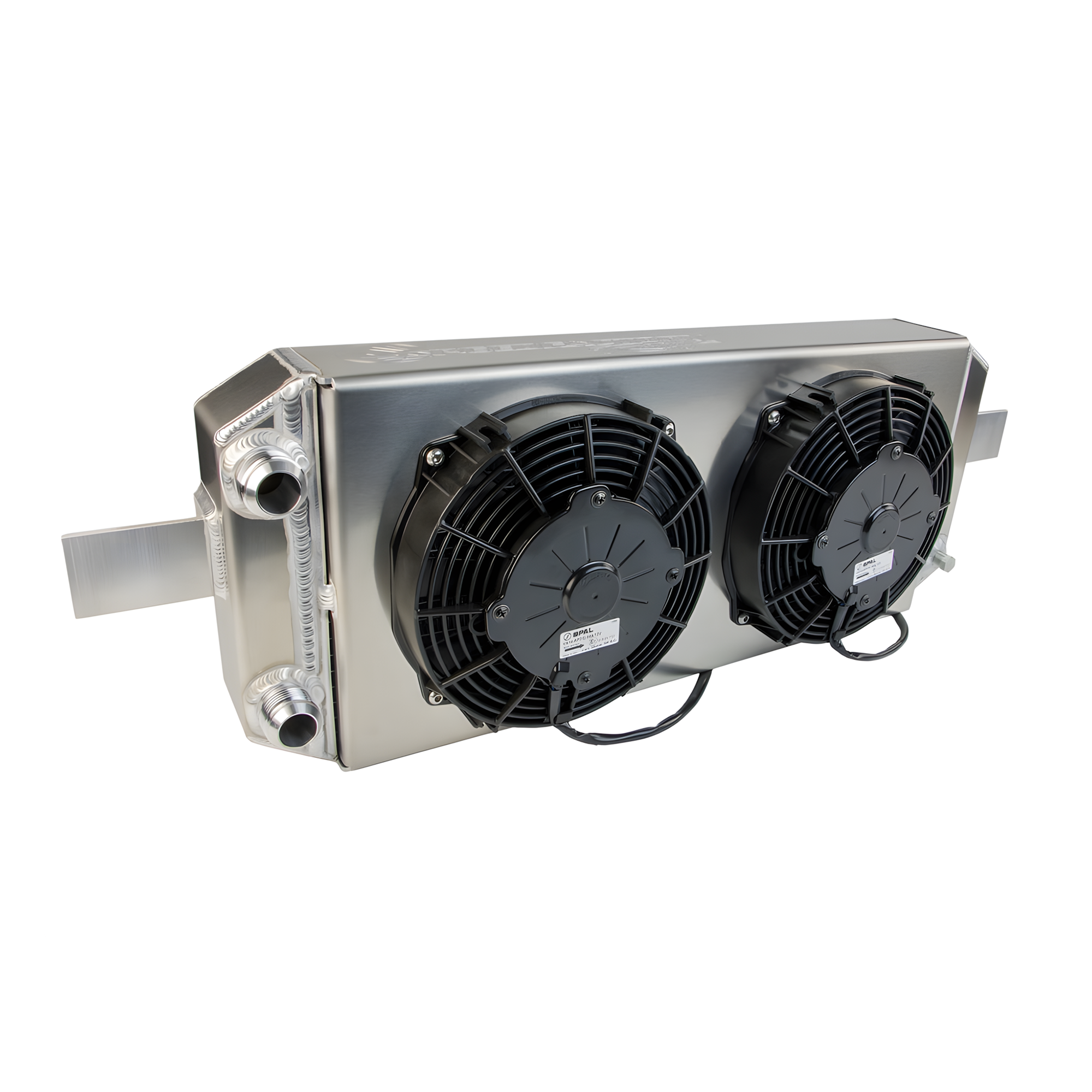

  • Dual SPAL 7.5" cooling fans with a 1-piece aluminum shroud and CNC engraved SpeedFactory logo
  • -6AN ORB drain fitting for easy servicing
  • Two 3/16" thick aluminum mounting tabs (custom drilling required)
  • Overall dimensions: 24" W x 9.5" H x 5.5" D (including fans and shroud)

Outlet Location by Engine Type:

  • B/D/H/F Series: Back right side of the radiator
  • K/J Series: Back left side of the radiator

Installation Notes:

This radiator is a custom-fit upgrade and requires drilling of mounting holes and in some cases cutting

Honda/Acura
INSTALLATION:
Minor drilling for the mounting holes (and in some applications minor cutting of the radiator support) is necessary for installation.

**NOTE** The mounting tabs do not come with holes drilled in them because many applications will need to have the holes drilled in slightly different locations.
SPAL Fan Specifications:
  • 7.5" Straight Blade Puller Fan, 437 CFM
Overall dimensions:
 24" wide x 9 1/2" tall x 5 1/2" thick (Thickness includes fan shroud and fans).
Welded inlet / outlet fittings are either -16AN male -OR- 32mm billet hose ends
Radiator drain fitting is -6AN ORB (O-Ring Boss)

Our fitting configuration recommendations are as follows:

B Series Cylinder Head:
  • Thermostat Housing - 45 Degree
  • Fitting Bottom of Radiator - 45 Degree
  • FittingFiller Neck - 45 Degree Fitting
  • Top of Radiator - 45 Degree Fitting

K-Series Engines:
  • Thermostat Housing - 45 Degree Fitting
  • Bottom of Radiator - 90 Degree Fitting
  • Filler Neck - 45 Degree Fitting
  • Top of Radiator - 45 Degree Fitting
