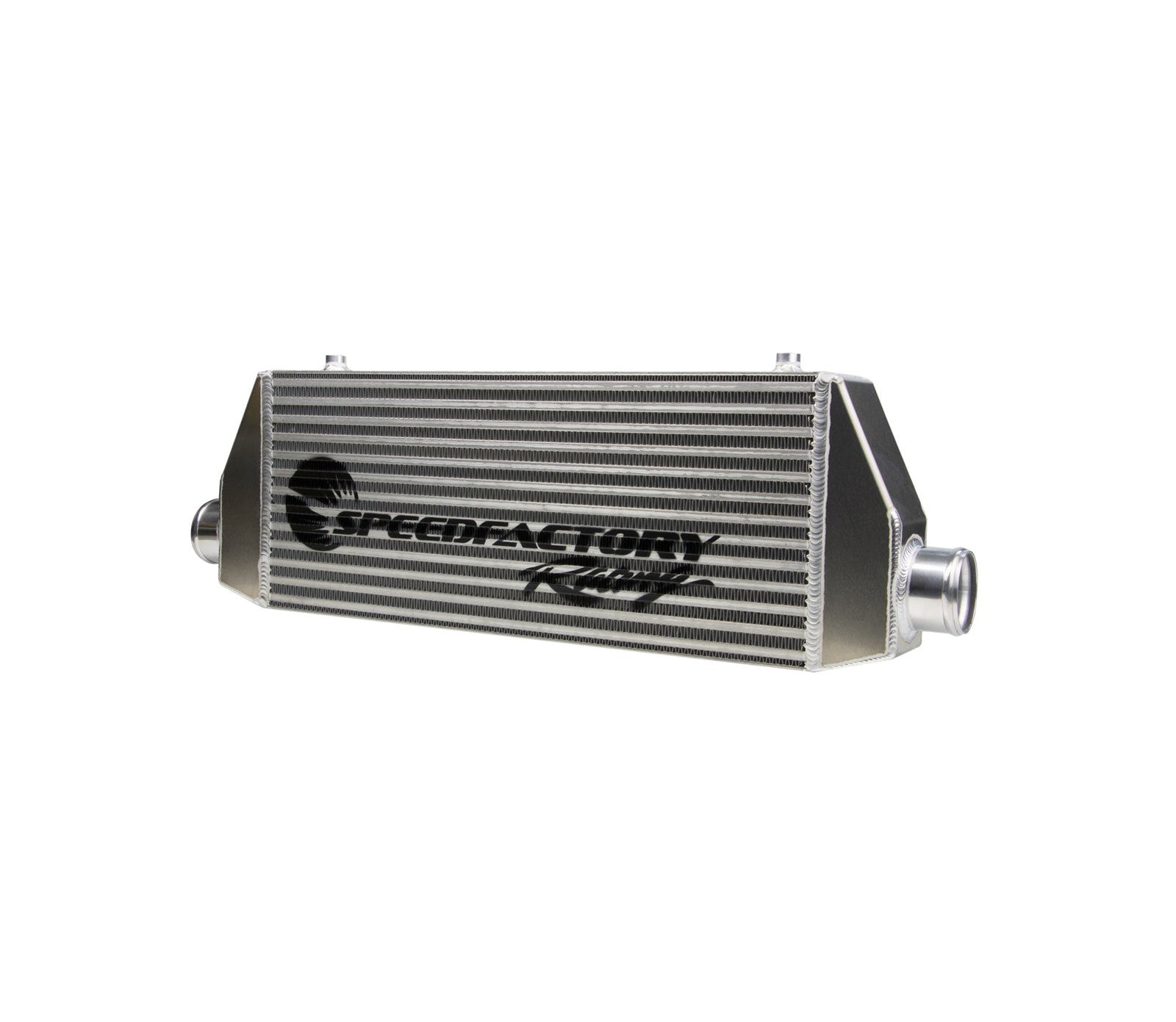

SpeedFactory 300-500 HP Universal Front Mount Intercooler

SpeedFactory Street Side Inlet/Outlet Intercooler - 300-500HP

Ask anybody who's front-mounted a turbo setup on an old Honda what the worst part was. It's never the intercooler itself, it's the hour with a Sawzall butchering the bumper reinforcement, hacking up the support structure, and hoping the bumper cover still clips back on afterward. This SpeedFactory Street intercooler is built specifically to spare you that. The side inlet and outlet design routes your piping out the ends instead of the face, which is what lets it tuck into a tight bay, and in most applications you'll need minimal to no bumper cover or reinforcement modification to get it in. Same cooling, way less surgery.

Why Side Inlet Changes The Install

Here's the thing about a conventional intercooler in an EG, EK, or DC: the core takes up the space, and then the inlet and outlet stick out and take up more, so you're cutting into structure just to make room for piping. Going side inlet/outlet moves those connections to the ends of the core where there's already room for them, so the whole assembly packages far tighter behind the bumper. That's why this thing fits cars where a normal front mount turns into a fabrication project. If you're building a car that still has to look and work like a car, this is the design you want.

Bar And Plate, Because Cooling Is The Whole Job

The core is 3.0" thick bar and plate, which is the construction that matters if you actually care about charge temps. Bar and plate cores are denser and more durable than the cheap tube-and-fin stuff, and they don't split at the seams when you hit them with real boost pressure. SpeedFactory runs a specific staggered fin combination in there, and that's not marketing, it's the balance every intercooler is fighting: you want maximum heat transfer without choking flow and creating pressure drop. Too aggressive and you kill your spool; too open and you don't cool anything. The staggered arrangement is how they thread that needle. The result is genuinely colder, denser air going into your motor, which is the entire reason you're bolting on an intercooler in the first place.

The End Tanks And Tube Ends

The end tanks are hand-formed in house from H-3 5052 aluminum and fully TIG welded, so you're not getting a cast tank with a mystery weld holding it on. And pay attention to this detail, because it's the one that saves your weekend: the 2.5" inlet and outlet tubes are bead rolled. That raised bead is what gives your silicone coupler and clamp something to actually bite against. Run smooth tube ends and eventually you're going to blow a coupler off at full boost, usually at the worst possible moment, and then you're pulling over to find your intercooler pipe lying on the ground. Bead rolled ends just don't do that.

Bungs Are Already On It

Nice touch that saves you real work: it ships with 8x1.25mm aluminum mounting bungs already welded on. So you're not measuring, tacking, and hoping your mounts line up, you just fabricate simple brackets and bolt it in. It also comes with the SpeedFactory logo stenciled on the face of the core, which looks right peeking through a bumper.

Be Honest About Your Power Goal

This one's rated for 300-500 horsepower, and that range is where it does its best work. For a street or street/strip Honda in that window, it's ideal, plenty of cooling capacity without oversizing the core and hurting your spool or your packaging. If you're building something way past 500, you've outgrown this core and you want a bigger one, and no amount of wishing changes that. But most turbo B, D, and H builds live right in this range, and this is exactly the intercooler for them.

What You Get

• SpeedFactory Street side inlet/outlet intercooler
• Rated for 300-500 horsepower
• 3.0" thick SpeedFactory bar and plate air-to-air core with staggered fin design
• Core size: 22" x 9" x 3.0"
• Overall size: 30" inlet to inlet x 9" tall x 3.0" thick
• 2.5" inlet and 2.5" outlet with bead rolled tube ends
• Hand-formed H-3 5052 aluminum end tanks, fully TIG welded
• 8x1.25mm aluminum mounting bungs pre-attached
• SpeedFactory logo stenciled on the core face
• Universal fitment, minimal to no bumper modification in most applications

Fits These Cars

• Universal application
• Best fitment on the 1994-2001 Acura Integra
• Best fitment on the 1992-2000 Honda Civic
• Best fitment on the 1993-1997 Honda Del Sol

Note: Universal intercooler rated for 300-500 horsepower. Core measures 22" x 9" x 3.0"; overall dimensions are 30" inlet to inlet x 9" tall x 3.0" thick with 2.5" inlet and outlet. Mock up before final installation, as fitment varies by chassis and turbo setup. Piping, couplers, and clamps sold separately. One intercooler per order.
