PRODUCT DETAILS

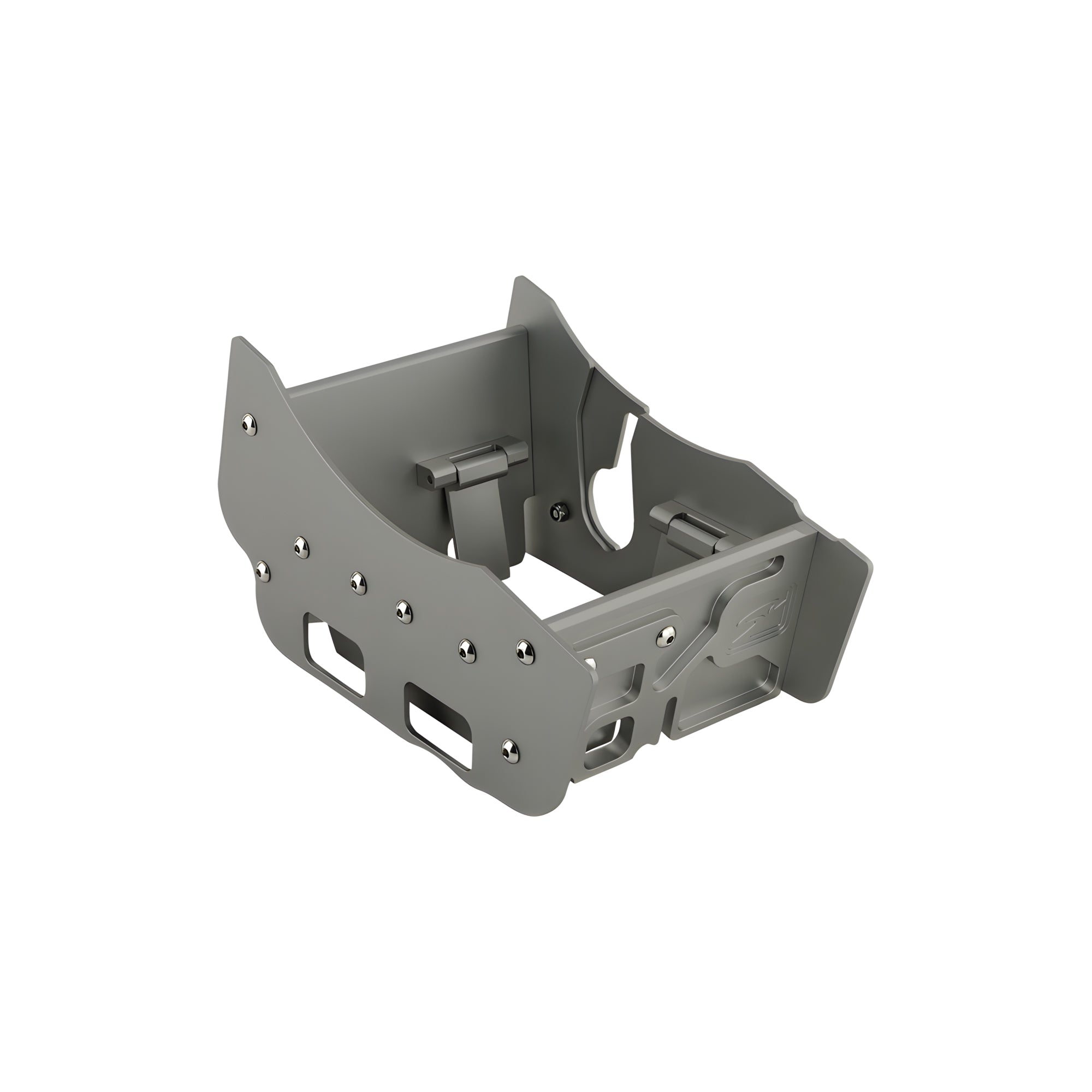

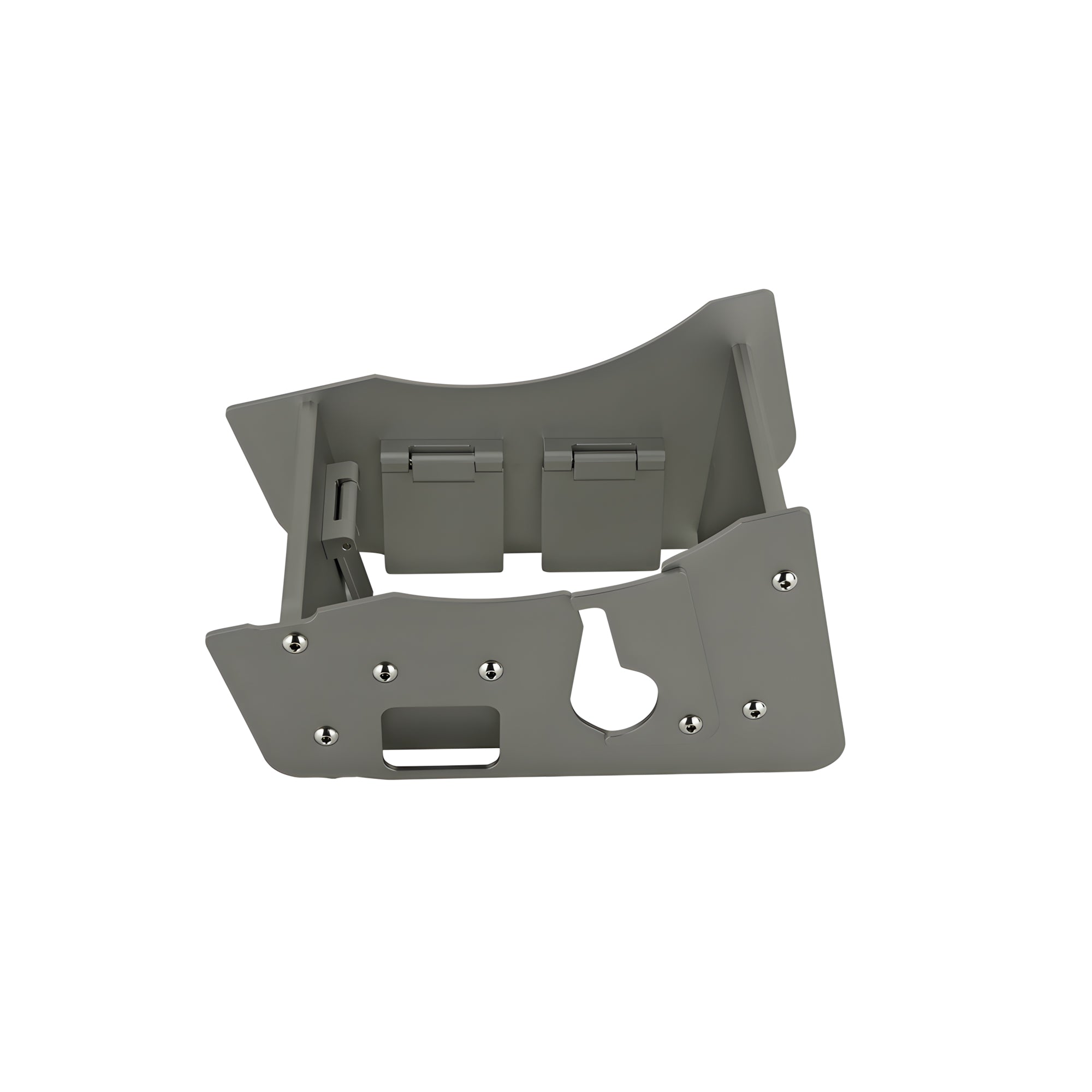

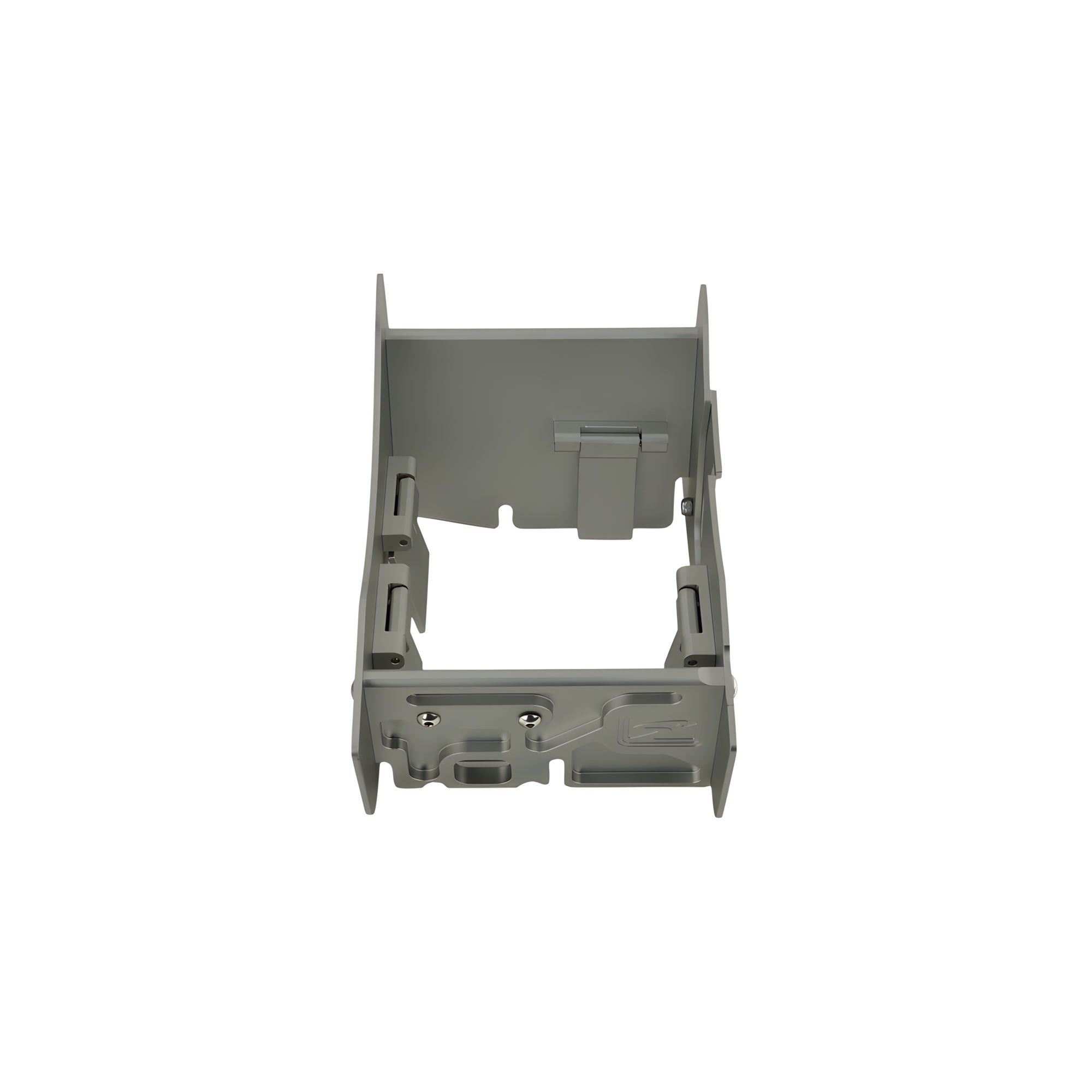

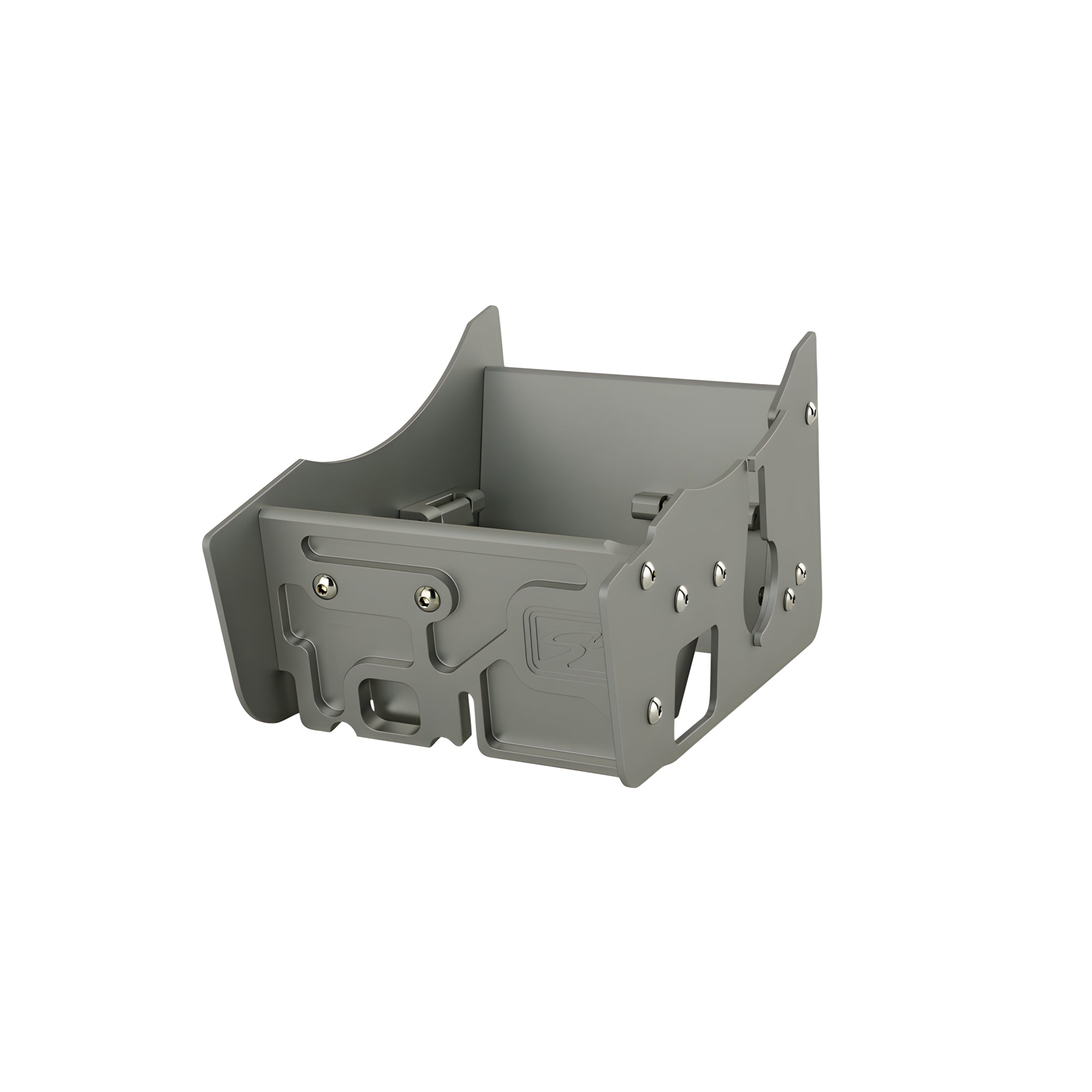

Skunk2 Oil Pan Baffle for Honda/Acura K-Series Engines
The Skunk2 Racing K-Series Billet Drop-in Oil Pan Baffle is the ultimate solution for enthusiasts who push their K-powered vehicles to the limit. Engineered to combat oil starvation during hard cornering, braking, and acceleration, this oil pan baffle prevents the oil pump from scavenging air—ensuring consistent lubrication and protecting your engine under extreme conditions. Made from CNC-machined 6061-T6 billet aluminum with an anodized finish, the Skunk2 baffle is a cost-effective, reliable oil control upgrade for both street and track use.

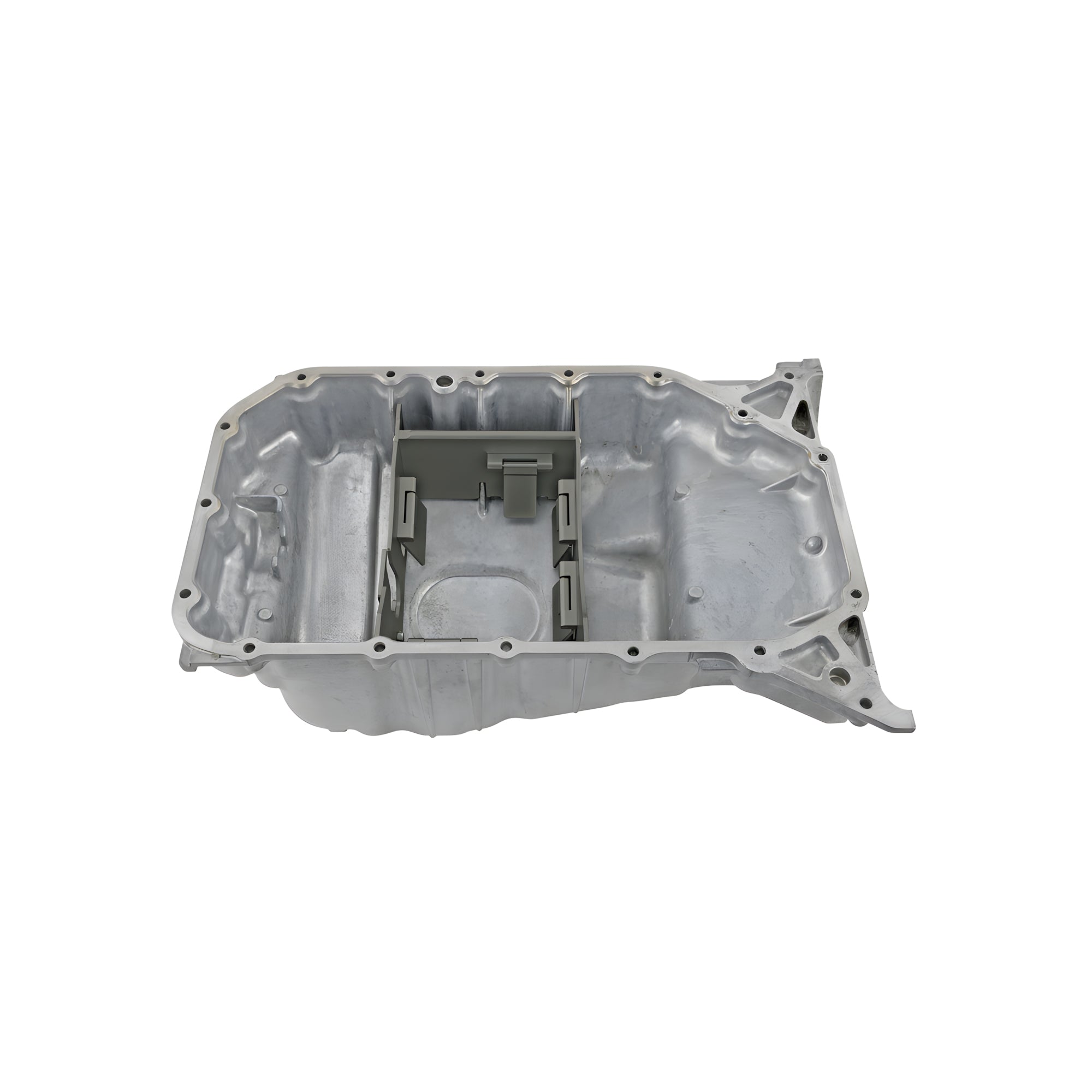

The baffle works by boxing in the area surrounding the oil pump inlet, creating a sump-within-a-sump. Its one-way trap doors allow oil to flow into the pump area but keep it from escaping during high G-load situations. This clever design ensures the pump has a steady supply of oil, reducing the risk of engine damage from oil starvation. Best of all, installation is simple: the baffle drops directly into your OEM Honda oil pan with no welding required and secures with a single bolt.
This oil pan baffle is a direct-fit solution for several Honda and Acura models, including the 2002-2006 Acura RSX, 2002-2005 Honda Civic Si, 2001-2006 Honda Integra Type R, and 2001-2005 Honda Civic Type R. It is also compatible with other K20 and K24 engines when paired with the PRB Type-S oil pump. For track day enthusiasts, spirited street drivers, or anyone building a reliable K-series setup, the Skunk2 Oil Pan Baffle is a must-have upgrade.
Key Features:
- Prevents oil starvation during hard driving
- Open-top design for maximum oil return flow
- One-way trap doors keep oil around the pump inlet under high G-loads
- Easy single-bolt installation (no welding required)
- Direct drop-in fitment with OEM Honda oil pans
- CNC-machined billet 6061-T6 aluminum construction with anodized finish
Direct Fit Applications:
- 2002-2006 Acura RSX Type-S (K20A2, K20Z1) – USDM
- 2001-2006 Honda Integra Type R (K20A) – JDM
- 2001-2005 Honda Civic Type R (K20A) – JDM
- 2001-2005 Honda Civic Type R (K20A2) – UKDM
- 2002-2005 Honda Civic Si (K20A3/K20Z1) – USDM (with PRB oil pump)
Compatibility with Other K-Series Engines:
Fits additional K20 and K24 engines when using the following RSX Type-S parts:
- RSX Type-S Oil Pan: 11200-PRB-000 or 11200-RAA-A00
- RSX Type-S Oil Pump: 15100-PRB-A01 (without balance shafts)
- RSX Type-S Chain: 13441-PCX-004
- RSX Type-S Chain Guide: 13460-PNC-004
Note: Not compatible with RRB oil pans or oil pumps with balance shafts.
The Skunk2 Racing K-Series Oil Pan Baffle is an essential upgrade for any high-performance Honda or Acura K-series build. Protect your investment and keep your engine running strong with Skunk2’s proven oil control technology.
