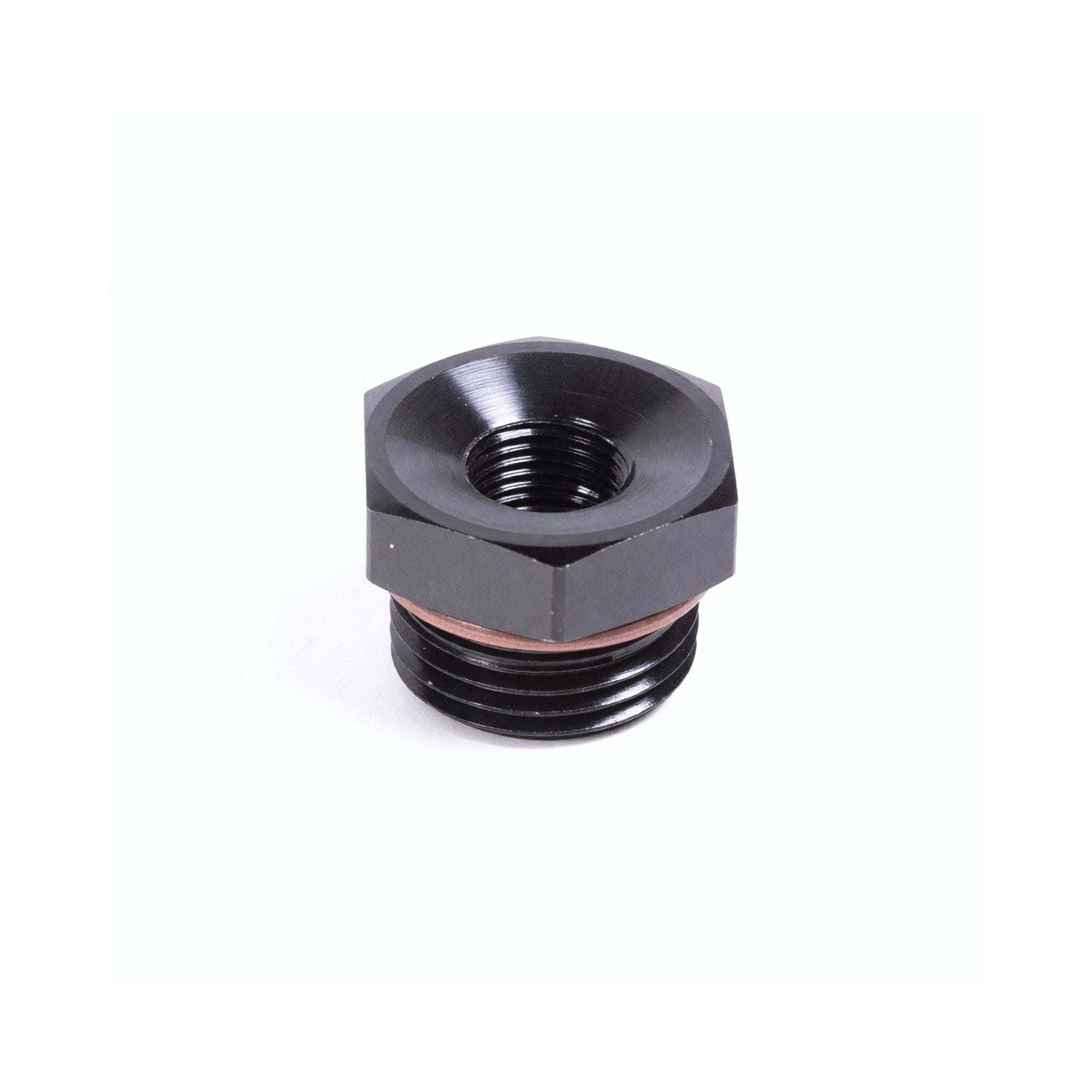

Radium 8AN ORB to 1/8 NPT Female Adapter for Fuel Sensors

Radium Engineering 8AN ORB to 1/8 NPT Female Adapter - Part #14-0119

Every Radium fuel rail, surge tank, and regulator has an 8AN ORB port somewhere that you want to put a gauge or a pressure sensor in, and every gauge and sensor is 1/8 NPT. Radium's 14-0119 is the adapter that closes that gap: 8AN ORB male on one end, 1/8 NPT female on the other, so a fuel pressure sender or a mechanical gauge threads into an O-ring port without a second adapter.

What It Is and Why It Works

The ORB end threads into any 8AN ORB (3/4-16) port and seals on its O-ring against the port's chamfer, so no sealant goes on that side and it can be removed and reinstalled without wear. The 1/8 NPT female end takes the tapered thread of a gauge or sensor, and that side gets PTFE tape or paste like any NPT joint. On a K-series with a Radium rail, this is how the fuel pressure sensor for the ECU goes in the rail's spare port instead of tee'd into a line, which gives you a real rail-pressure reading and one fewer hose joint. It also works on any other brand's 8AN ORB port; the thread is standard.

Specs

Fitment

Not vehicle-specific. It does not fit an 8AN male flare; ORB and flare are different threads and seals.

What to Know Before You Buy

Tape or paste on the NPT side only. Sealant on the ORB side does nothing and can foul the O-ring. Don't over-torque a brass or aluminum sensor into an aluminum NPT port; NPT threads wedge, and a couple of turns past hand tight is plenty. If you're mounting a heavy mechanical gauge, support it; the 1/8 NPT thread is not a bracket. Radium lists this fitting in black, and some dealers show green; the thread and function are the same.
