PRODUCT DETAILS
PRL Motorsports 3" Front Pipe (FL5-FP) - 2023-2026 Honda Civic Type R (FL5)

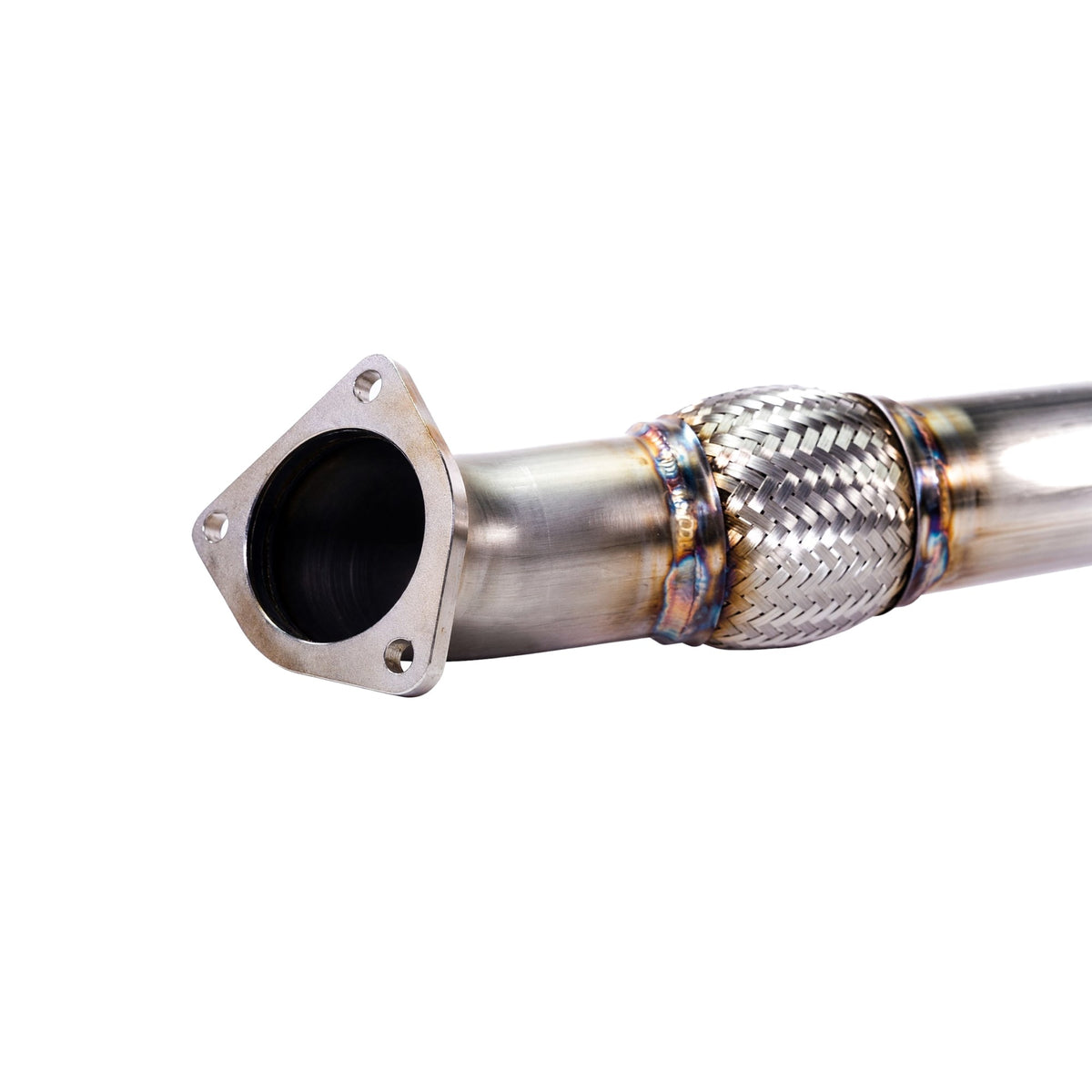

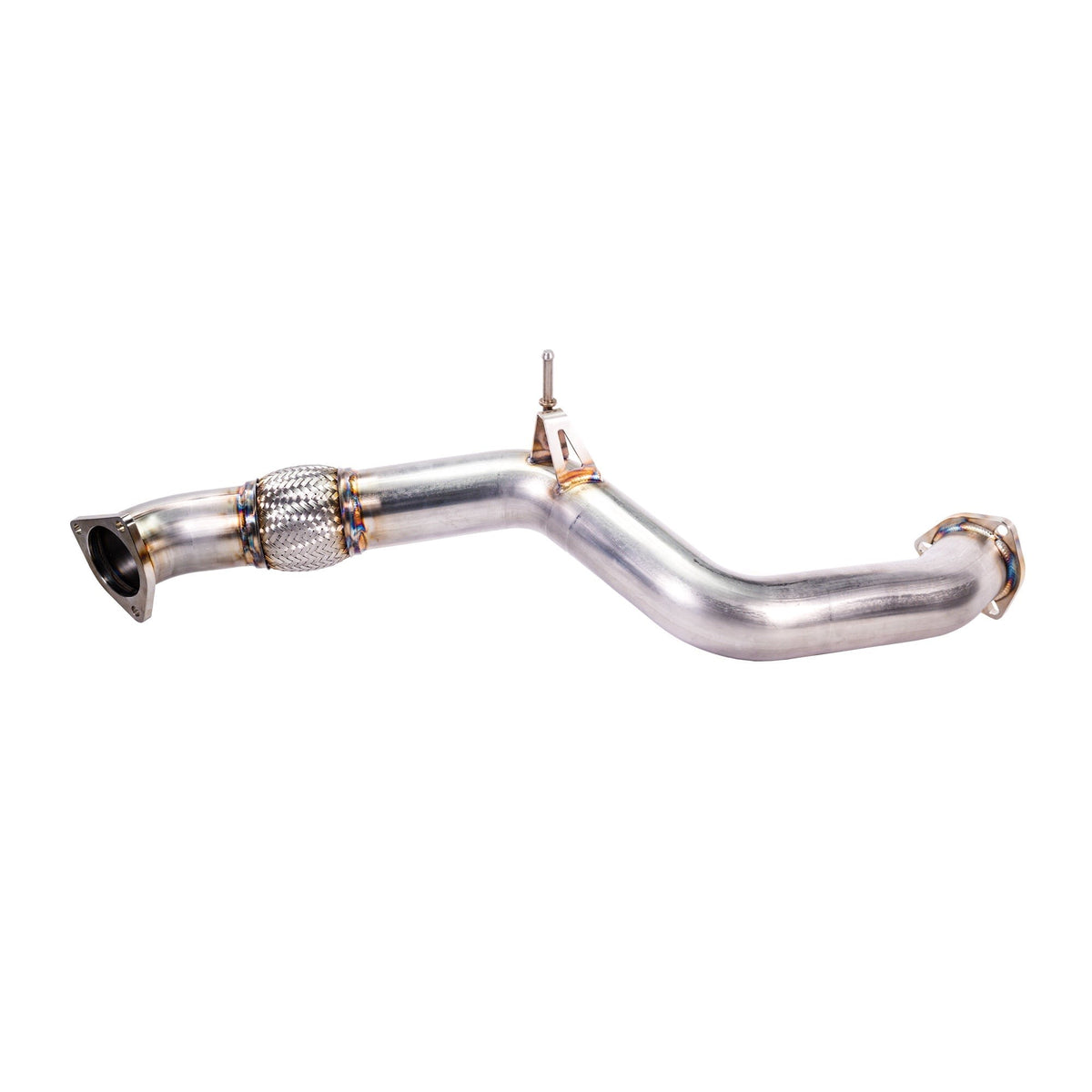

The front pipe is the first section after the emissions equipment, and on a stock FL5 it's the restriction sitting between your turbo and everything downstream. This PRL replacement runs 3" mandrel bent 304 stainless with CNC machined flanges and a reinforced flex section, opening up mid-range and top-end flow where the factory pipe holds the car back.

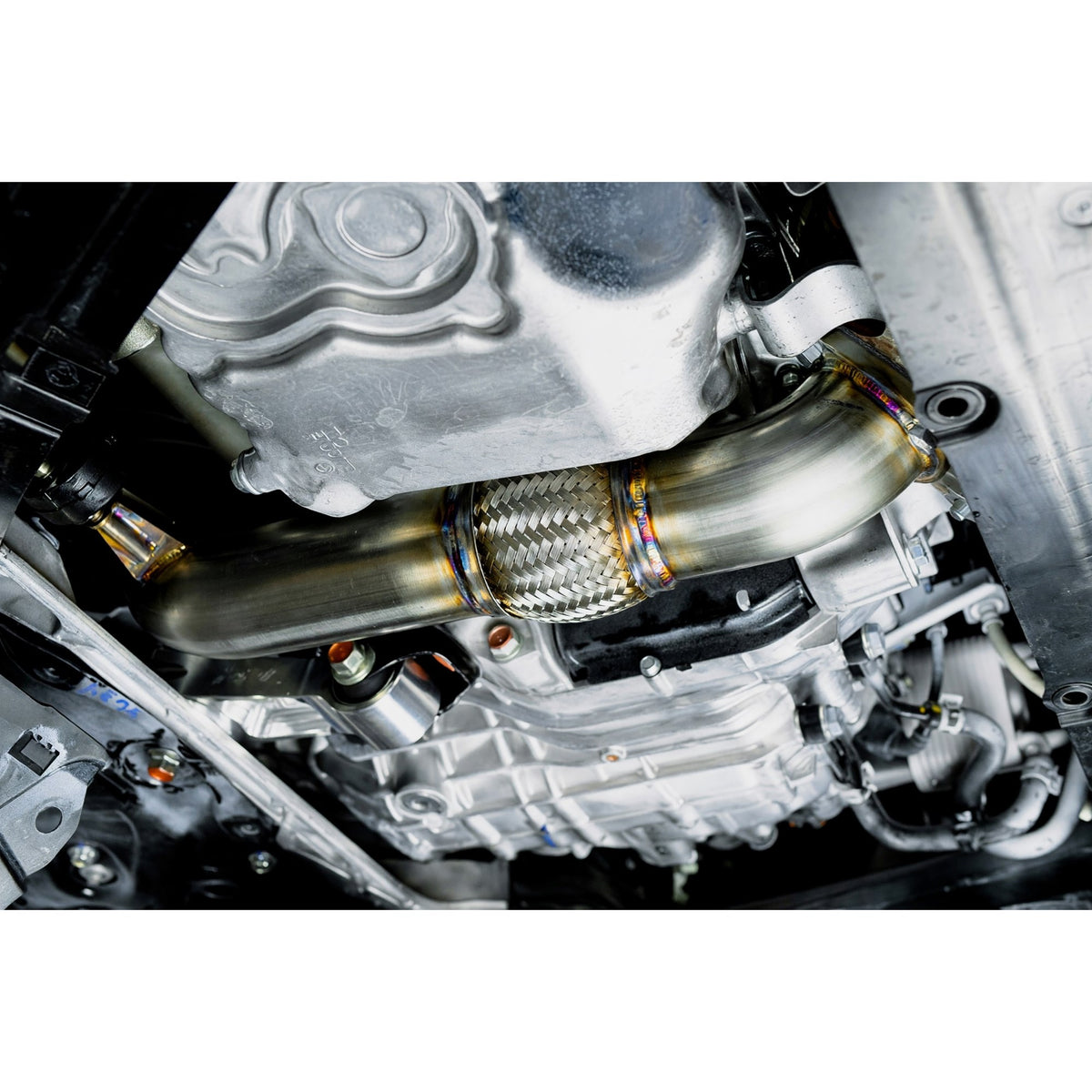

Where It Sits In The Exhaust
Worth understanding, because people often fit a cat-back first and wonder why the gains were modest.
Exhaust flows turbo, then emissions equipment, then front pipe, then cat-back. Free up the cat-back and you've improved the last section while everything upstream still flows the way Honda designed.
The front pipe is closer to the source, which is why it matters more. Opening it up reduces backpressure where exhaust gas is hottest and moving fastest, and that's where the mid-range and top-end gains come from.
Run this alongside a 3" cat-back and you've got a consistent path from the emissions equipment back. That's the combination worth building toward on an FL5.
Get A Rear Engine Mount
Recommended rather than required, but worth taking seriously on this car.
The factory rear mount is soft, which lets the engine move under load. On a stock car that's fine because everything has clearance built around that movement.
Once you've fitted a 3" front pipe, the clearances get tighter. An engine that rocks on acceleration can bring the pipe closer to things it shouldn't touch, and repeated contact over time is how you end up with rubbing, noise, or a damaged pipe.
A firmer rear engine mount limits that movement, which keeps the pipe where it's supposed to sit. On a Type R making the torque it does, that movement is more pronounced than on a lesser car, and the mount sharpens throttle response and shift feel as a side effect.

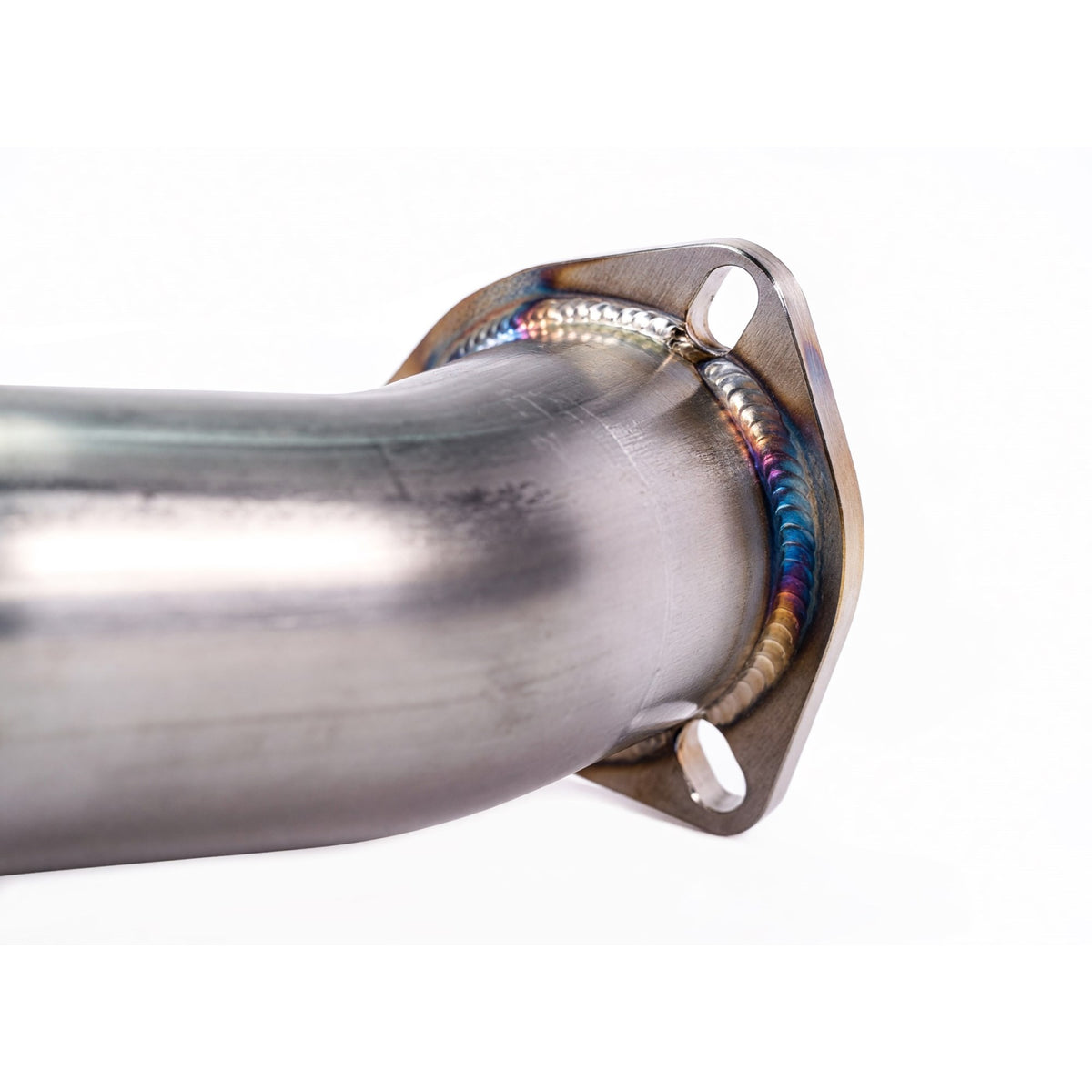

Back Purged Throughout
All 304 stainless, fully back purged on site.
Back purging floods the inside of the weld joint with inert gas while welding so the weld doesn't oxidize on the back side. Skip it and you get a rough, contaminated internal surface that becomes a corrosion point from the inside out, where you can't see it until it fails.
On a component running the hottest exhaust gas in the system, that internal weld quality is what determines whether it lasts.
The reinforced flex section handles engine movement without cracking, and the CNC machined flanges seal properly rather than needing to be pulled true with the bolts.
Don't Wrap It
Worth knowing before you reach for heat wrap or a ceramic coating.
Insulating exhaust components traps heat against the metal rather than letting it radiate away. That accelerates material degradation considerably, and PRL excludes coated, wrapped, or otherwise insulated components from their warranty for exactly that reason.
If you're chasing under-hood temperatures, address it with shielding that doesn't touch the pipe rather than wrapping the pipe itself.
No Tune Required
Exhaust changes what leaves the engine rather than how fuel is metered going in, so the factory calibration remains correct. Fit it and drive.
What's In The Kit
- Front pipe assembly, 3" 16 gauge mandrel bent 304 stainless
- CNC machined flanges
- Reinforced flex section

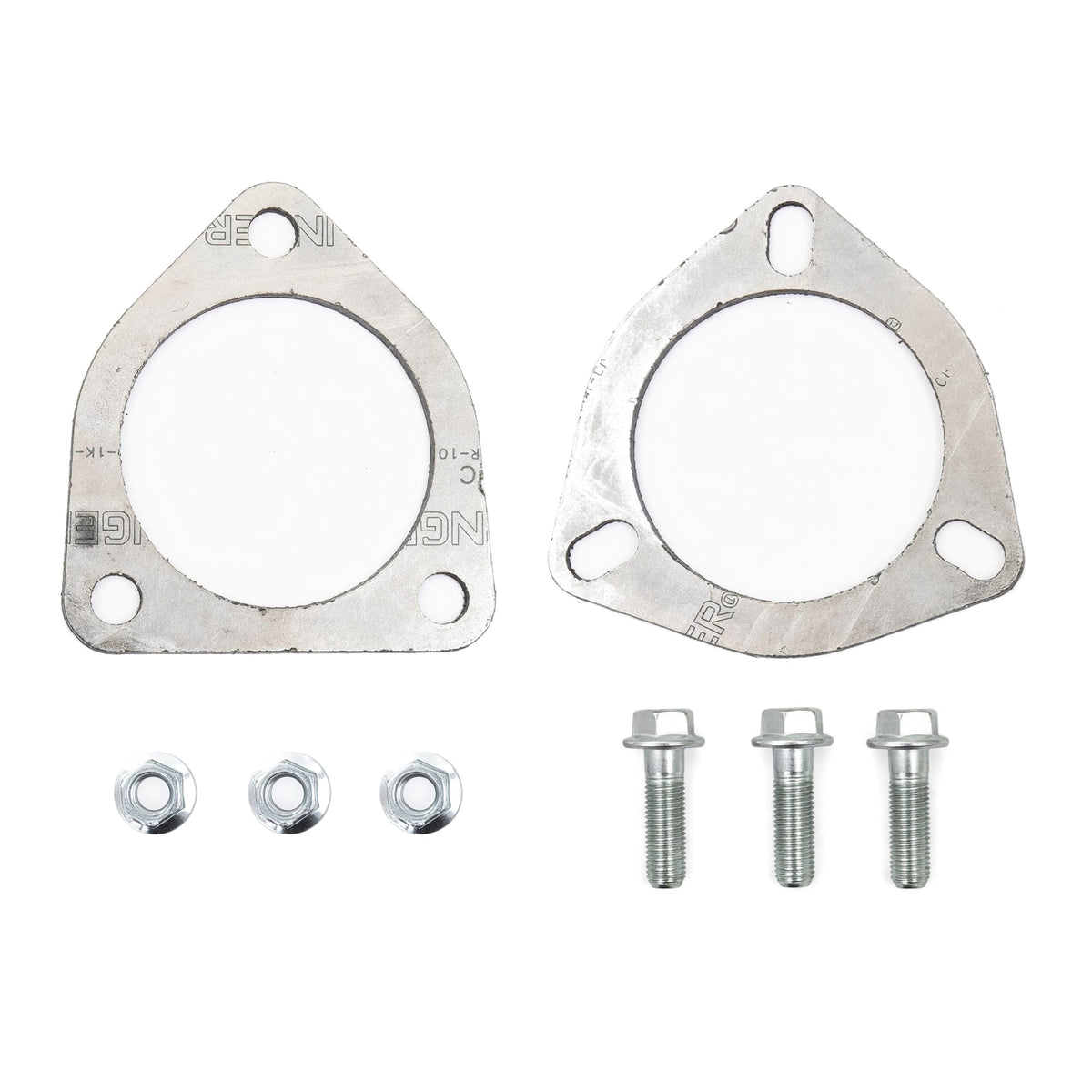

- Front pipe hardware bag with gaskets and stainless hardware
Fitment
2023-2026 Honda Civic Type R (FL5)
All variants including right-hand drive and international models. Part number FL5-FP.
Who Should Run This
This is for the FL5 owner who's already done a cat-back and wants the rest of the path opened up, or who's building the exhaust properly from the start. It's closer to the turbo than anything else you can easily change, which is why it's worth more than another section further back. Grab a rear mount alongside it, skip the heat wrap, and let the car breathe out.
Fits: 2023-2026 Honda Civic Type R (FL5), all variants including RHD and international. Part number: FL5-FP. Construction: 3" 16 gauge mandrel bent 304 stainless, CNC machined flanges, reinforced flex section, fully back purged. Includes: front pipe assembly with gaskets and stainless hardware. Tuning: no ECU calibration required. Recommended: rear engine mount upgrade for optimal fitment and longevity. Note: coating, wrapping, or insulating this component voids the manufacturer warranty.
