Honda K20A2/K20Z1 Knock Sensor 30530-PRB-A01

Honda K20A2 Knock Sensor 30530-PRB-A01

Your K20A2 relies on its knock sensor to protect the engine every time you push it hard. The knock sensor monitors the block for detonation signatures — the kind that happen under boost, high compression, or with pump gas — and feeds that signal to the ECU so it can pull timing before a knock event turns into a bent rod or spun bearing. When the sensor fails or reads inaccurately, the ECU either retards timing unnecessarily (you lose power) or fails to catch a real knock event (you lose an engine). This is not a part to cut corners on.

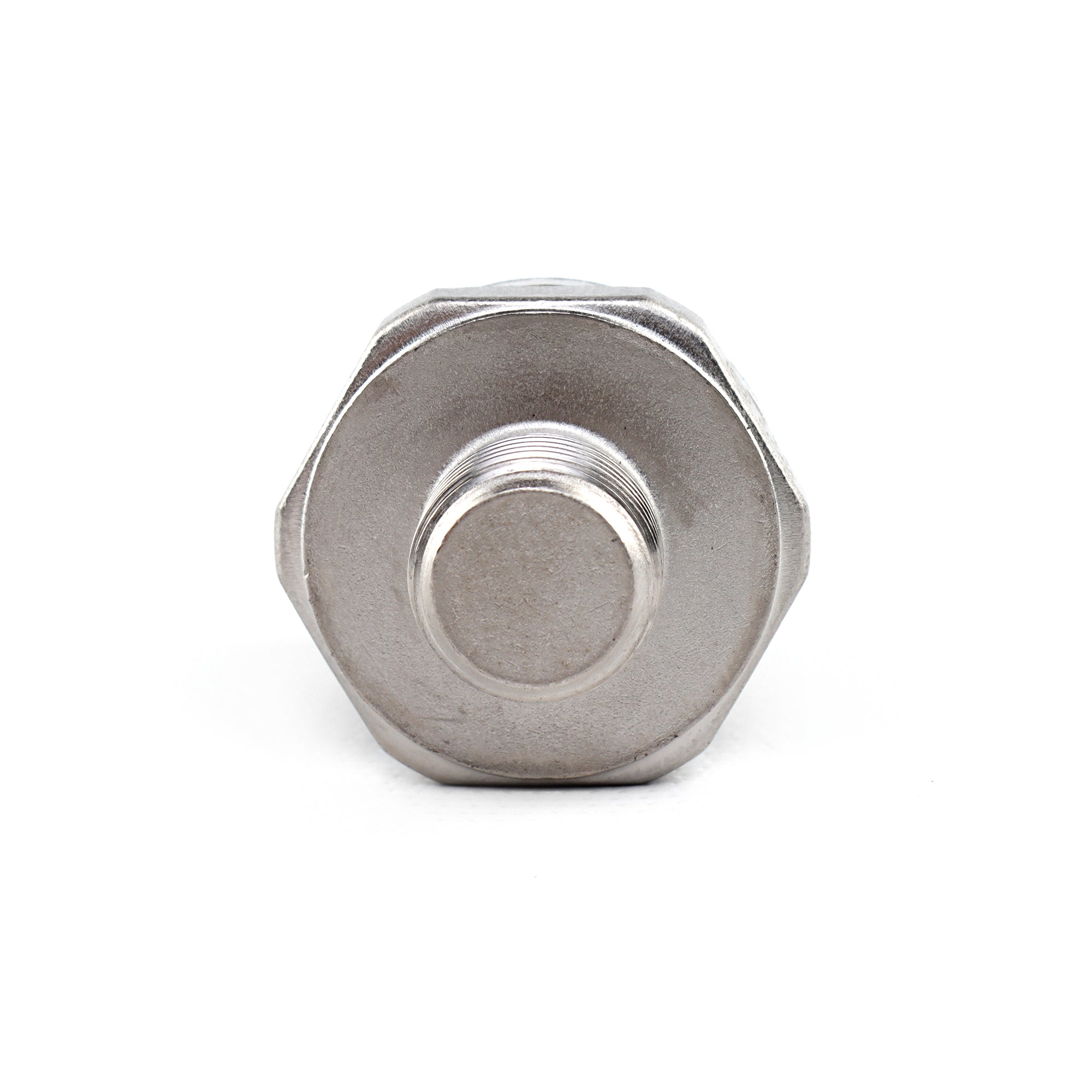

This is a genuine Honda OEM knock sensor, part number 30530-PRB-A01, sourced directly from Honda. It uses a piezoelectric resonant element tuned to the K20A2's specific knock frequency range — something aftermarket sensors frequently get wrong, especially on built motors running higher compression or forced induction. If you've been chasing a P0325 (Knock Sensor Circuit Malfunction) or P0327 (Knock Sensor Low Input) code, or if you're seeing unexpected timing pull events on your data logger, this is the correct OEM replacement to restore accurate ECU feedback.

The 30530-PRB-A01 is the correct sensor for the K20A2 as fitted to the 2002-2005 Honda Civic Type R (EP3), 2001-2006 Honda Integra Type R (DC5), and 2002-2006 Acura RSX Type-S. It is also the go-to replacement for K-swapped builds running K20A2 engine management, where the stock harness plug and connector are retained. The sensor threads directly into the block with an M6 x 1.0 thread pitch — no modifications, no adapter, no rework to your wiring.

Replacing it yourself is straightforward. Disconnect the battery, unplug the factory harness connector, remove the old sensor with a 12mm socket, thread in the new unit, and torque it to 20-25 Nm. Over-torquing will crack the piezoelectric element and cause an immediate fault, so use a torque wrench. Clear your stored codes with a scanner after installation and confirm the fault does not return before driving under load. Total job time is 15-30 minutes with basic hand tools.

At this price point, you are paying for the Honda part, not a generic sensor rebadged and sold in Honda packaging. The OEM unit carries Honda's frequency calibration, corrosion-resistant housing, and the correct connector for a plug-and-play install — no splicing, no adapters. If you're building a K20A2 for track use, high-compression road use, or a K-swap where reliability is the priority, the OEM sensor is the right call.

Common Failure Symptoms

• Check engine light with code P0325 or P0327
• Noticeable timing pull visible on a data logger or Hondata session
• Power loss under load with no other obvious cause
• Audible knock or ping under acceleration that the ECU is not catching

Installation Snapshot

• DIY Skill: Basic
• Time: 15-30 min
• Thread Pitch: M6 x 1.0
• Torque Spec: 20-25 Nm (do not over-torque)
• Tool Required: 12mm socket, torque wrench
• Hardware: Sensor with OEM harness connector
• Tune / Wiring: None required on stock or K-swap harness
