PRODUCT DETAILS

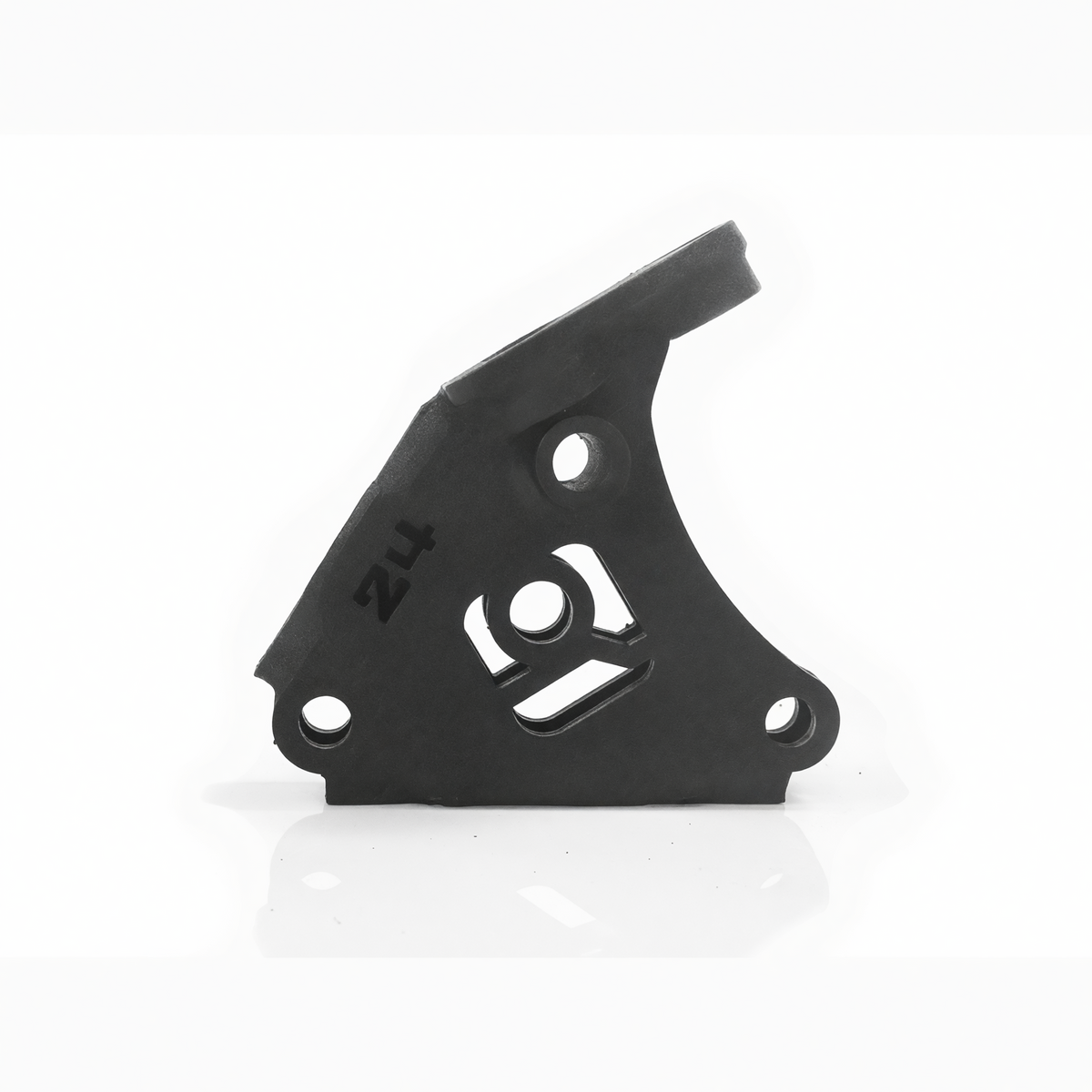

Innovative Mounts K24 Timing Belt Post Mount Bracket - 103750
This is the timing belt side post mount bracket for a K24 engine. It is a direct replacement for Honda CR-V post mount 11910-PPA-000, and it is the part that lets an Innovative K-series mount bolt to a K24.
What It Is and Why It Works
CAD designed and stress analyzed. Any K-series mount needs something to attach to on the timing belt side of the block, and on a K24 that is this bracket. It is the same Honda part number several of our staged K-swap kits call out as a required separate purchase.
One part, no options, and it ships with seven bolts.
Which Bolts You Use
| Bolt | When to use |
| 3x 80mm | Always, regardless of which mount you are running |
| 2x 20mm | With an Innovative steel K-series mount |
| 2x 35mm | With an Innovative billet K-series mount |
Five of the seven supplied bolts get used on any given install, depending on whether your mount is steel or billet.
Specs
| Part type | Timing belt post mount bracket |
| Engine | Honda K24 |
| Replaces | Honda CR-V post mount 11910-PPA-000 |
| Hardware | 7 bolts supplied, 5 used |
| Does not fit | Honda Accord or Acura TSX |
| Warranty | Lifetime (per manufacturer) |
Fitment
| Application | Requirement |
| Any K24 swap | Honda K24 engine |
| Not for | Honda Accord or Acura TSX |
This bracket follows the engine, not the chassis, so it applies to any K24 swap regardless of what car it goes into. It is not designed to fit the Honda Accord or Acura TSX.
What to Know Before You Buy
This is the Honda part several K-swap kits tell you to source separately. The 99350 Integra K-swap kit calls for 11910-PPA-000 on a K24 install, and this is a direct replacement for it.
Not for Accord or TSX. Innovative states that plainly, and those are the two cars people most often assume a K24 bracket would cover.
Parts cannot be returned once they have been installed.
