PRODUCT DETAILS

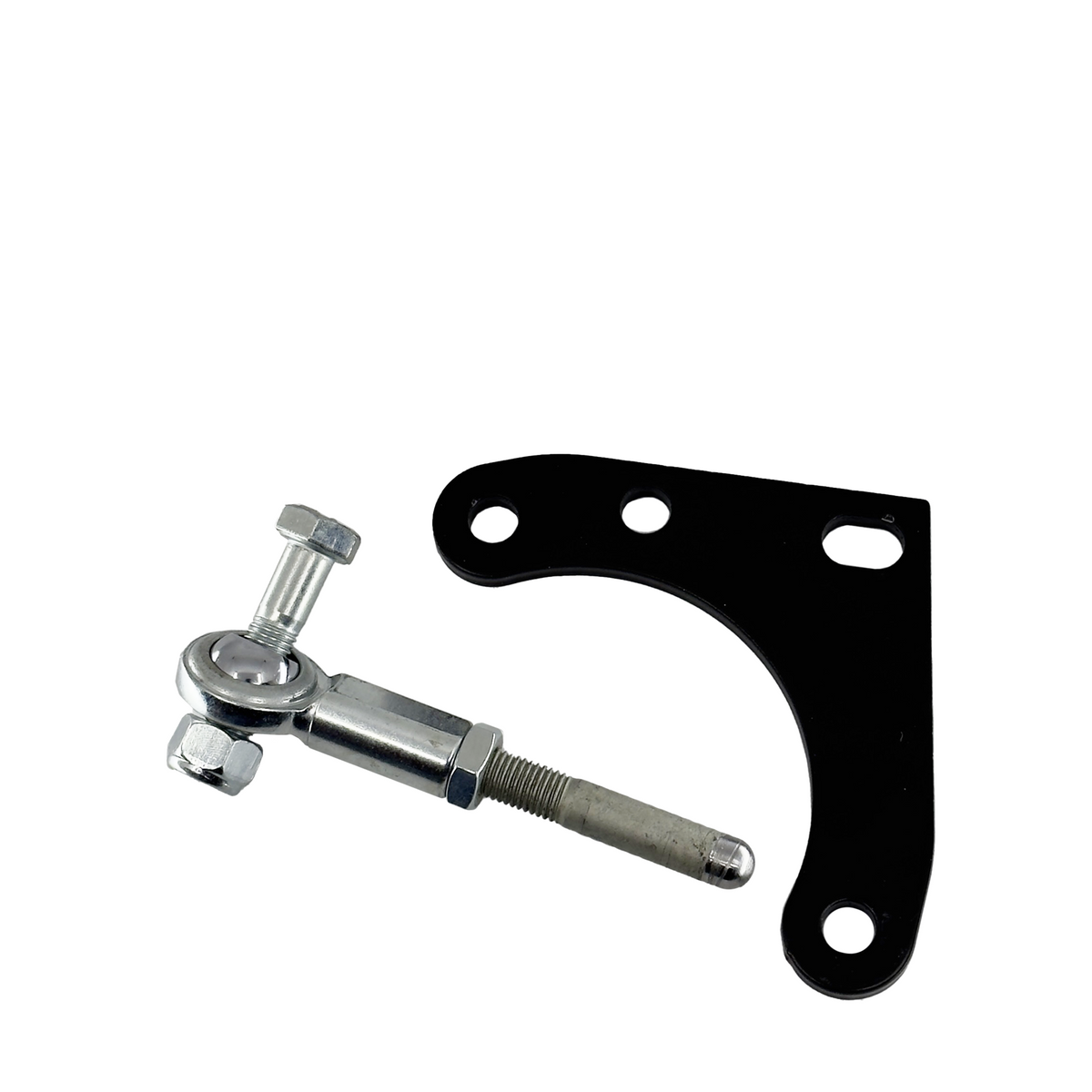

Innovative Mounts Hydro to Cable Heim & Actuator Lever - 40120-SB
This is the heim and actuator lever hardware for a hydraulic to cable transmission conversion on an EG through EK Civic or DC Integra. It is hardware only, not the mount.
What It Is and Why It Works
The heim and lever work with the conversion mount to drive the clutch after a cable box goes into a car built around a hydraulic one. The actuator geometry is what decides whether the clutch releases cleanly, so this hardware is not optional on the conversion.
Specs
| Part type | Heim and actuator lever hardware |
| Conversion | Hydraulic to cable transmission |
| Engine | B-series |
| Works with | Mounts 40120, 49522 and 40020 |
| Chassis | 92-00 Civic EG, EH, EJ, EK, EN1 and 94-01 Integra DB, DC |
| Contents | Hardware only, no mount included |
Fitment
| Year | Make | Model | Trim | Engine |
| 1992-2000 | Honda | Civic | EG, EH, EJ, EK, EN1 converting hydro to cable | B-series |
| 1994-2001 | Acura | Integra | DB, DC converting hydro to cable | B-series |
This is hardware only. It works with the 40120 hydro to cable transmission mount, the 49522 auto to cable mount, or the 40020 bracket and actuator. It also appears in the 40150 and 49553 kits.
What to Know Before You Buy
This is not the mount. If you are starting the conversion, you need 40120, 49522 or 40020 as well, and the 49553 kit covers the whole job including this hardware.
Buy it on its own only if you already have the mount and are missing or replacing the lever hardware. That is the situation this page exists for.
Parts cannot be returned once they have been installed.
