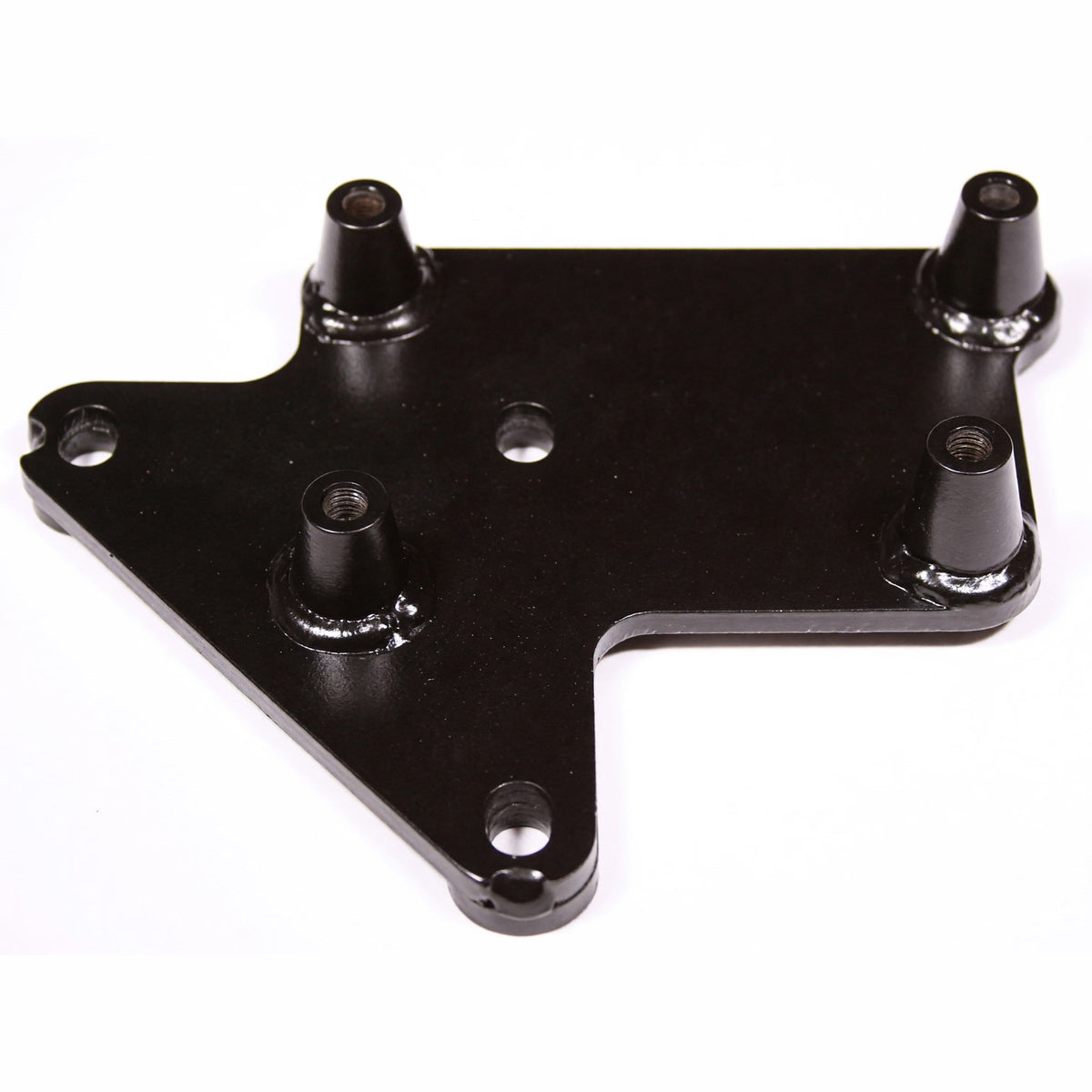

Innovative Mounts 96-00 Civic H22 A/C Bracket

Innovative Mounts 96-00 Civic H22 A/C Bracket - Part #50080

Most H-swapped EKs end up with no air conditioning, not because the owner wanted it that way but because the H22 does not line up with the Civic's compressor mounting. This bracket solves that, and on a street car in the South it is the difference between a swap you drive and one that sits in July.

What It Is and Why It Works

A bolt-on bracket that lets you keep all the original Civic air conditioning components with an H-series engine in the car. No aftermarket compressor, no custom lines, no hunting for a donor setup. It uses the factory A/C parts you already have in the bay.

Simple part, one SKU, no durometer choice. The value is that it exists at all, because the alternative is doing without A/C or paying a shop to fabricate a mount and adapt the lines.

Specs

Fitment

This bracket is for keeping factory A/C on an H-swapped EK. It is not a mount and does nothing on a car with its original engine.

What to Know Before You Buy

Decide on A/C before the engine goes in, not after. Retrofitting the bracket once the bay is finished means pulling the intake side apart again and possibly evacuating the system a second time.

Have the system checked while it is open. A 25 year old EK A/C system that has been sitting apart during a swap usually needs a drier and an evacuation regardless, and doing that at the same time as the bracket is one trip to the shop instead of two.

This is a bracket, not a complete A/C solution. You still need the compressor, lines, condenser and a system that holds a charge. If any of that was removed during the swap, price it out before ordering. Parts cannot be returned once they have been bolted in.
