Hybrid Racing Shifter Cables for 17-21 Civic Type R FK8

  • Replaces OEM Shifter Cables

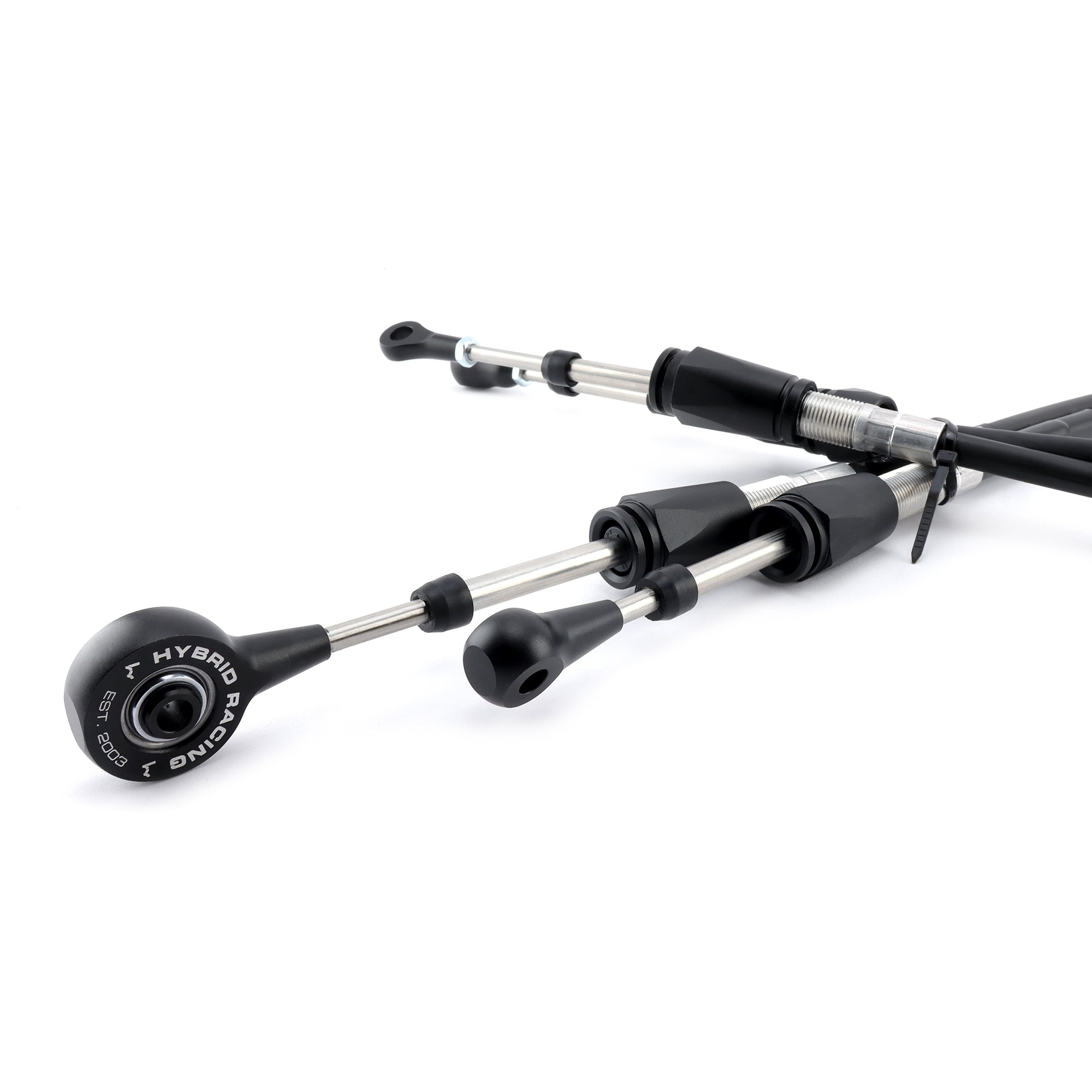

  • Solid rod ends and spherical bearings (unlike OEM rubber)

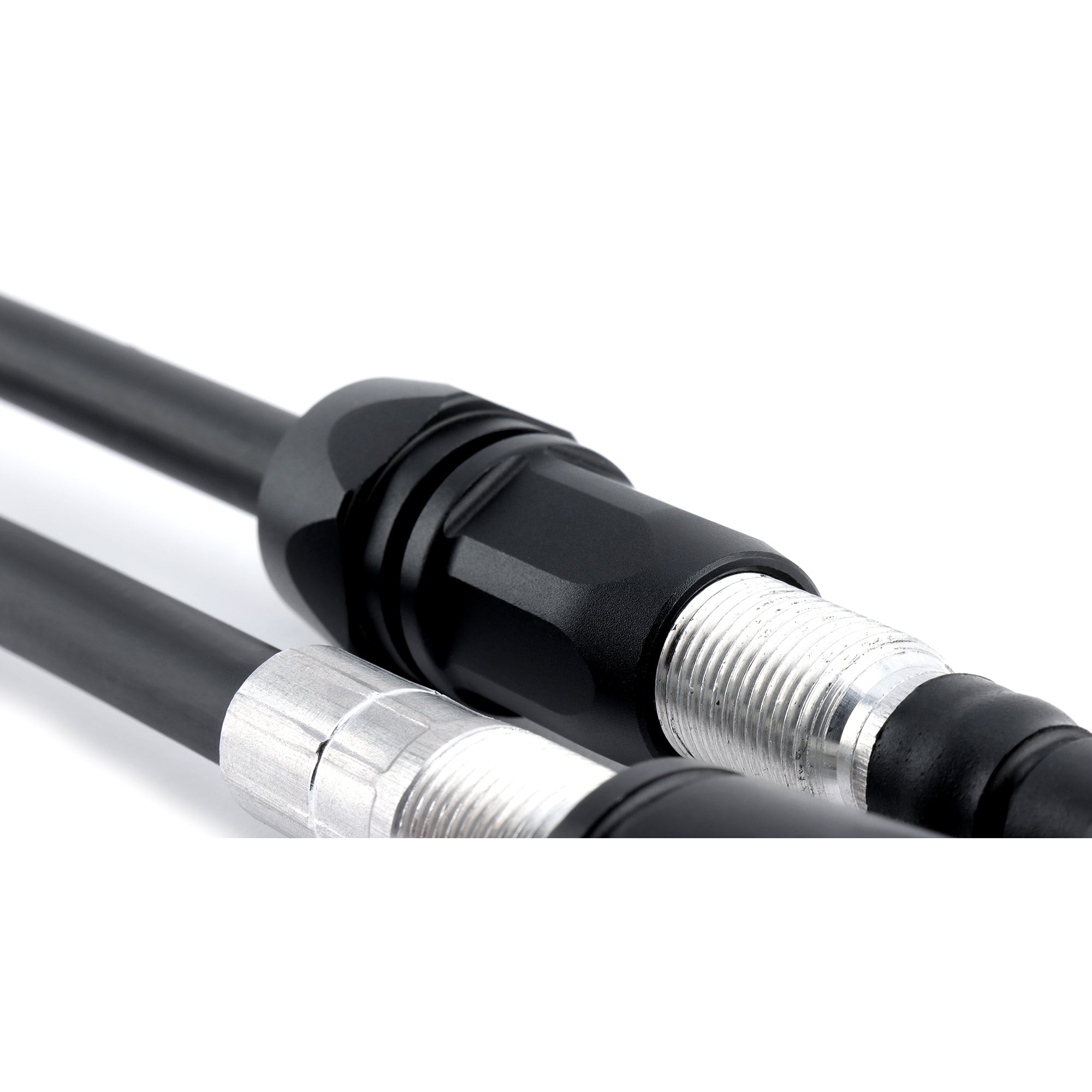

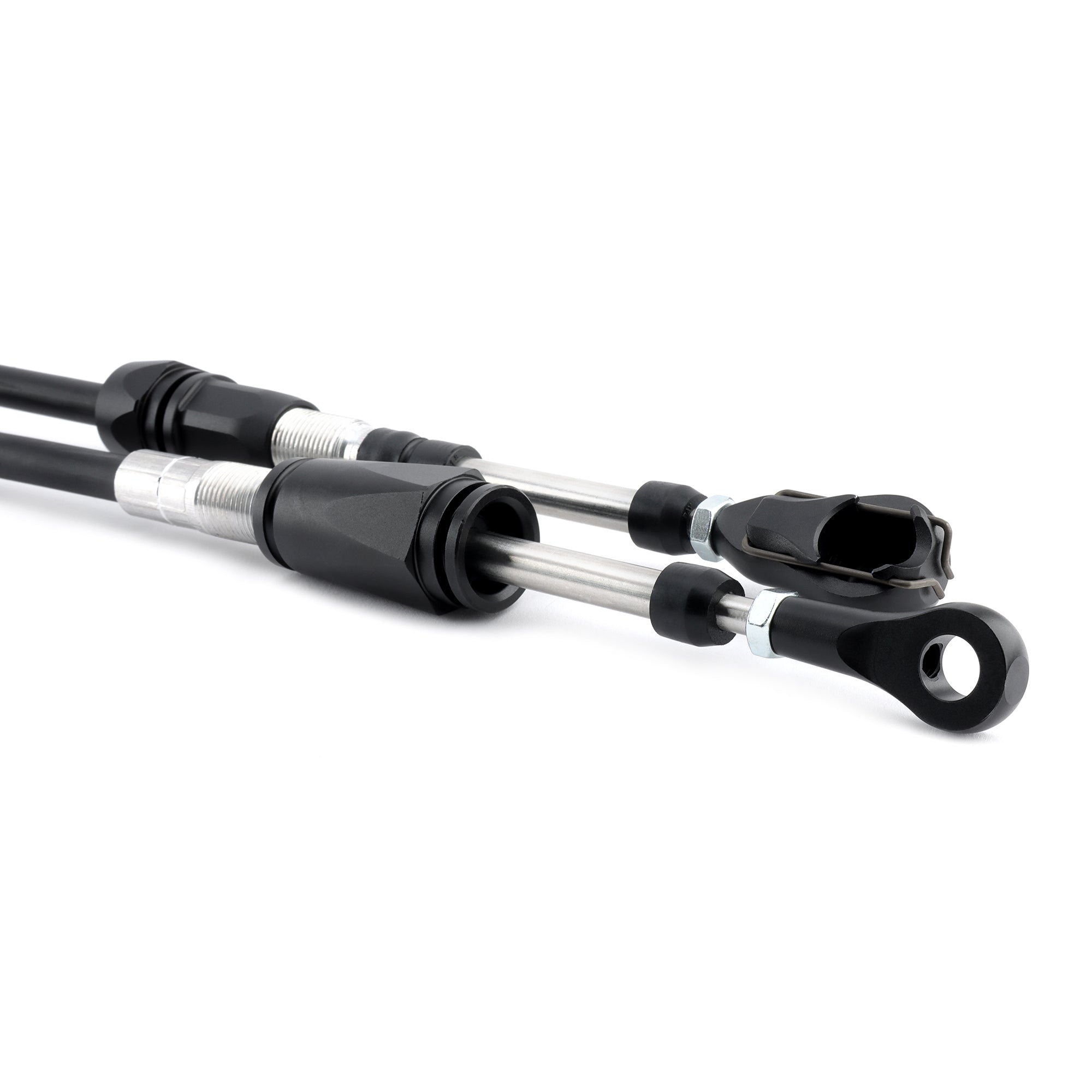

  • Machined & Anodized Billet end links

  • Stainless steel core and core guides

$335.99 $419.99 $419.99

/
Subscription
Availability needs to be checked. See the message below.
Delivery truck icon Ships in 3-6 Weeks
Delivery truck icon Ships in 3-6 Weeks
In stock · available
Available to order

Part # HYB-SCA-01-26

Vehicle compatibility

Check compatibility with your vehicle.

Description

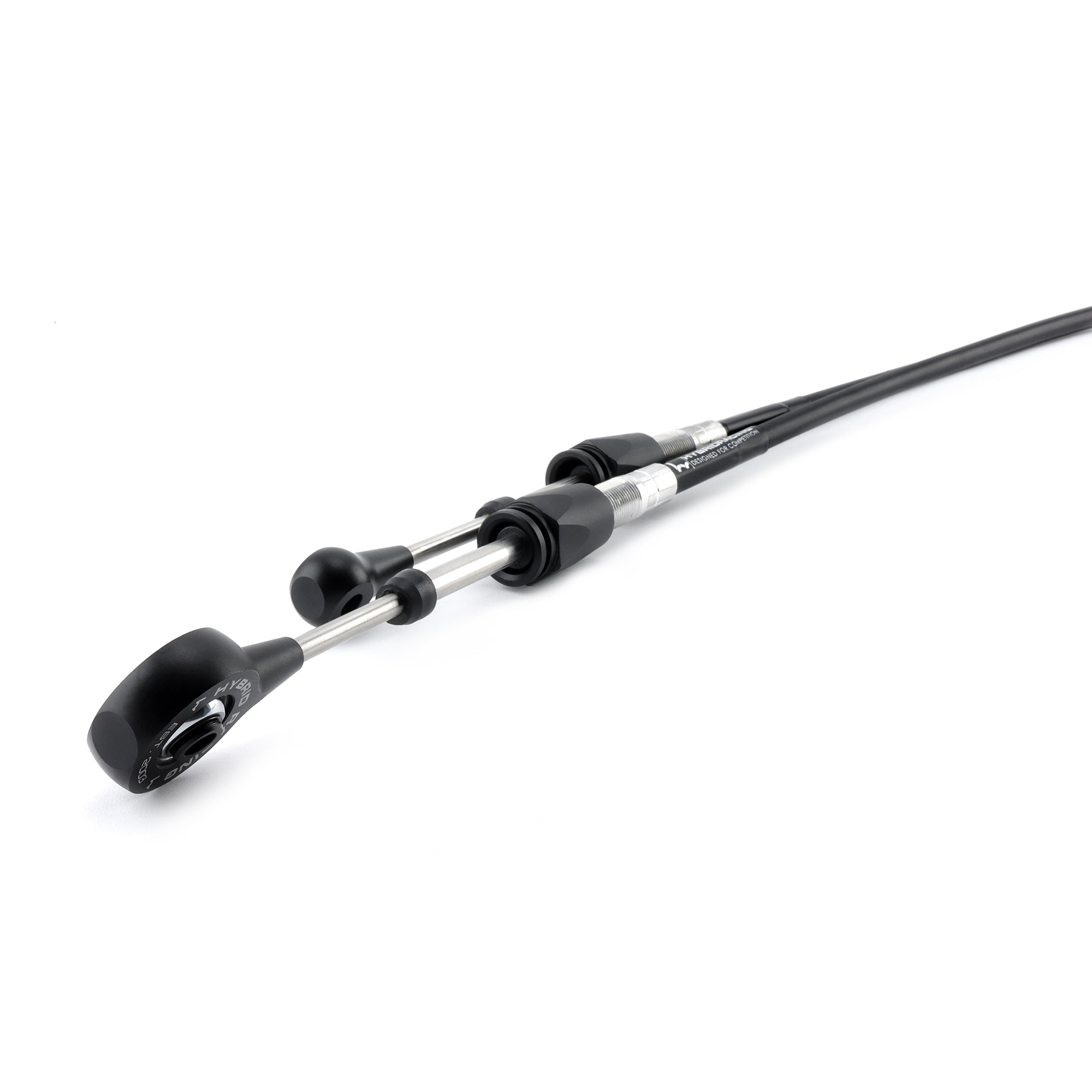

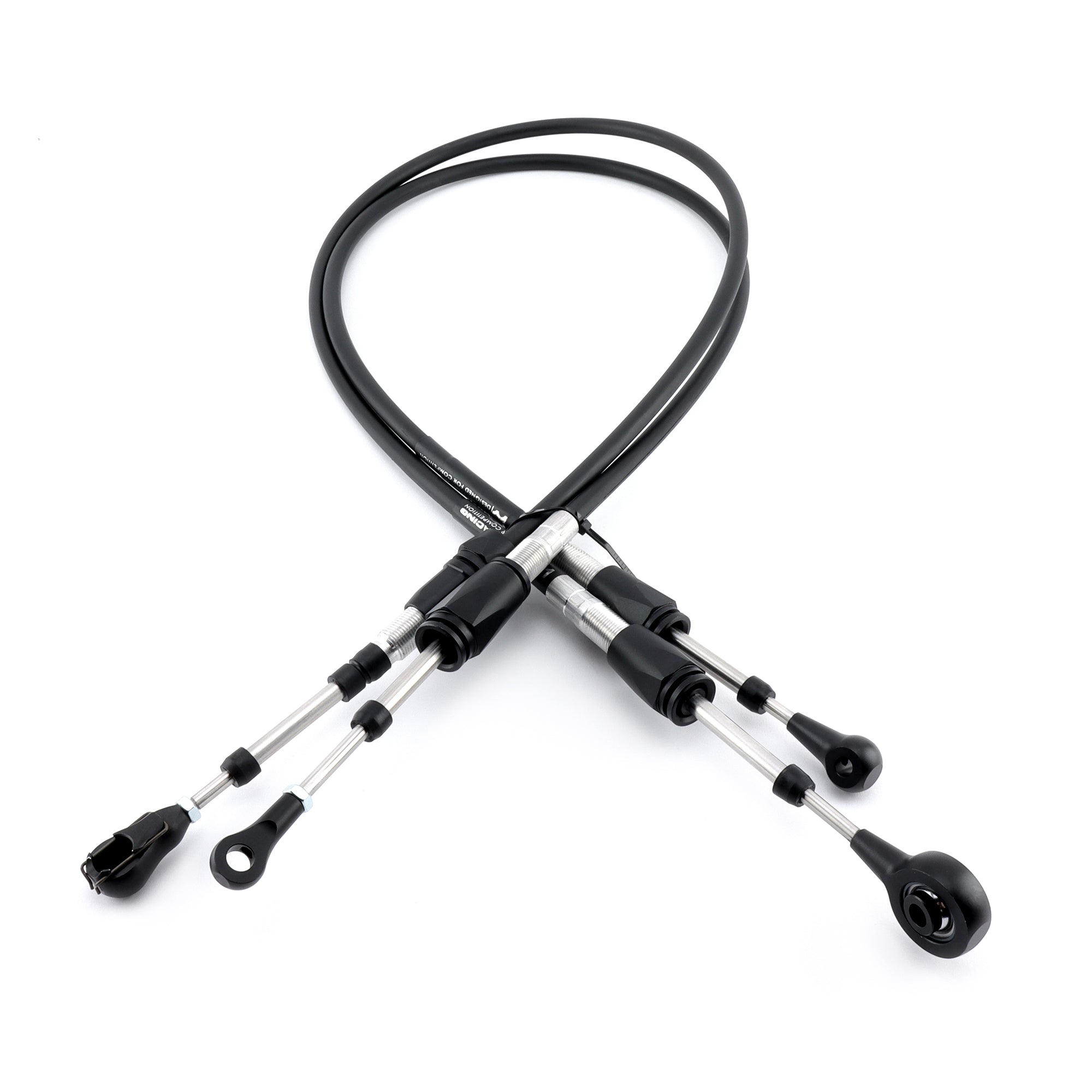

Hybrid Racing Shifter Cables - 17-21 Civic Type R (FK8)

Hybrid Racing shifter cables are a performance upgrade over the stock OEM cables on the FK8 Civic Type R. The solid rod ends, permanently lubricated core, spherical bearings, and aluminum end links give the cables a firmer, tighter feel than OEM, which means fewer missed shifts and a more connected feel to the chassis. They're heat resistant up to 225°F with a max bend radius of 5" for the best cable life, and they've been designed and tested specifically for the FK8 Civic Type R.

Hybrid Racing FK8 Civic Type R shifter cables

What Makes Them Better Than OEM

The job of these cables is to take the flex out of the shift linkage. Along with the permanently lubricated core and spherical bearings, they run stainless steel push rods and stainless steel swivel support tubes in place of the factory plastic ones, which are a known failure point on the OEM cables. The rod ends and mounting bushings are CNC machined from 6061 aluminum, then black anodized before being laser etched with the Hybrid Racing logo. Every plastic piece that flexes or breaks on the stock cables has been replaced with metal, so the crisp shift you get on install day stays crisp.

These were built to give drivers a cable they don't have to think about when they shift hard, on the street or during demanding racing use.

Direct Replacement for Your OEM Cables

These are a direct replacement for your factory shifter cables. The aluminum bushings make installation a little simpler, but the bigger win is dropping another plastic part that flexes and causes a sloppy shift.

Because these are designed with motorsports use in mind, expect an increase in NVH, meaning more transmission noise and vibration can reach the cabin. The 10th gen Civic has plenty of interior panels and a deep console, so it stays minimal, but it won't be as quiet as the stock parts. We suggest these cables for racing applications where that tradeoff is worth the sharper shift.

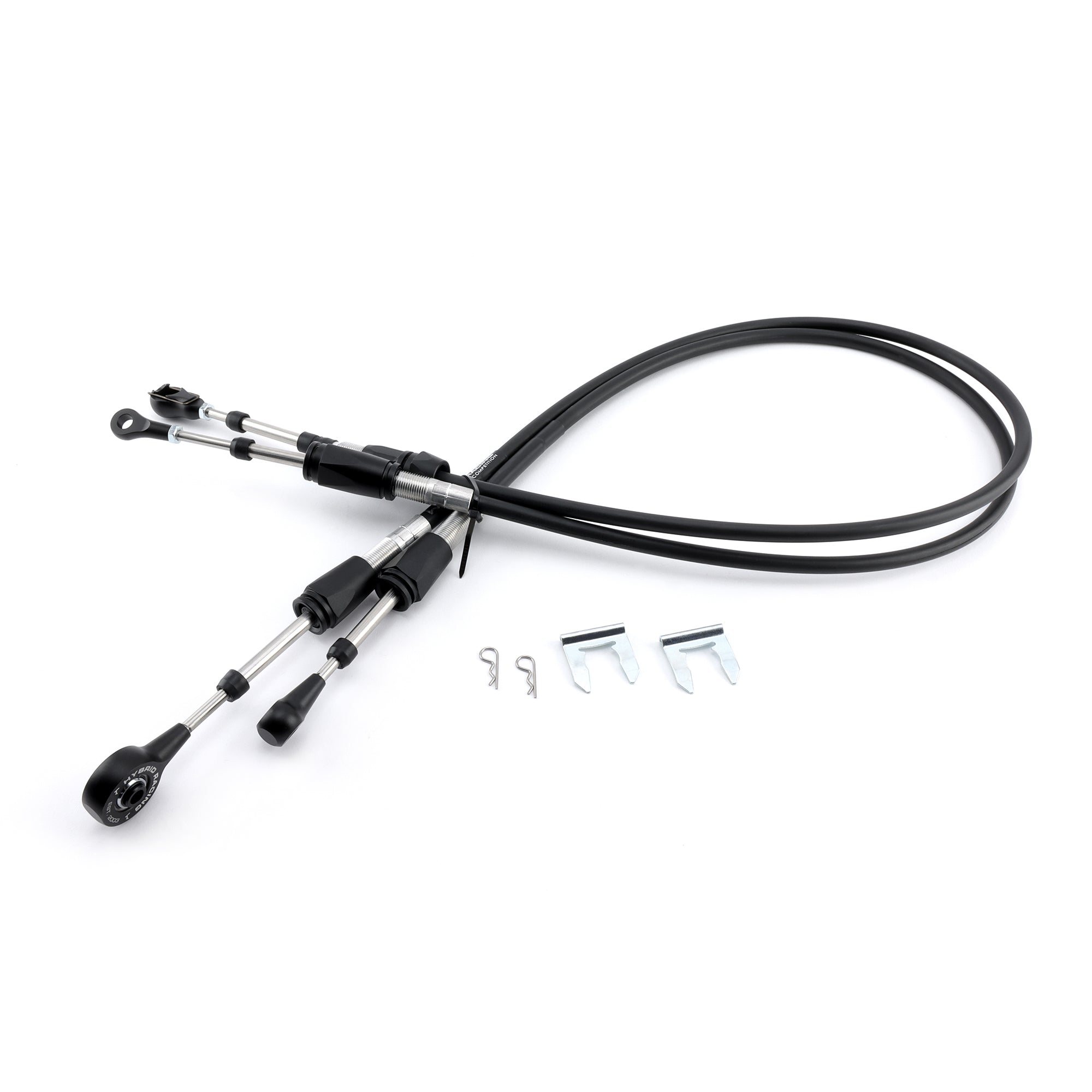

What's Included

  • Two Hybrid Racing performance shifter cables
  • Two cotter pins
  • Clips for the shifter end
  • New hardware for the shifter cable mounting plates that attach to the transmission bracket

You'll reuse your OEM center bracket and cable seal.

Hybrid Racing FK8 Civic Type R shifter cables installed

Fitment

  • 2017-2021 Honda Civic Type R (FK8)
FITMENT
2017-2021 Honda Civic Type R (FK8)
INSTALL GUIDE

Install guide

Hybrid Racing Performance Shifter Cables 17-21 Civic Type R Install Guide

Hybrid Racing performance shifter cables with black housings, metal ends, clips, and brackets on white background.
Cover photo: Hybrid Racing performance shifter cables kit for the 2017-2021 Civic Type R, shown with included hardware.
Difficulty
Difficult
Steps
43
Time required
3 hr
Category
Drivetrain

Tools

  • 5mm Allen wrench
    Quantity: 1
  • 10mm socket
    Quantity: 1
  • #2 Phillips head screwdriver
    Quantity: 1
  • 14mm Open End Wrench
    Quantity: 1
  • 1/4" or 3/8" Ratchet
    Quantity: 1
  • Plastic Panel Removal Tools
    Quantity: 1
  • 6"-10" Ratchet Extension
    Quantity: 1
  • Medium Size Channellock Pliers
    Quantity: 1

Parts

  • HYB-SAS-01-35
    Quantity: 1

01 Shift Knob Removal

Hand grasping the silver spherical shift knob atop the leather boot on the Civic Type R center console.
Grasp and remove the shift knob from the shifter assembly on the center console.
Chrome boot collar and threaded shift shaft on the Civic Type R center console after knob removal.
Arrows point to the boot collar; push downward on the clips to remove it from the shift shaft.
Threaded shift lever shaft exposed above the black leather shift boot with red stitching in the Civic Type R center console.
After removing the knob and collar, the bare threaded shaft of the shifter remains above the boot.
  1. Remove your shift knob.
  2. Remove the boot collar by pushing downward on the clip.
  3. Use a 14mm Open End Wrench to unscrew the threaded section of the collar. Some may require tools to remove, be careful not to damage the threads.

02 Console Removal

Hands pull upward on the black side console pads flanking the center console in a Civic Type R.
Pull upwards on the side console pads so they pop free from the center console.
Hands lift a black side console pad from the center console beside the armrest in a Civic Type R.
Pull the side console pad straight up so it pops free from the center console; no screws hold it in place.
Civic Type R center console with side pads removed, exposing plastic frame, clips, armrest and cup holders.
Side console pads pulled upward and removed, showing the exposed plastic clips and frame around the armrest.
  1. Pull upwards on the side console pads and remove them.
  2. They aren't screwed or bolted into place so just pull up and they will pop out.

03 Console Removal

Red plastic panel tool prying under the upper console section beside the shifter.
Pry the upper console section with a plastic panel tool until the clips release.
Hands pull the upper center console section toward the driver beside the shifter in a Civic Type R.
After prying free, grab the upper console section and pull it toward you to release the clips.
Civic Type R center console with upper trim sections removed around climate panel and shifter.
Both left and right upper console sections popped off, exposing the climate controls and shifter area.
  1. Use a plastic panel tool to pry the upper console section. Once it pops up, grab the upper section and pull it towards you.
  2. These panels are held in with clips and do not require tools.
  3. Pop both left and right upper sections off.

04 Remove the Console Cover

Phillips screwdriver on a screw securing the shift boot cover in the Civic Type R center console.
Use a #2 Phillips screwdriver to unscrew one of the two screws holding the shift boot cover in place.
Phillips screwdriver unscrewing a fastener on the shift boot cover beside the brake hold switch.
Unscrew the fastener holding the shift boot cover next to the brake hold and parking brake buttons.
Hands prying the sides of the shift boot console cover around the Civic Type R shifter.
Pry the sides of the console cover up with your hands and pop it off, taking care not to pull hard on the electrical connectors.
  1. Using a #2 phillips screwdriver, unscrew the two screws that hold the shift boot cover.
  2. Use your hands and pry the sides of the cover up and pop it off.
  3. cautionDon't pull on it too hard because there are electrical connectors holding it in place.

05 Unplug Drive Mode Harness

Hands unplugging the small drive mode selector harness connector on the Civic Type R center console.
Red arrow shows the drive mode selector harness connector being unplugged from the button assembly.
Two harness connectors unplugged from the drive mode and parking brake buttons on the center console.
Arrows mark the drive mode selector and parking brake button connectors to unplug behind the console.
  1. Unplug the drive mode selector as well as the parking brake and brake hold button.
  2. noteDepending on the year/model you may have more or less buttons to unplug here.

06 Remove Climate Control

Hands prying the lower climate control panel toward the driver below the Civic Type R center screen.
Use both hands to pry the lower section of the climate control toward you until it begins to pop free.
Hands hold the climate control panel pulled partially free from the Civic Type R center dash.
After prying it free, hold the climate control by the sides as it comes out with connectors still attached.
White and gray electrical connectors unplugged from the back of the climate control unit.
Unplug the two harness connectors from the rear of the climate control before setting the unit aside.
  1. Use your hands and pry the lower section of the climate control towards you.
  2. Once it pops out, grab it from the sides and pull a little more. It should pop out.
  3. Unplug the climate control and set it aside.

07 Remove the Upper Console

Two upper console screws below the center display, marked by red arrows on the Civic Type R dash.
Locate and remove the two upper console screws shown by the arrows beneath the infotainment screen.
Phillips screwdriver engages a screw on the black plastic upper console bracket beside the leatherette side panel.
Watch the #2 Phillips screwdriver removing one of the two upper console screws next to the textured side trim.
Phillips screwdriver removing the center console screw inside the upper console.
Remove the center console screw with a #2 Phillips screwdriver as highlighted.
  1. Use a #2 Phillips screwdriver to remove the two upper console screws.
  2. Next, remove the center console screw.

08 Remove the Upper Console

Hands lift the black upper center console off the exposed gear shifter in a Civic Type R.
Pop the sides of the upper console free with your hands, then lift it upward to remove it completely from around the shifter.
Hands hold the detached upper console trim and work inside the center console of a Civic Type R.
With the upper console free, lift it upward to remove it completely from the center stack.
Civic Type R center console with upper console removed, exposing shifter assembly and loose wiring harnesses.
Upper console lifted free and removed, leaving the shifter and connectors exposed in the center console.
  1. Use your hands and pop the sides of the console up. Once it is free, lift upwards and remove it completely.
  2. noteYou may need to put your shifter into 4th gear to clear the plastic cover.

09 Remove Front Console Cover

Hand holds red pry tool at lower front console cover beside USB and open 12V outlets.
Use the plastic pry tool on the lower console cover section near the unplugged USB and 12V connectors.
Hands hold the front console cover with USB and 12V ports after removal from the lower dash.
Front console cover removed; unplug the smartphone USB connector and the 12V power outlet.
Hand unplugging 12v and smartphone USB connectors from the front console cover under the dash.
Unplug the 12v connector and the smartphone USB connector indicated by the arrows on the front console cover.
  1. Use a plastic panel pry tool on the lower section of the console cover.
  2. Unplug the 12v connector and the smartphone USB connector.

10 Remove the Rear Console Section

Black rear center console section between the front seats of a Civic Type R.
Rear console section between the seats, ready to be separated with a plastic panel pry tool.
Rear center console armrest section lifted, exposing base, wiring harness and floor mounts in the Civic Type R.
With the rear console cover off, note the keyless entry connector and harness clip to unplug and remove.
Keyless entry connector and harness clip on the underside of the rear console section.
Unplug the keyless entry connector and remove the clip holding the harness in place.
  1. Use a plastic panel pry tool to separate the rear section of the console.
  2. Once the cover comes off, unplug the keyless entry connector and remove the clip holding the harness in place.

11 Unbolt Center console

Open center console bin between front seats with cup holders and textured floor mat visible.
Look inside the open center console bin where the two screws to remove are located.
Two screws on the floor of the open center console storage bin in a Civic Type R.
Remove the two screws marked by the red arrows at the bottom of the center console.
Hand turning a screwdriver on one of two screws inside the center console bin.
Remove the two screws inside the center console, shown here with the screwdriver on the left screw.
  1. Remove the two screws inside of the center console.

12 Disconnect Console Wiring Harness

Open lower USB connector cover inside the center console near the cup holder.
Remove the lower USB connector shown with its cover open in the console.
Red arrow marks the console wiring harness plug under the lifted center console between the front seats.
Look at the red arrow showing the console wiring harness connector to unplug from the bottom after lifting the console.
White console light connector and black USB plug with grommet on the center console underside.
Look at the console light connector and lower USB connector to unplug after lifting the console.
  1. Remove the console light as well as the lower USB connector.
  2. You will need to lift the console up and unplug it from the bottom.

13 Remove the Center Console

Center console slid back from the dashboard, exposing wiring in the Civic Type R cabin.
Slide the entire center console backwards a few inches to unclip it from the dashboard.
Center console removed, exposing the shifter assembly and cables between the front seats.
With the center console fully removed, the shifter base and surrounding cables are exposed between the seats.
  1. Slide the entire console backwards a few inches to unclip it from the dashboard.
  2. Lift the rear section up and remove the entire console from the car.

14 Remove the OEM Shifter

Screwdriver on left bolt securing the console bracket to the chassis floor beside a second bolt.
Remove the two bolts holding the console bracket to the chassis, shown circled at the bracket base.
Socket on a chrome extension removing a 10mm bolt at the base of the factory shifter on the chassis.
Remove one of the four 10mm bolts securing the base of the factory shifter to the chassis.
Factory shifter base with mounting bolts on the chassis floor beside console cables.
Locate the 10mm bolts at the base of the factory shifter securing it to the chassis.
  1. Remove the two bolts that hold the console bracket to the chassis.
  2. Remove the x4 10mm bolts on the base of the factory shifter.

15 Remove Wiring Harness

Wiring harness clipped against the lower side of the factory shifter housing inside the Civic Type R cabin.
Red arrow shows the clip holding the wiring harness to the factory shifter; remove this clip.
Black wiring harness clipped to the factory shifter bracket in the driver footwell.
Arrow shows the wiring harness clipped to the factory shifter; remove those retaining clips.
  1. Remove the clips that hold the wiring harness to the factory shifter.

16 Disconnect Shifter Cables

White plastic retaining ring on the lower shifter cable end link at the factory shifter pin under the dash.
Arrow shows the lower cable retaining ring to pull apart so the cable end link can slide off the shifter ball.
Lower shifter cable end with retaining ring seated on the factory shifter ball inside the housing.
Red arrow shows the lower cable retaining ring to pull apart so the cable end link can slide off the shifter ball.
  1. cautionRemove the cables from the factory shifter. This can be tricky so take one cable at a time. It spins and then slides upwards out of the shifter.
  2. Pull the LH side retaining ring and slide the cable off the pin.
  3. The lower cable retaining ring must be pulled apart and then you can slide the cable end link off the shifter ball.
  4. Remove the shifter cables from the shifter. If you are changing the shifter, now is the time to remove the shifter from the car.

17 Airbox removal

Hand removing the black rubber air intake seal from the airbox in the engine bay.
Pull the air intake seal free from the airbox so the lid can be removed for tray access.
Hand uses a power driver to remove a bolt from the black airbox in the engine bay.
Remove the fastener on the airbox section to free the lid and gain access to the tray.
Hand uses red impact driver to loosen fastener on black air intake seal in Civic Type R engine bay.
Use an impact driver to remove the fastener securing the air intake seal section for airbox lid access.
  1. Begin in the engine bay by removing the air intake seal. You will need to remove the airbox lid so remove this section to make gaining access to the tray easier.

18 Airbox Removal

Hand beside the black ribbed factory air intake tube on the airbox, red arrow pointing to the tube clamp.
Arrow shows the factory air intake tube clamp to remove before sliding the tube off the airbox lid.
Hands slide the factory air intake tube off the side of the airbox lid.
Slide the factory air intake tube off the side of the airbox lid after the clamp is removed.
  1. Remove the factory air intake tube clamp.
  2. Slide the tube off the side of the airbox lid.

19 Airbox Removal

Hands unclip the MAF wiring harness from the airbox lid beside the battery in the engine bay.
Unclip the MAF wiring harness from the airbox lid, then unplug the MAF sensor and set it aside.
Hands unclip the MAF wiring harness from the airbox lid beside the battery.
Unclip the MAF wiring harness from the airbox lid, then unplug the MAF and set it aside.
Hands unplug the MAF connector from the airbox lid beside the battery in the engine bay.
Unplug the MAF after unclipping its wiring harness from the airbox lid, then set the sensor aside.
  1. Unclip the MAF wiring harness from the airbox lid and then unplug the MAF and set it aside.

20 Airbox Removal

Hands lifting the black airbox lid from the engine bay beside the battery.
Unclip the airbox lid and lift it free from the lower tray in the engine bay.
White pleated air filter sits in the open lower airbox tray in the Civic Type R engine bay.
Air filter remains in the lower tray after the airbox lid has been unclipped and removed.
Hand near black hoses, silver mount, and blue wiring connector at the lower airbox in the engine bay.
Watch the hose and wiring connections while unbolting and removing the lower airbox.
  1. Unclip the airbox lid and remove it from the engine bay.
  2. Remove the air filter from the lower tray.
  3. Unbolt the lower airbox and remove it.

21 Airbox Removal

Hand grasping the lower airbox section beside the ribbed intake hose in the engine bay.
Grab the bottom airbox and pull upward; the lower section is held by a grommet.
Hands lifting the lower airbox section upward from its mount in the engine bay beside the battery.
Grab the bottom airbox and pull it upwards to free the lower section from the holding grommet.
Finger points to the rubber grommet on the bottom of the lower airbox section.
Point to the grommet holding the lower airbox; grab the bottom and pull upward to free it.
  1. Grab the bottom airbox and pull upwards, the lower section is held in place by a grommet.

22 Battery Removal

Engine bay battery with red positive terminal cover and black cables still attached.
Battery in place with terminals connected; remove the negative terminal first, then the positive.
Hands hold a black battery terminal cover near the positive post on the car battery in the engine bay.
After removing the negative terminal, lift the cover and disconnect the positive battery terminal next.
Hand lifts red cover on the positive battery terminal while a socket loosens its nut in the engine bay.
Lift the red cover and remove the positive battery terminal after the negative.
  1. Remove the negative then positive terminal from the battery.

23 Battery Removal

Metal battery tie-down bracket secured across the top of the battery in the engine bay.
View the battery tie-down bracket spanning the top of the battery before you remove it.
Hand rests on the car battery top near the metal tie-down bracket in the engine bay.
With the tie-down bracket loose, rest a hand on the battery top as you prepare to lift the bracket clear.
Hands loosen the nut securing the battery tie-down bracket on the engine-bay battery.
Loosen and remove the battery tie-down bracket securing nut shown here.
  1. Remove the battery tie-down bracket.

24 Battery Removal

Hands lift the black battery from the engine bay beside the blue strut tower.
Lift the battery straight up out of the engine bay after disconnecting the terminals.
Hands lift the black plastic battery undertray from the engine bay after battery and padding removal.
Lift out the plastic undertray once the battery and protective padding are removed from the engine bay.
Hands lift the black plastic battery undertray from the engine bay near the blue strut tower.
After the battery and padding are out, lift and remove the plastic undertray from the battery tray area.
  1. Remove the battery, protective padding, and then plastic undertray.

25 Battery Tray Removal

Hex bolts on the battery tray in the engine bay with a socket engaged on one upper bolt.
Remove the circled bolts securing parts to the top and sides of the battery tray.
Battery tray in the engine bay with arrows marking bolt holes and a socket extension on one fastener.
Arrows show the bolts on the top and sides of the battery tray to remove before sliding it out.
Hands hold the black battery tray beside the blue plastic panel in the engine bay.
With bolts and clips removed, slide the tray toward the engine and lift it out of the bay.
  1. Once the tray is out, you will need to remove a number of bolts and clips. Remove all of the parts that are bolted to the top and sides of the battery tray.
  2. Once all of the bolts are removed, you'll need to slide the tray towards the engine and lift it out of the engine bay.

26 Charge Pipe Removal

Intake charge pipe in the Civic Type R engine bay with bolts and electronic connector indicated.
Red arrows show the bolts and electronic connector to remove on the intake charge pipe before lifting it out.
Hands disconnect a fitting on the silver intake charge pipe in the Civic Type R engine bay.
With bolts, clamps, and the connector free, lift the intake charge pipe upward and out of the engine bay.
Hands lift the silver intake charge pipe upward and out of the Civic Type R engine bay.
With bolts, hose clamps, and the connector removed, lift the charge pipe up and out of the engine bay.
  1. Remove the intake charge pipe.
  2. There are a number of bolts, two hose clamps and an electronic connector to remove.
  3. Once those are removed, you can lift the pipe upwards and out of the engine bay.

27 Shifter Cable Removal

Socket extension on a bolt securing the black wiring harness bracket near the shifter cables.
Unbolt the wiring harness bracket to move it aside and expose the shifter cables underneath.
Hand moves black wiring harness aside near shifter cable bracket in the engine bay.
Move the unbolted wiring harness out of the way to expose the shifter cables and bracket.
Metal shifter cable end fitting seated in the black bracket beside the corrugated wiring loom.
Close-up of the exposed shifter cable end in the bracket after the wiring harness is unbolted and moved aside.
  1. Unbolt the wiring harness and move it out of the way, exposing the shifter cables and bracket.

28 Shifter Cable Removal

Gloved hand grasps a shifter cable retaining clip on the transmission linkage ends.
Watch the gloved hand remove the retaining clips from the shifter cable ends.
Shifter cable retaining clips at the transmission end on a Civic Type R engine bay.
Red arrows mark the two shifter cable retaining clips to remove in this step.
Gloved hands beside two shifter cable retaining clips marked by red arrows in the engine bay.
Red arrows point to the shifter cable retaining clips that must be removed.
  1. Remove the shifter cable retaining clips.

29 Shifter Cable Removal

Shifter cable spring clips at the metal bracket connection on the Civic Type R
Red arrows mark the shifter cable spring clips to remove before sliding the cables out of the bracket.
Red arrows mark spring clips on the two shifter cables seated in the transmission bracket.
Use a flat screwdriver to remove the spring clips, then slide the cables out of the bracket.
Gloved hands slide a shifter cable end free from the metal bracket on the transmission.
After the spring clips are off, slide each shifter cable out of the bracket as shown.
  1. Use a flat tipped screw driver and remove the shifter cable spring clips.
  2. Once they are removed, slide the cables out of the bracket.

30 Shifter Cable Removal

Gloved hand holds a red impact driver on a fastener at the heat shield near the exhaust under the Civic Type R.
Under the car, use an impact driver on the heat-shield fastener beside the exhaust after the plastic under tray is removed.
Gloved hand uses a screwdriver on a fastener at the plastic under tray under the Civic Type R.
Remove the fastener securing the plastic under tray under the car to access the heat shielding.
Gloved hands use a red power tool on a fastener at the underbody metal heat shield edge.
Under the car, remove the remaining fastener securing the heat shielding next to the plastic under tray.
  1. Under the car, remove the plastic under tray to gain access to the heat shielding and exhaust.

31 Shifter Cable Removal

Impact driver removing a bolt from the exhaust flange hanger near the underbody heat shield.
Remove the three bolts on the exhaust flange so the hanger bushing can slide off and the exhaust can hang down.
Black exhaust hanger bushing with open hole and metal hanger rod under the Civic Type R.
View of the hanger bushing to slide off the exhaust hanger after the flange bolts are removed.
Exhaust pipe disconnected from the flange and hanging down under the Civic Type R chassis.
After removing the three flange bolts and hanger bushing, the exhaust hangs down clear of the underbody.
  1. Remove the three bolts on the exhaust flange and slide off the hanger bushing.
  2. Let the exhaust hang down.

32 Shifter Cable Removal

Heat shield bolts on the underbody heat shield beside the exhaust pipe.
Remove the circled heat shield bolts and slide the shield aside to expose the shifter cables.
Arrow points to a heat shield bolt beside the metal flange and stud under the Civic Type R.
Note the heat shield bolt marked by the arrow; remove it to slide the shield aside and expose the shifter cables.
Gloved hand slides the underbody heat shield aside near the exhaust pipe on the Civic Type R.
Slide the heat shield out of the way after removing its bolts to expose the shifter cables.
  1. Remove the heat shield bolts and slide it out of the way, exposing the shifter cables.

33 Shifter Cable Removal

Metal shifter cable bracket bolted to the vehicle frame with black cable and blue ring visible.
View the shifter cable bracket on the frame where the retaining nuts will be removed.
Gloved hand pulls the rubber seal down from the shifter cable opening in the firewall.
Pull the rubber seal down so the shifter cables can be removed from the cabin.
Shifter cables and black rubber seal at the firewall hole inside the Civic Type R cabin.
Rubber seal pulled down so the shifter cables can be removed from the cabin through the firewall.
  1. Remove the nuts holding the shifter cable bracket to the frame.
  2. Pull the rubber seal down and remove the shifter cables from the cabin.

34 Shifter Cable Removal

Shifter cable bracket and open flange in the Civic Type R engine bay
View the open mounting flange and bracket while sliding the shifter cables out of the engine bay.
Shifter cable with metal end positioned above triangular flange opening in the Civic Type R engine bay.
Shifter cable slid free in the engine bay; confirm nothing is caught as you remove it from the car.
  1. Slide the shifter cables out of the car. Be sure nothing gets caught up in the engine bay.

35 Install Grommet

Hands mark the rubber grommet on Hybrid Racing shifter cables with a blue Sharpie.
Mark the rubber grommet at each cable before slicing it down the center to transfer it to the new cables.
Hands slice the rubber grommet down the center of each shifter cable with a cutting tool.
Slice the grommet down the center of each cable and peel it back, keeping the cables aligned.
Hands transfer the rubber grommet onto the new Hybrid Racing shifter cables.
Peel the sliced grommet back and transfer it to the new cables while keeping them correctly aligned and positioned.
  1. You must transfer the rubber grommet from the factory cables to the new cables.
  2. Be sure to align the cables correctly and keep them positioned correctly.
  3. Slice the grommet down the center of each cable and peel it back.

36 Install cable bracket

Hand holding a gray marker next to black shifter cables and metal cable bracket on a wooden surface.
With the cables side by side, mark the position of the shifter cable bracket to transfer it to the new HR cables.
Hand holds metal shifter cable bracket at the ends of two black Hybrid Racing shifter cables.
With cables side by side, hold the bracket in place to mark its position before transferring it to the new cables.
Hand holds metal shifter cable bracket on black cables while a socket driver tightens its bolt.
Tighten the bolt securing the transferred shifter cable bracket onto the new Hybrid Racing cables.
  1. With the cables side by side, mark the position of the shifter cable bracket. You must transfer the cable bracket over to the new HR cables.
  2. If this bracket isn't in the correct location, you may need to slide it when installed into the car.

37 Install Shifter Cables

Socket wrench on the shifter cable bracket bolt near the floor hole in the engine bay.
Attach the bracket after sliding the cables through the floor hole, then secure it with the bolt.
Hand routes black shifter cables upward through the hole in the Civic Type R floor from underneath.
Bend the cables up and slide them through the floor hole, then seat the rubber grommet in place.
Hand holds black shifter cables against the underside floor pan near a circular hole.
Bend the cables upward and slide them through the hole in the floor from underneath the car.
  1. Install the shifter cables in a similar way that they were removed. You can do this by sliding the cables into the engine bay from underneath the car.
  2. Then bend the cables upwards and slide them through the hole in the floor. You can now attach the bracket and slide the rubber grommet in place.

38 Install Shifter Cables

Shifter cables seated through the cable bracket on the transmission with black retaining bushings.
Shifter cables inserted through the transmission bracket, ready for the OEM retaining C clips to lock them in place.
Shifter cable end seated in the transmission shifter cable bracket with black bushing and pin.
Shifter cable inserted through the bracket on the transmission, ready for the OEM retaining C clip.
Shifter cables seated through the metal shifter cable bracket on the transmission.
Shifter cables inserted through the transmission bracket and locked with the OEM retaining C-clips.
  1. On the transmission, insert the shifter cables through the shifter cable bracket. Use the OEM retailing C clips and lock them into place.
  2. Slide the shifter cable end links back on and install using the supplied cotter pins.

39 Install Shifter Cables

Red Hybrid Racing short shifter assembly mounted on black bracket between front seats.
Installed Hybrid Racing shifter on the black mounting bracket inside the car for this step.
Chrome socket and extension engaged on a fastener beside interior carpet in the Civic Type R.
Socket tool sits on the fastener while the shifter is installed inside the car for this step.
Socket on a bolt securing the black Hybrid Racing shifter cable bracket inside the Civic Type R.
Look at the socket on the bolt fastening the black shifter cable bracket inside the car.
  1. Back inside of the car, you can now install the shifter.

40 Install Shifter Cables

Hands insert a Hybrid Racing shifter cable end into the shifter assembly inside the Civic Type R cabin.
Insert the shifter cable end back into the shifter as shown for this installation step.
Hands insert a black Hybrid Racing shifter cable end into the shifter bracket assembly.
Guide the shifter cable end into the shifter housing until it seats fully in place.
  1. Insert the shifter cables back into the shifter.

41 Install Shifter Cables

Red anodized shifter cable end link attached to the shifter mechanism with a black pivot ball and retaining clip.
Attach the shifter cable end link to the shifter; note the red bracket seated on the black pivot with the clip engaged.
Hand holds black-and-red shifter cable end link against the red shifter attachment point.
Attach the shifter cable end link to the shifter, aligning the red threaded end with the shifter mount.
Fingers seating the black cable end link onto the red shifter arm ball stud.
Press the shifter cable end link fully onto the ball stud on the shifter.
  1. Attach the shifter cable end links to the shifter.

42 Install Shifter Cables

Black shifter cables with silver fittings seated in a metal bracket on the Civic Type R.
Shifter cable ends in the bracket where the retaining spring clips are installed for this step.
Hands position a metal retaining spring clip onto the shifter cable end at the black mounting bracket.
Install the shifter cable retaining spring clip onto the cable end at the bracket as shown.
Hand installing retaining spring clip on Hybrid Racing shifter cable ends in black bracket.
Install the shifter cable retaining spring clips onto the cable ends in the mounting bracket.
  1. Now install the shifter cable retaining spring clips.

43 Install Complete!

Red Hybrid Racing short shifter installed in the Civic Type R center console with lever held upright.
Finished shifter and cable install in the console; row through the gears to confirm smooth operation.
  1. Once the cables are connected you can now row through all of the gears, making sure everything feels good.
  2. The shifter cables are now installed so you'll have to put the car back together in the reverse order.
  3. Thanks for reading, enjoy!

Finishing up

Once the cables are connected, row through all gears to make sure everything feels good. Reassemble the car in reverse order. Thanks for reading, enjoy!

Revision 3 · Updated Nov 13, 2026

YOU MAY ALSO LIKE

RECENTLY VIEWED
