PRODUCT DETAILS

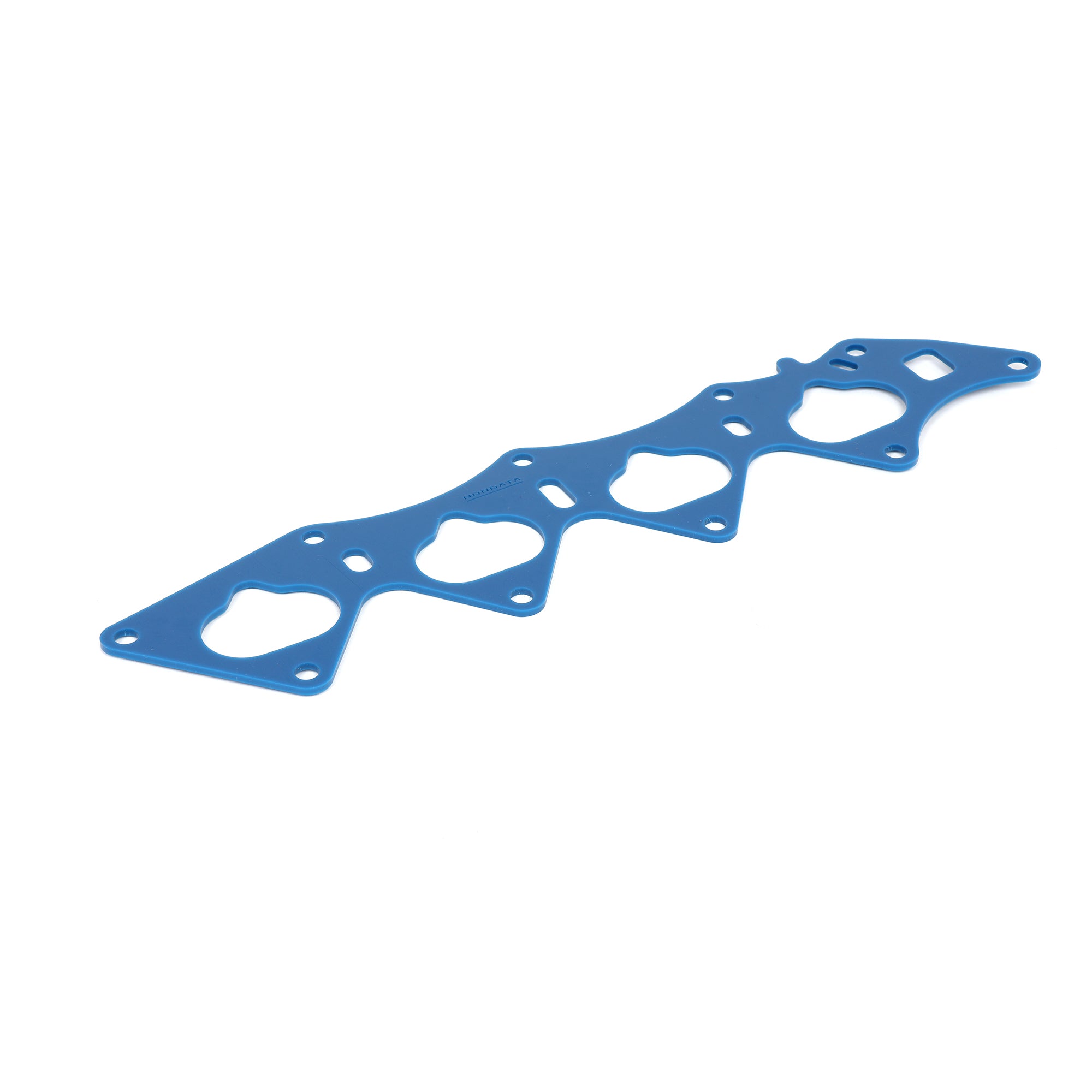

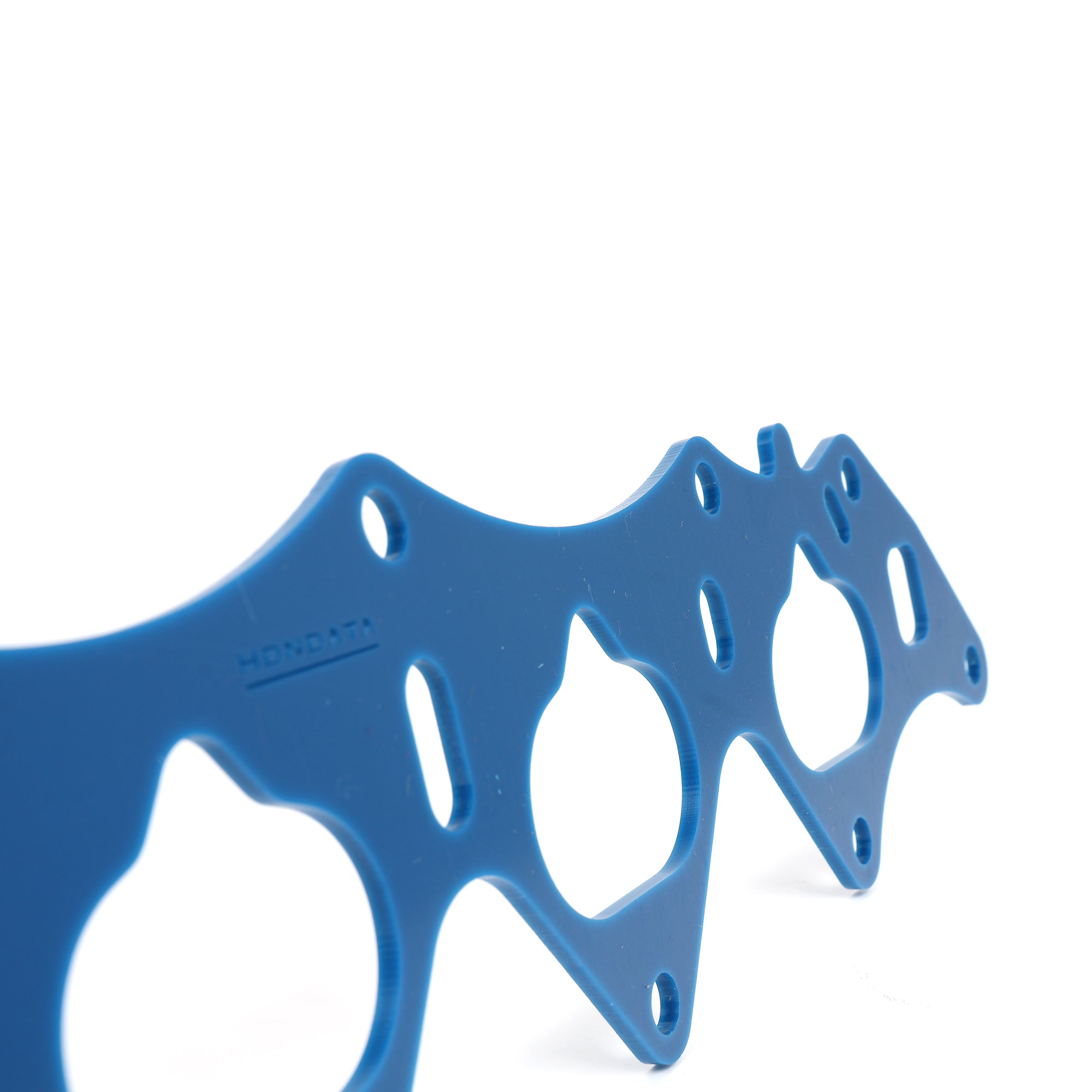

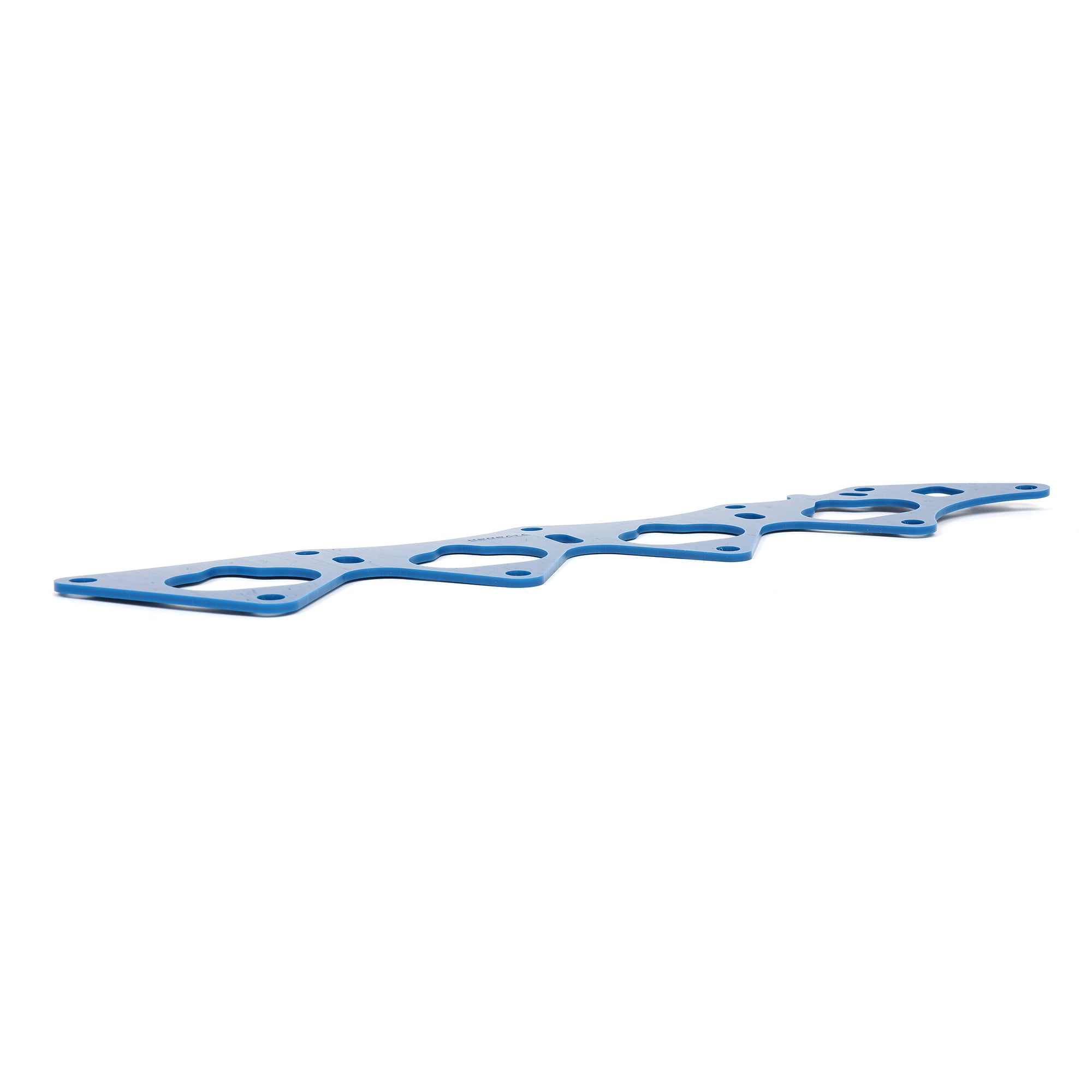

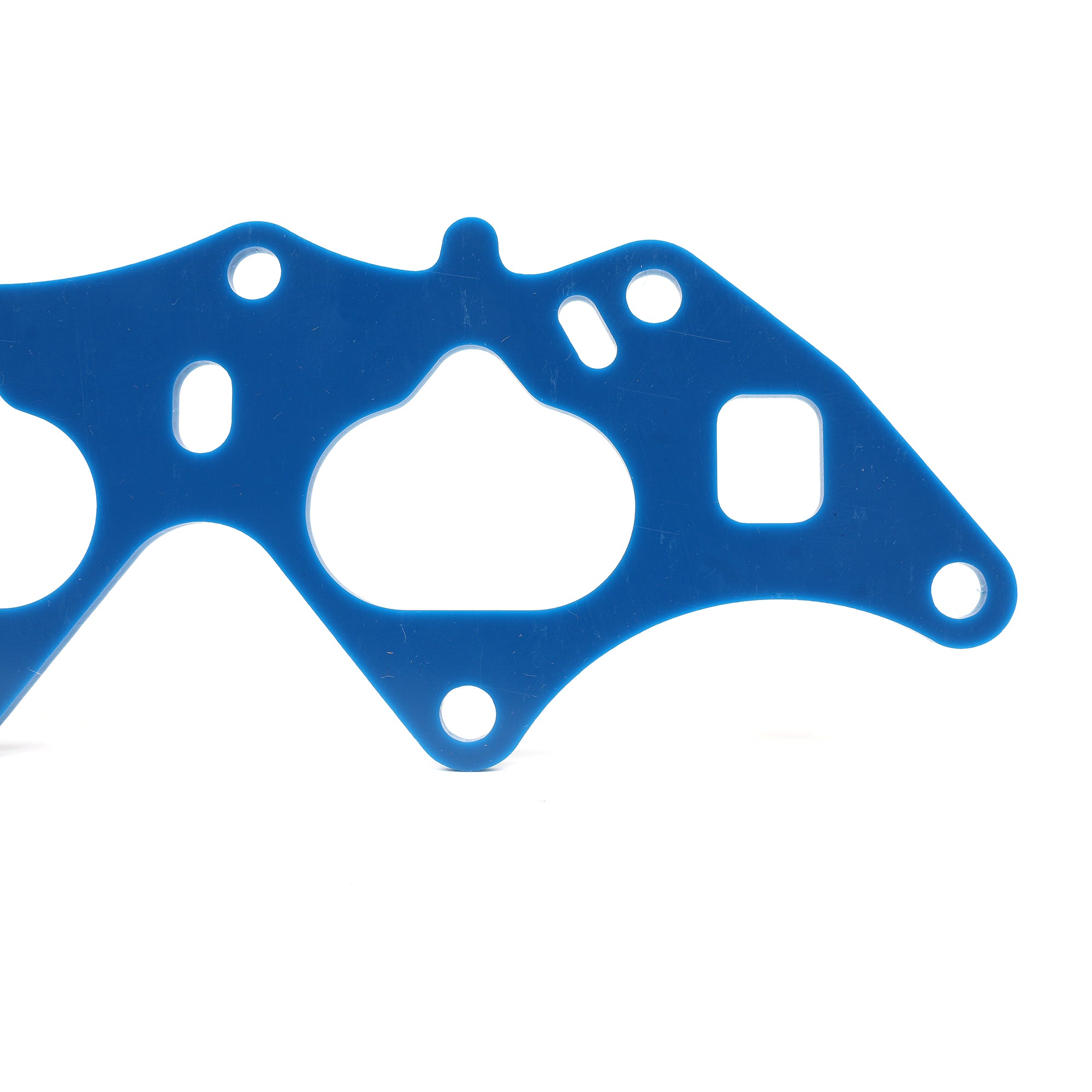

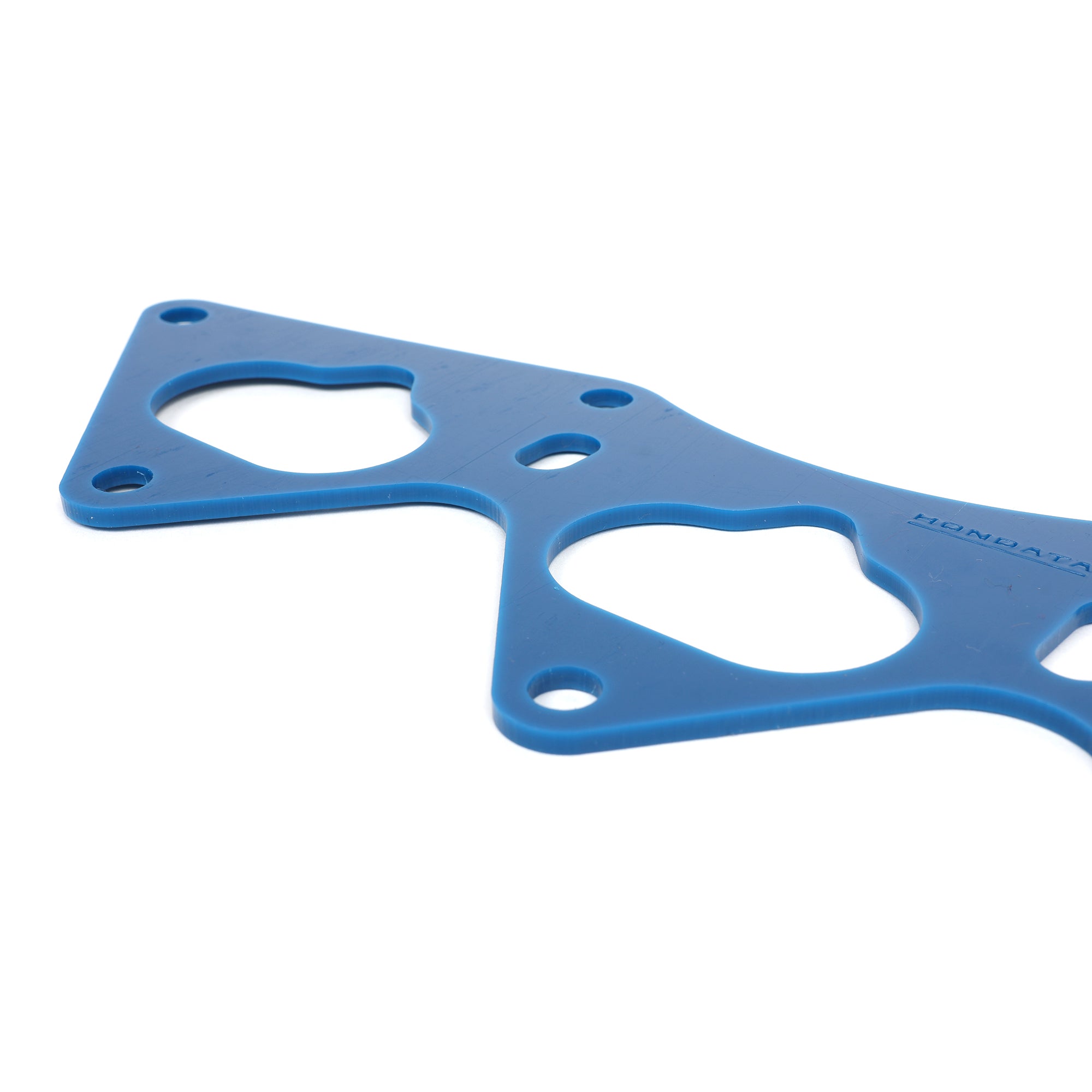

Hondata Intake Manifold Gasket for B16A/B18C5 Engines
Upgrade your engine’s performance with the Hondata Intake Manifold Gasket, designed for the B16A engines found in the 1999–2000 Honda Civic Si and 1994–1997 Honda Del Sol VTEC, as well as the B18C5 engines in the 1997–2001 Acura Integra Type R. This high-temperature insulating gasket replaces the stock intake gasket and significantly reduces heat transfer from the cylinder head to the intake manifold, keeping incoming air cooler and denser for improved combustion efficiency.
By limiting heat soak from the engine, the Hondata Heatshield Gasket can lower intake air temperatures by as much as 30°C in certain driving conditions, leading to up to 5% more power. Even during everyday driving around town, temperature reductions of around 10°C can be achieved, resulting in noticeable gains in throttle response and engine efficiency. Cooler intake air improves air density, allowing the ECU to deliver more fuel for better performance and optimized power output.
The gasket is designed to bypass multiple heat sources including the throttle body heater, idle control valve, and interior heating takeoff hose. Installation of the gasket, along with optional race-specific bypasses, ensures that intake temperatures remain consistent during spirited driving, track sessions, or drag events. With this gasket, your B16A or B18C5 engine will maintain cooler intake temperatures, improving both performance and reliability.
Key Features:
- Compatible with B16A and B18C5 engines
- Fits 1999–2000 Honda Civic Si, 1994–1997 Honda Del Sol VTEC, and 1997–2001 Acura Integra Type R
- High-temperature insulating material reduces heat transfer to the intake manifold
- Lowers intake air temperatures by up to 30°C for denser, cooler air
- Increases engine efficiency and provides up to 5% more power
- Bypasses multiple heat sources for consistent intake performance
- Suitable for both street and race applications
