Honda K20A2/K20Z1 Timing Chain Case Gasket Kit 06114-PRB-A03

Honda K20A2/K20Z1 Timing Chain Case Gasket Kit - 06114-PRB-A03

Doing a timing chain job or pulling your timing cover on your RSX Type S? The Honda timing chain case gasket kit (part number 06114-PRB-A03) includes all the seals and O-rings you need when you're removing your timing cover. You're getting the front crank seal, rear crank seal, front cover O-ring, crank sensor O-ring, and VTC solenoid O-ring. When you pull your timing cover off, you're supposed to replace all these seals and O-rings. Don't reuse old seals that have been compressed for years - they won't seal properly when you put everything back together and you'll have oil leaks everywhere.

Here's Why You Need to Replace These Seals

When you remove your timing cover, you're disturbing all the seals and O-rings that seal the timing cover to your engine block. The front crank seal sits in your timing cover and it seals your crankshaft where it comes through the cover. The rear crank seal sits in your engine block behind your flywheel. The O-rings seal the timing cover to the block, the crank position sensor, and the VTC (Variable Timing Control) solenoid. Once you remove your timing cover, these seals and O-rings have been compressed against the mating surfaces for years. When you unbolt everything, the seals lose tension and the O-rings flatten out. If you reuse them, they won't seal properly and you'll get oil leaks at the timing cover, the crank seals, or the sensor O-rings.

Everything You Need in One Kit

This kit includes all five seals and O-rings you need when you're doing timing cover work. You're not buying them separately or trying to figure out which ones you need. Front crank seal, rear crank seal, front cover O-ring, crank sensor O-ring, and VTC solenoid O-ring - they're all here. If you were buying these parts individually, you'd be ordering five separate part numbers. This kit saves you time and makes sure you've got everything before you start tearing into your engine.

What You Get

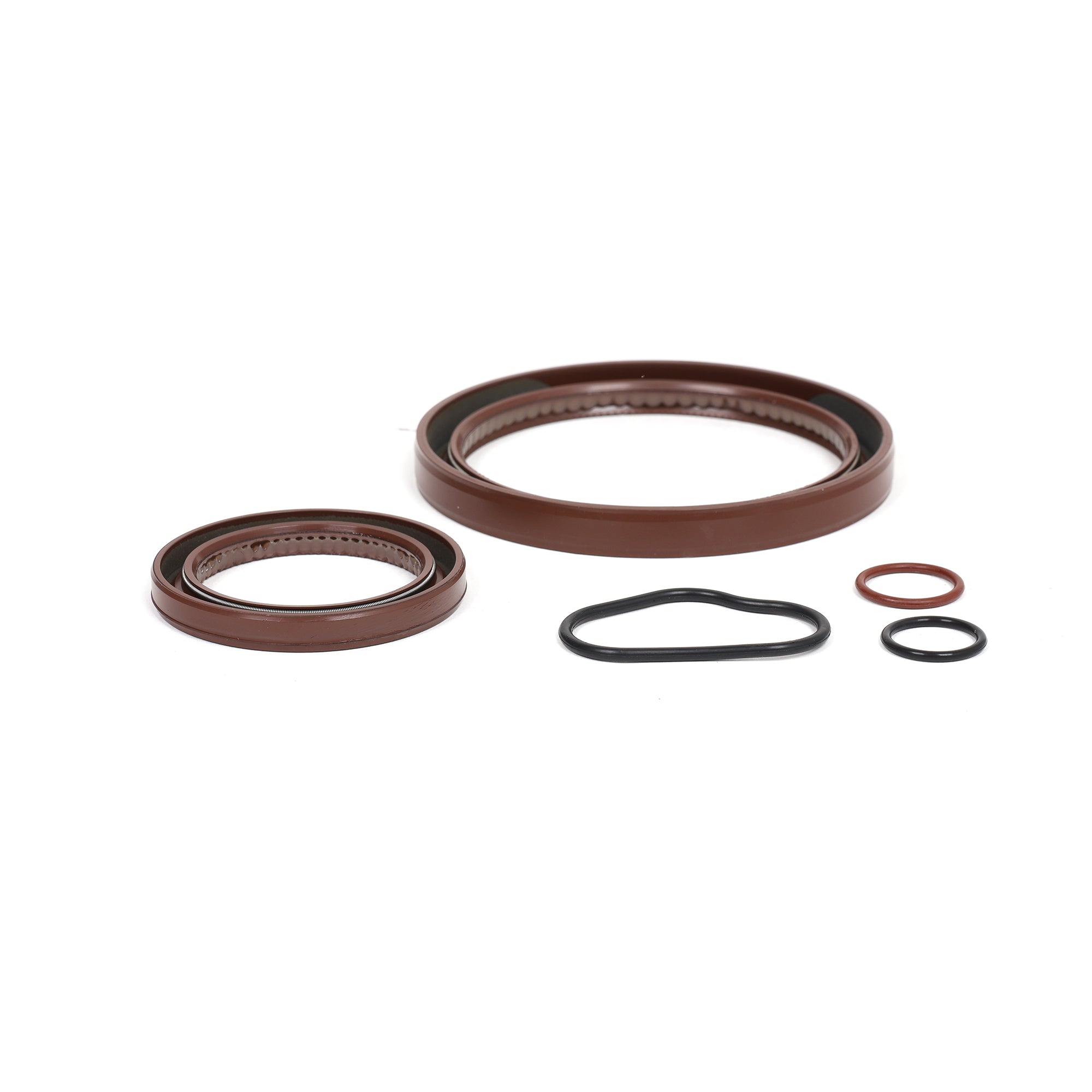

• Honda K20A2/K20Z1 timing chain case gasket kit
• Part number: 06114-PRB-A03
• Genuine Honda OEM replacement

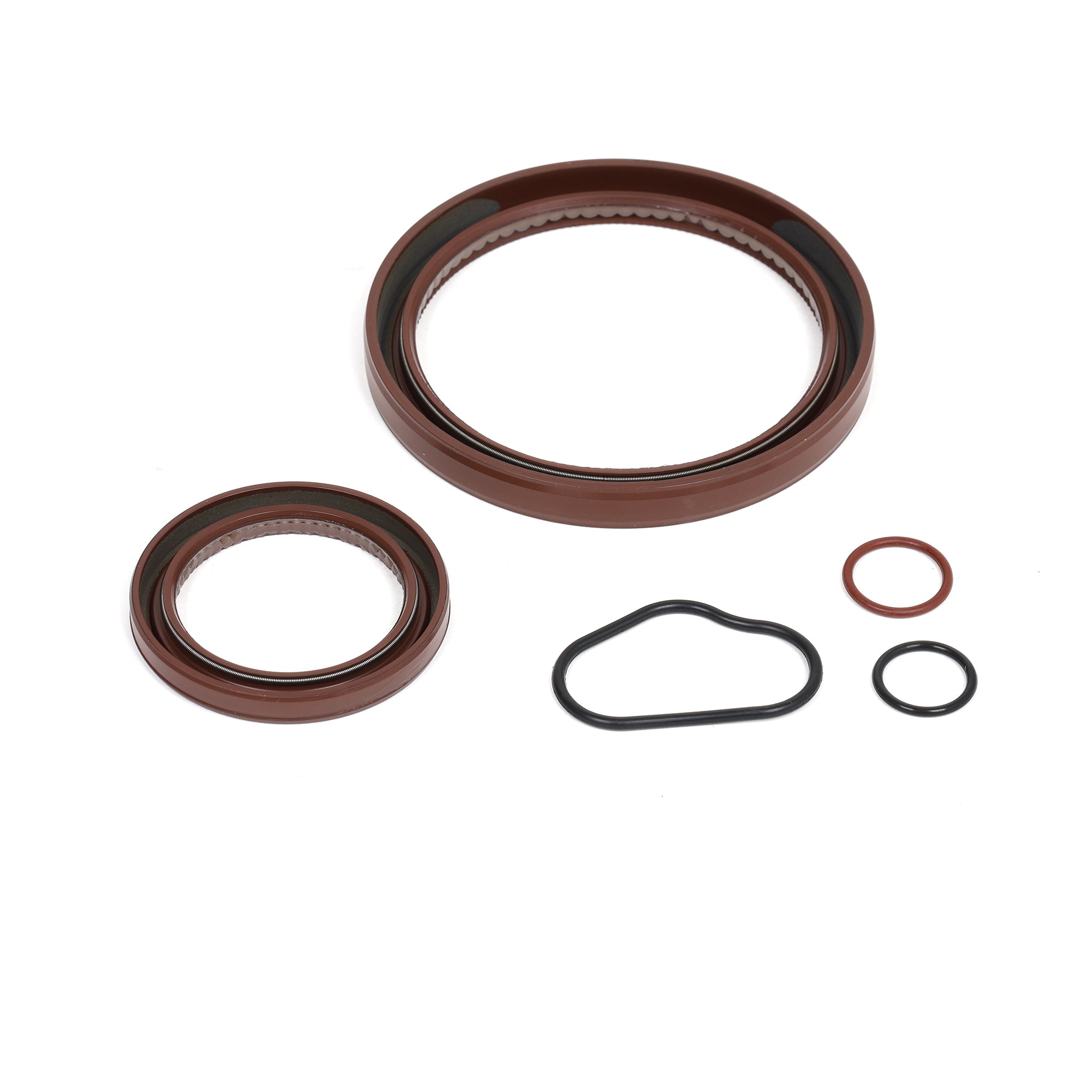

• Includes:

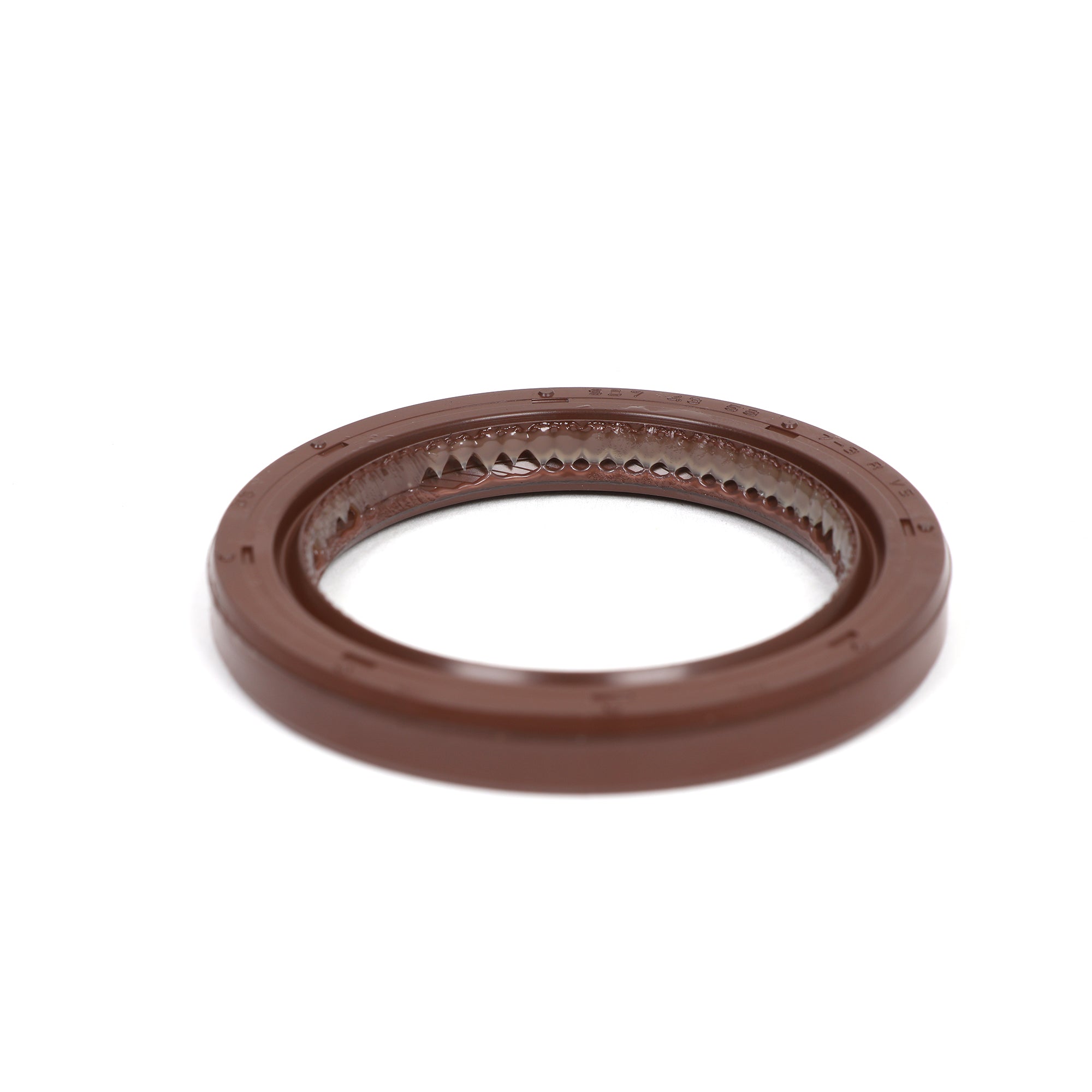

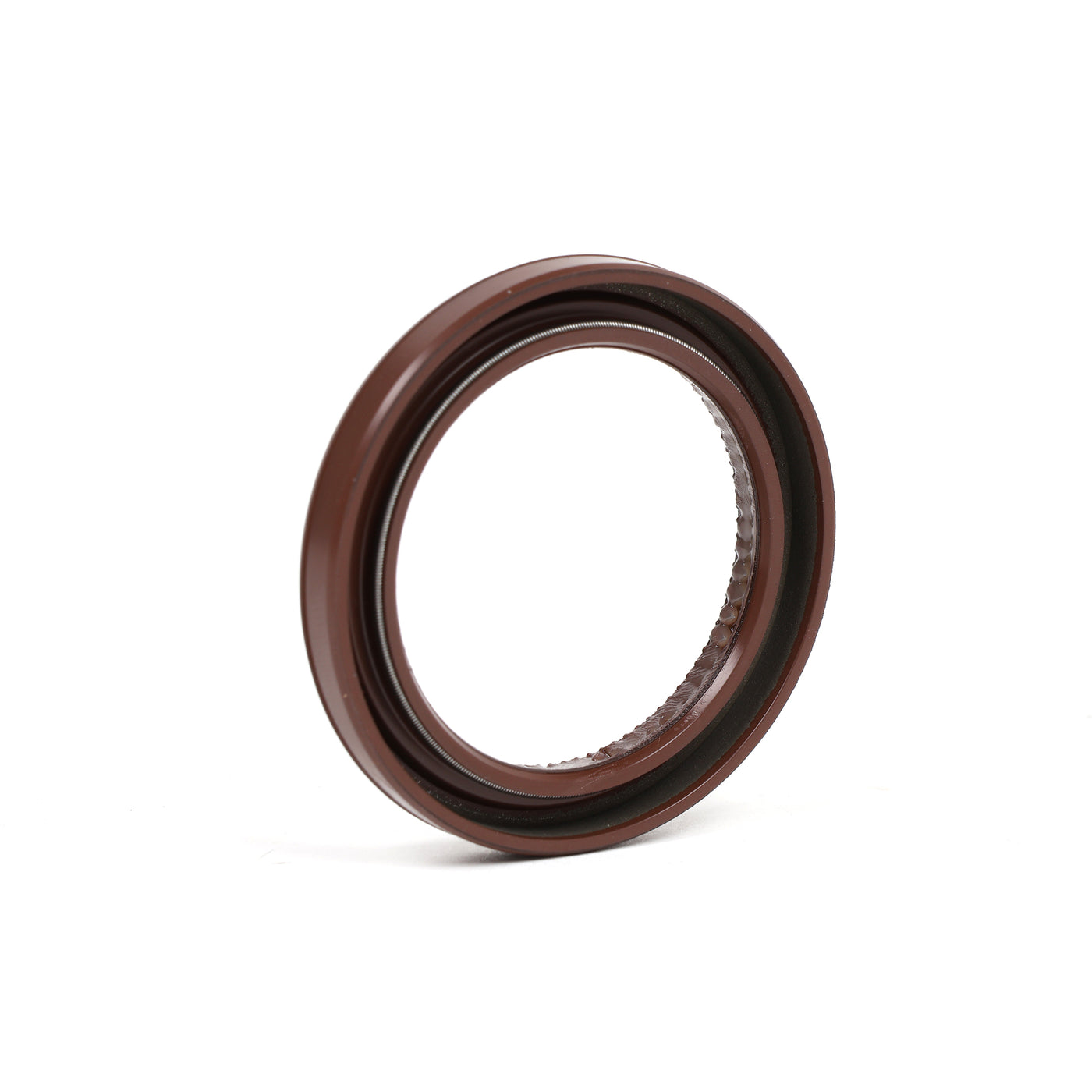

  • 1x Front crank seal

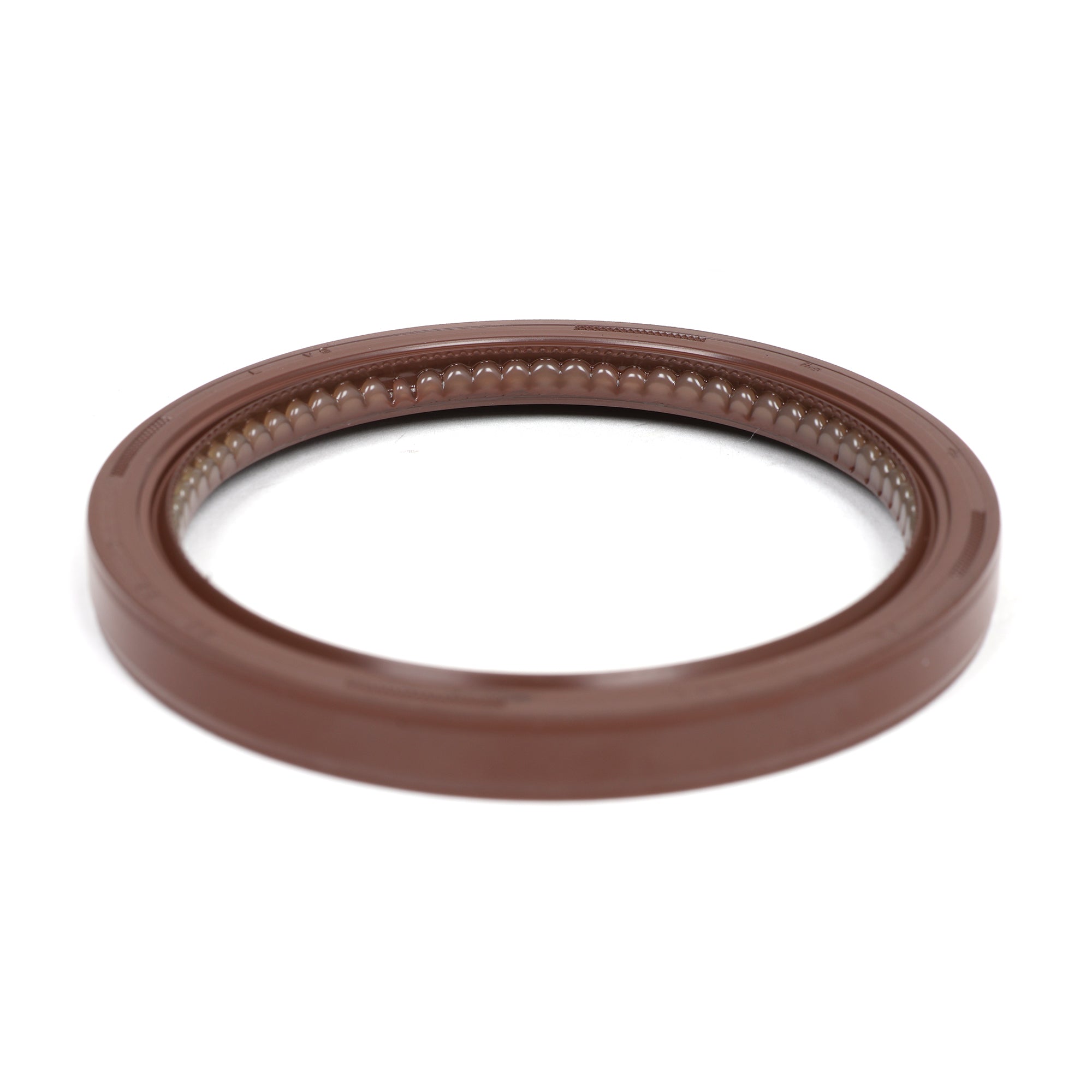

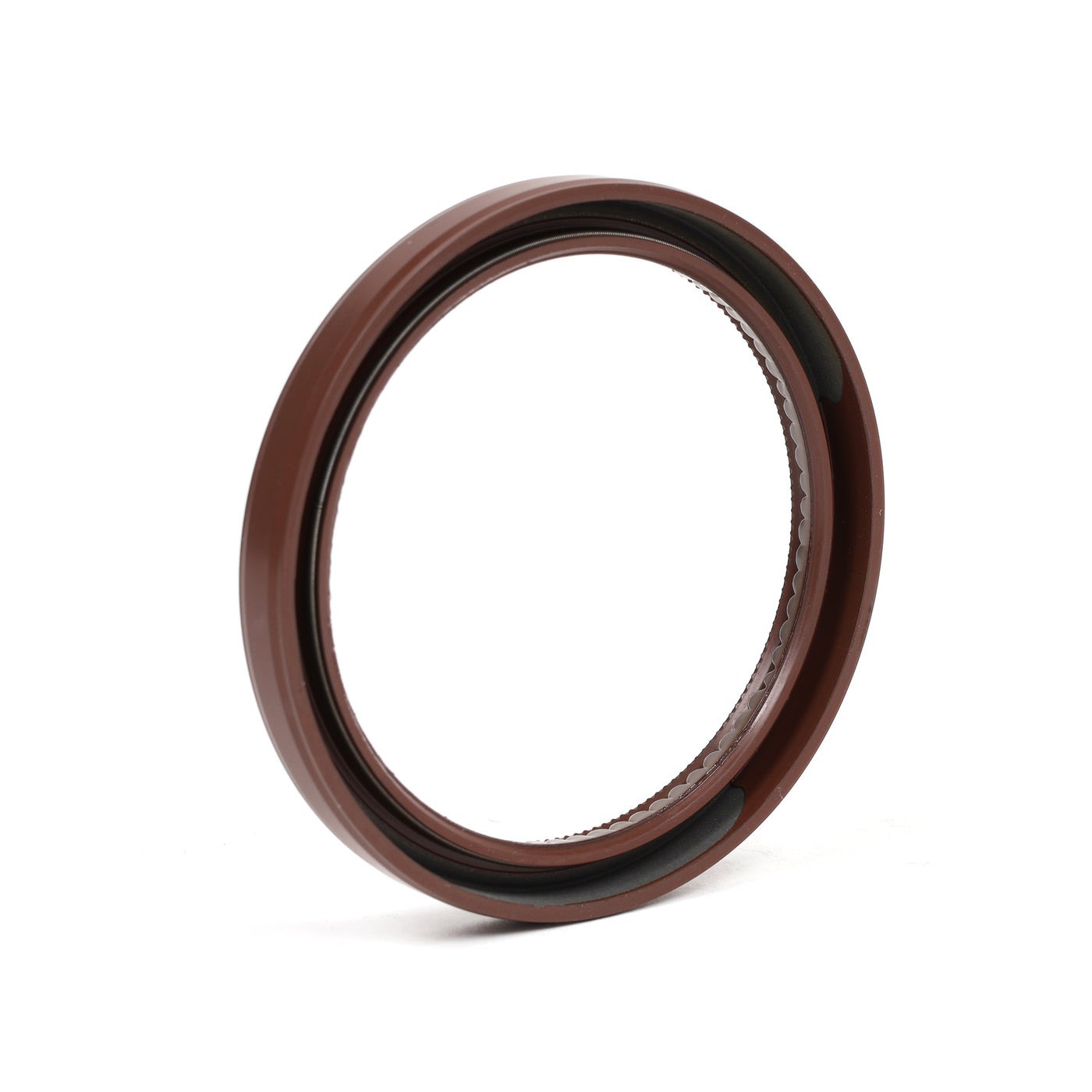

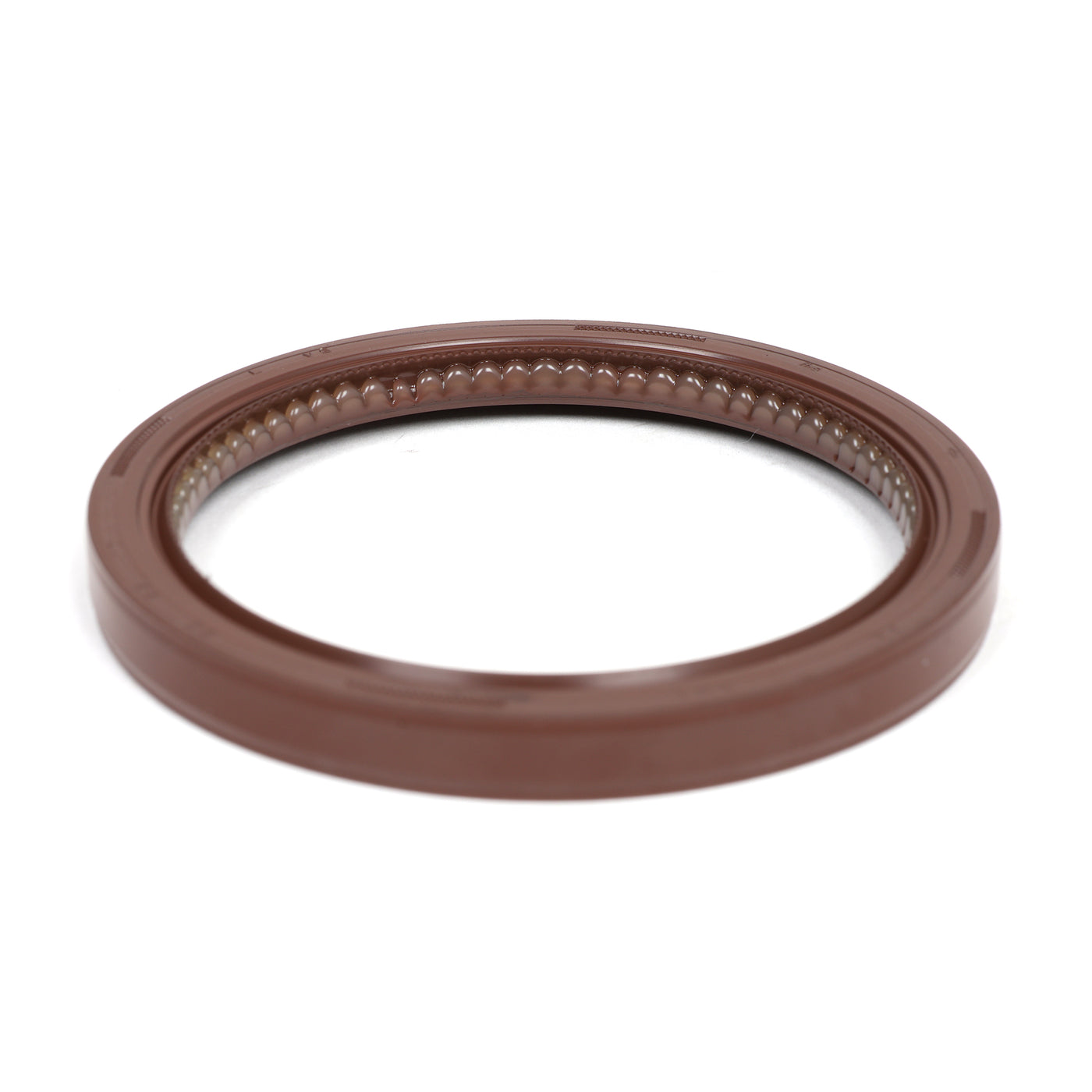

  • 1x Rear crank seal

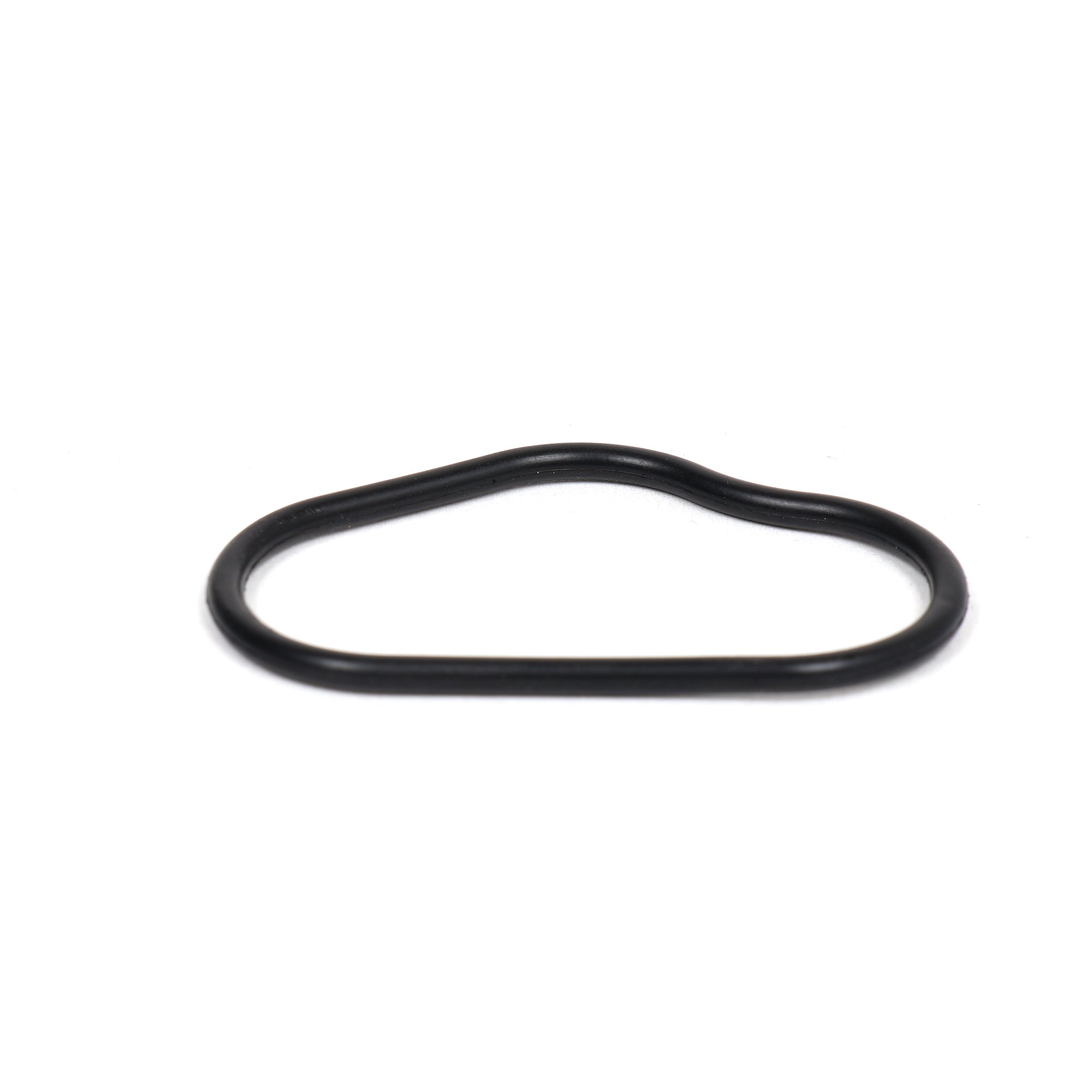

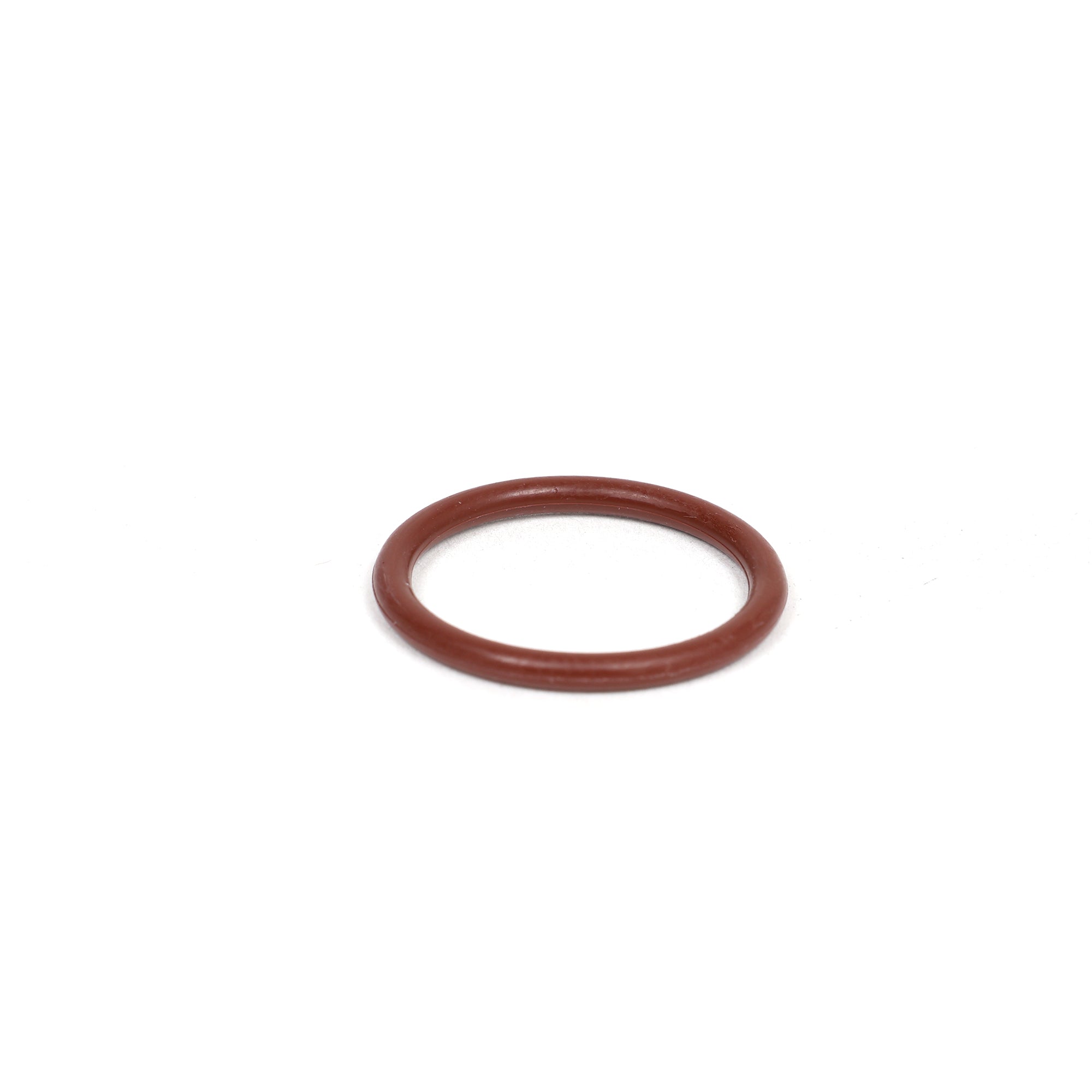

  • 1x Front cover O-ring

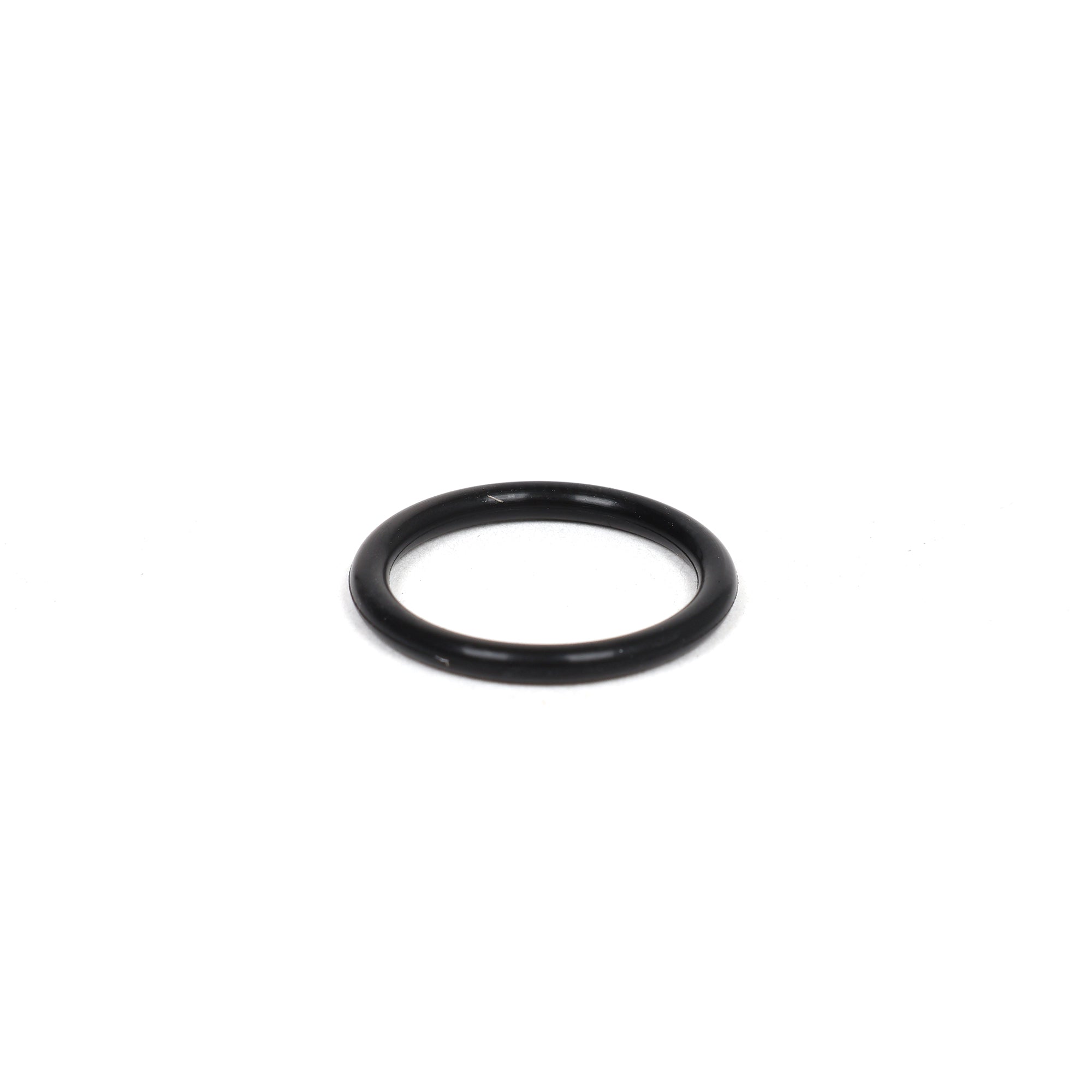

  • 1x Crank position sensor O-ring
  • 1x VTC solenoid O-ring

Fits Your Car

• 2002-2006 Acura RSX Type S

Compatible Engines

• K20A2 (2002-2004 RSX Type S)
• K20Z1 (2005-2006 RSX Type S)

Note: Replace all the seals and O-rings in this kit whenever you remove your timing cover. Don't reuse old seals - they won't seal properly and you'll have oil leaks. When you're installing the front crank seal, make sure it's seated flush in the timing cover. If it's cocked or sitting crooked, it'll leak. Use a seal driver or a socket that's the same diameter as the seal to press it in straight. Lubricate the seal lips with fresh engine oil before you install your crankshaft pulley. If the seal's dry, you can damage it when you slide the pulley on. When you're installing the rear crank seal, clean the seal bore in the engine block thoroughly. Any dirt or old seal residue will cause the new seal to leak. Torque your timing cover bolts to spec in the correct sequence. If you don't torque them right, the cover can warp and you'll get oil leaks at the O-ring.
