Honda D/L Series Flywheel Bolt 90011-PM0-000

Genuine Honda Flywheel Bolt (90011-PM0-000) - D-Series & Fit (L15)

These are the genuine Honda bolts that secure the flywheel to the crankshaft on the D-series engines and the L15 in the Fit. They're torque-to-yield fasteners under serious load, so they aren't something you reuse, any time the flywheel comes off, you replace them with fresh bolts. If you're doing a clutch or flywheel on your Civic, CRX, Del Sol, or Fit, this is the bolt to order. Sold individually, and you need 6 for a complete flywheel.

Replace Them With Your Flywheel

This is the rule with flywheel bolts, and it's not optional.

The flywheel bolts clamp the flywheel to the crankshaft and hold it against everything the engine produces. They're torqued to yield, meaning they're tightened to a precise spec that stretches them slightly to reach the correct clamping force. Once stretched, they won't clamp properly a second time, so reusing them risks the flywheel coming loose, which is catastrophic.

That's why you fit fresh bolts any time the flywheel is off, a clutch job, a flywheel replacement, a rear main seal, or any work that has the flywheel unbolted. The flywheel's already off and the bolts are cheap; reusing stretched ones to save a couple dollars isn't worth the risk on a fastener this critical. If you're in there, replace them.

Sold Individually — You Need 6

The D-series and L15 flywheel uses 6 bolts, and these are sold individually, so order 6 for a complete flywheel. It's an easy quantity to under-order, so count before checkout, you don't want to be a bolt short with the transmission out.

Fitment

1988-1991 Honda Civic DX/EX/STD/Si/4WD
1992-1995 Honda Civic CX/DX/EX/LX/VX/Si
1996-2000 Honda Civic CX/DX/EX/HX/LX
2001-2005 Honda Civic DX/EX/LX
1988-1991 Honda CRX DX/HF/Si
1993-1997 Honda Del Sol S/Si
2007-2008 Honda Fit
2009-2013 Honda Fit
2015-2020 Honda Fit

Fits all Honda D-series transmissions and the L15A/L15B (2007-2020 Fit). Part number 90011-PM0-000. Genuine Honda. Sold individually, 6 required.

If you're doing a clutch or flywheel on a D-series Civic, CRX, or Del Sol, or a Fit, order a fresh set of these, it's the fastener you always replace, never reuse, when the flywheel's off. Genuine Honda, and 6 for a complete flywheel. Grab 6, and torque them to spec.

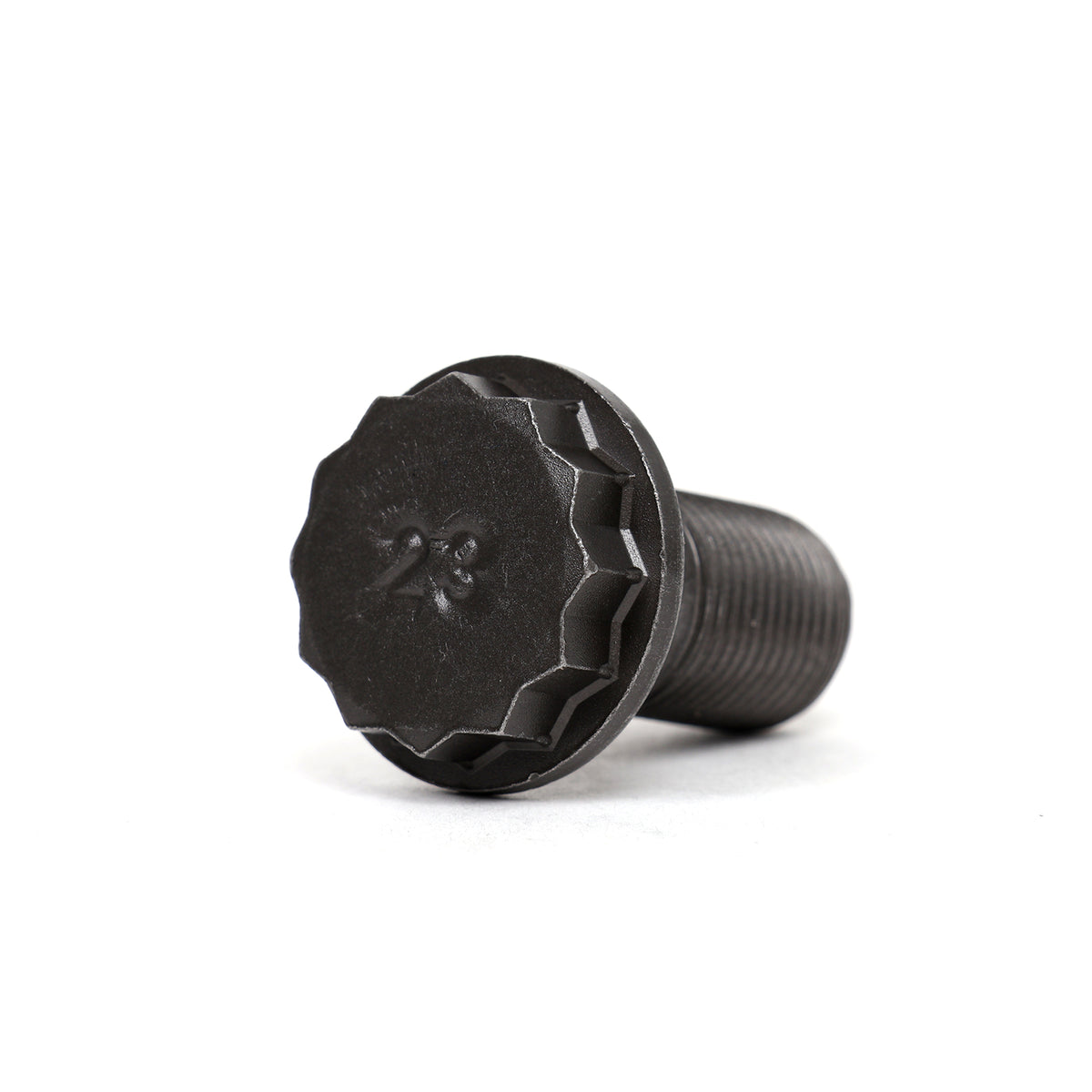

Please note image shows a Honda B/F/G/H Series Flywheel Bolt, though D Series will look very similar.
