PRODUCT DETAILS
Haltech Bosch CANbus Wideband Oxygen Sensor Kit
Take control of your engine’s performance with the Haltech Bosch CANbus Wideband Oxygen Sensor Kit. Designed to deliver precise air-fuel ratio (AFR) readings across a wide range, this kit ensures optimal tuning and maximum efficiency for your setup. Perfectly compatible with Haltech Nexus, Elite, and Platinum ECUs, this plug-and-play wideband solution seamlessly integrates with your CANbus system for real-time data delivery and advanced control.
The kit includes the highly reliable Bosch LSU 4.9 sensor, which is recognized for its exceptional accuracy and durability. The single-channel CAN Wideband Controller transmits critical AFR data to your ECU, enabling fine-tuned adjustments for everything from high-performance racing engines to daily-driven setups. Program and control the system effortlessly with Haltech’s NSP, ESP, or ECU Manager software.
Designed with simplicity and versatility in mind, this kit comes with all necessary components, including a CAN cable, power supply cable, weld-on bung, and a quick start guide for easy installation. Whether you’re optimizing for power, fuel efficiency, or emissions, the Haltech Bosch CANbus Wideband Oxygen Sensor Kit is an essential upgrade for achieving precise engine management.
Key Features:
- Compatible with Bosch LSU 4.9 sensor for precise AFR readings.
- Plug-and-play integration with Haltech Nexus, Elite, and Platinum ECUs via CANbus.
- Includes CAN cable, power supply cable, weld-on bung, and quick start guide.
- Program and control using Haltech’s NSP, ESP, or ECU Manager software.
What’s Included:
- Bosch LSU 4.9 Wideband Sensor
- Single Channel CAN Wideband Controller
- CAN Cable (4'/1200mm)
- Power Supply Cable

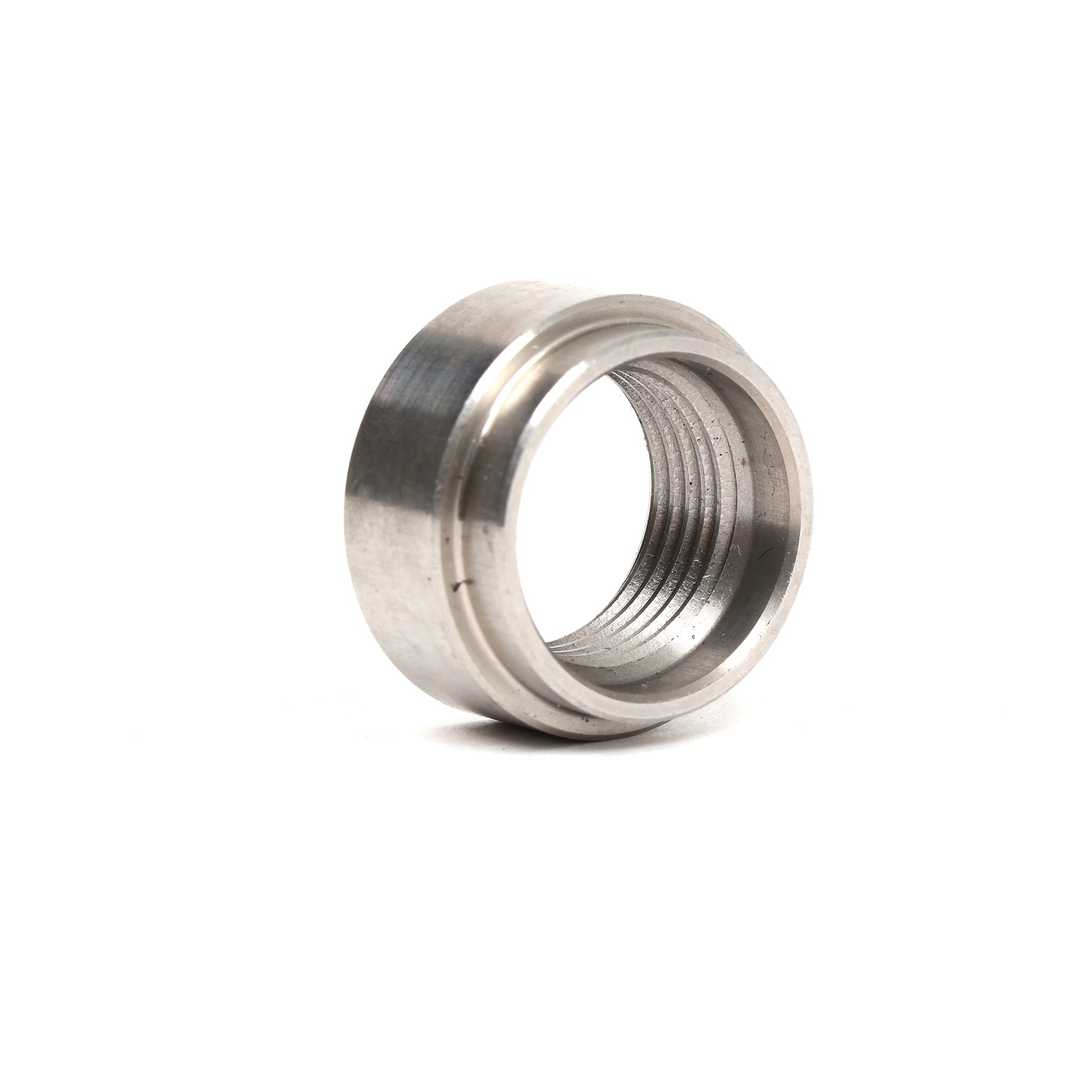

- Weld-on Bung
- Quick Start Guide
Commonly Asked Questions:
Is this kit compatible with non-Haltech ECUs?
Yes, the Haltech Bosch CANbus Wideband Oxygen Sensor Kit is compatible with supported third-party ECUs that use CANbus communication.
Can this kit handle forced induction applications?
Absolutely! The Bosch LSU 4.9 sensor accurately measures AFR in both naturally aspirated and forced induction setups, making it ideal for high-performance engines.
Do I need additional software to use this kit?
No additional software is needed if you’re using Haltech’s NSP, ESP, or ECU Manager software, which is compatible with the Wideband Controller.
What is the installation process like?
The kit is designed for straightforward installation with its plug-and-play configuration. Simply connect the components, weld the bung onto your exhaust, and configure the setup through the software.
- Sensor Type: Bosch LSU 4.9 Wideband Oxygen Sensor
- Measurement Range: 0.65 Lambda (9.5 AFR) to 1.8 Lambda (26.5 AFR)
- Controller Type: Single Channel CAN Wideband Controller
- Output: CANbus communication for seamless integration with Haltech ECUs and supported third-party systems
- Compatibility:
- Haltech Nexus Series ECUs
- Haltech Elite Series ECUs
- Haltech Platinum Series ECUs
- Third-party ECUs supporting CANbus communication
- Cable Lengths:
- CAN Cable: 4 ft (1200 mm)
- Power Supply Cable: Standard length for easy integration
- Software Support: Compatible with Haltech NSP, ESP, and ECU Manager for setup and control
- Power Requirements:
- Input Voltage: 12V DC (typical automotive electrical system)
- Low current draw for efficiency
