PRODUCT DETAILS

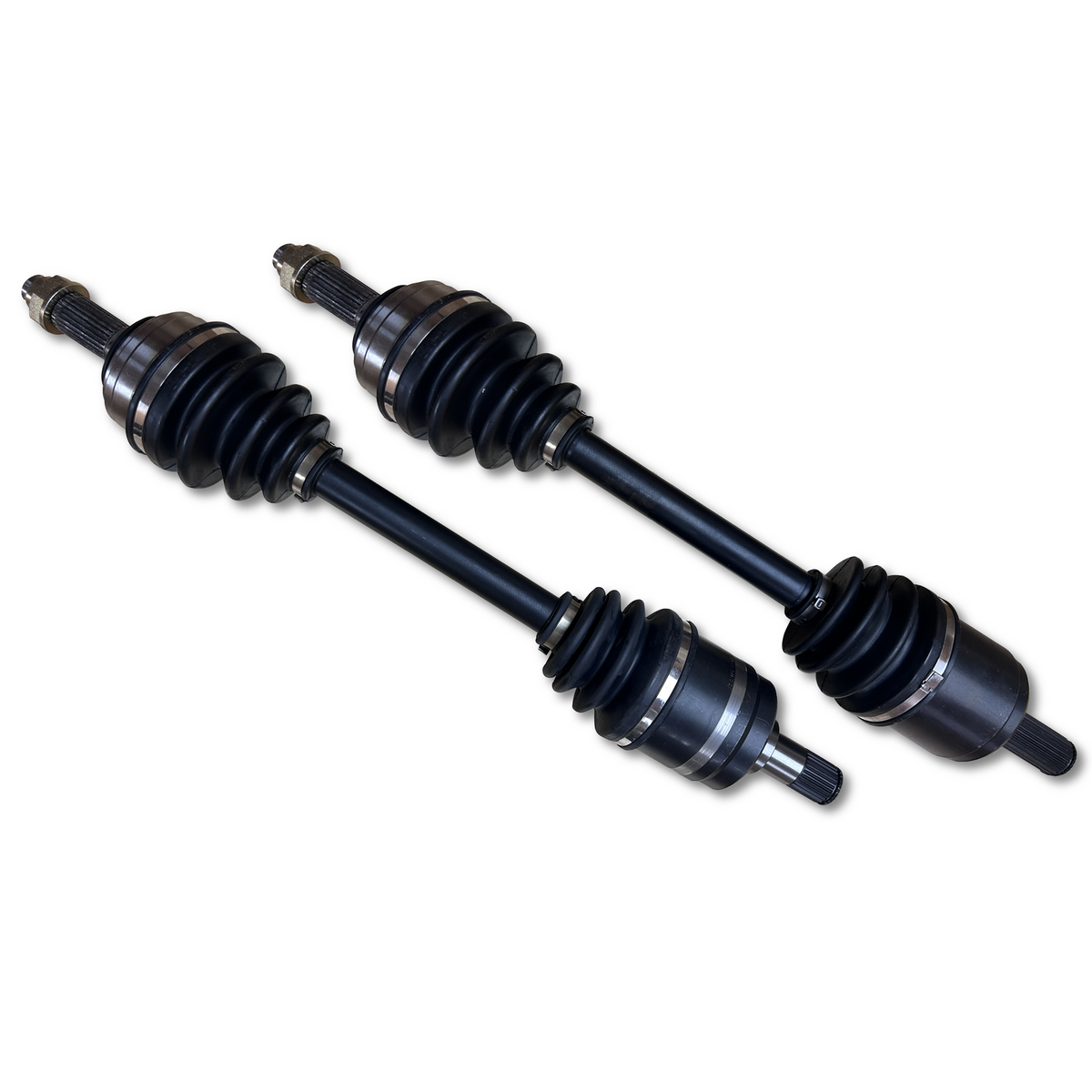

Driveshaft Shop Level 0 Axle Set - 1990-1993 Acura Integra (Cable Transmission)
The DA Integra is over thirty years old now and original axles have long since earned their retirement. The usual replacement options aren't great: cheap rebuilds put new boots on a worn core, and generic aftermarket axles are a gamble on a car this age. This is Driveshaft Shop's Level 0, built as a proper alternative to both, with a chromoly center bar, billet inner CV, and an outer CV design genuinely better than what Honda used. Sold as a left and right pair.
Cable Transmission Applications
Quick note on fitment. These fit the DA Integra's cable transmission, which is what these cars came with from the factory.
If your car has been converted to a hydro setup at some point, that's a different axle. Worth confirming what's actually in the car rather than going by year, since these have been apart a great many times over three decades.
The Outer CV Is Genuinely Better Than Factory
This is the standout engineering detail and it's worth understanding.
Honda's factory outer CV uses a dual arc design, which has a known tendency to wear out prematurely. Driveshaft Shop's outer is custom made with a single arc design instead, and it addresses that wear pattern directly. Combined with a new heat treat on the 1117 billet outer, it's a meaningful improvement over the part you're removing.
If your DA has developed a click on turns, that's the outer CV telling you it's done. Replacing it with the same design that wore out is how you end up doing this again.
Better Than A Rebuild
Worth being clear about, because rebuilt axles are the obvious cheaper alternative and they're usually the wrong call.
A rebuild is a used core with new boots and grease. Whatever wear existed inside is still there, and on a car built in the early nineties that's three decades of unknown history. You're buying a part that already failed once and hoping the second run goes better.
This is new throughout. Chromoly center bar, real billet inner CV with an oversized tripod, and the redesigned outer. Those aren't things you find on a rebuild or a budget aftermarket axle, and they're why this outlasts what it's replacing.
Be Clear On What This Is
Driveshaft Shop is unusually direct about positioning, and we'd rather repeat it than let you find out later.
This is not a racing axle. It's a superior stock replacement and swap axle, better than any rebuild or budget aftermarket option, but it isn't built for competition-level power.
There's no horsepower rating and no warranty against breakage. That's Driveshaft Shop's own position on the Level 0 line, not fine print we're glossing over.
For a stock or moderately built DA, that's exactly right and there's no reason to spend more. If you're making serious power, Driveshaft Shop's higher tiers are where to look.
Removable ABS Rings
Small detail that gives you options. The axles include ABS rings and they're removable, so you can leave them on if your car uses them or pull them if your build has moved past the factory braking setup.
Check Your Range Of Motion After Install
Worth doing, particularly if the car is lowered or swapped.
Once fitted, cycle the suspension through full travel and turn to full lock both directions. You're checking that the inner joint isn't bottoming out at compression or over-extending at droop, and that everything clears through the steering range.
On a stock height car this is a quick sanity check. On a lowered or modified DA it matters more, since the axle is working through angles Honda didn't plan for.
Fitment
1990-1993 Acura Integra (DA) with cable transmission
Part number 510036 / 510076. Includes left and right axles with removable ABS rings.
Who Should Run These
This is for the DA owner whose axles have started clicking, and for the builder doing a swap who wants quality pieces without race axle money. It's a car worth keeping properly sorted, and putting a rebuild back in is how you end up under it again in a couple of years. Fit them, check your travel, and drive it.
Fits: 1990-1993 Acura Integra with cable transmission. Part number: 510036 / 510076. Includes: left and right axles with removable ABS rings. Construction: chromoly center bar, billet inner CV with oversized tripod, single arc 1117 billet outer CV. Note: not a racing axle. No horsepower rating and no warranty against breakage.
1990-1993 Acura Integra
