PRODUCT DETAILS

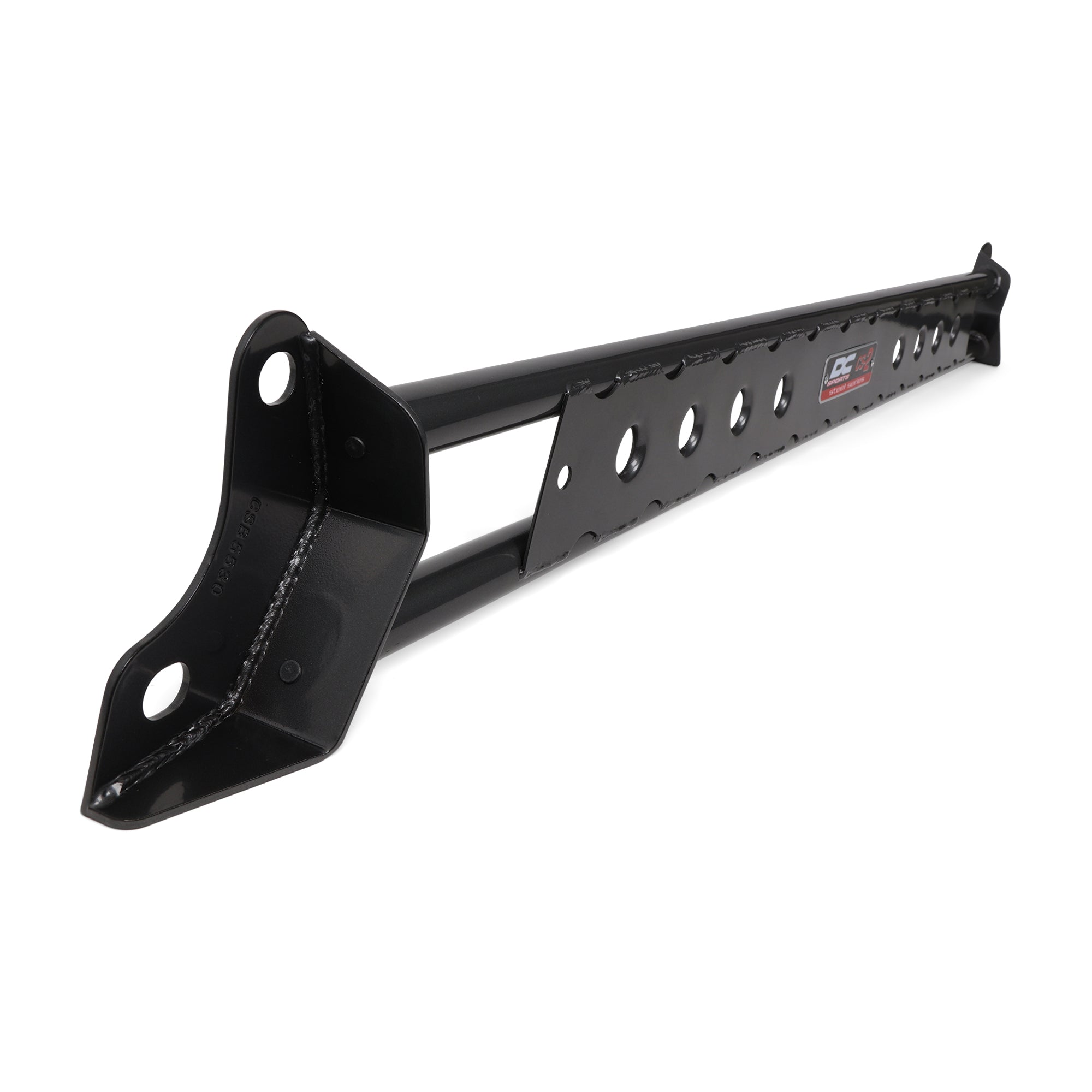

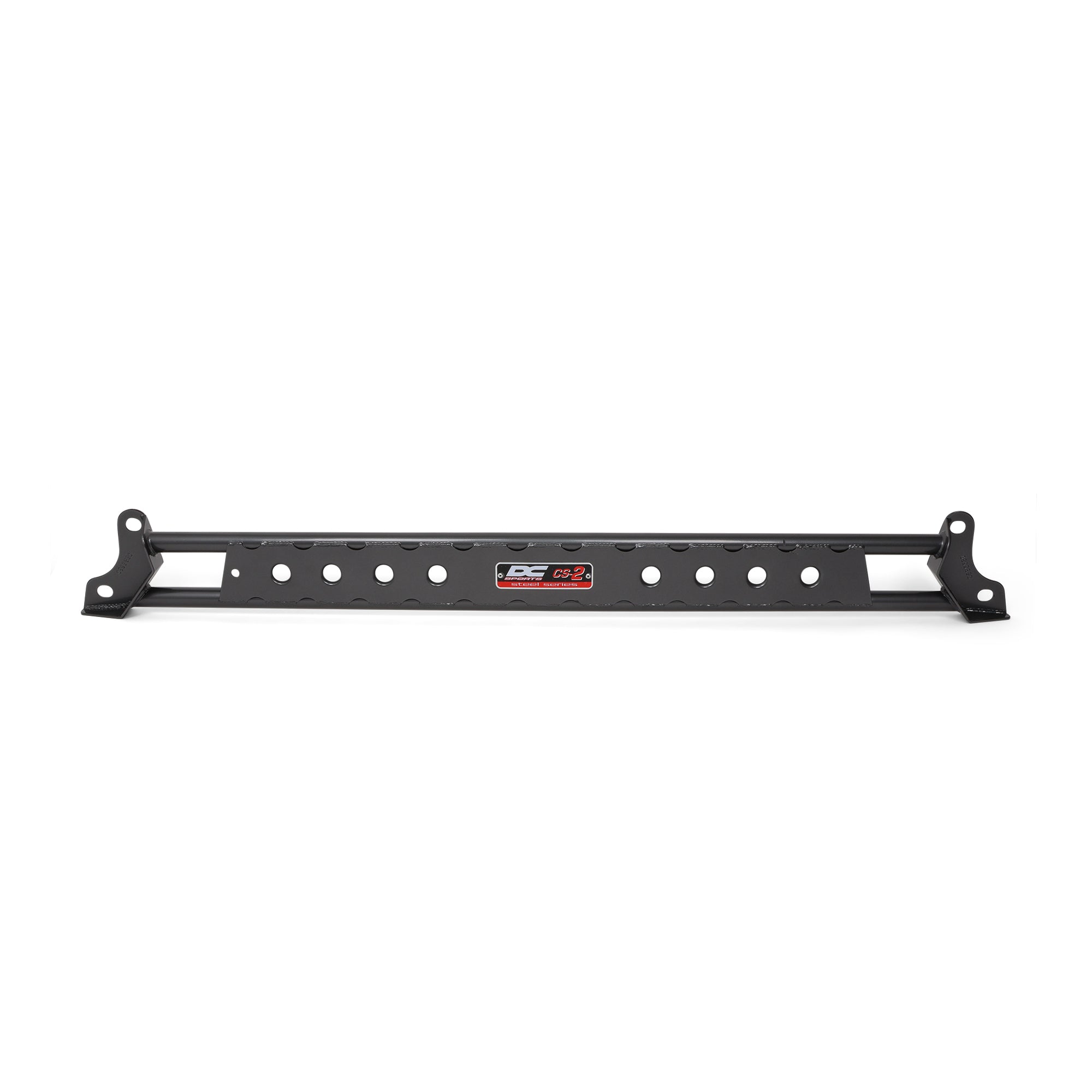

The DC Sports Front Strut Bar for the 2015-2020 Acura TLX is a simple yet effective upgrade to enhance your vehicle's handling. Whether you have the 4-cylinder or V6 model, this strut bar ties the front strut towers together to reduce chassis flex, improving cornering stability and overall road performance. Made from a single-piece steel design, it offers a secure, long-lasting fit without the need for constant adjustments, unlike multi-piece alternatives. Perfect for drivers looking to add extra stability and control to their TLX on daily drives or spirited runs.
2015-2020 Acura TLX
1. With the car set on the ground, remove four (4) 10 mm nuts securing OEM strut reinforcement
brace.
2. Remove two (2) 8 mm nuts securing strut brace to the strut mount.
3. Remove the OEM strut reinforcement brace.
STEPS 4&5 ONLY APPLY TO 4CYL APPLICATIONS
4. Loosen clamp holding down intake sound tube and gently lift to remove.
5. Insert provided plug and retighten the oem clamp.
6. Locate the bracket that holds the AC line to the passenger shock tower. Remove the one (1) 6mm
bolt. This bold will be reused.

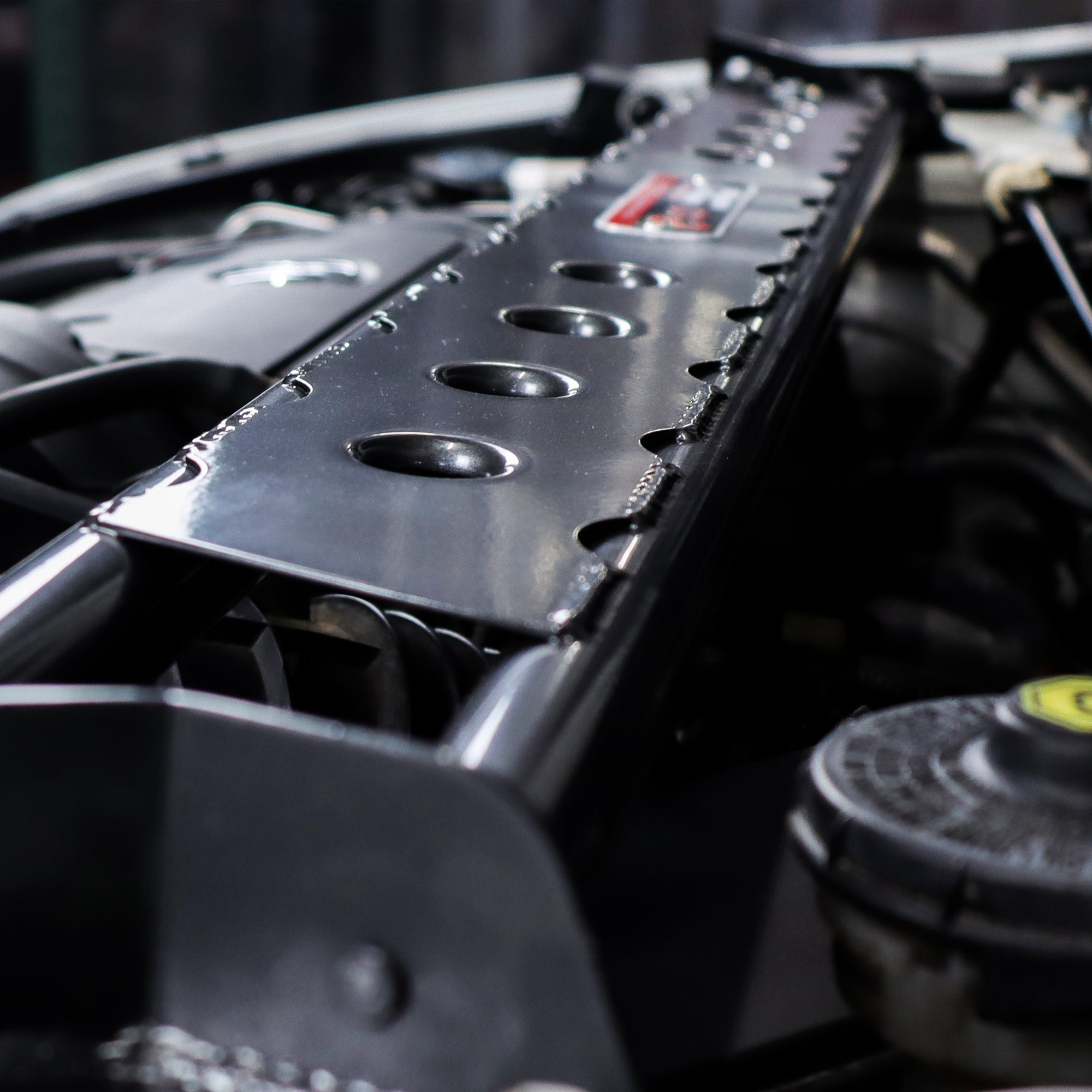

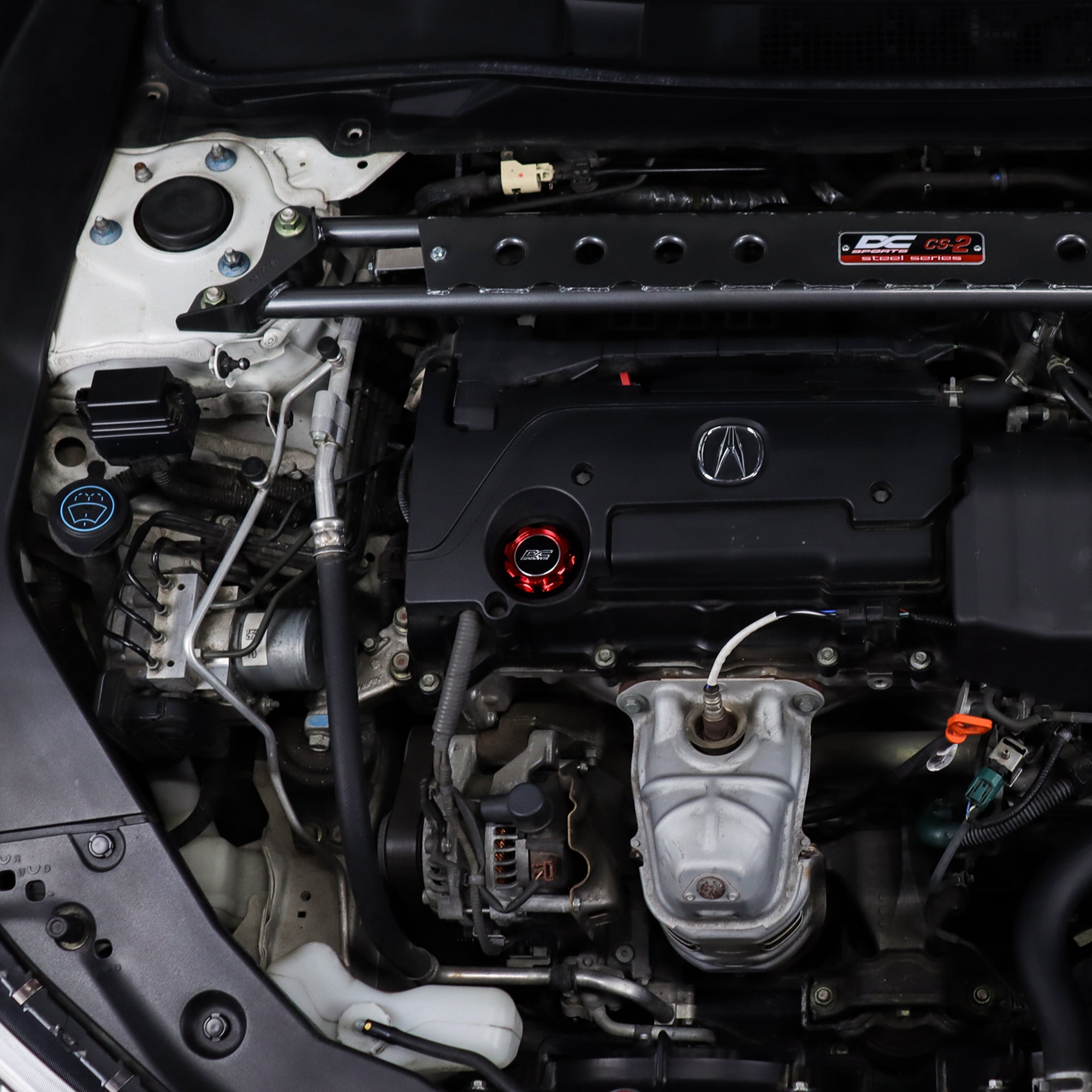

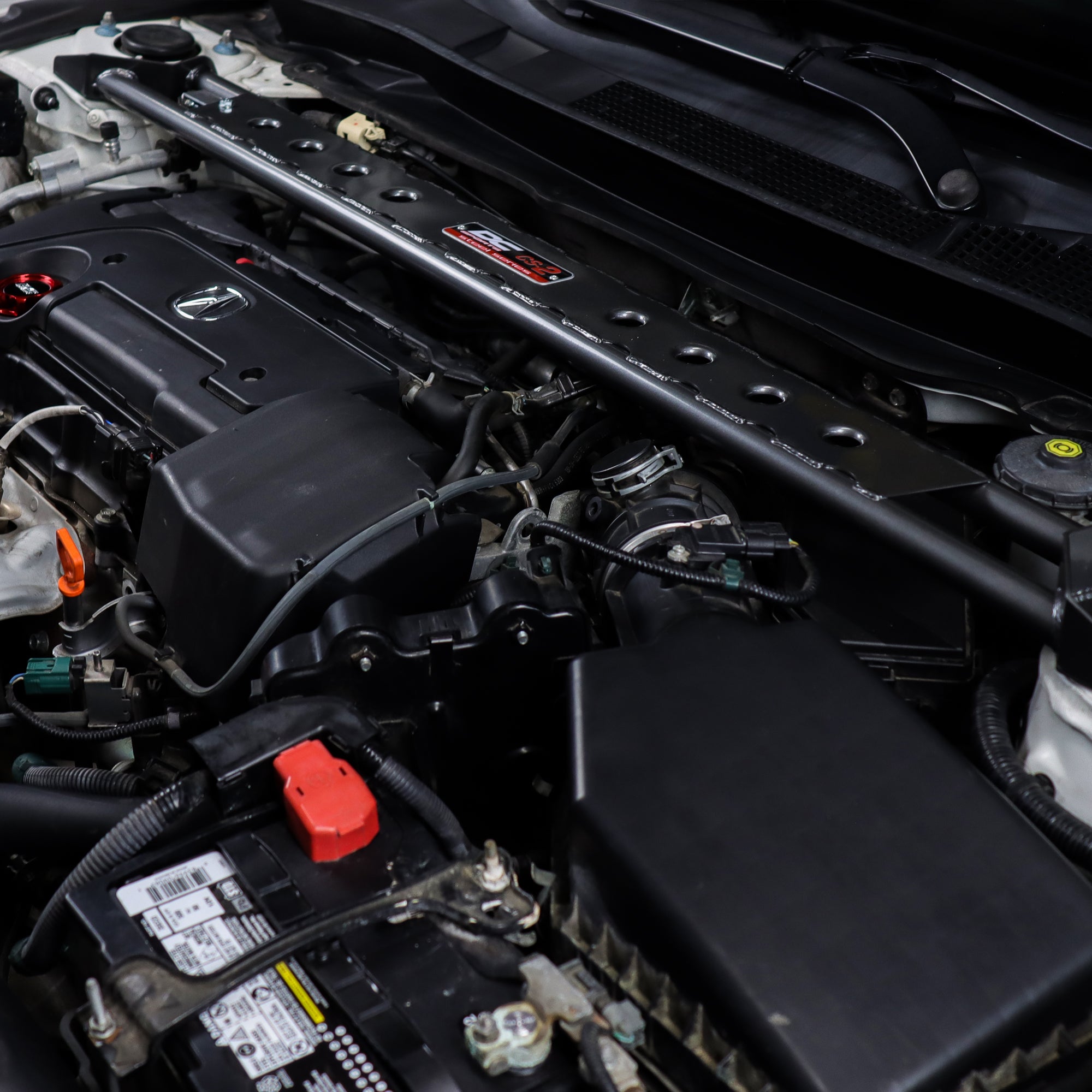

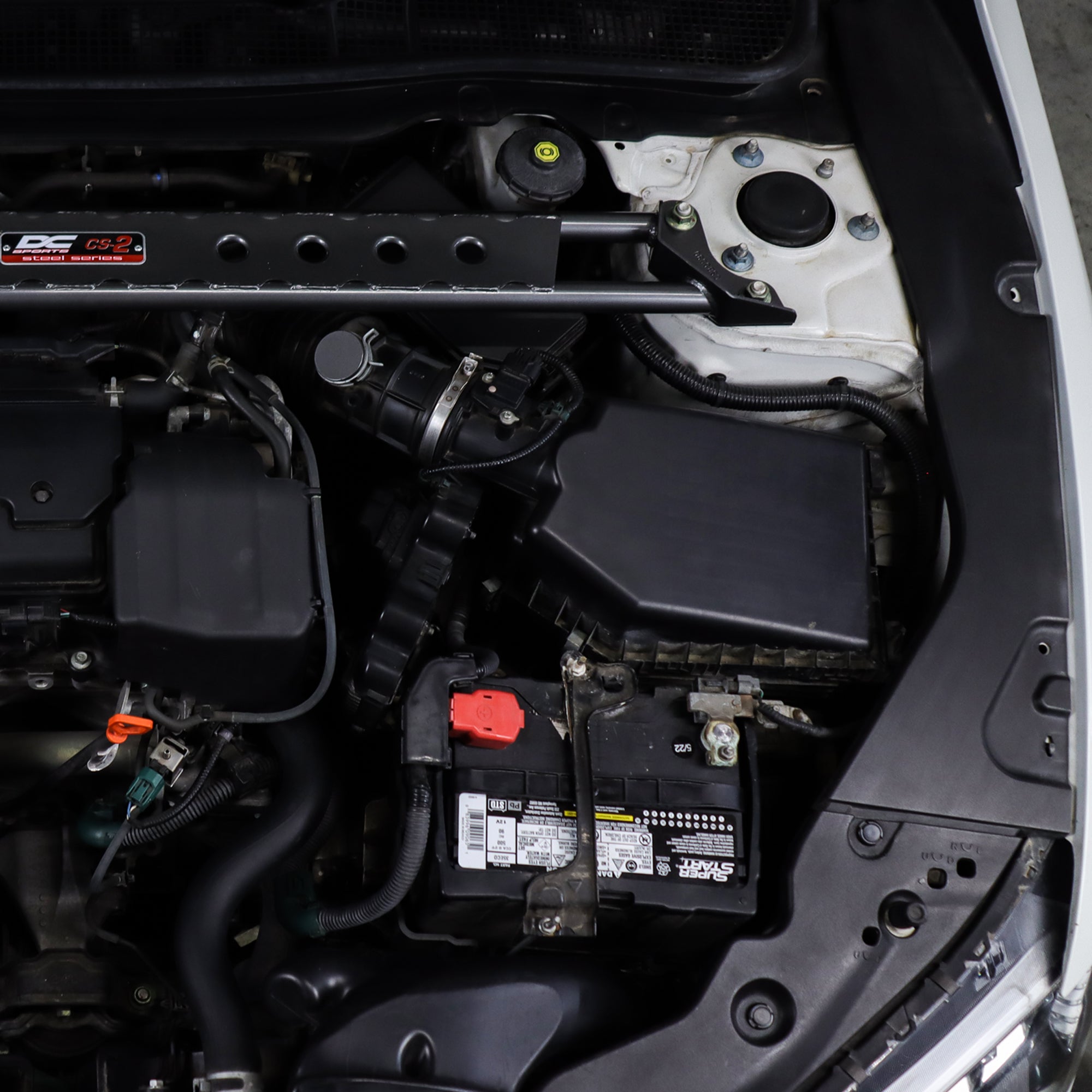

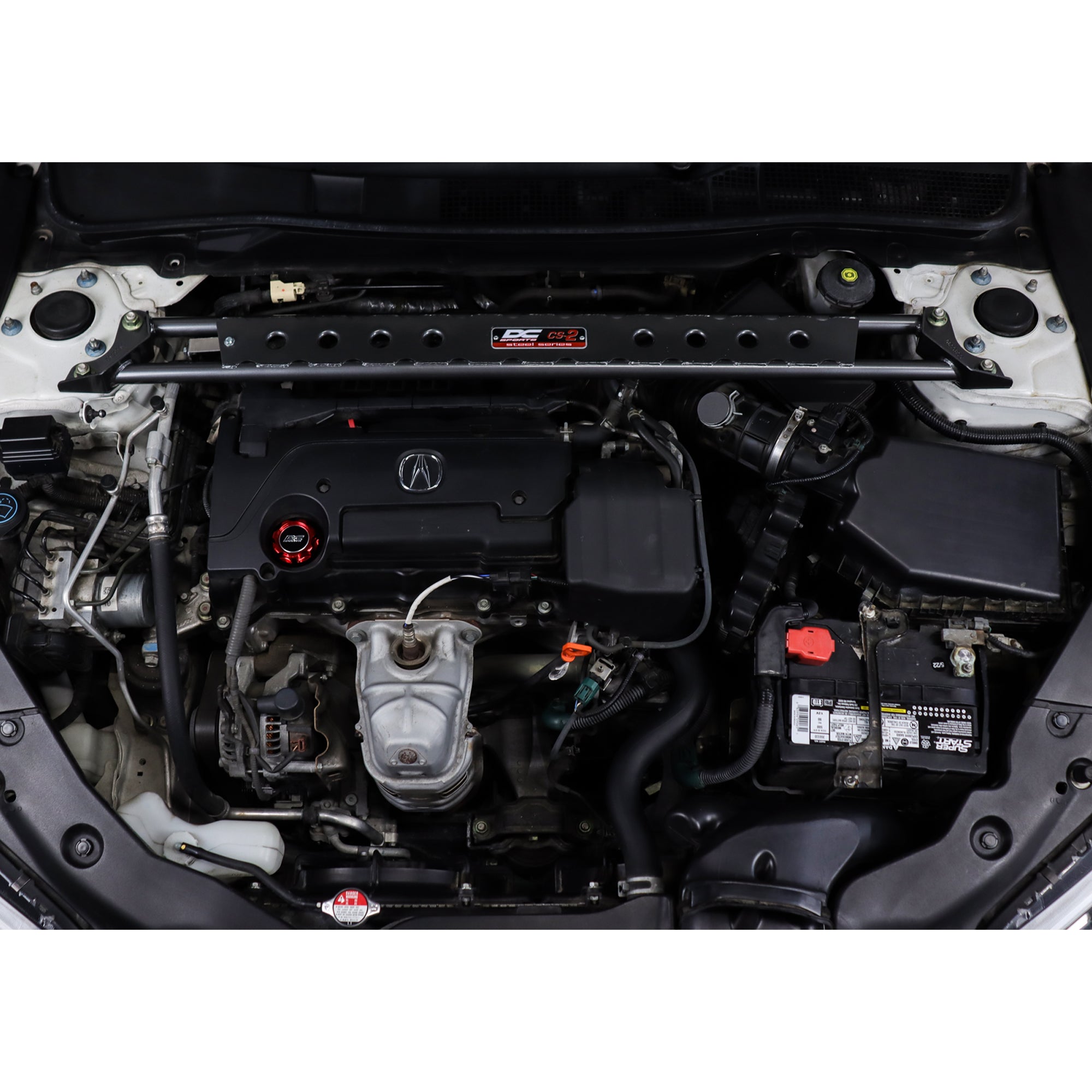

7. Install strut bar
8. Tighten all four (4) 10mm nuts (Torque: 4.4 kg-m, 32 lb-ft).
9. Tighten down two (2) 8mm nuts (Torque to 28lb-ft)
10. Using provide bracket and hardware reinstall the AC line retaining bracket.
11. RECHECK ALL YOUR WORK

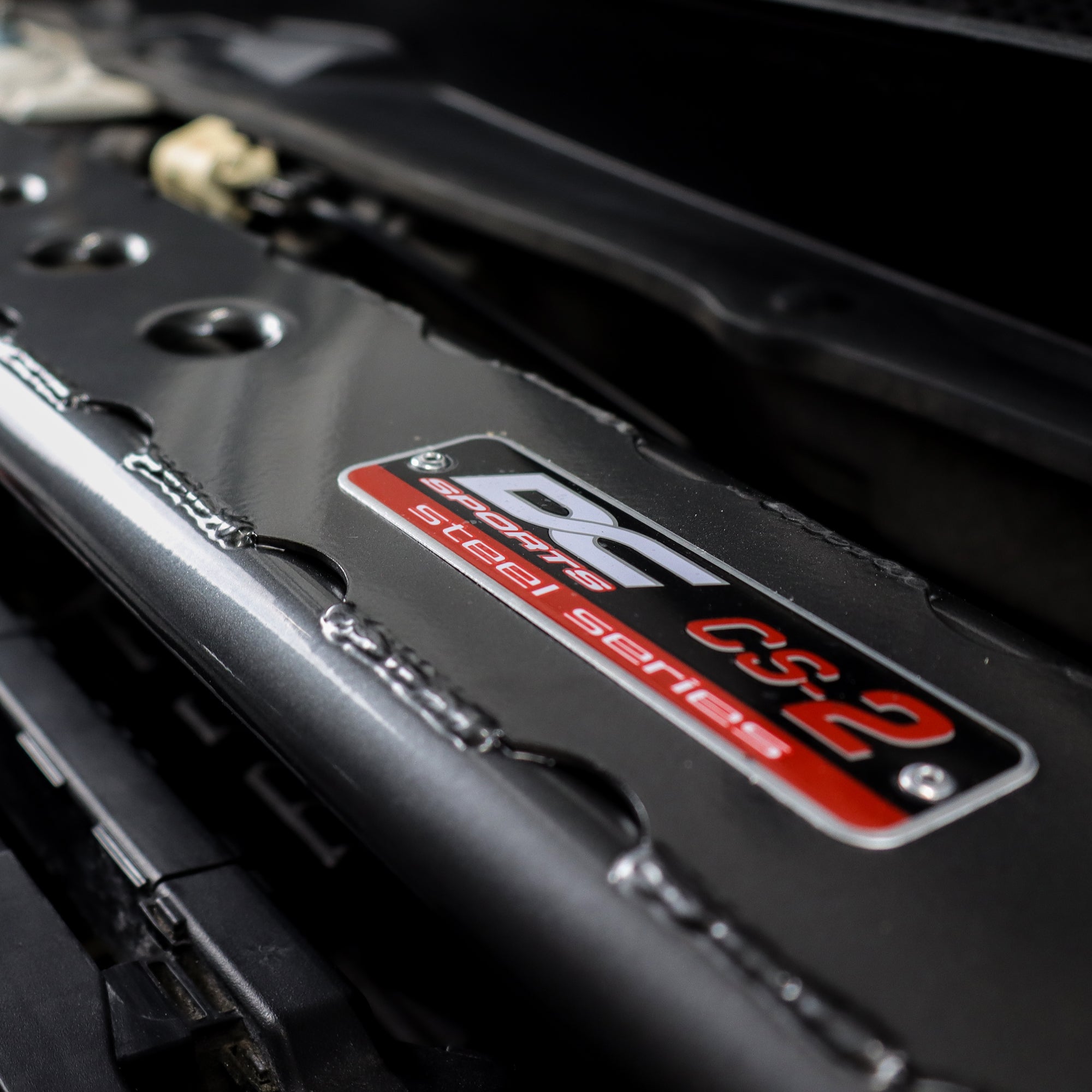

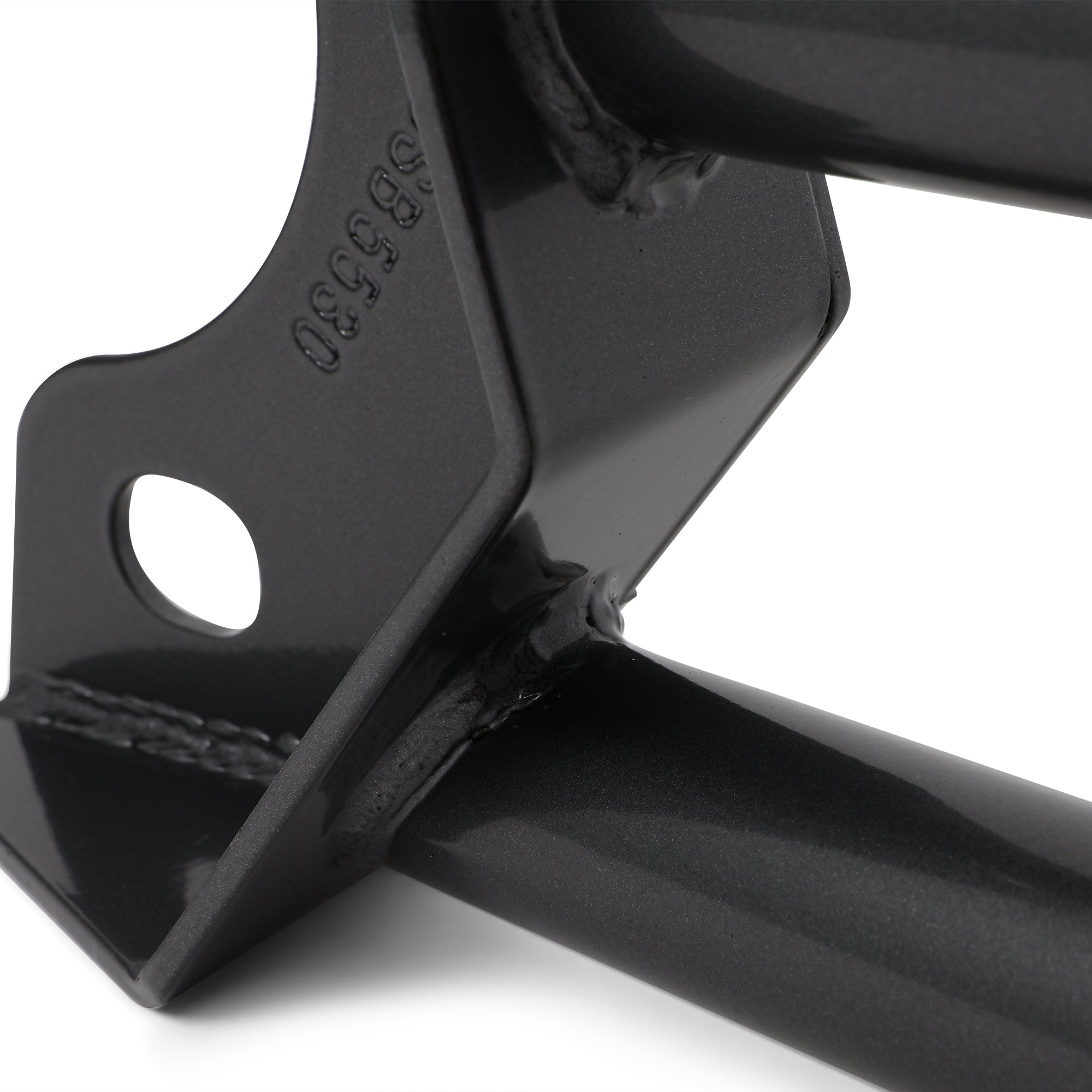

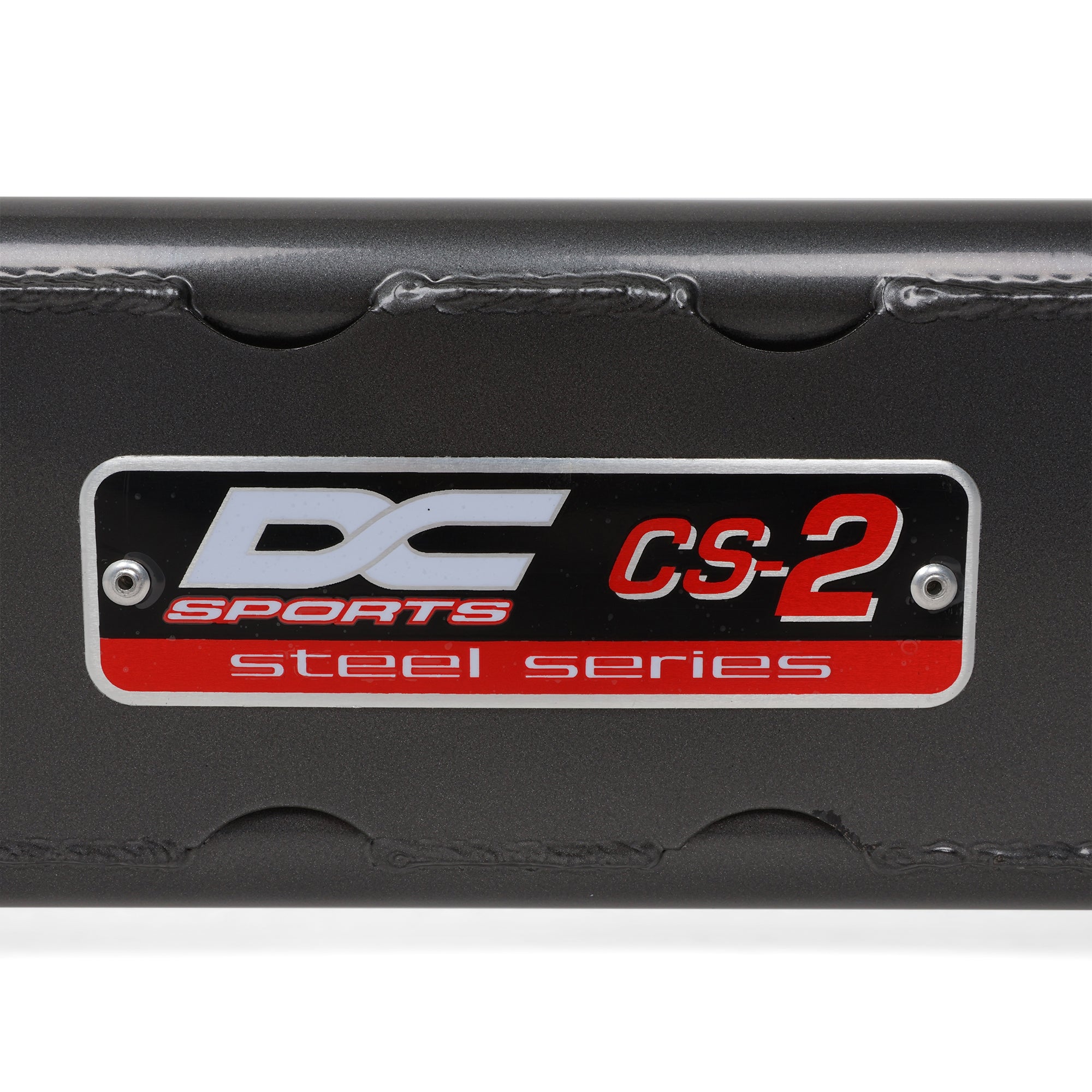

Made from carbon steel

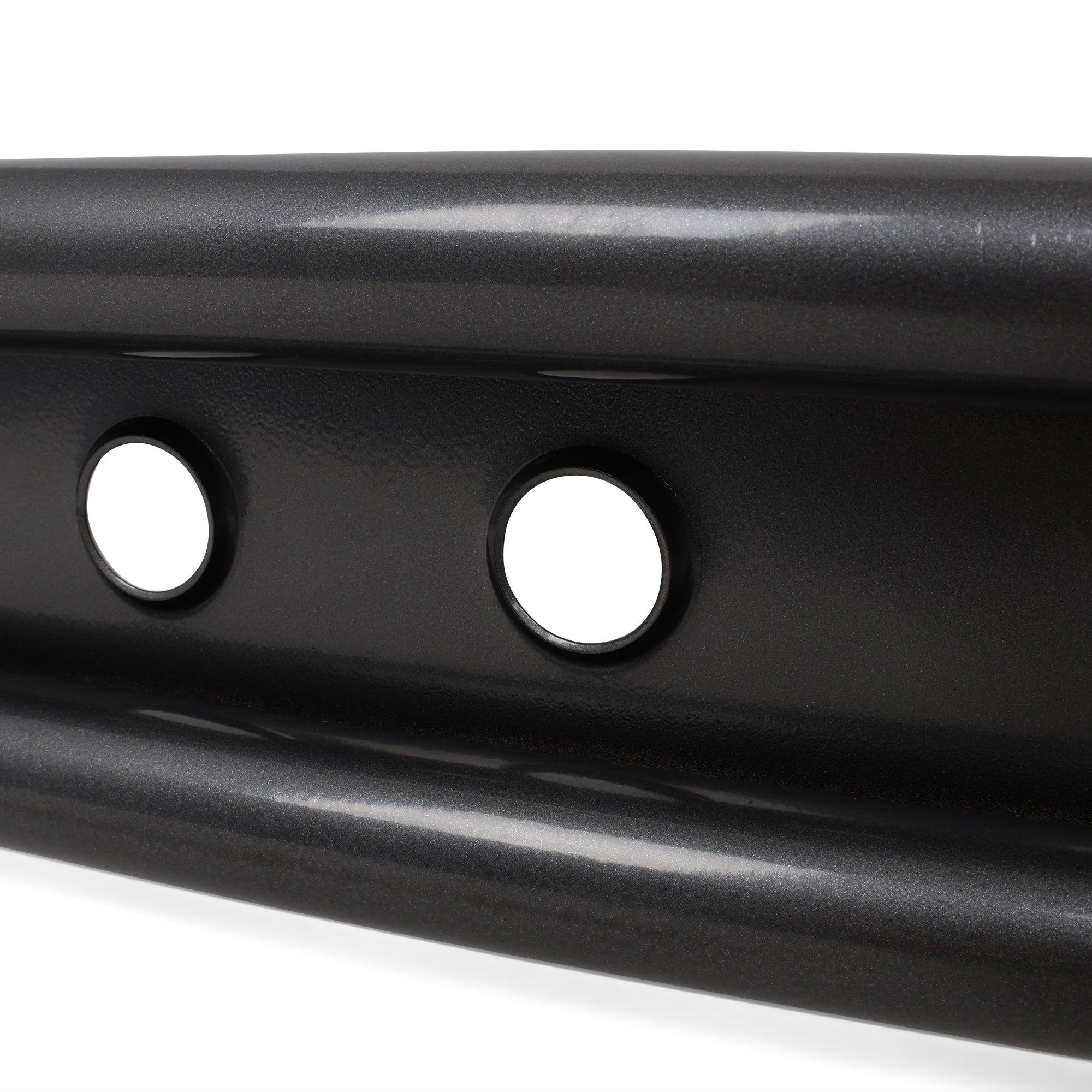

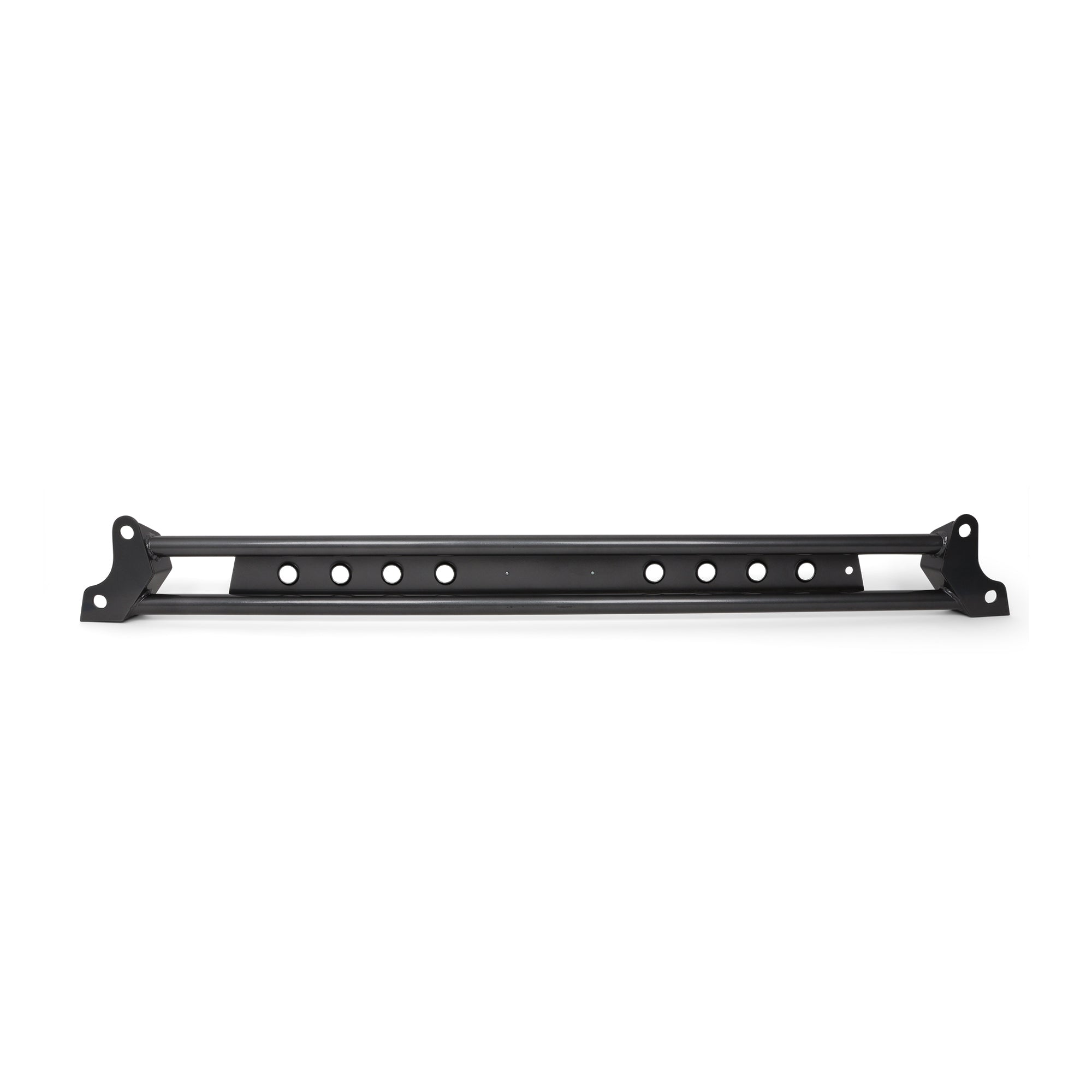

Dual bar design
