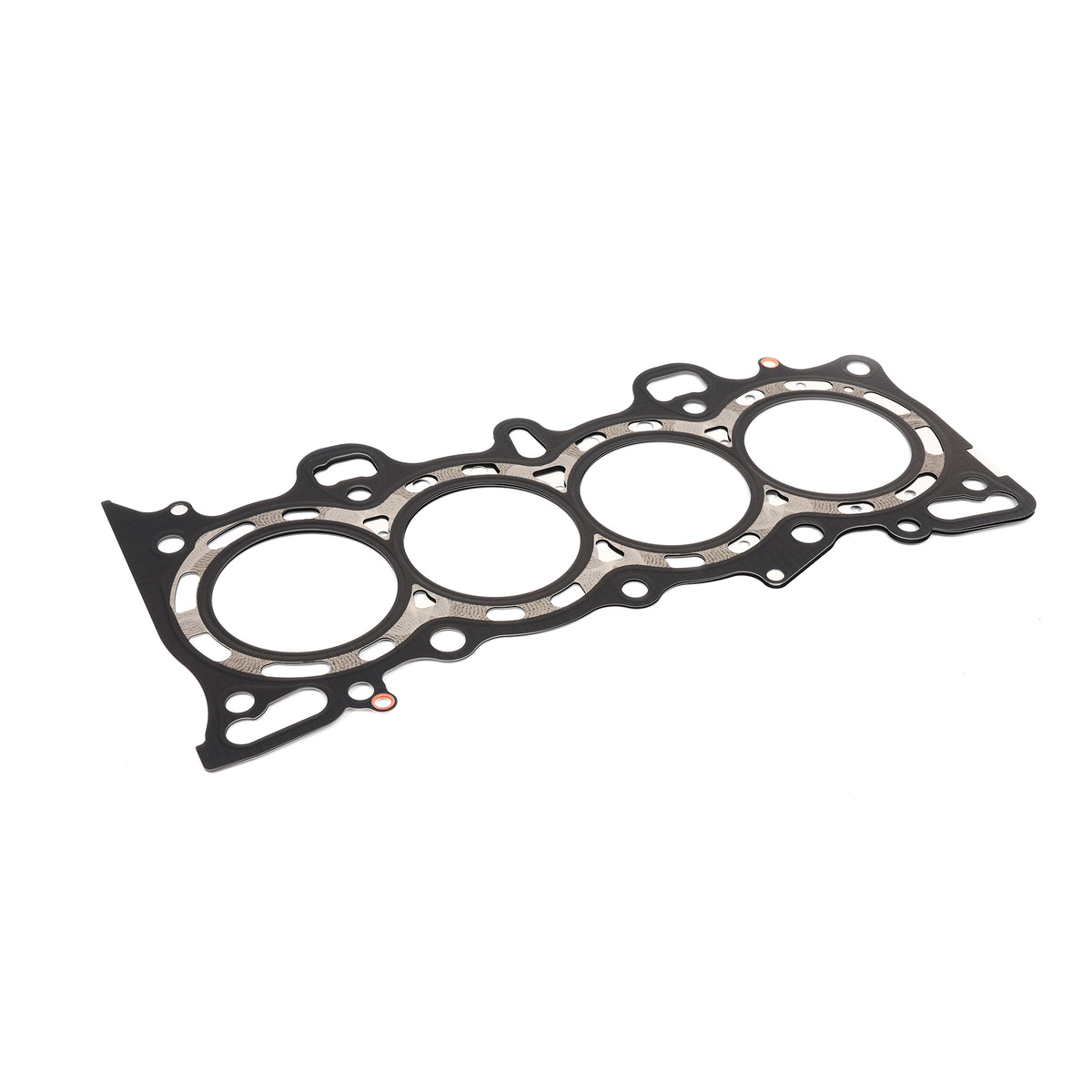

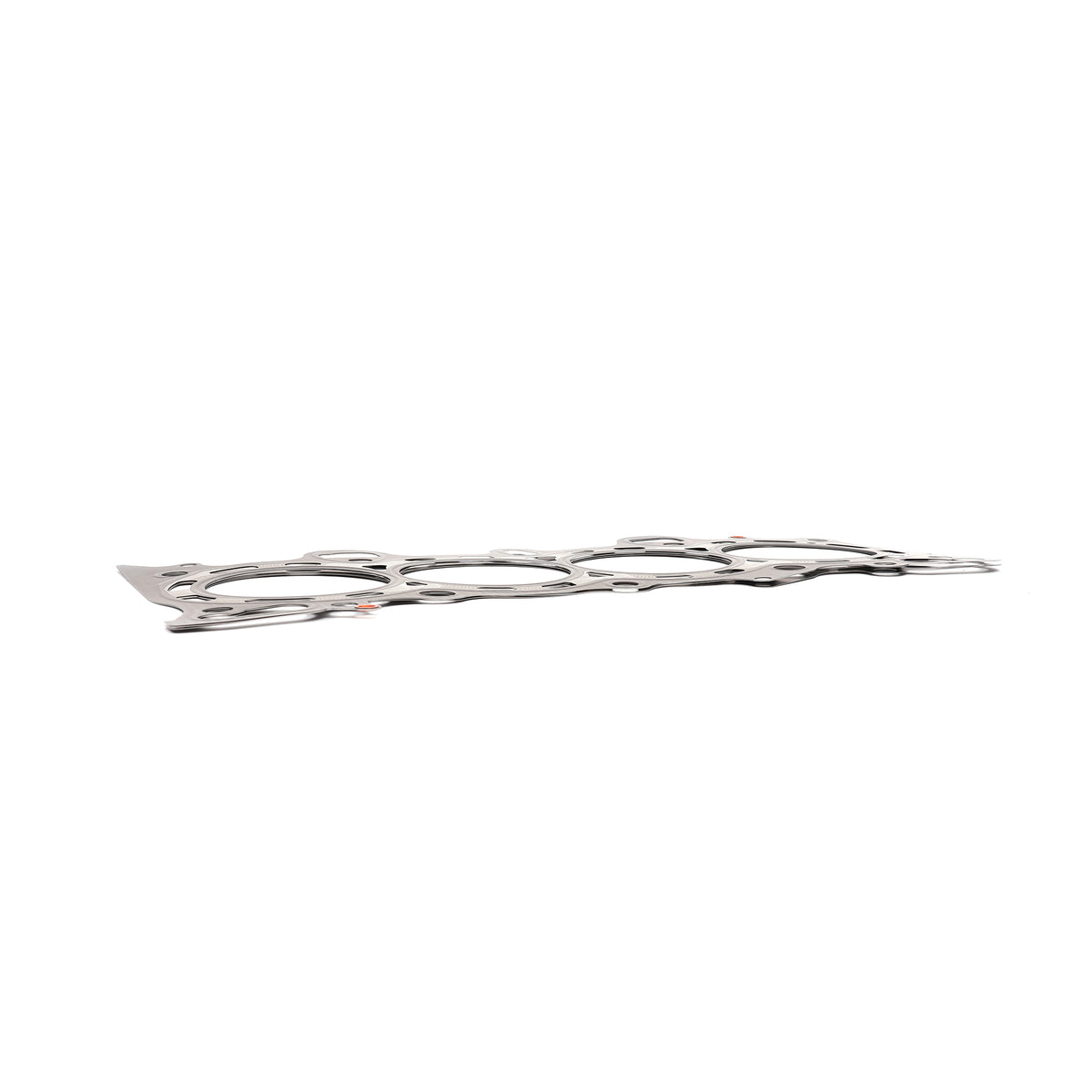

Genuine Honda D16Y8 Head Gasket (12251-P2J-004) - SOHC VTEC
A failing head gasket is the end of the line for an engine if it's ignored, coolant and combustion pressure end up where they shouldn't, and the overheating or hydrolock that follows can destroy the motor. This is the genuine Honda multi-layer steel head gasket for the D16Y8, the 1.6L SOHC VTEC. It seals the combustion chambers, oil passages, and coolant jackets to Honda's exact tolerances, and the MLS construction holds up far better than the old composite style, including on boosted builds.
When You Need A Head Gasket
Worth understanding, because head gasket failure shows specific symptoms.
The head gasket seals three things between the head and block: the combustion chambers (holding compression and keeping combustion gases contained), the oil passages, and the coolant jackets. When it fails, those start mixing or leaking, and the symptoms are distinctive: white smoke from the exhaust (coolant burning in the cylinders), coolant loss with no visible leak, overheating, milky oil (coolant in the oil), or bubbles in the coolant (combustion gases pushing into the cooling system).
If you've got those signs on a D16Y8, the head gasket is the likely cause, and this is the part to fix it. It's also the gasket you fit any time the head comes off, for a rebuild, a head swap, or any top-end work, since you never reuse a head gasket.
MLS Is A Real Upgrade Over Composite
The construction matters, especially if you're making power.
This is a multi-layer steel (MLS) gasket, multiple stainless steel layers with a fluoro-rubber coating, which is what Honda uses and what serious builds want. MLS resists blow-out under boost, nitrous, and high-RPM abuse far better than the older composite-style gaskets, which are more prone to failing when you push them.
That's why thousands of turbo D-series builds trust this gasket past 15 psi when it's paired with a properly flat head surface. For a stock engine it's simply the correct, durable OEM part; for a boosted D16 it's the gasket that holds the cylinder pressure the composite style couldn't.
Correct Spec, Drop-In Fit
On a head gasket, dimensional accuracy is everything.
Because it's genuine Honda, the thickness, fire-ring diameter, and coolant/oil port geometry match factory spec exactly, which preserves the D16Y8's 9.6:1 compression ratio and keeps your sealing, throttle response, and fuel economy where they should be. An incorrect-thickness gasket changes your compression; this one doesn't.
It aligns on the OEM dowel pins for a drop-in fit, and it accepts either stock head bolts or upgraded ARP head studs, so it works for a stock rebuild or a serious build.
Do It Right: Flatness And Fasteners
A head gasket is only as good as the surfaces it seals and the clamping force holding it, so a few things matter on install.
Check head flatness. Verify the cylinder head is flat (within 0.05mm max warpage) and the block deck is clean before installing. A warped head won't seal even with a perfect gasket, and if the head's out of spec, it needs machining first. This is the most common reason a head gasket job doesn't hold.
Use fresh fasteners. Pair the gasket with fresh OEM head bolts or ARP head studs for maximum sealing. Head bolts are torque-to-yield and shouldn't be reused, and ARP studs give more consistent, higher clamping force for a boosted build. Note this is the gasket only, bolts or studs are separate.
Clean both surfaces thoroughly before install. It's an intermediate-level job, roughly 3-4 hours, and no tune is needed, machining only comes into it if the head or block is out of spec.
Fitment
1996-2000 Honda Civic EX (D16Y8)
1996-2000 Honda Civic Si, Canada (D16Y8)
1996-1997 Honda Del Sol Si (D16Y8)
Also suitable for D16Y8 head swaps onto D16Y7, D15B, JDM D15B VTEC, and other D-series blocks (verify bore and deck height). Part number 12251-P2J-004. Genuine Honda MLS.
Who Should Grab One
This is for the D16Y8 owner fixing a blown head gasket, white smoke, coolant loss, milky oil, overheating, and for anyone doing a rebuild, head swap, or boosted build who needs the correct MLS gasket. Genuine Honda, factory-spec dimensions to keep your compression right, and MLS construction that holds up past 15 psi. Check your head flatness, use fresh bolts or ARP studs, and seal it properly.
Fits: 1996-2000 Civic EX and Si-Canada, 1996-1997 Del Sol Si (D16Y8); suitable for D16Y8 head swaps onto other D-series blocks (verify bore/deck). Part number: 12251-P2J-004. Construction: multi-layer steel (MLS), fluoro-rubber coated. Compression: preserves factory 9.6:1. Fasteners: accepts stock bolts or ARP studs (sold separately). Boost: proven past 15 psi with a flat head surface. Type: genuine Honda, gasket only.
