PRODUCT DETAILS

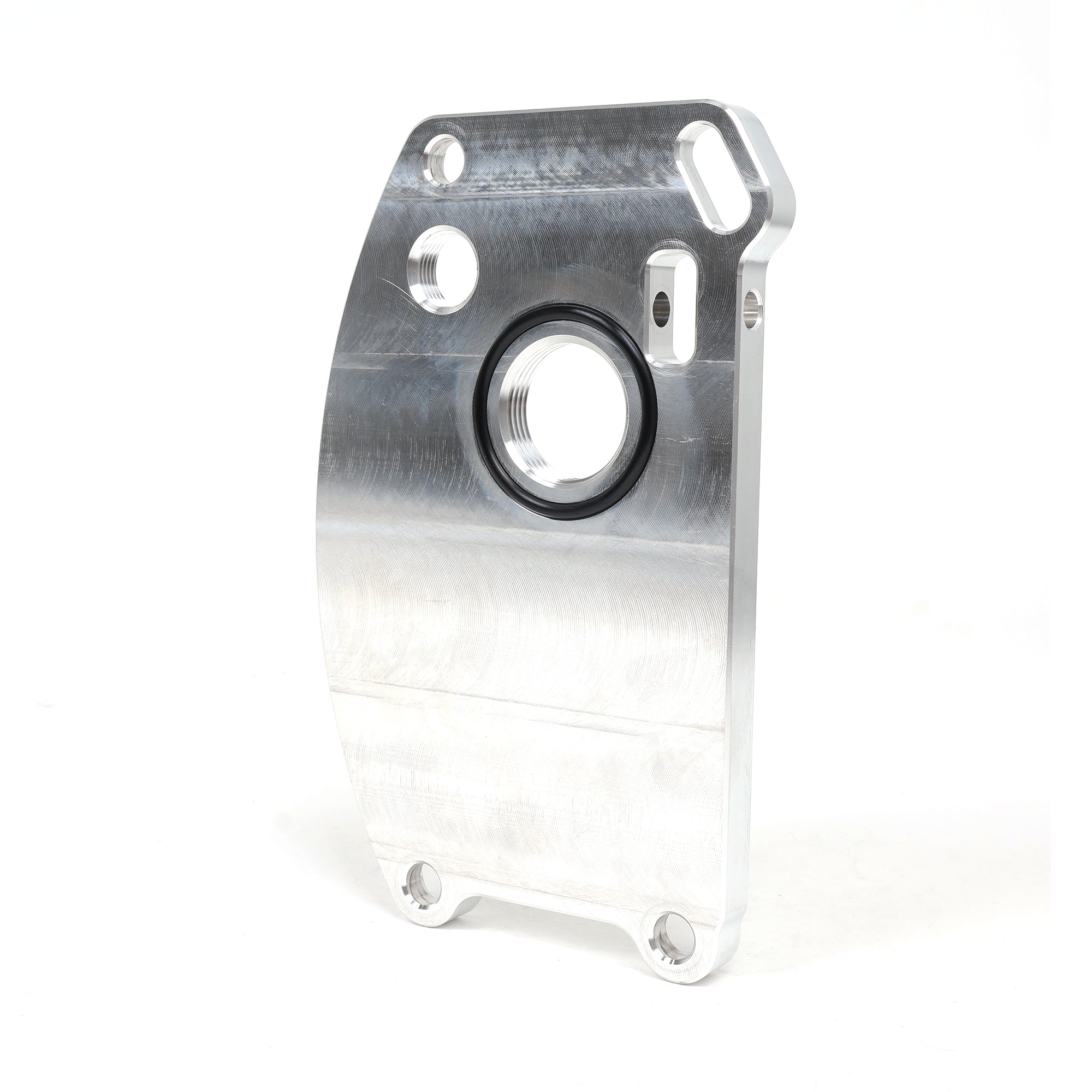

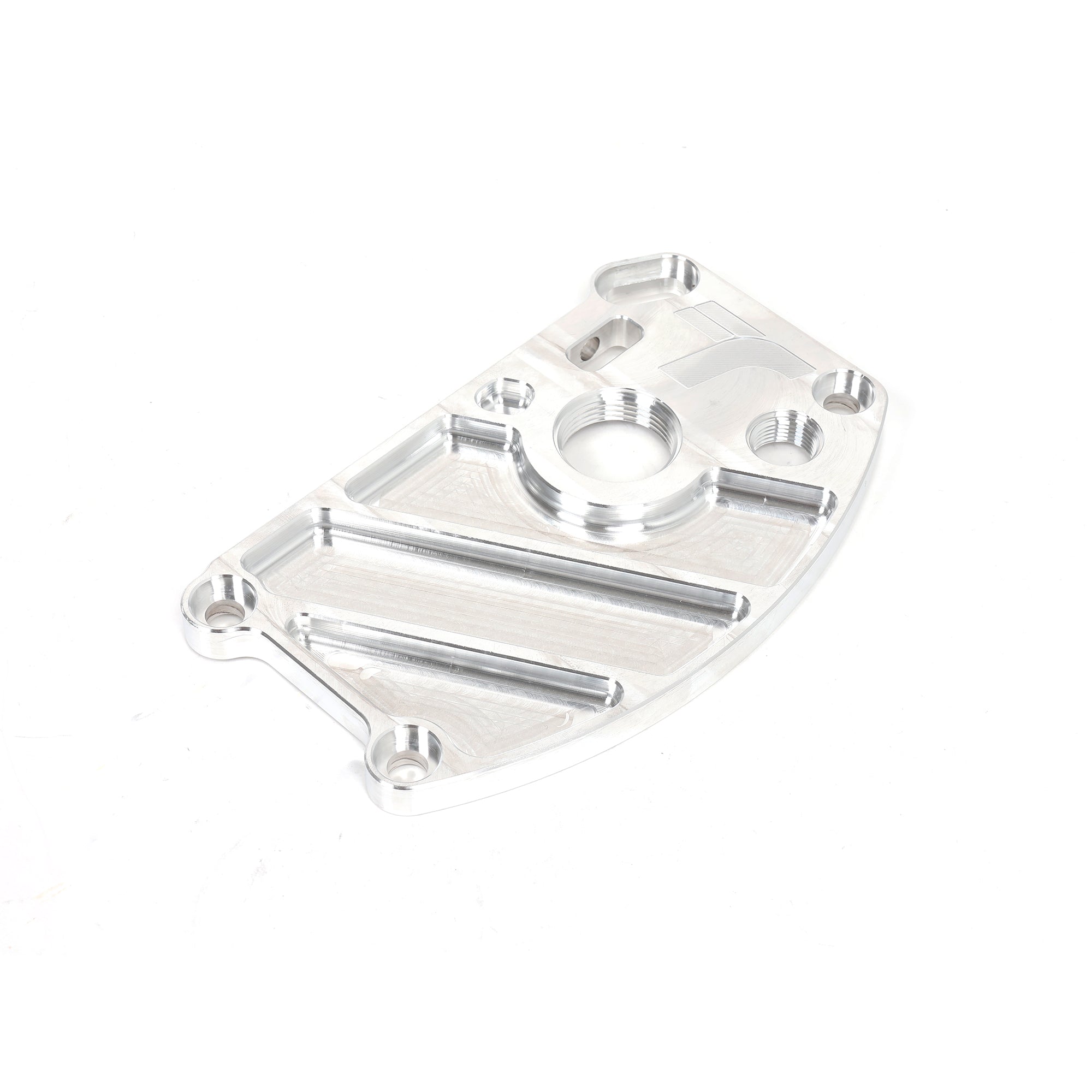

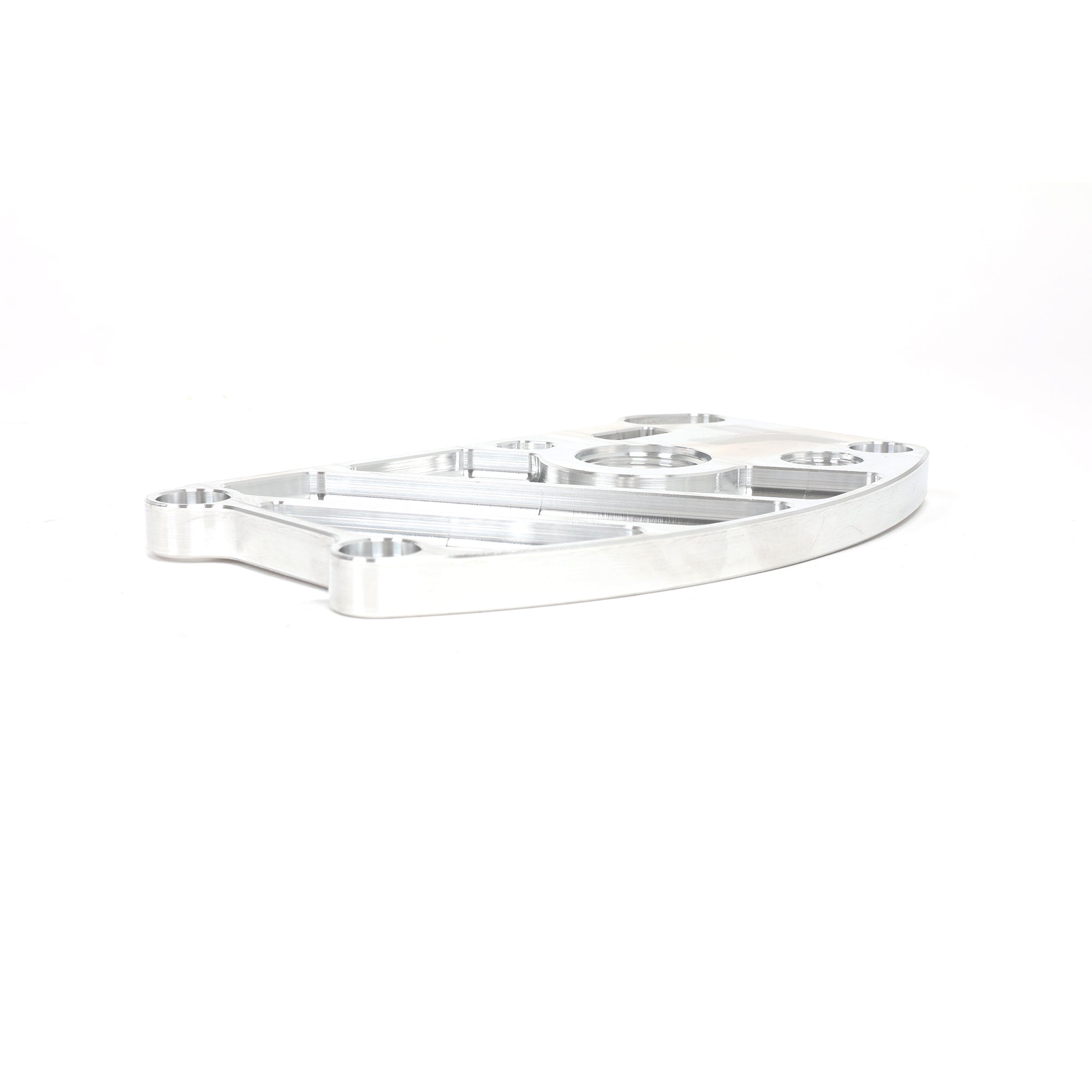

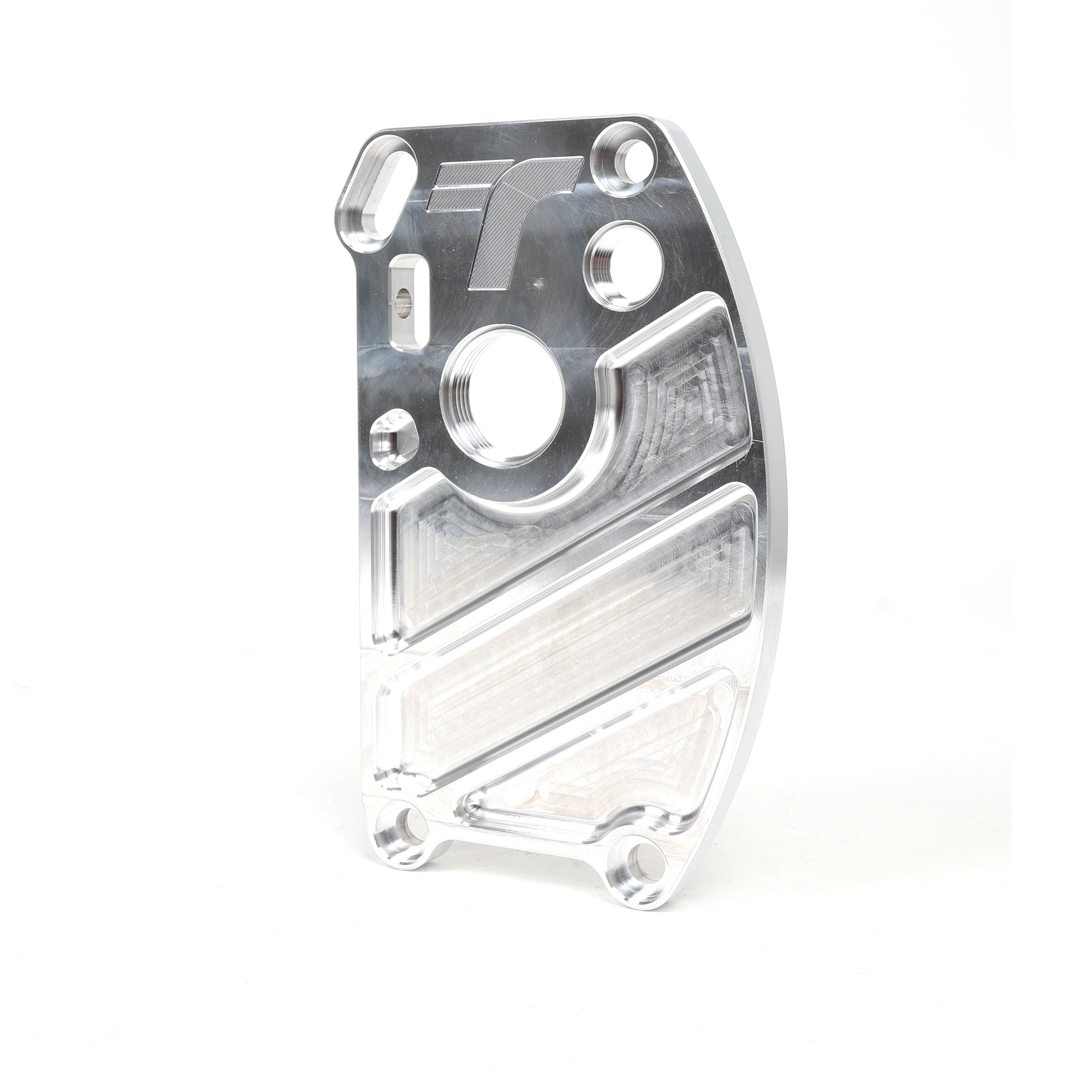

TracTuff K20/K24 Water Pump Housing Delete
The TracTuff K20/K24 Water Pump Housing Delete is a high-performance solution designed to free your K-series engine from the parasitic drag of the OEM mechanical water pump. Compatible with K20A, K20Z, K24A, and K24Z engines, this water pump delete uncouples the pump from the crankshaft, providing immediate benefits such as increased horsepower and torque, elimination of cavitation at high RPM, and improved control over cooling system temperatures. Perfect for serious street cars and race cars alike, this kit is designed for enthusiasts seeking maximum efficiency and engine bay space.
In January 2023, the TracTuff water pump delete received significant upgrades. The alternator bracket was redesigned to work seamlessly with the Dailey Engineering Dry Sump kit, moving the alternator upward to increase compatibility. The tensioner window was relocated to eliminate misalignment, and the traditional M8 tensioner bolt was replaced with a precision-ground stainless pin retained by a 5/16″ circlip for zero slop and improved durability.
Please note that removing the water pump housing, eliminates the opportunity to retain air conditioning as some of the mounting points are removed.
Key Features:
- Parasitic Drag Reduction: Removes the mechanical water pump from the crankshaft to free horsepower and torque.
- Enhanced Cooling Control: Reduces pump cavitation and allows programming-based control over coolant flow, including manual override while the engine is off.

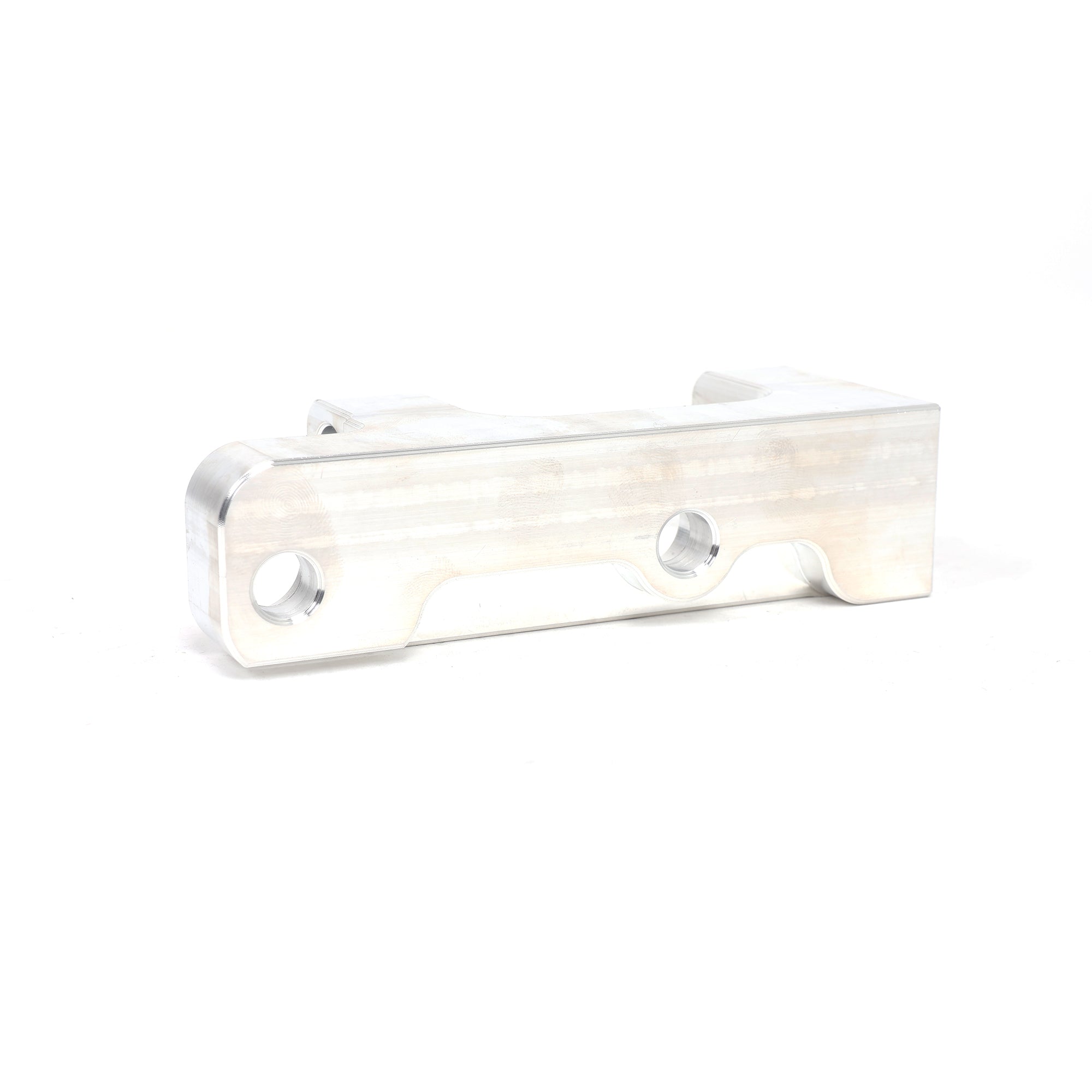

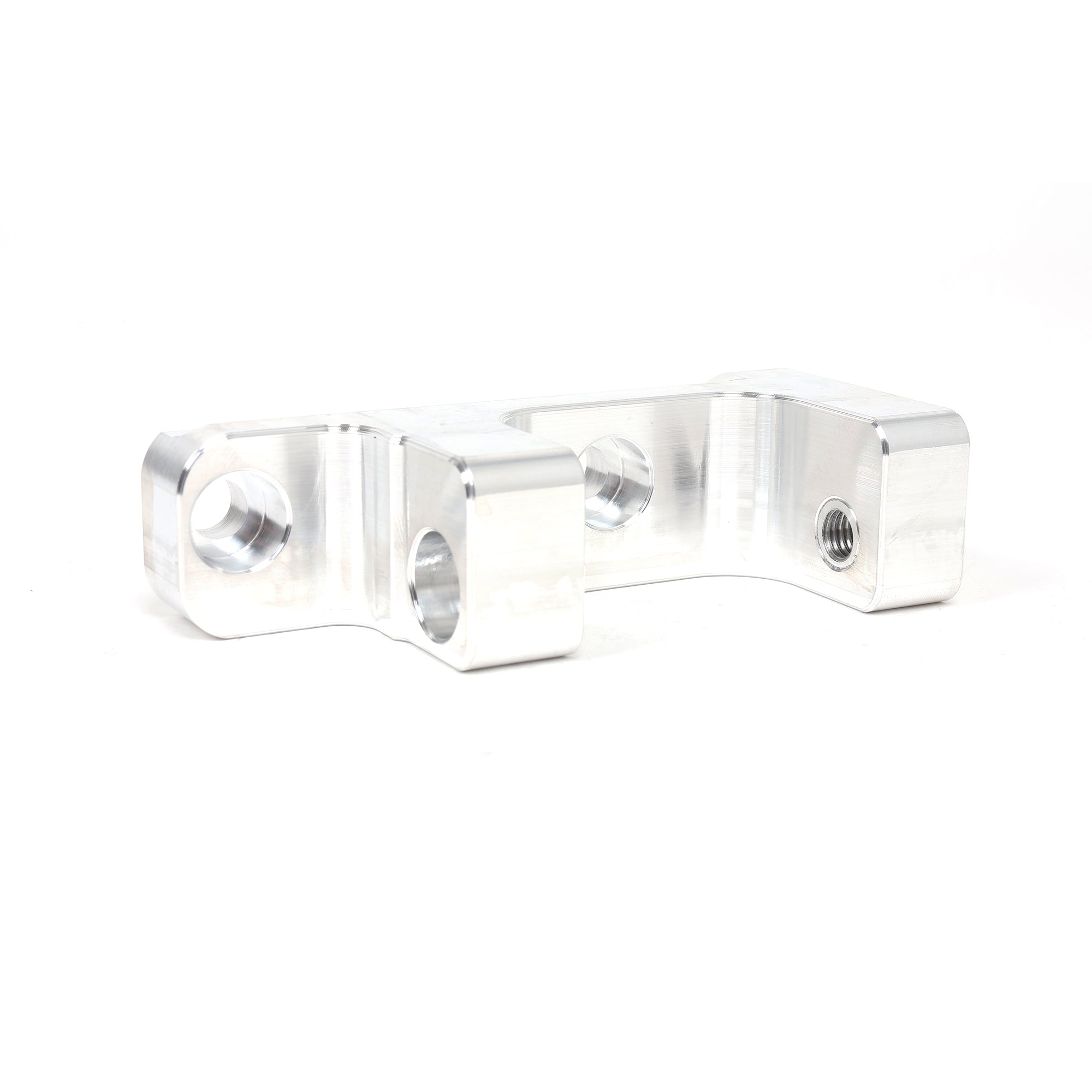

- Upgraded Alternator Bracket: Compatible with Dailey Engineering Dry Sump kits and supports various high-amperage alternators, with the S2000 alternator recommended for OEM-style integration.
- Precision Tensioner System: Features a stainless pin and circlip, eliminating slop and ensuring reliable belt tension without thread interference.

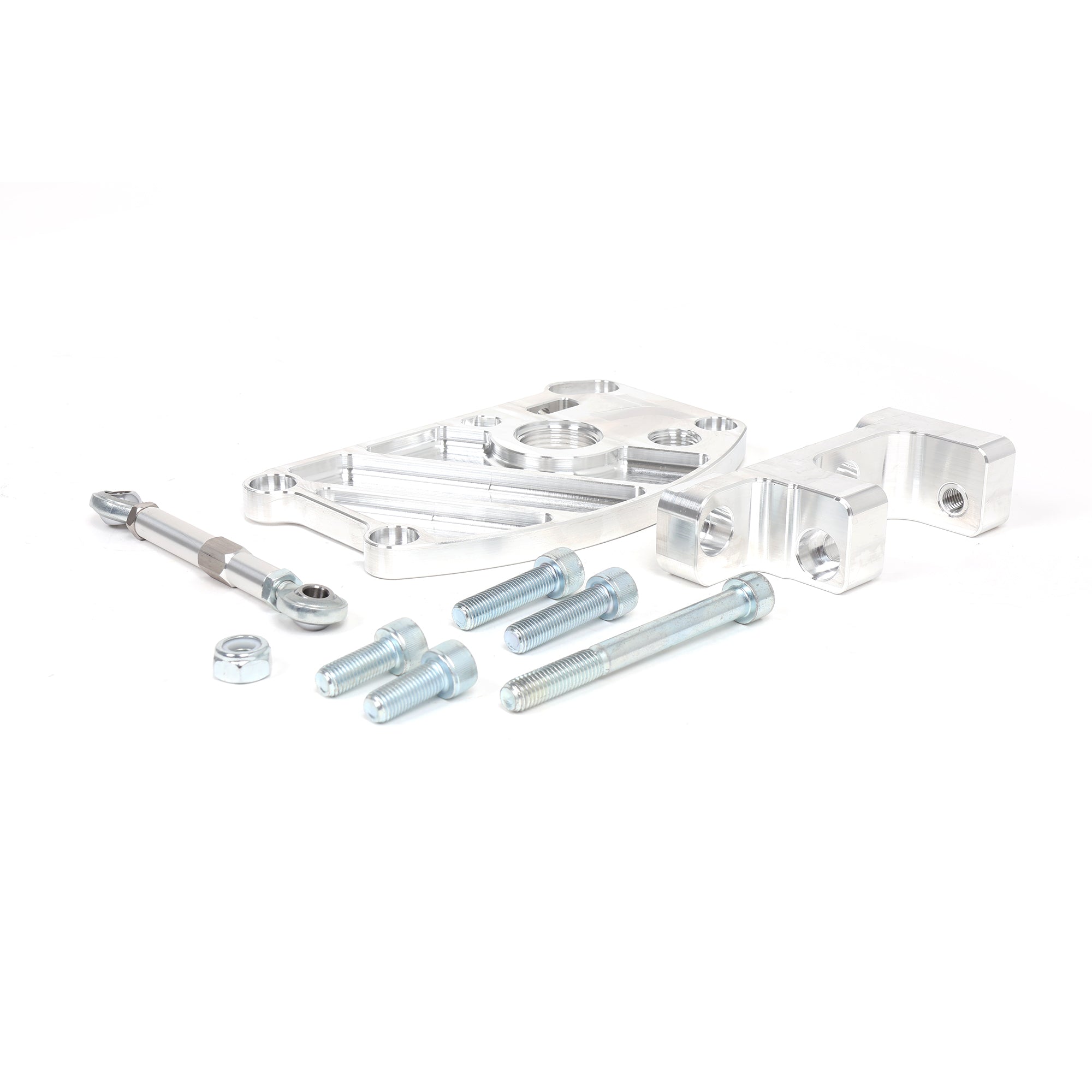

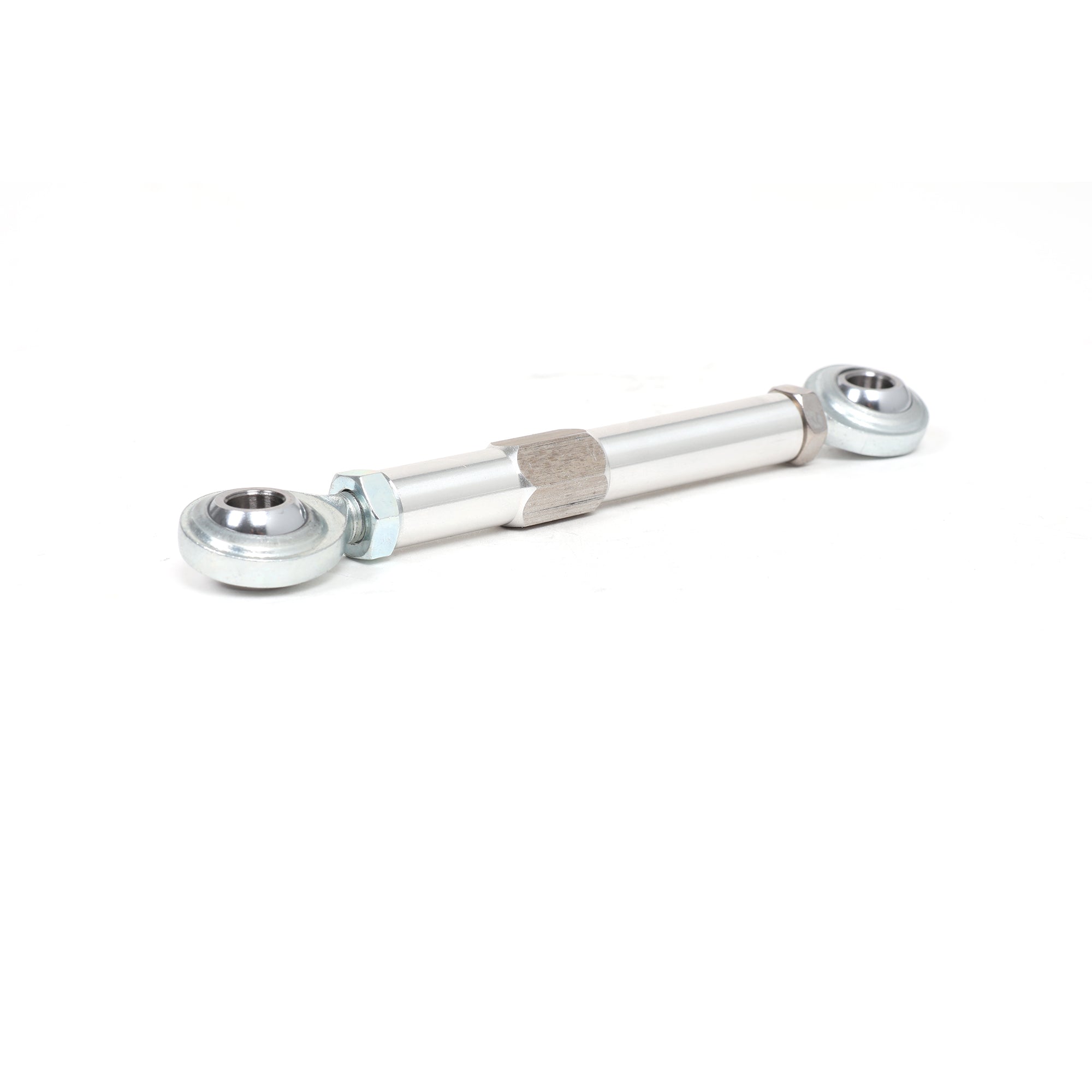

- High-Quality Hardware: Includes o-ring, zinc-plated hardware, QA1 5/16″ rod-end tensioner, stainless pin, and 5/16″ circlip for a complete install.
- Large Water Inlet Port: 1-5/16″-12 SAE (-16AN ORB) inlet sealed by included o-ring for reliable coolant flow.
- Crankcase Breather Port: Smaller 3/4″-16 SAE (-8AN ORB) port included for breather function, not water.
- Space Savings: Eliminates OEM water pump housing, freeing room in the engine bay for turbo or accessory upgrades.
- Serious Performance Focus: Not compatible with A/C; designed for high-performance street and race applications.
Why Delete Your Water Pump Housing?
- Free Horsepower: Eliminates parasitic drag from the mechanical water pump, increasing horsepower and torque.
- Prevents Cavitation: Electric water pumps avoid cavitation at high RPM, improving coolant flow and engine reliability.
- Better Cooling Control: Programmable or manually controlled pump operation keeps engine temperatures consistent, even while idling or after shutdown.
- Engine Bay Space: Removing the OEM water pump housing frees space for turbo setups, superchargers, or other aftermarket components.
- Reduced Mechanical Complexity: Fewer moving parts mean less potential for mechanical failure from belts, pulleys, or the water pump itself.
- Flexible Alternator Options: Upgraded bracket allows use of high-output alternators for street or race applications.
The TracTuff K20/K24 Water Pump Housing Delete offers flexibility with alternator choice and belt routing. While belts are not included due to variations in crank and alternator pulley sizes, the included tensioner allows for a wide adjustment range, and an XL Tensioner Turnbuckle is recommended if your setup reaches maximum extension. All pivot hardware is grade 12.9, torqued to exact specifications to ensure safe, reliable operation.
Optimize your K-series engine for free horsepower, improved cooling efficiency, and a cleaner engine bay with the TracTuff K20/K24 Water Pump Housing Delete. This premium kit is ideal for enthusiasts seeking a reliable, high-performance solution that delivers both street and track-ready results.
