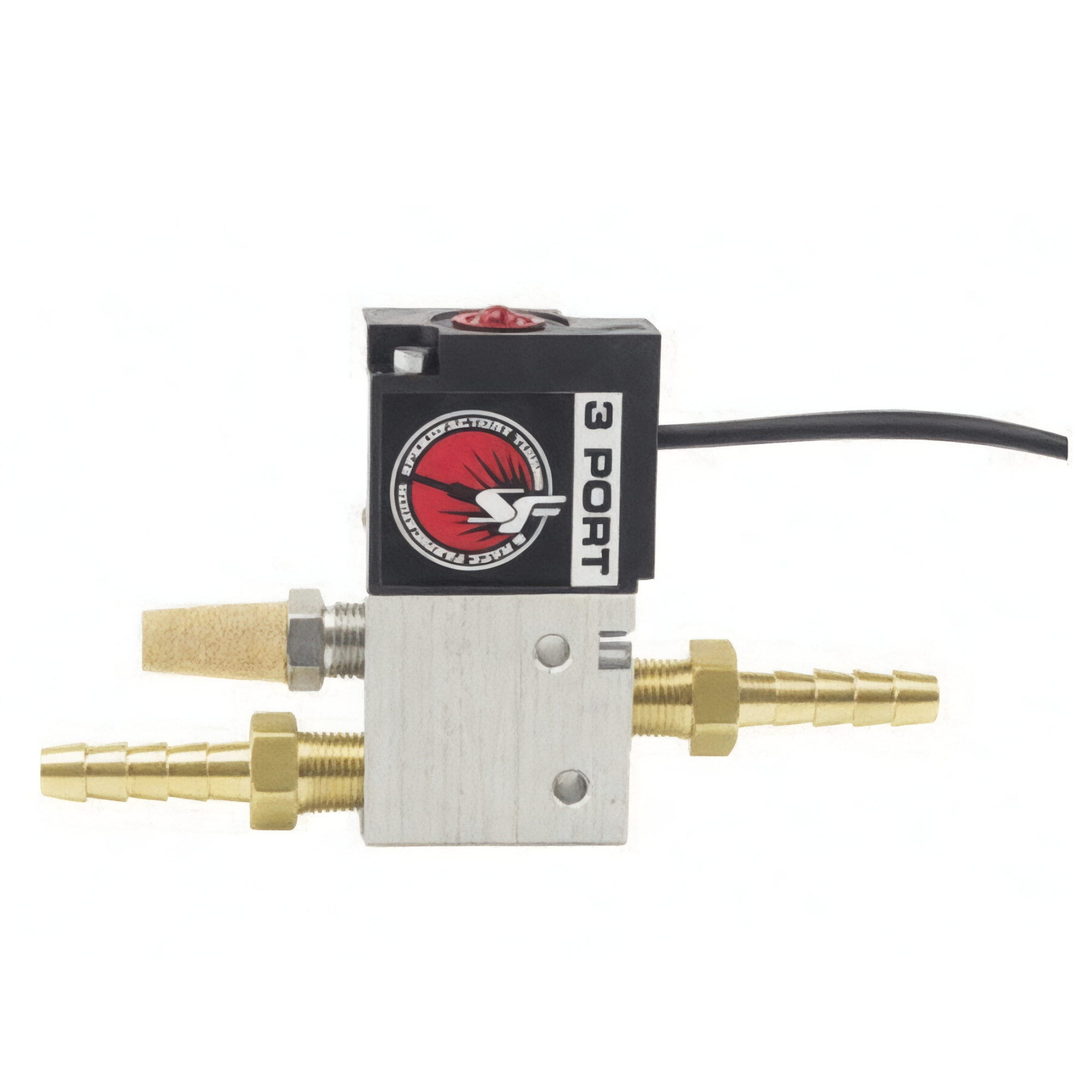

SpeedFactory 3 Port Boost Control Solenoid Kit

SpeedFactory 3 Port Boost Control Solenoid Kit

If you are running a turbo and still controlling boost with just the wastegate spring, you are leaving power, response, and safety on the table. The SpeedFactory 3 port boost control solenoid is what lets your engine management actually control boost. It sits in the wastegate reference line and bleeds off pressure so the wastegate sees less than the turbo is really making, which means you can run boost above spring pressure and dial it in precisely with a PWM signal from your ECU or electronic boost controller. This is one of the cheapest mods you can do to a boosted car that improves both power and throttle response, and it is the foundation of any proper boost-by-rpm or boost-by-gear tuning.

It works with single or multiple wastegates and with both internal and external wastegates, so it fits the vast majority of turbo setups. It plays nicely with just about every standalone and tuning platform out there, Haltech, MoTeC, Hondata, Neptune, AEM, Megasquirt, Holley, KTuner, and more. Because the wiring is non-polarized, there is no wrong way to wire it, and the 24 inch leads give you room to mount it cleanly away from heat.

How it works

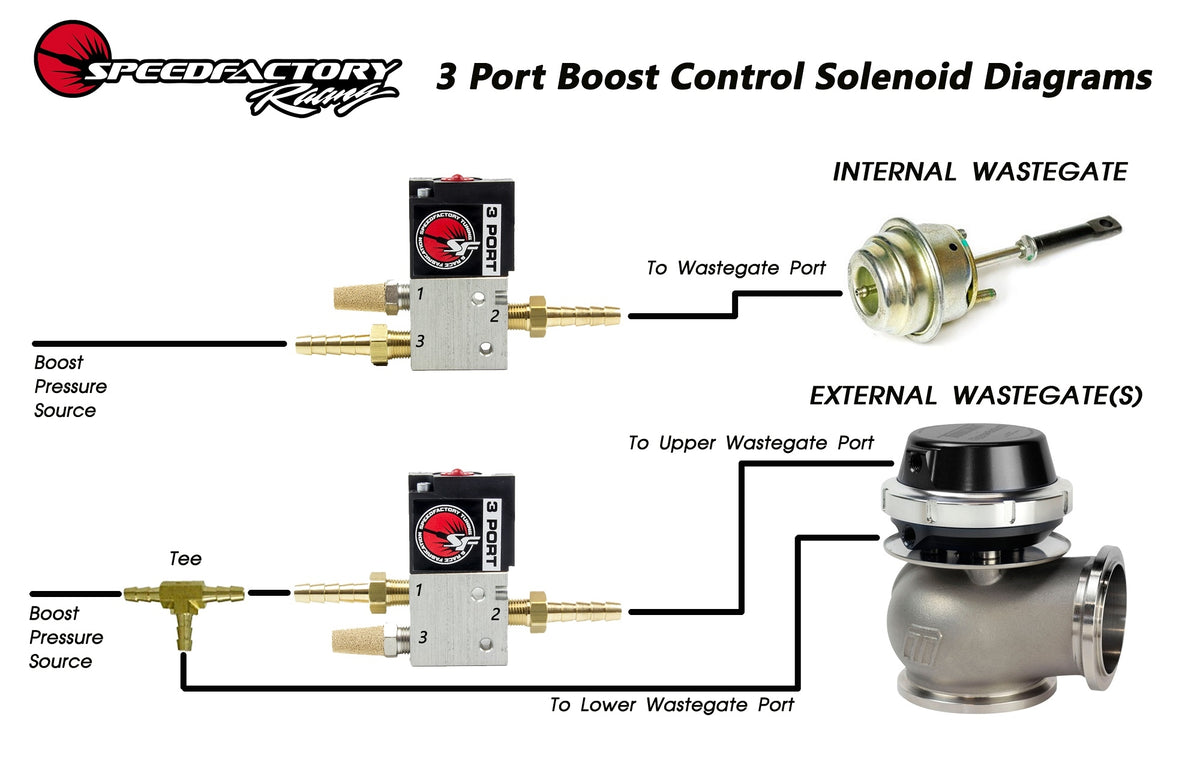

A wastegate normally opens at its spring pressure. Run boost straight to it and 10 psi of spring means 10 psi of boost. This solenoid goes in that line and, based on the duty cycle your tune commands, bleeds some of that reference pressure off so the wastegate stays closed longer and the engine builds more boost before it opens. Want more boost, command more duty cycle. That is real, closed-loop control instead of hoping a spring lands where you want. This 3 port solenoid can raise boost as high as 2 to 3 times your wastegate spring pressure, so a 10 psi spring can support somewhere in the 20 to 30 psi range depending on your setup and how you tune it.

Specs

3 port or 4 port: which one you want

Be honest about your build here, because the right answer saves you money or saves your motor. The 3 port solenoid is the right call for most street and moderate-boost setups. It bleeds pressure off the wastegate to raise boost up to 2 to 3 times spring pressure, and it works with internal or external gates. If you are running a typical single-turbo Honda making reasonable power, this is the part you want.

Step up to the SpeedFactory 4 port solenoid if you are chasing high boost or you want serious low-gear boost control. The 4 port directs pressure to both sides of the wastegate diaphragm, so it can raise boost up to 6 to 7 times spring pressure and lets you run a much lighter wastegate spring for better launch and boost-by-gear control. The catch is the 4 port is external wastegate only. So: 3 port for most builds and any internal gate, 4 port for high-boost external-gate cars that want to manage traction with boost.

What to know before you buy

The big one: this solenoid does nothing without engine management that can drive it. You need an ECU or electronic boost controller that outputs a PWM boost-control signal, something like Hondata, KTuner, Haltech, AEM, or similar, plus someone who knows how to set up boost control in that software. The hardware install is genuinely easy, non-polarized wiring and long leads, but it is a tuning component, not a plug-in power part.

Dial in your control frequency, do not just copy a number. SpeedFactory suggests 34 Hz as a starting point and it gives stable control in most setups, but finding the frequency that gives smooth, stable boost on your specific ECU and plumbing is part of proper boost tuning. Plan to spend a little time getting it right rather than expecting plug-and-go.

Set conservative duty cycle to start, then work up. This is important for safety: a more capable solenoid will overboost fast if you feed it duty cycle settings carried over from a less aggressive setup. Start low, watch your boost, and bring it up gradually. Because the solenoid is normally closed, a failure or a disconnected signal drops you back to wastegate spring pressure rather than spiking, but that is your floor, not a substitute for tuning it correctly. If you want a clean install, SpeedFactory also offers a dedicated mounting bracket for this solenoid.
