RV6 Performance R660 Anti-Surge w/ Inlet Pipe

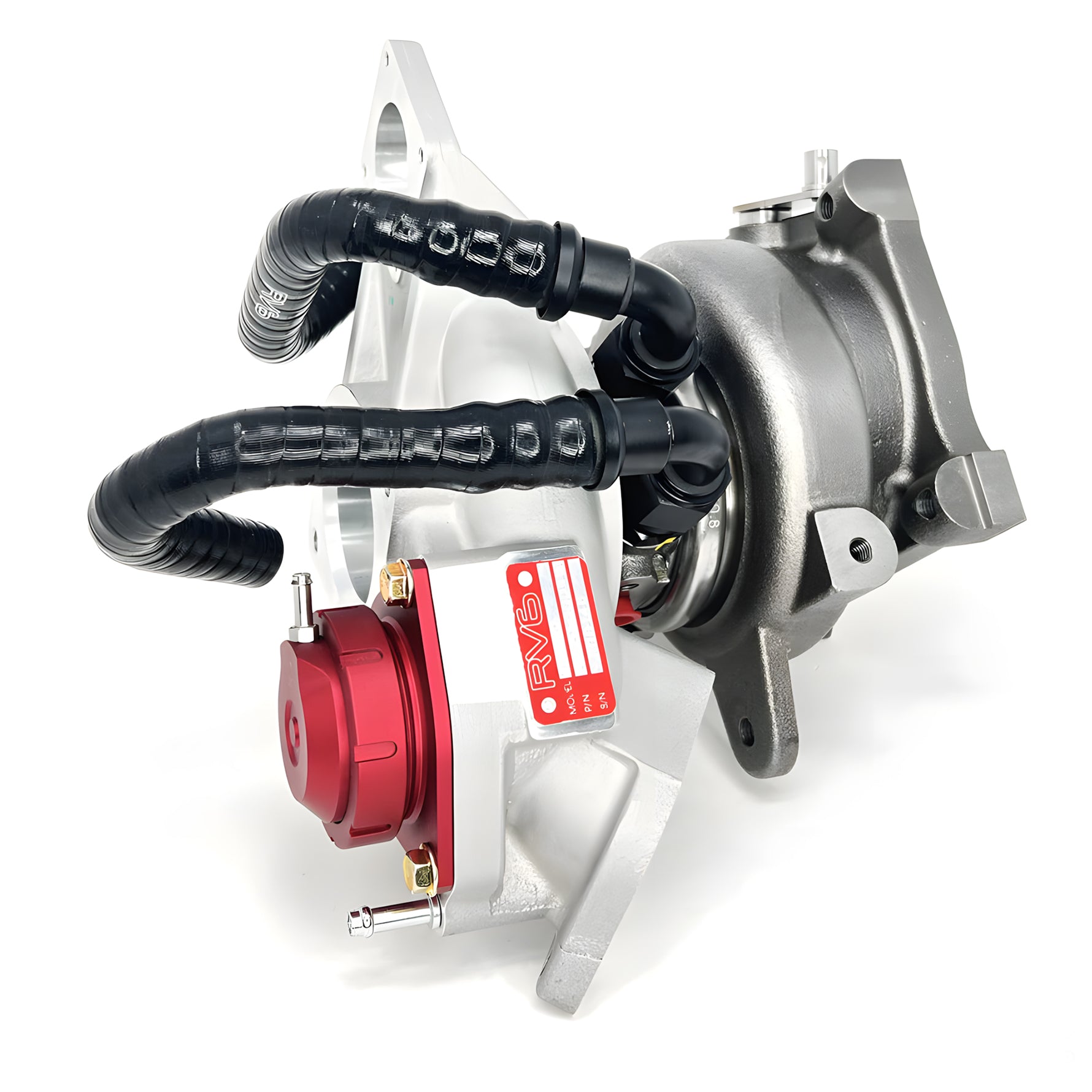

RV6 R660 Anti-Surge Turbocharger for 2017-2021 & 2023+ Honda Civic Type R

Push the limits of your Honda Civic Type R with the RV6 R660 Anti-Surge Turbocharger (R660AS)—the ultimate upgrade for enthusiasts demanding both reliability and relentless power. After nearly two years of development and three major design revisions, RV6 has perfected this turbo system with a cutting-edge Anti-Surge/T51R Mod compressor cover and a stunning carbon fiber inlet pipe available in your choice of gloss or matte finish. Designed specifically for the 2017-2021 FK8 and 2023+ FL5 Civic Type R, this turbo redefines what’s possible for street and track performance.

Built around a TD05 bearing housing, the R660AS represents a massive step up from the restrictive TD04 format found in OEM turbochargers. The larger housing allows for a full-sized 8mm dual ceramic ball bearing system, delivering lightning-fast spool, reduced friction, and the ability to handle increased thrust loads. Oversized coolant passages and -10AN coolant lines ensure optimal cooling under high temperatures, providing the reliability that serious power builds demand.

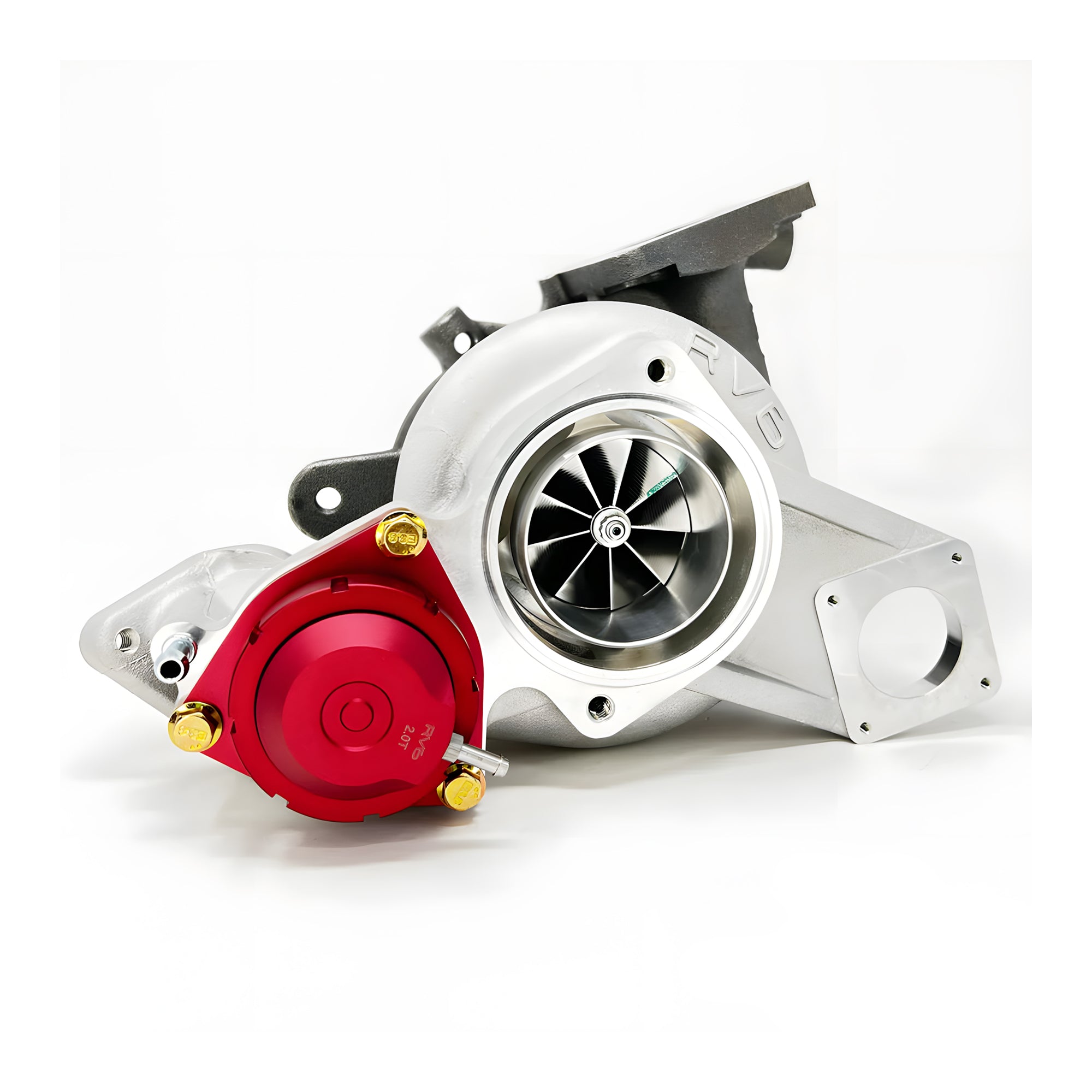

At the heart of the R660AS lies a precision-engineered billet point-milled compressor wheel and a MAR-M Super Alloy turbine wheel and shaft—materials chosen for their incredible heat tolerance and strength under extreme load. With an A/R ratio of 0.81, this turbo drastically reduces backpressure, stabilizes boost delivery, and keeps exhaust temperatures in check. The result is a broad, stable powerband with explosive acceleration and rock-solid consistency lap after lap.

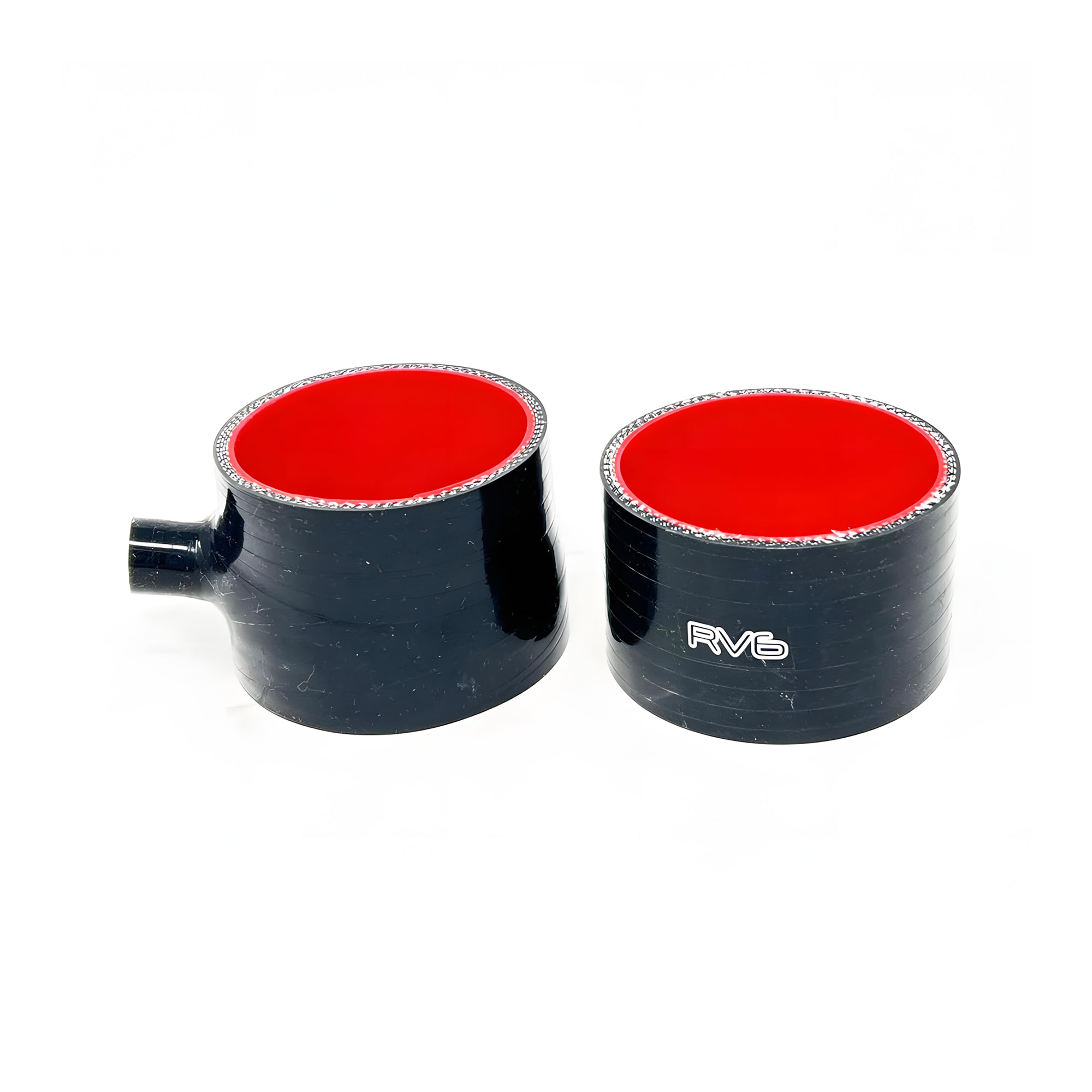

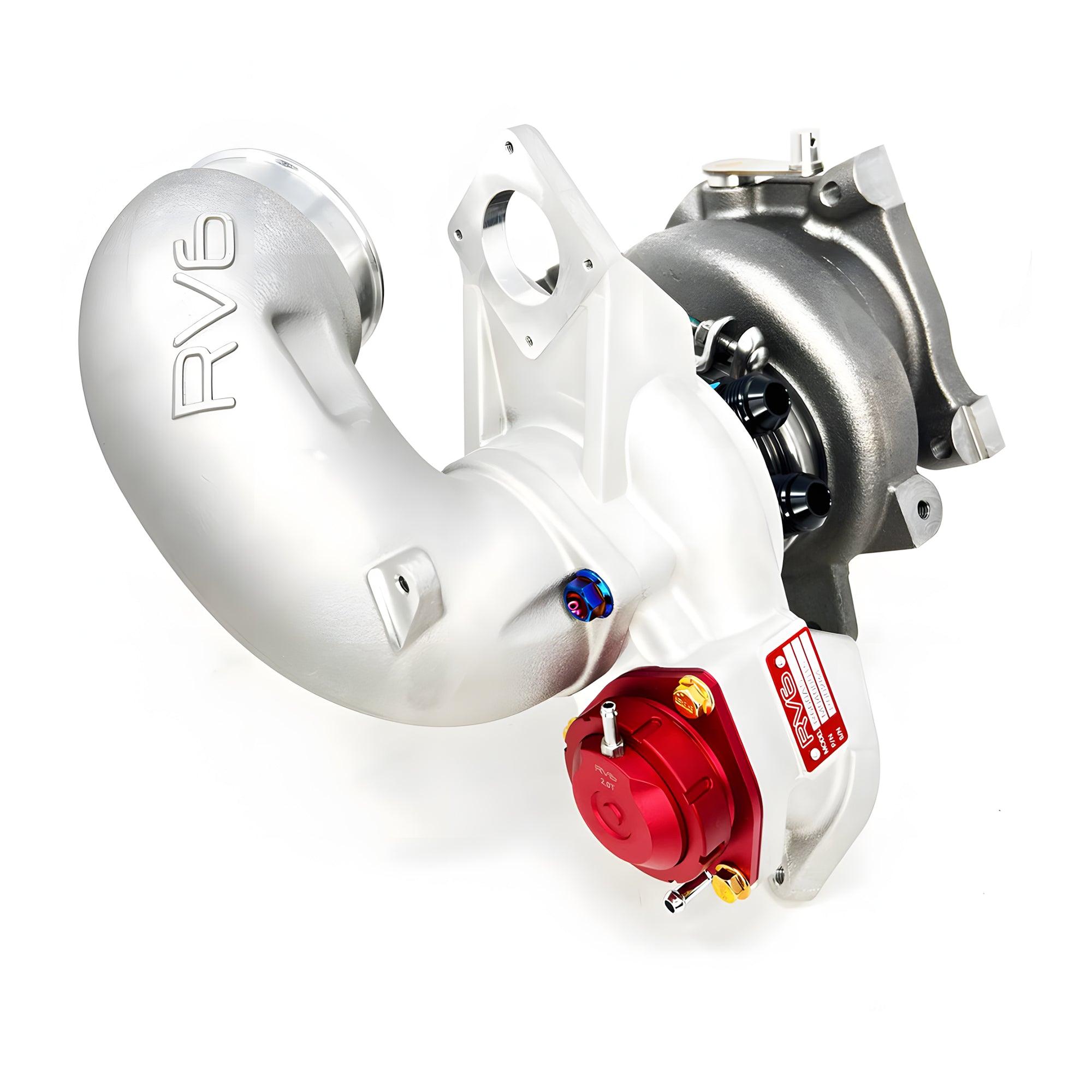

RV6 includes everything needed for installation: the R660AS Turbocharger, carbon fiber inlet pipe, inlet elbow, couplers, titanium stud set, RV6 bypass valve, and all required hardware. Please note that the included inlet pipe is compatible only with PRL Race or Big Bore MAF housings, and the system requires an FK8, FL5, or DE5 wastegate actuator for operation.

Available in both Gloss Carbon and Matte Carbon finishes, the R660AS combines cutting-edge materials with unmatched performance engineering to create one of the most advanced drop-in turbocharger upgrades available for the Civic Type R platform.

Key Features:

• Anti-Surge/T51R Mod Compressor Cover with 76mm Inlet
• TD05 Bearing Housing with Oversized Coolant Passages
• 8mm Dual Ceramic Ball Bearings for Rapid Spool
• MAR-M Super Alloy Turbine Wheel for Extreme Durability
• Billet Point-Milled Compressor Wheel for Lightweight Efficiency
• -10AN Coolant Lines and Titanium Stud Set Included
• Carbon Fiber Inlet Pipe (Gloss or Matte) Included
• Direct Drop-In Design for 2017-2021 FK8 & 2023+ FL5 Civic Type R
• Requires FK8/FL5/DE5 Wastegate Actuator
• Includes RV6 Bypass Valve, Gaskets, and All Mounting Hardware

Compressor Specs:

Turbine Specs:

Backed by RV6’s 1-year limited warranty, the R660AS Turbocharger delivers uncompromising power, response, and reliability—built for enthusiasts who demand the best from their Civic Type R.
