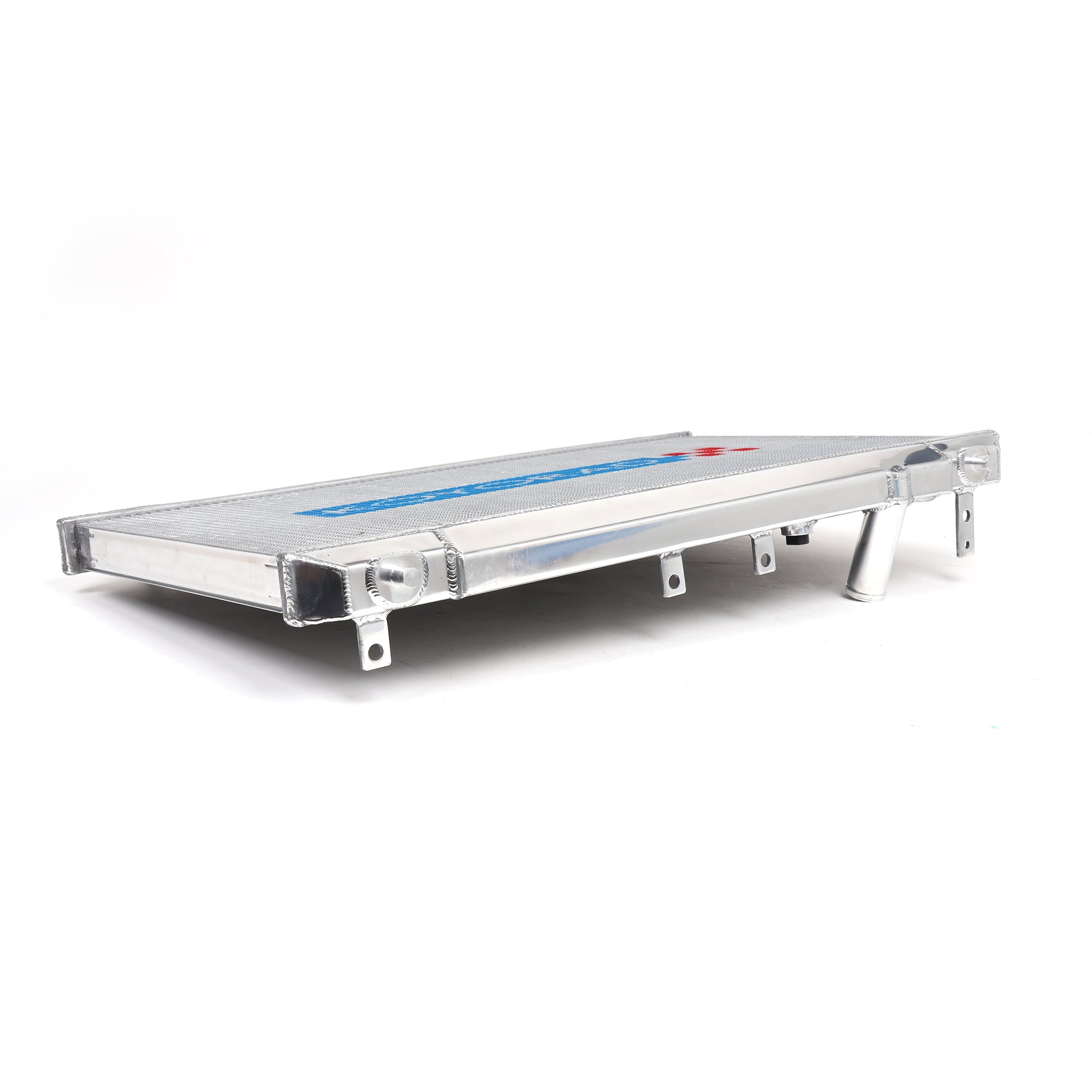

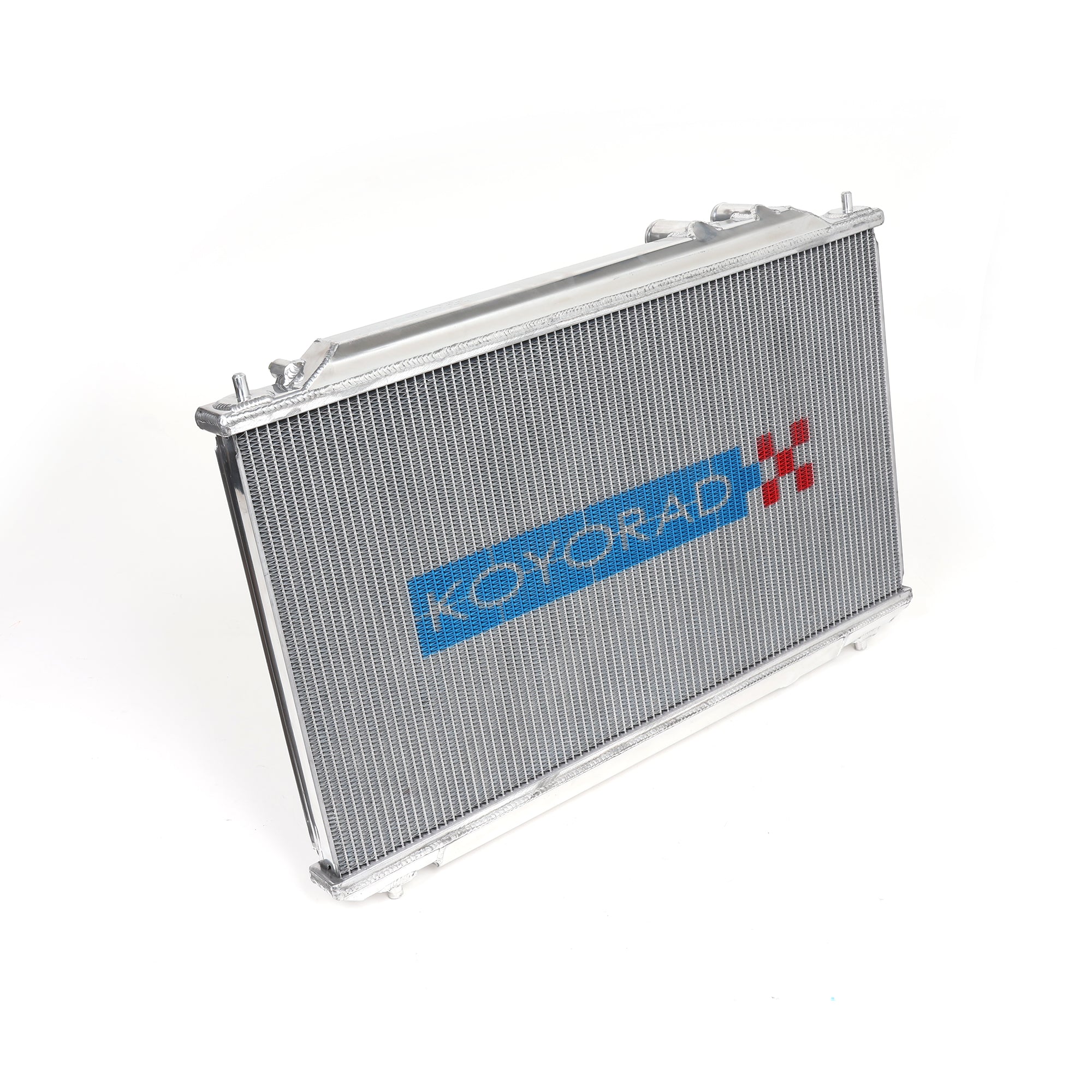

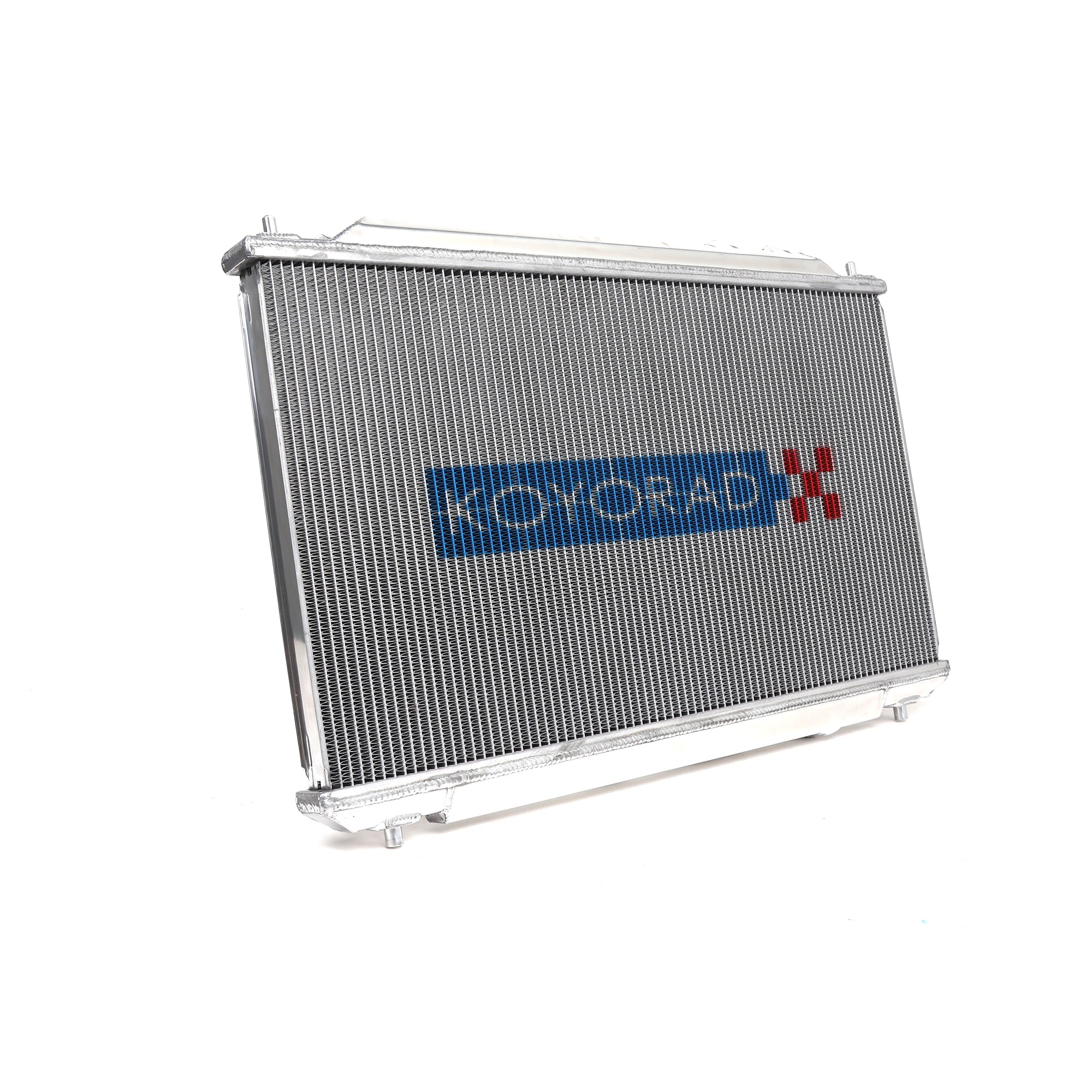

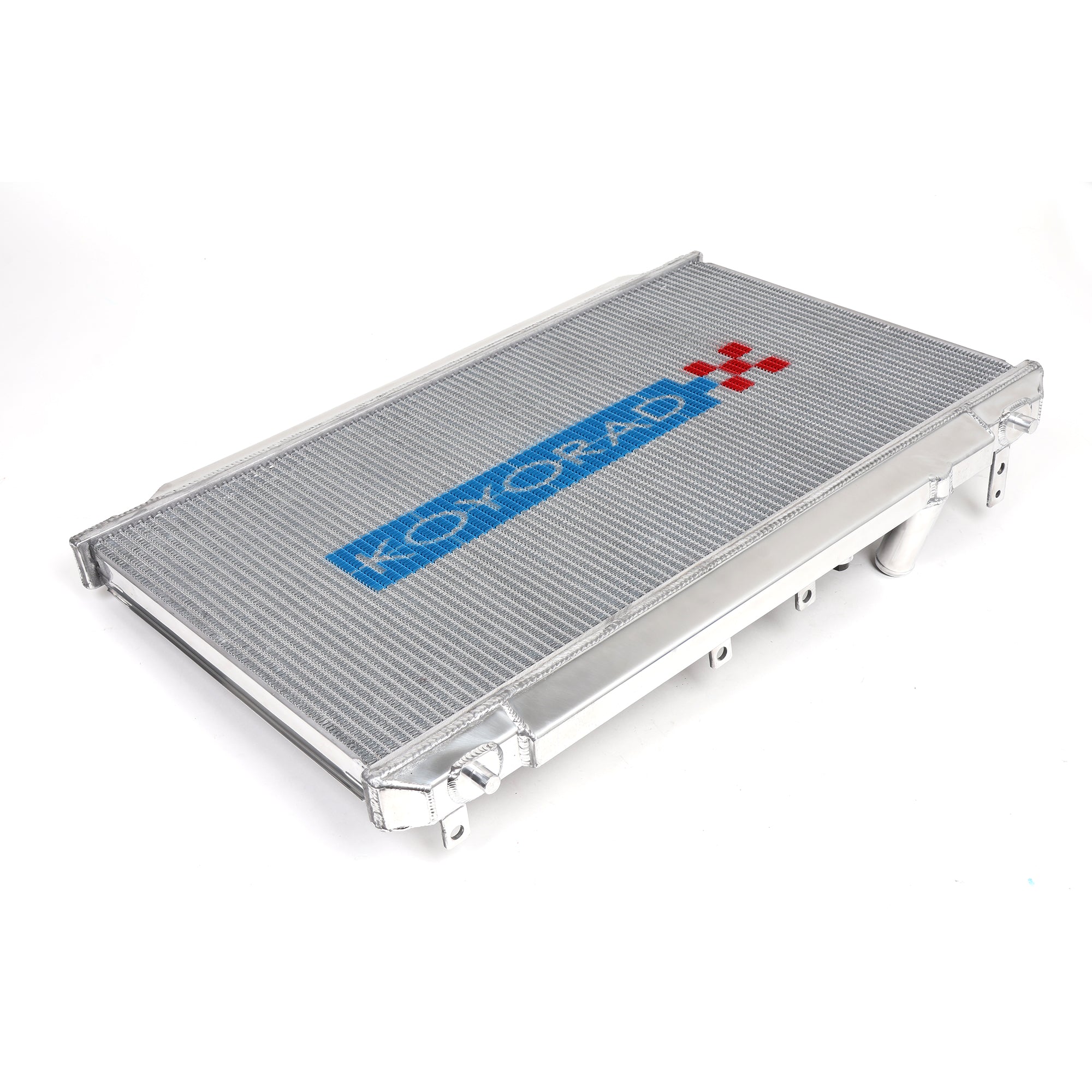

Koyo Racing Radiator - 2006-2011 Honda Civic Si
Tracking your 8th gen Civic Si and watching your coolant temps climb to 230°F by the third session? Your stock radiator can't keep up when you're beating on your car. The Koyo Racing radiator's an all-aluminum upgrade that cools way better than your factory plastic-tank radiator. I've been running Koyo radiators in my track Hondas for years because they actually keep temps stable during back-to-back sessions. Your factory radiator's fine for cruising around town, but put it through three 20-minute sessions on a 90°F day and your temps are creeping into the danger zone. The Koyo radiator's got more core volume and all-aluminum construction, so it dissipates heat faster. It's a direct bolt-in, you're using your factory mounts and hoses. If you're doing track days and you're tired of watching your temp gauge climb, this radiator fixes it.
Here's Why Your Stock Radiator Can't Handle Track Use
Your factory 8th gen Si radiator's designed for street driving with occasional highway pulls. The core's sized for normal driving conditions, not sustained high-RPM use with full cooling system load. When you're on track running 6000-8000 RPM for 20 minutes straight, your engine's generating way more heat than it does on the street. Your coolant temps start at 195-200°F and by lap 5 or 6 they're at 220-230°F. That's when your ECU starts pulling timing to protect the engine. You're losing 5-10 horsepower from timing pull, and if temps keep climbing past 235°F, you're risking head gasket failure or warping your aluminum head. I've seen people cook K series motors at the track because their cooling system couldn't keep up. The Koyo radiator's got a thicker core with more surface area, so it can reject more heat. Your temps stay at 200-210°F even after multiple sessions.

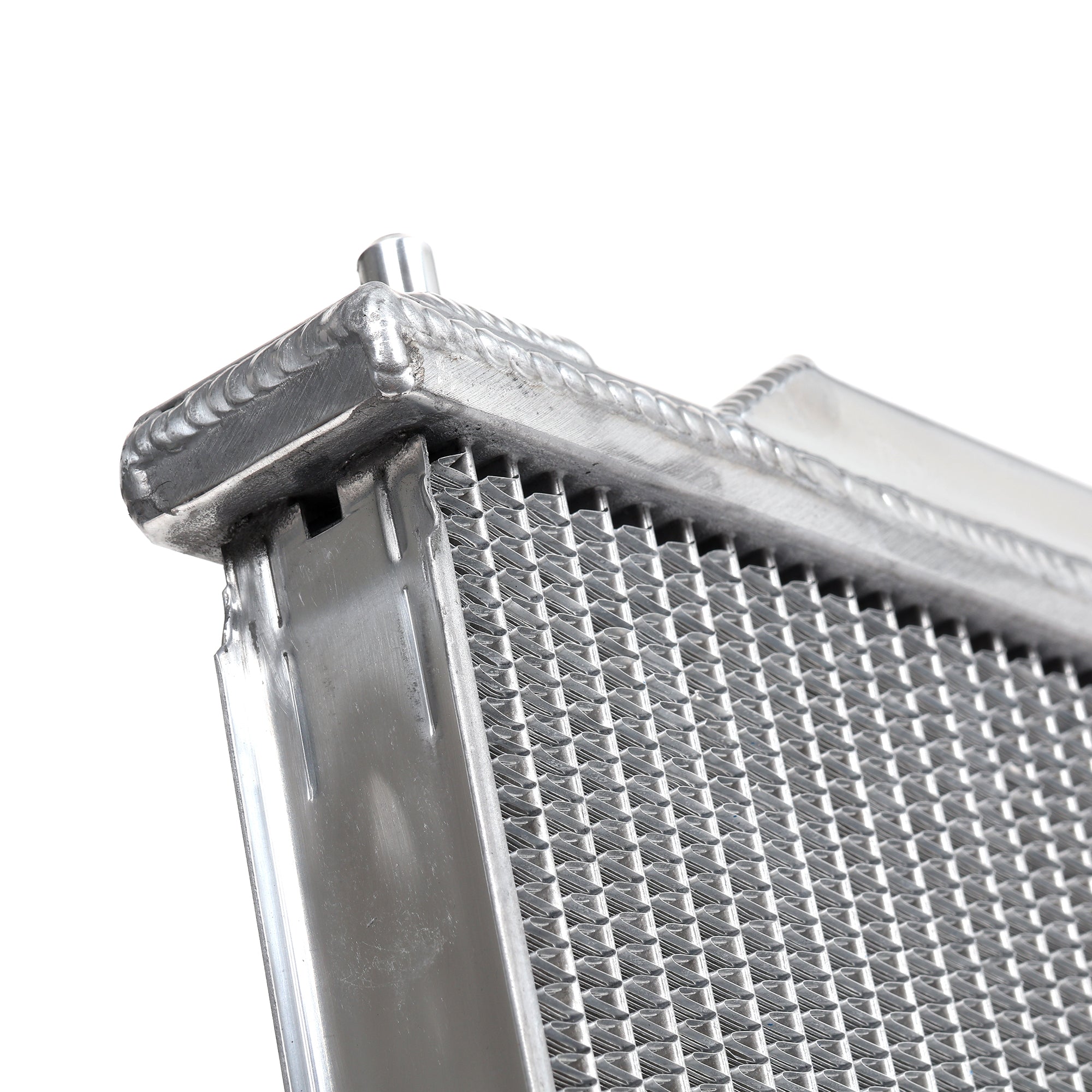

Aircraft-Grade Aluminum with TIG Welding

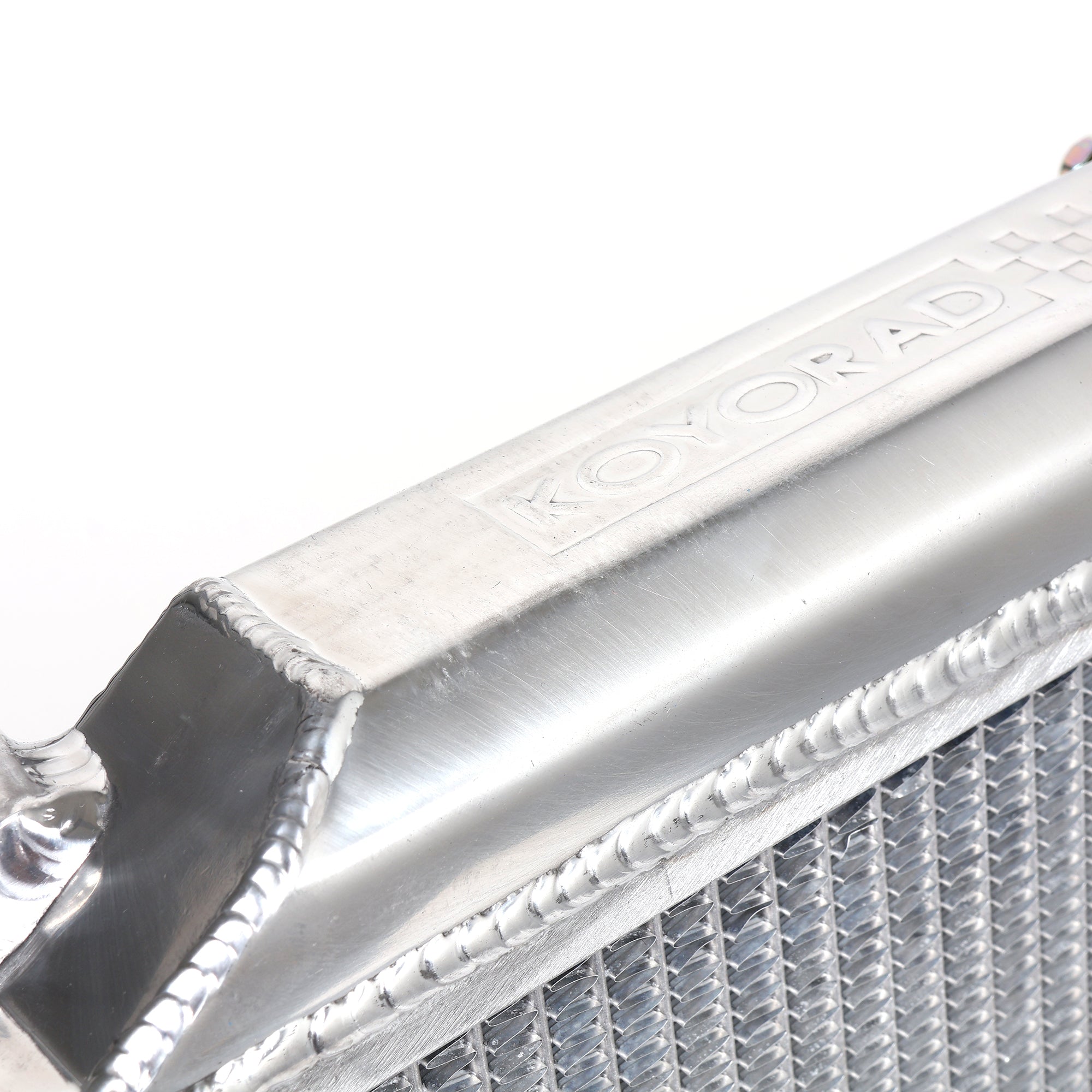

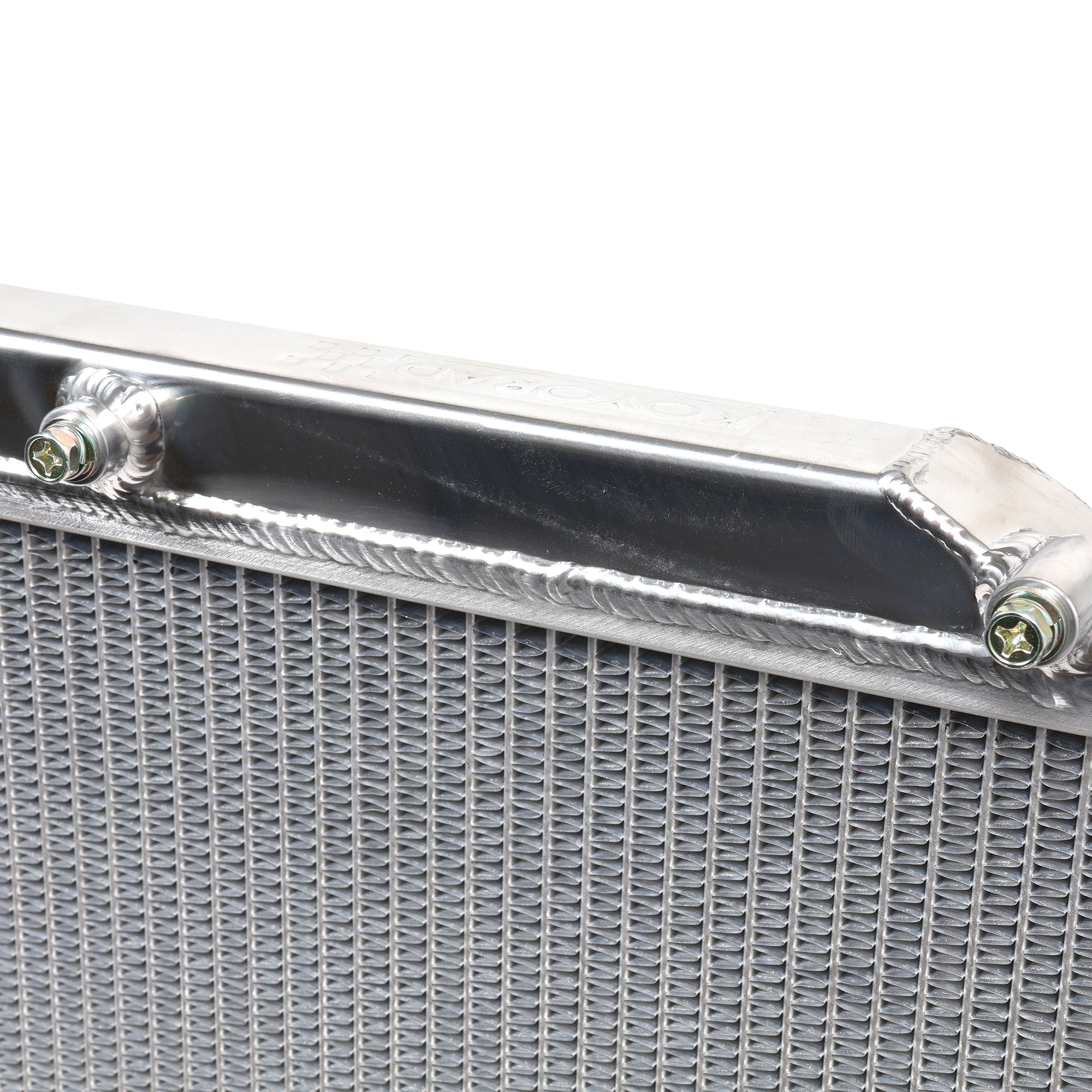

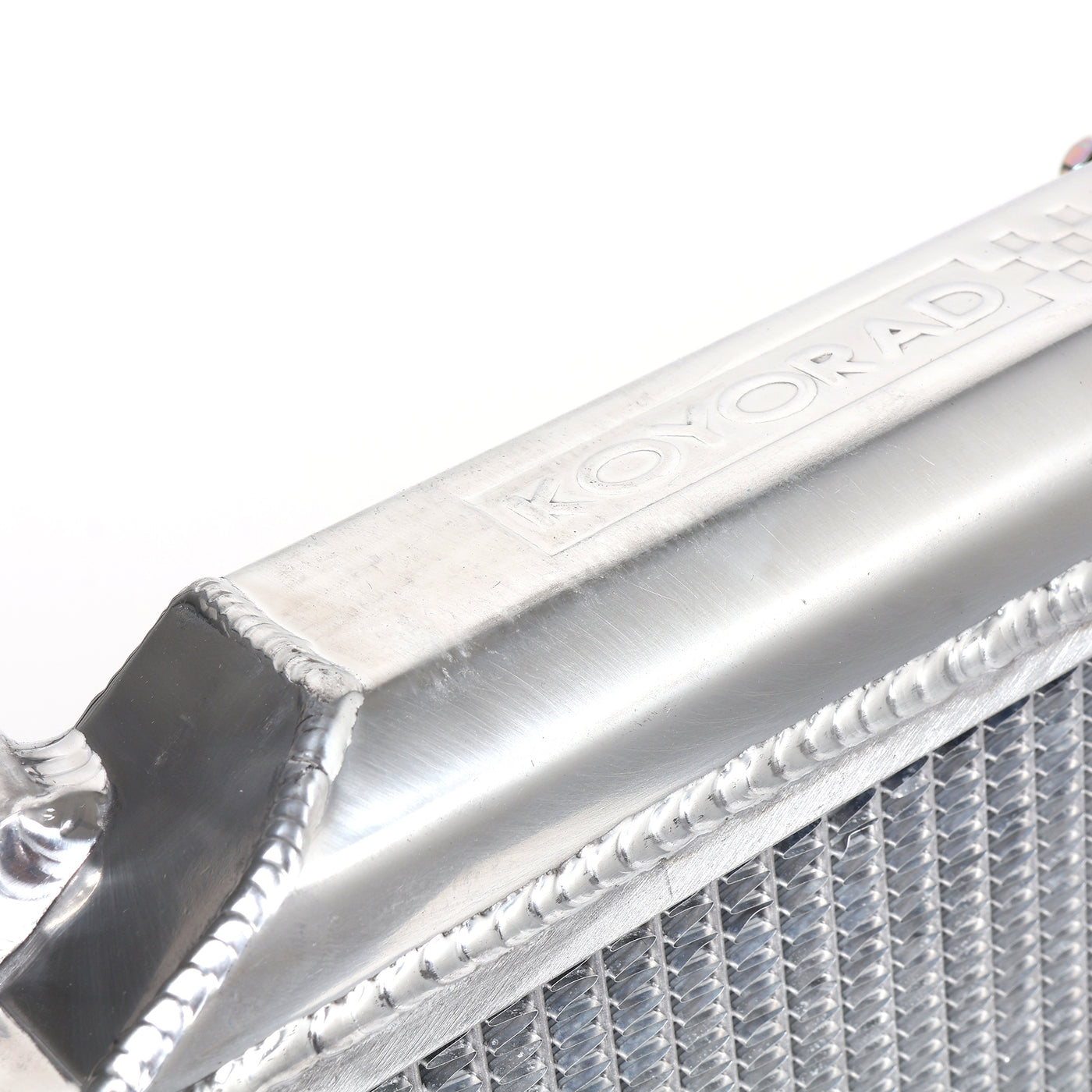

Koyo makes this radiator from aircraft-grade aluminum (probably 3003 or 6061 alloy, they don't specify which). The entire radiator's aluminum, tanks and cores, no plastic. Your factory radiator's got plastic end tanks that get brittle from heat cycling and eventually crack. I've replaced factory radiators that developed cracks in the plastic tanks after 100k miles or heavy track use. The Koyo radiator's TIG welded (Heli-arc welding) instead of crimped together like factory radiators. TIG welds are way stronger and they won't leak from vibration or heat cycling. The core uses Nocolok brazing to bond the tubes and fins together. Nocolok brazing's a furnace process that creates a molecular bond between the aluminum parts. It's stronger than soldering and it doesn't fail from heat like solder joints can.
More Core Volume Means More Heat Rejection
The Koyo radiator's got a thicker core than your factory radiator. I don't have exact measurements, but eyeballing it, the Koyo core's probably 30-40mm thick compared to 25-30mm for the stock radiator. More core thickness means more coolant capacity and more surface area for heat exchange. The tubes and fins are also designed for better airflow. When you're moving at speed on track, the radiator's getting tons of airflow through the core. That airflow removes heat from the coolant way faster than your factory radiator. You'll see the difference immediately, temps drop 10-15°F under the same conditions compared to stock.
Direct Bolt-In Using Factory Mounts

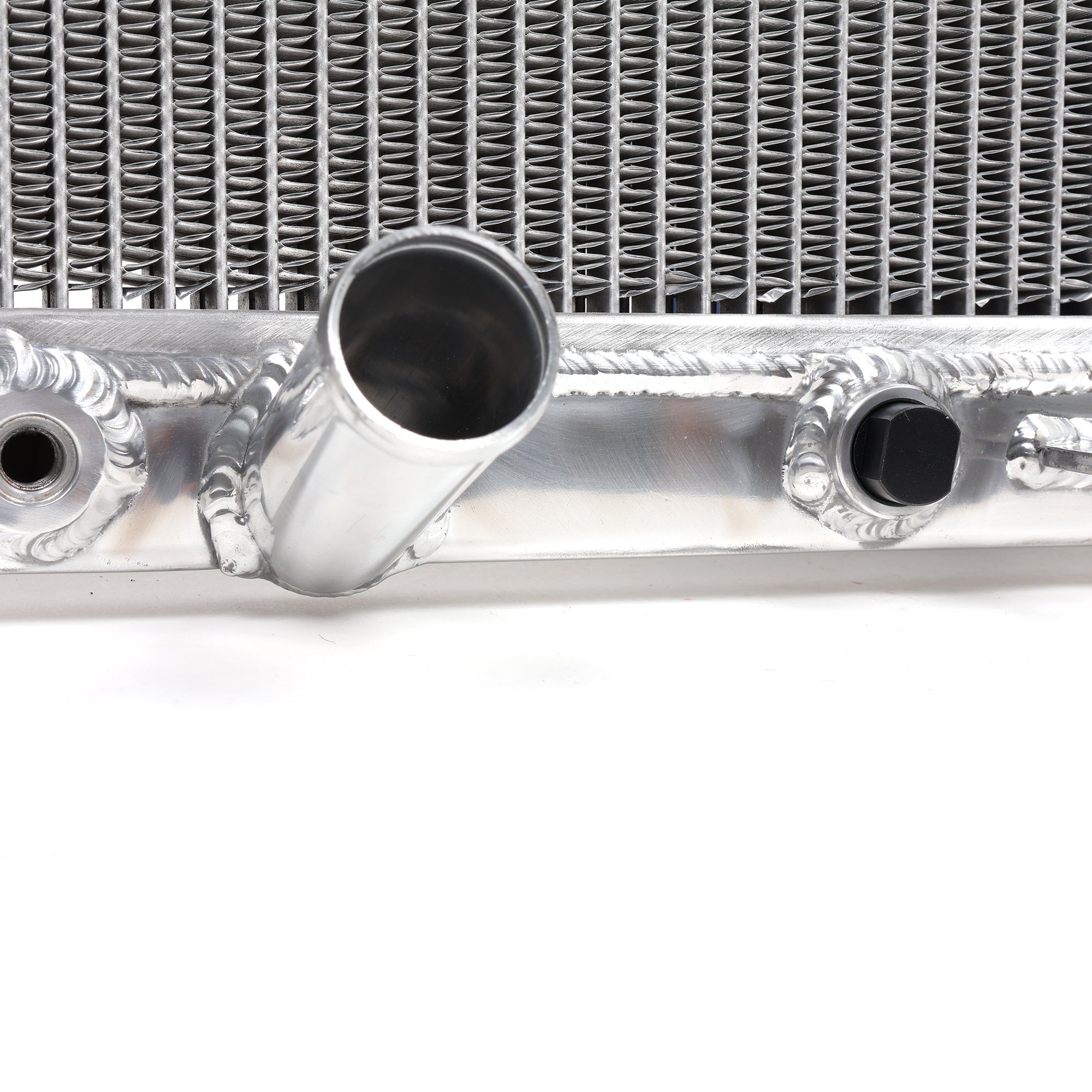

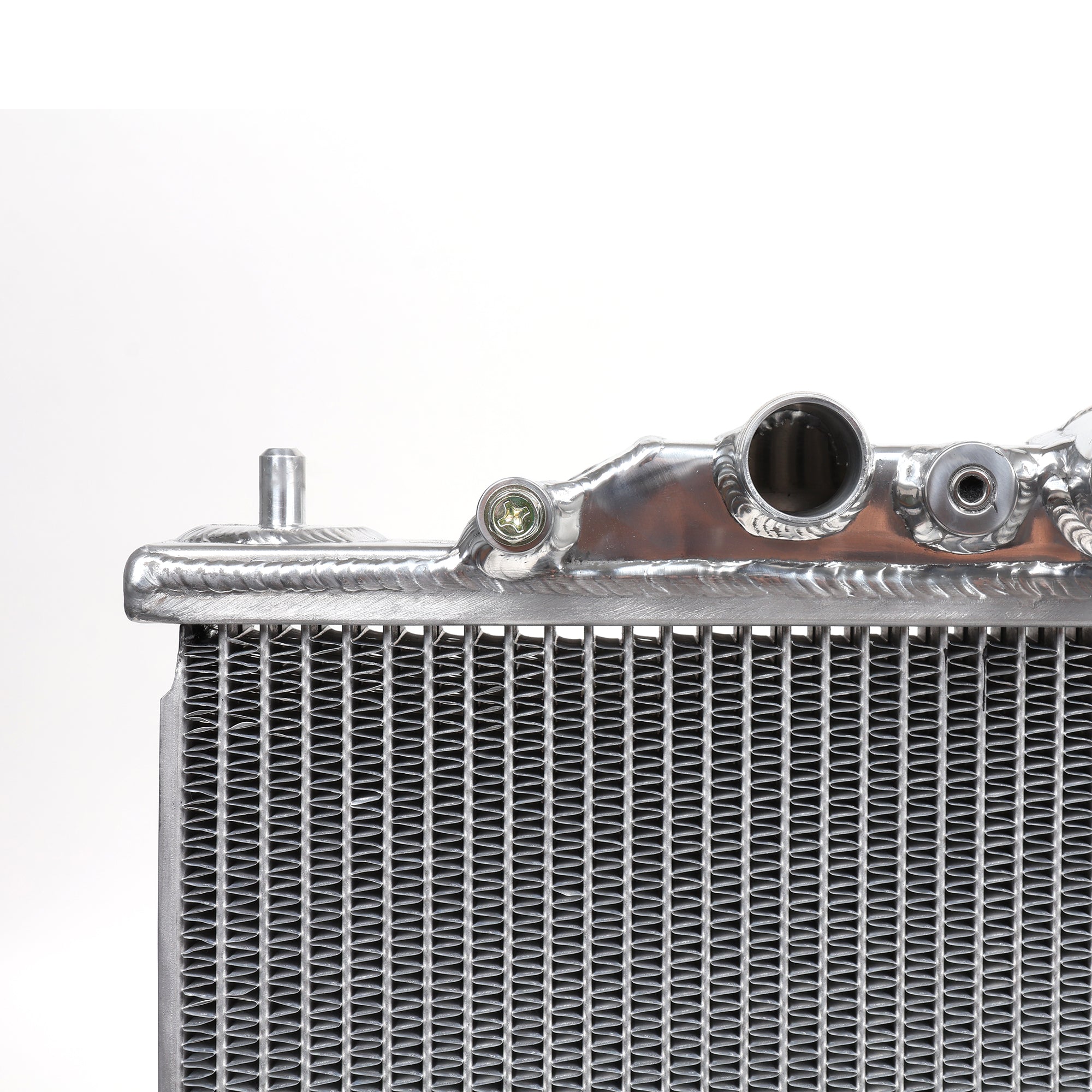

The Koyo radiator bolts in using your factory radiator mounting points. You're unbolting your old radiator, dropping the Koyo radiator in, and bolting it up. Your factory upper and lower radiator hoses connect to the Koyo radiator in the same spots as the stock radiator. Your cooling fans bolt to the Koyo radiator the same way they bolted to your stock radiator. The whole swap takes about an hour if you're taking your time. No cutting, no fabricating, no custom mounts. It's a direct replacement.
What You Get
- Koyo Racing all-aluminum radiator
- Aircraft-grade aluminum construction (tanks and core)
- TIG welded (Heli-arc) tanks
- Nocolok brazed core
- Thicker core than stock (increased cooling capacity)
- Direct bolt-in replacement (uses factory mounting points)
- Compatible with factory radiator hoses and cooling fans
- Significantly better cooling than stock radiator
Fits Your Car
- 2006-2011 Honda Civic Si (8th gen, FA5/FG2 chassis)
Compatible Engines
- K20Z3 (2006-2011 Civic Si)
Note: This radiator's designed for street and track use. It's way better than your factory radiator, but it's not a full race radiator with a massive core and dual electric fans. If you're doing serious endurance racing with 60+ minute sessions back to back all day, you might need an even bigger radiator or upgraded cooling fans. For most track day and time attack use, the Koyo radiator's more than enough. When you're installing this radiator, flush your entire cooling system first. Don't just drain the old coolant and refill. Run a cooling system flush through the engine, flush it out with water, then fill with fresh Honda OEM Blue coolant (part number OL999-9011). Don't use cheap Prestone or AutoZone coolant. Use OEM Honda coolant. It's formulated for aluminum engines and it won't corrode your cooling system. Bleed your cooling system after you fill it. There's a bleeder screw on top of your thermostat housing. Open it while you're filling the radiator, and close it when coolant comes out with no bubbles. If you don't bleed properly, you'll get air pockets and your temps will spike even with the new radiator. Check your radiator hoses while you've got the radiator out. If your upper or lower hose is cracked, soft, or bulging, replace it. Old hoses can collapse under suction and restrict coolant flow.
