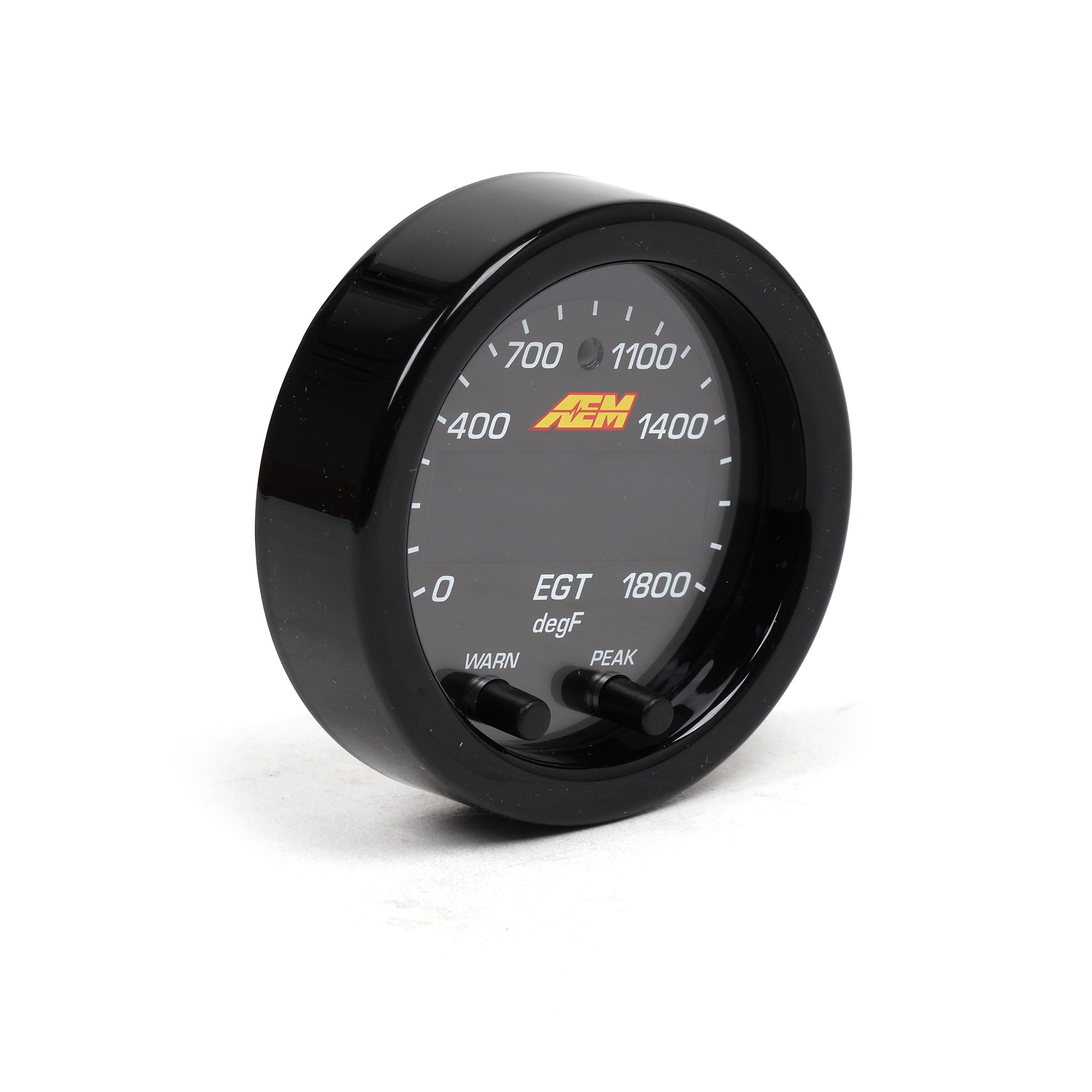

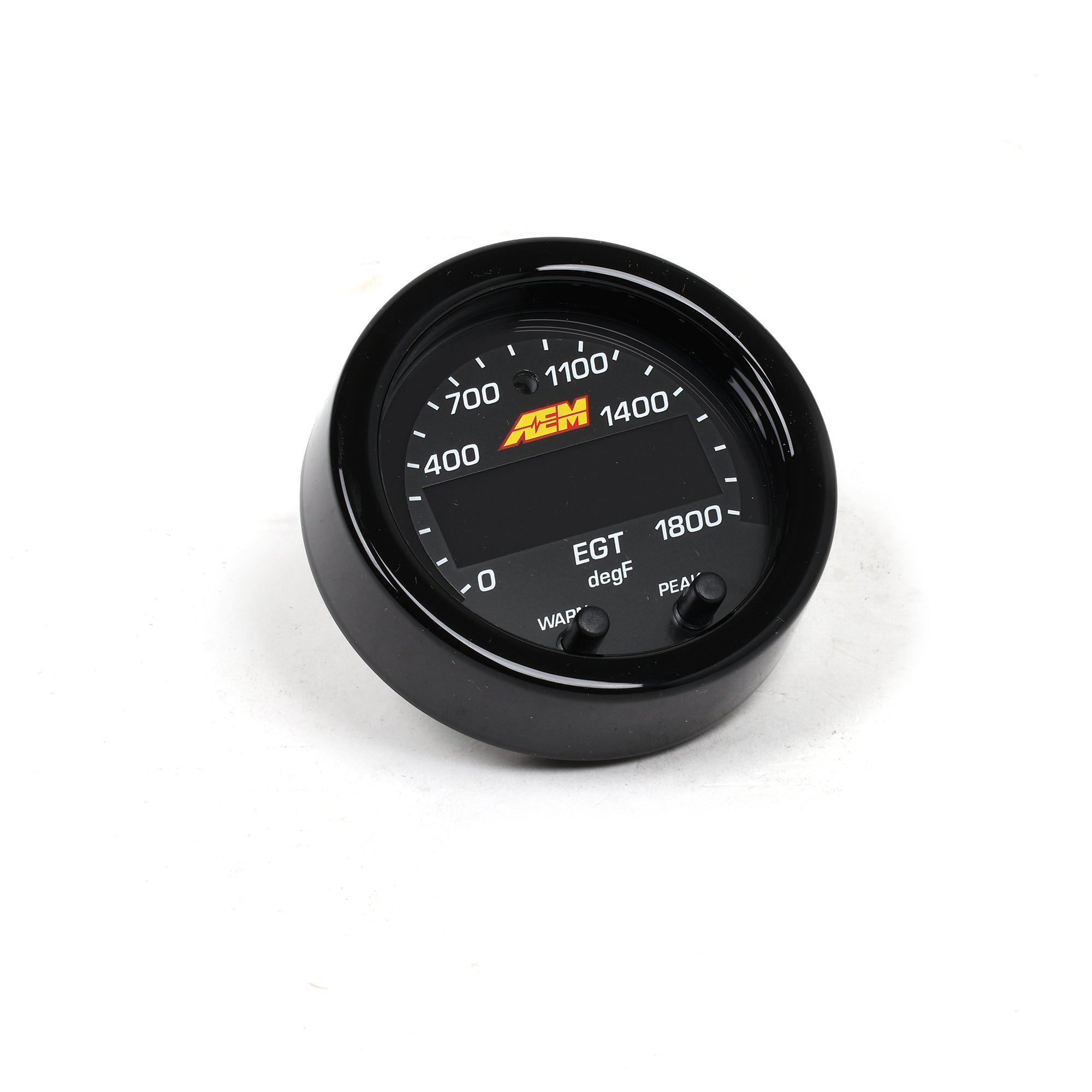

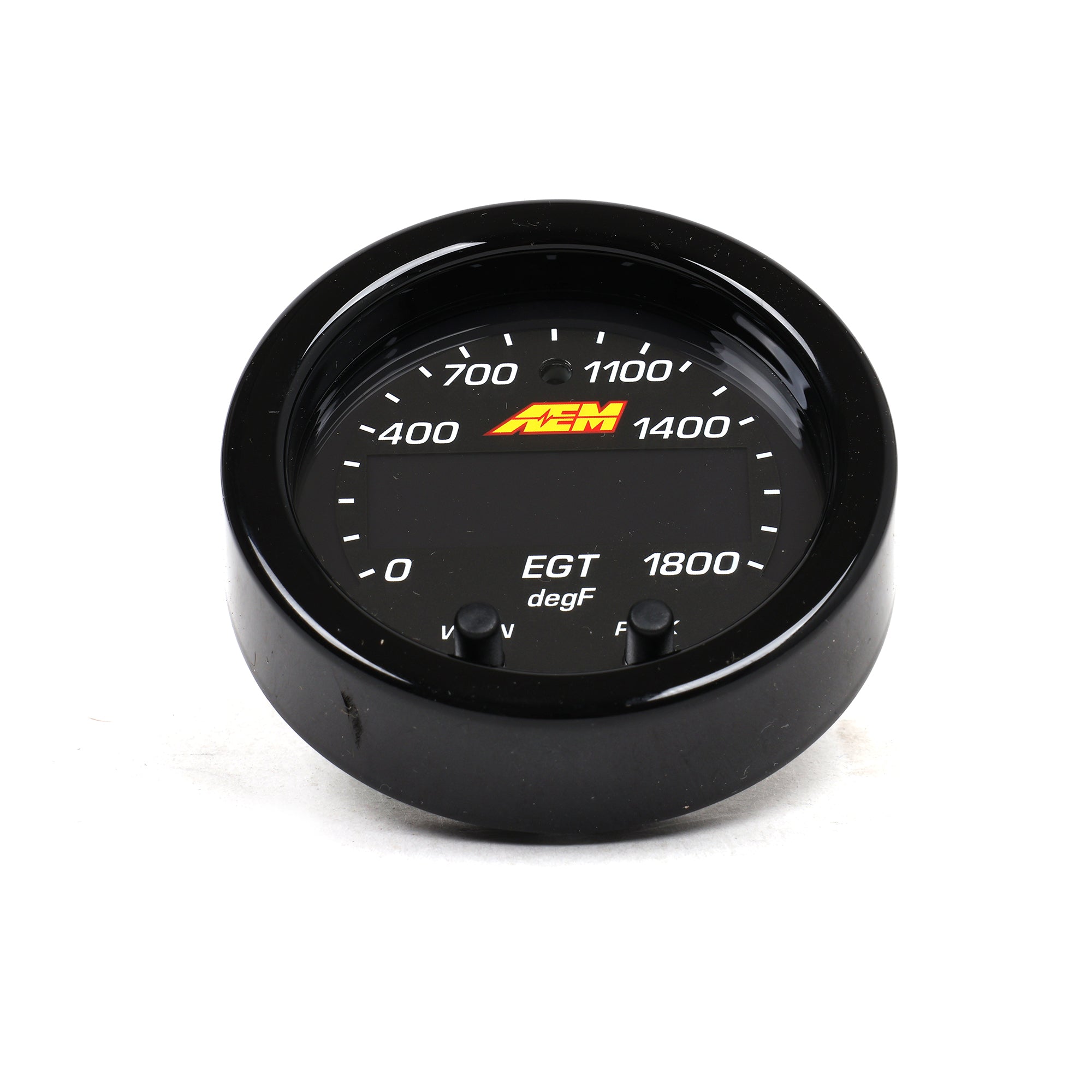

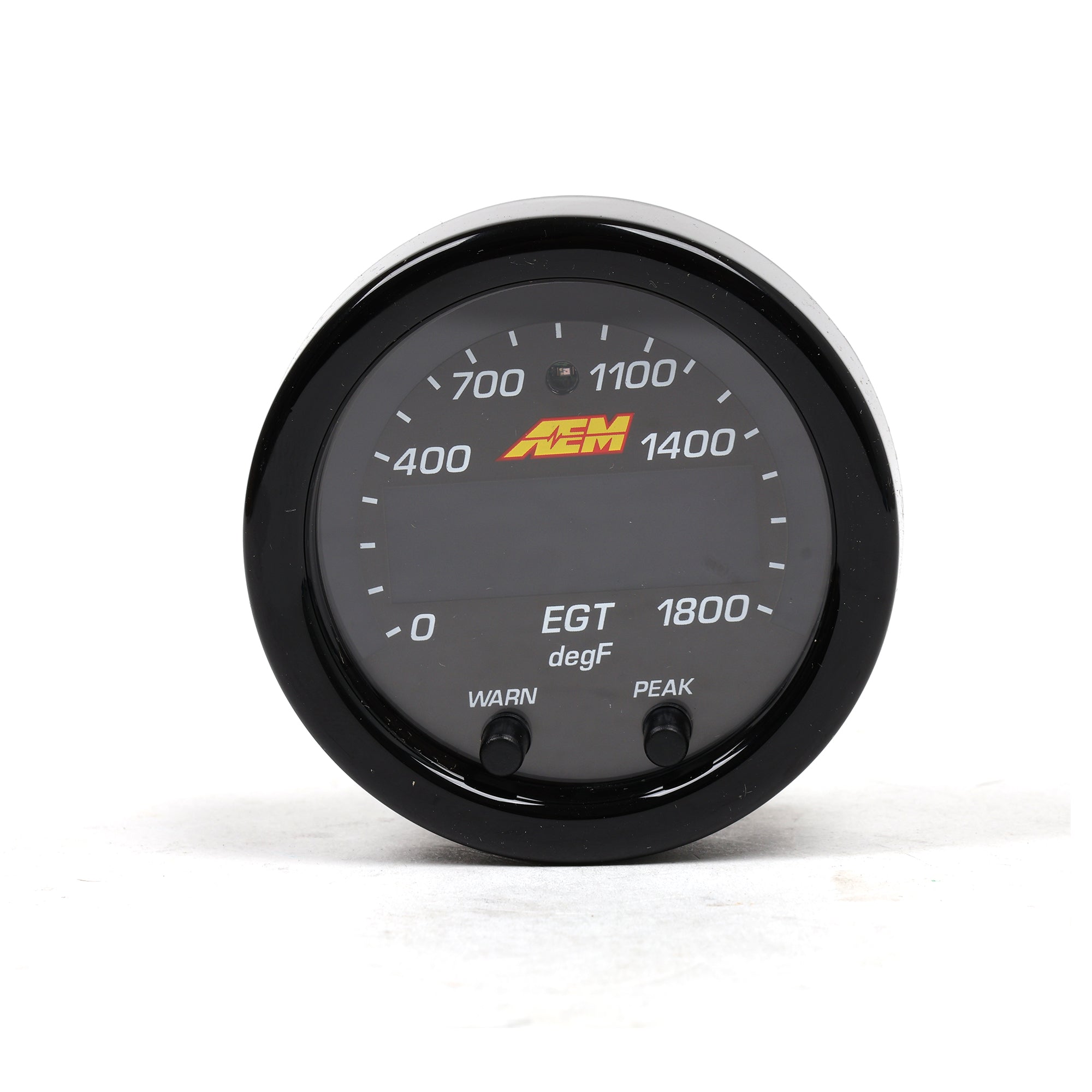

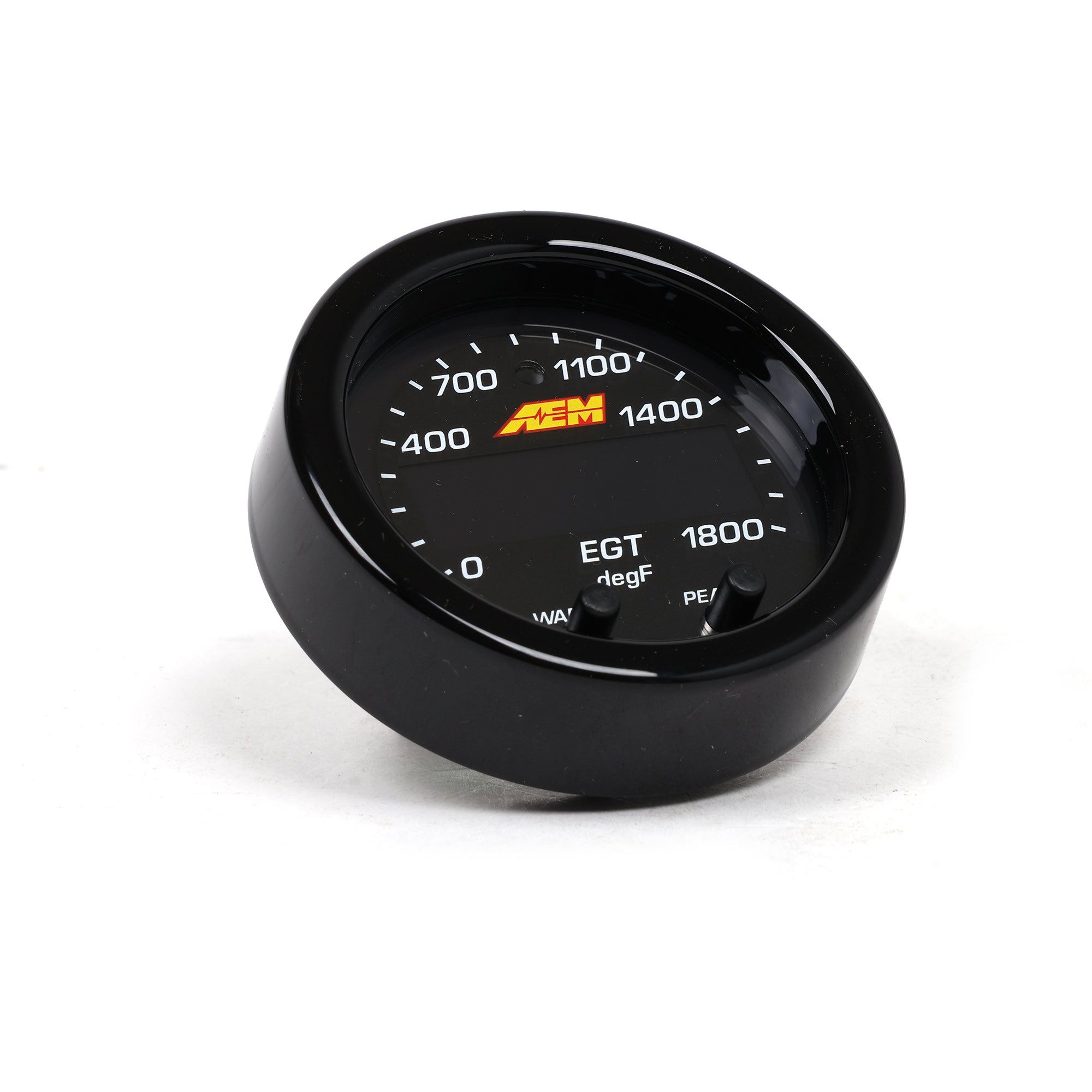

AEM X-Series Exhaust Gas Temperature (EGT) Gauge - 52mm
You're running a turbo K series and you're tuning on the dyno or the street. You've got wideband AFR and you've got boost pressure but you don't know what your exhaust gas temperature's doing. EGT tells you what's actually happening inside your combustion chamber. If your EGT's climbing past 1,600°F on a pull, you're detonating or you're running too rich and you're about to melt a piston. If your EGT's swinging up and down erratically, you've got a lean spot or your ignition timing's all over the place. AEM's X-Series EGT gauge displays exhaust gas temperature from 0 to 1,800°F in real time. You're mounting a thermocouple sensor in your exhaust manifold or your header and running the wire to the gauge. Now you can see exactly what temperature your exhaust gases are when they leave the combustion chamber. That tells you if your tune's safe or if you're about to grenade the motor. This is a 52mm gauge that fits most aftermarket gauge pods. It comes with the gauge, the wiring harness, and the thermocouple sensor. You're drilling and welding a bung into your exhaust, threading the sensor in, mounting the gauge, and you're done.
Here's What EGT Actually Tells You
Exhaust gas temperature is a direct measurement of what's happening in your combustion chamber. When you burn fuel and air, the explosion creates heat and pressure. That heat energy goes three places: some of it pushes the piston down and makes power, some of it transfers into the coolant and gets pulled out by your radiator, and some of it exits through your exhaust as hot gas. The temperature of that exhaust gas tells you how efficient your combustion is and whether you're running into problems. If your EGT's climbing above 1,600°F and staying there, you're either running too rich (dumping extra fuel to cool the combustion chamber) or you're detonating (uncontrolled combustion that creates way more heat than normal). Both of those conditions will kill your engine. Too rich and you're washing the oil off your cylinder walls and diluting your oil with fuel. Detonation and you're putting holes in your pistons. If your EGT's swinging 100-200 degrees up and down during a pull, you've got inconsistent combustion. That's usually a lean spot in your fuel map or ignition timing that's jumping around. Either way, you're seeing the problem in real time and you can back out of the throttle before you break something.
Here's When You Need an EGT Gauge
If you're tuning a turbo car, EGT's one of the most important gauges you can run. Turbocharged engines run hotter exhaust temps than naturally aspirated engines because you're compressing the intake charge and shoving more air and fuel into the combustion chamber. More fuel and air means more heat. On a stock tune with a stock turbo, you're probably seeing 1,300-1,400°F at full boost. On a big turbo making 400+ whp, you're seeing 1,500-1,700°F. If you start seeing temps over 1,700°F, you're running out of octane and you're on the edge of detonation or you're dumping so much fuel that you're trying to cool the combustion chamber with raw gas. Either way, you need to pull timing or add fuel or back off the boost. An EGT gauge tells you when you're getting close to the limit. You can also use EGT to dial in your fuel map. If you're tuning and your EGT's climbing steadily as you add timing, you're making more power and combustion's getting more efficient. If you add timing and EGT jumps 100 degrees in one step, you just crossed into detonation and you need to pull that timing back out. Naturally aspirated builds benefit from EGT too. High-compression all-motor builds run hot exhaust temps because you're cramming a lot of air and fuel into a small space. If you're building a 13:1 compression K series on E85 and you're tuning it, EGT tells you if you're running lean or if you're starting to detonate on pump gas.

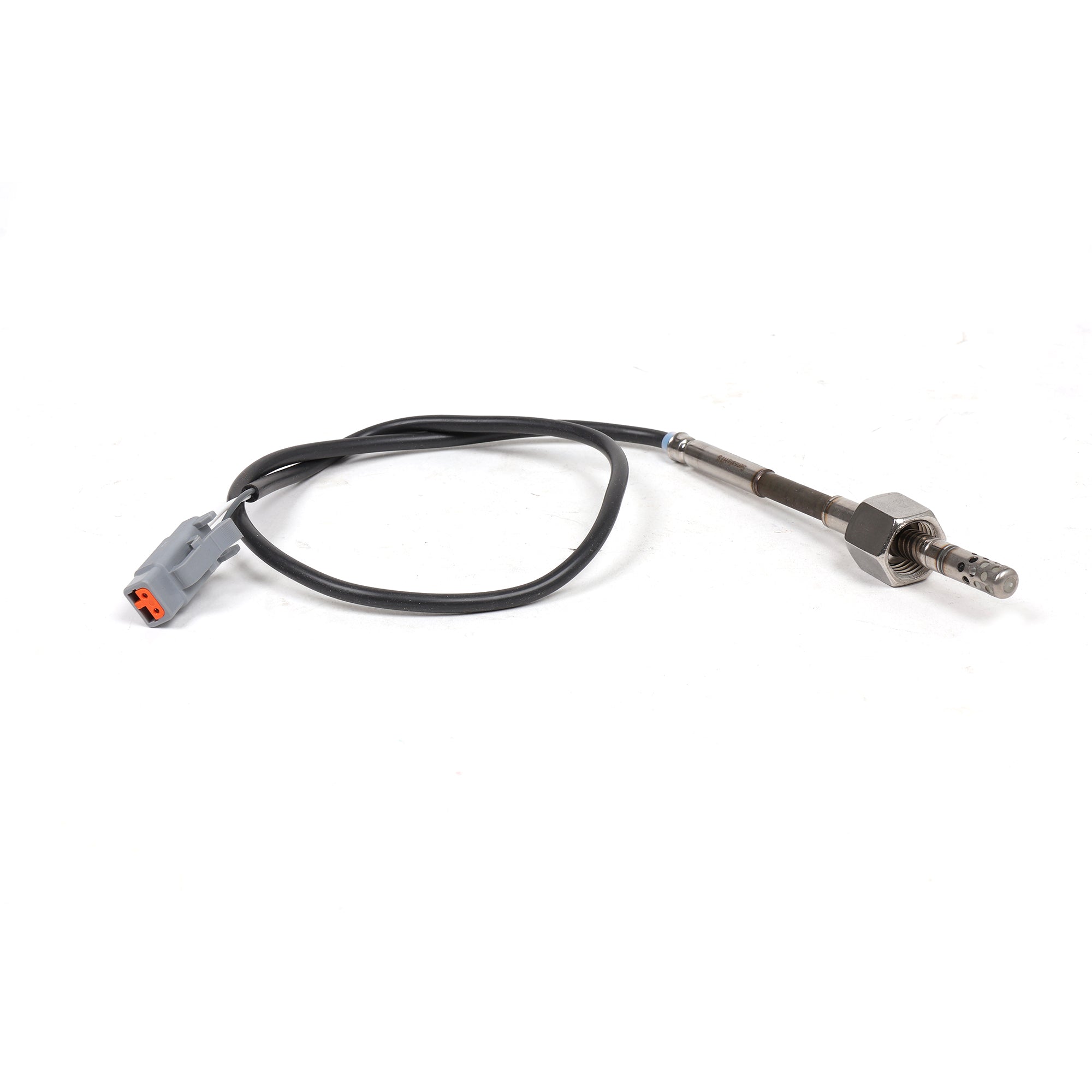

Thermocouple Sensor Goes in Your Exhaust Manifold
The gauge uses a thermocouple sensor to measure exhaust gas temperature. The sensor's a probe that sits in your exhaust stream and reads the actual temperature of the gas flowing past it. You're installing the sensor in your exhaust manifold or your header collector, as close to the head as possible. The closer to the head, the more accurate the reading. If you mount the sensor six feet downstream in your midpipe, the exhaust gas has cooled down by the time it hits the sensor and you're not getting a true combustion chamber temperature. You want the sensor within 12 inches of the exhaust ports if you can fit it. That means drilling a hole in your manifold or your header and welding an M18x1.5 bung into the hole. Thread the sensor into the bung, tighten it down, and run the wire to the gauge. The thermocouple's designed to handle continuous exposure to 1,800°F exhaust gas. It's not going to melt or fail from heat. If you've got a four-cylinder engine, mount the sensor in the collector where all four runners merge. If you've got a turbo, mount it in the turbine inlet or the exhaust manifold before the turbo. You're reading the hottest point in the exhaust system.

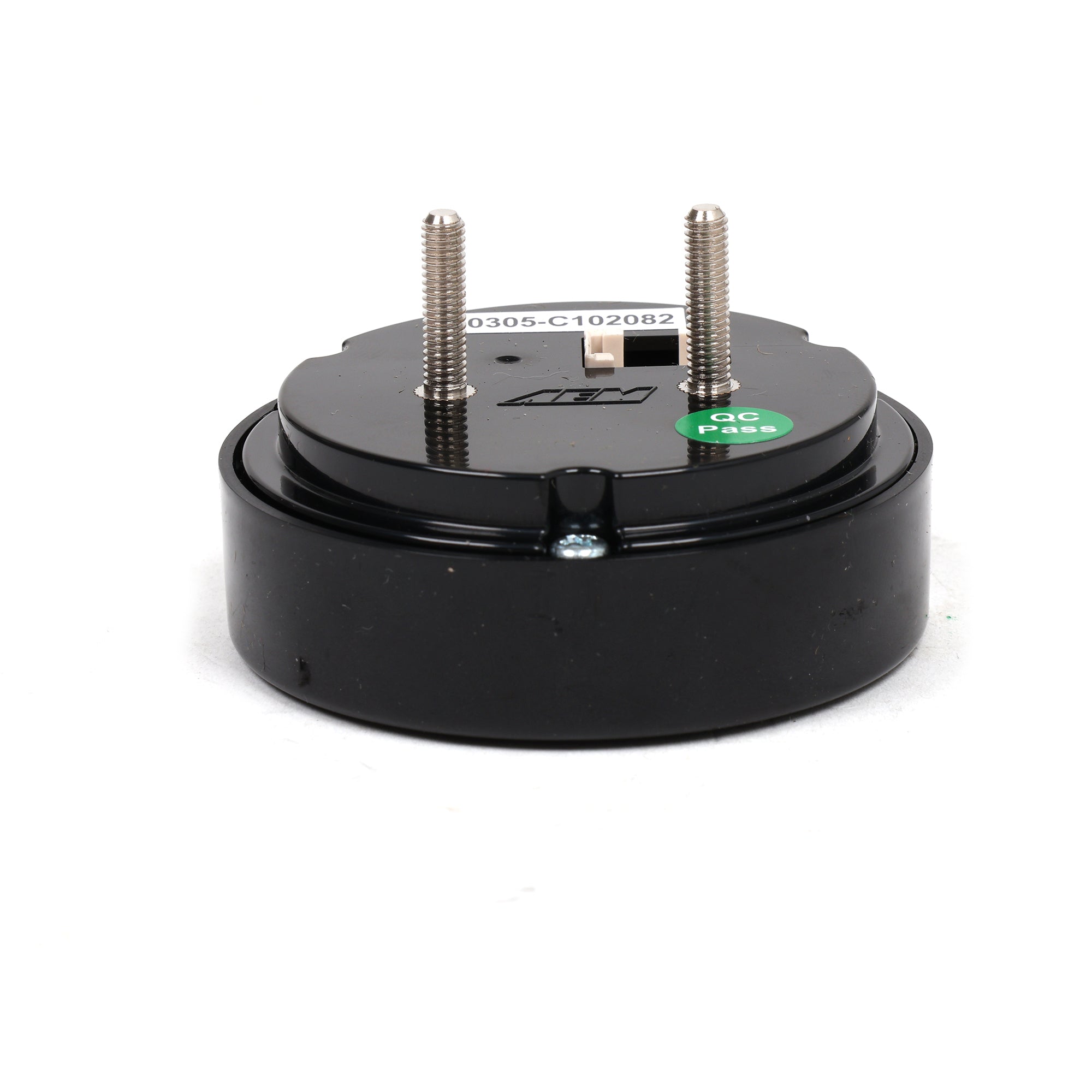

52mm Gauge Fits Standard Pods

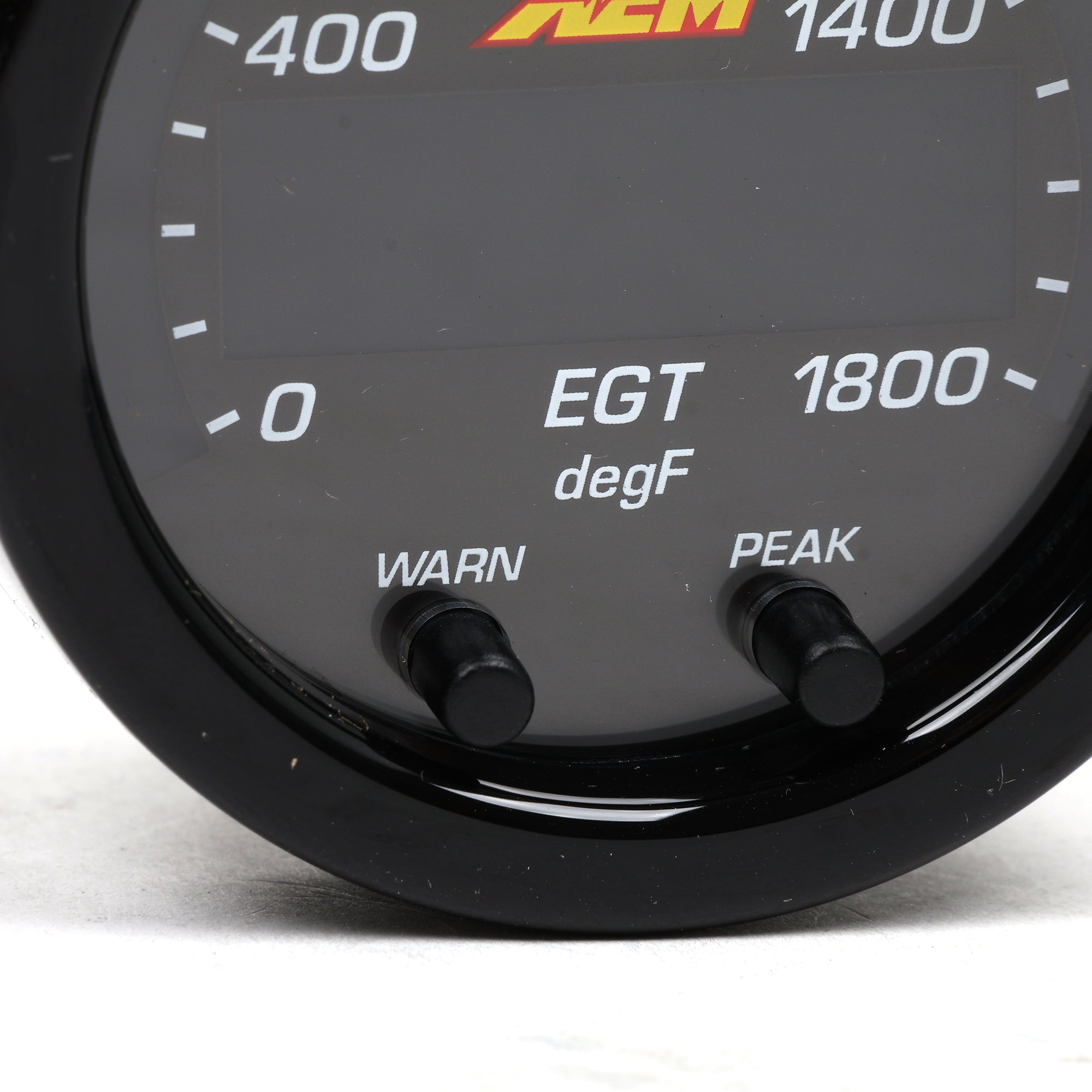

The gauge is 52mm diameter. That's the standard size for aftermarket gauge pods. If you've got an A-pillar pod or a dash pod, this gauge fits. The LED display's bright enough to read in direct sunlight and it dims automatically at night so it's not blinding you. The gauge updates in real time so you can watch EGT change as you're driving. If you're on a dyno pull and you see EGT climbing past 1,650°F, you know you need to abort the pull before you hurt the engine. The gauge also has an analog output for data logging. If you're running a standalone ECU with data logging or you've got a separate logger, you can record EGT during your pulls and review it later to see exactly where your temps peaked and how they changed with throttle position and RPM.

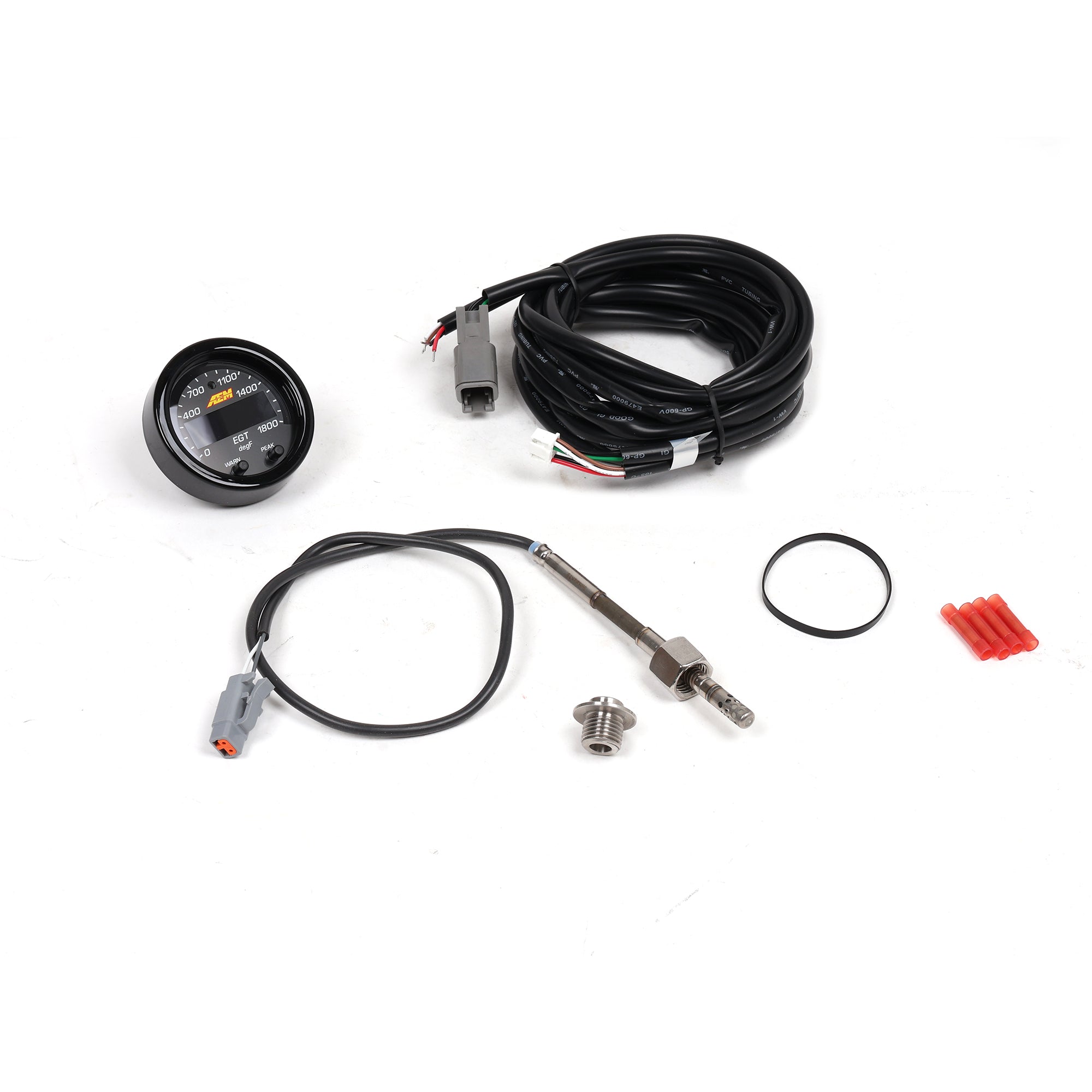

What You Get
- AEM X-Series EGT gauge - 52mm diameter
- Temperature range: 0 to 1,800°F
- Thermocouple sensor with wiring harness
- Bright LED display (auto-dims at night)
- Real-time temperature display
- Analog output for data logging
- 52mm diameter (fits standard gauge pods)
- Universal fitment (works on any engine with exhaust bung)
Note: Requires M18x1.5 exhaust bung (not included) welded into your exhaust manifold or header. Professional welding required - do not attempt to install bung without proper welding equipment and skills. Mount the sensor as close to the exhaust ports as possible (within 12 inches ideal) for most accurate reading. Sensor should be installed in the exhaust collector on 4-cylinder engines, or in the turbine inlet/exhaust manifold on turbocharged engines. Safe EGT range depends on your engine, fuel, and boost level - turbocharged engines typically see 1,300-1,400°F at moderate boost, 1,500-1,700°F at high boost. Sustained temps over 1,700°F indicate detonation or excessively rich fueling. Use EGT data in combination with wideband AFR and knock sensing for complete tuning picture. This is a tuning tool, not a replacement for proper engine management and safety systems.
