BC Racing BR Series Coilovers for 97-01 Honda CR-V

BC Racing BR Series Coilovers - 1997-2001 Honda CR-V (RD1)

Take a freeway on-ramp with any enthusiasm at all and your CR-V does the thing. It leans. Not a little, the whole body tips over onto the outside tires, the inside gets light, and everything happens about half a second after you asked for it. That's not your CR-V being a bad vehicle. That's what happens when you take a Civic's suspension, raise everything up several inches, and then spring it softly enough to keep families comfortable on gravel roads. The good news is that being tall is exactly why this thing responds so well to proper suspension.

Why Lowering A Tall Vehicle Does More

Here's the physics, and it's genuinely on your side. Body roll comes from weight transferring sideways through your center of gravity, and the higher that center of gravity sits, the more leverage the vehicle's own weight has to roll itself over. Your RD1 has all of its mass sitting way up in the air. That's why it leans like it does, and it's also why the fix works so well.

When you lower a Civic an inch, you take an inch out of a center of gravity that was already low, nice, but modest. When you lower a CR-V two or three inches, you're removing a meaningful chunk of the exact leverage that's been rolling the body over. Add spring rate and damping that can actually resist what's left, and the change isn't subtle. A lowered, properly damped RD1 turns in flat and settles immediately, and it stops doing the lurching thing that makes passengers grab the handle. Fewer vehicles benefit more from this than yours does.

It's A Civic Underneath, And Always Was

This is the part people miss about the RD1. It isn't really an SUV, it's Civic architecture wearing a taller body, double wishbones at the corners and a B-series in the nose. Everyone knows about the B20 because they're pulling them out for swaps, but they're ignoring the fact that the chassis those engines came bolted into is the same good stuff underneath.

You can see it right in the spring rates: 9 kg/mm front and 4 kg/mm rear, the exact numbers BC puts under an EF Civic. Same wishbone geometry, same math. On a wishbone setup the spring sits inboard on the arm, so the wheel travels further than the spring does and you need a stiffer spring on paper to land at a sensible rate at the tire. Your CR-V takes Civic rates because underneath the ride height, it's a Civic.

Fits FWD And AWD, No Guessing

One less thing to worry about: this kit covers both the front-wheel-drive and all-wheel-drive RD1. Whichever one is sitting in your driveway, you're on the right listing. No variant to figure out, no hunting for the right part number.

Thirty Clicks, One Knob

You get 30 clicks of compression and rebound, adjusted together, about ten seconds a corner. That's worth more on this vehicle than most, because a CR-V genuinely lives two lives. Soften it when you've got the back full and you're doing a road trip. Firm it up when you want it to stop rolling around and actually behave. Most suspension makes you commit to one. This lets your CR-V keep being useful while it stops being sloppy.

Low Without Wrecking What It's Good At

Ride height adjusts independently of spring compression, which means you drop the car by moving the lower mount instead of crushing the spring down onto itself. Your suspension keeps its travel and the damper keeps working. On something that came from the factory with real travel and a job to do, that matters, collapse the springs on an RD1 and you'll be bottoming out on every driveway with a car full of people. Do it properly and you get the stance, the composure, and a vehicle that still works.

Wound all the way up you're roughly an inch below stock, and all the way down puts you around 2.5 to 3 inches below. On a CR-V, that bottom end is a genuinely dramatic transformation.

Built To Be Kept

Mono-tube shocks with a linear piston and damping curve, so damping stays predictable through the whole stroke instead of getting strange at the extremes. Two-year warranty against manufacturer defect. And they're fully rebuildable, so years down the line you refresh them rather than replace them. Custom spring rates, Swift springs, and custom valving matched to your rates are all available if you want to take it further.

What You Get

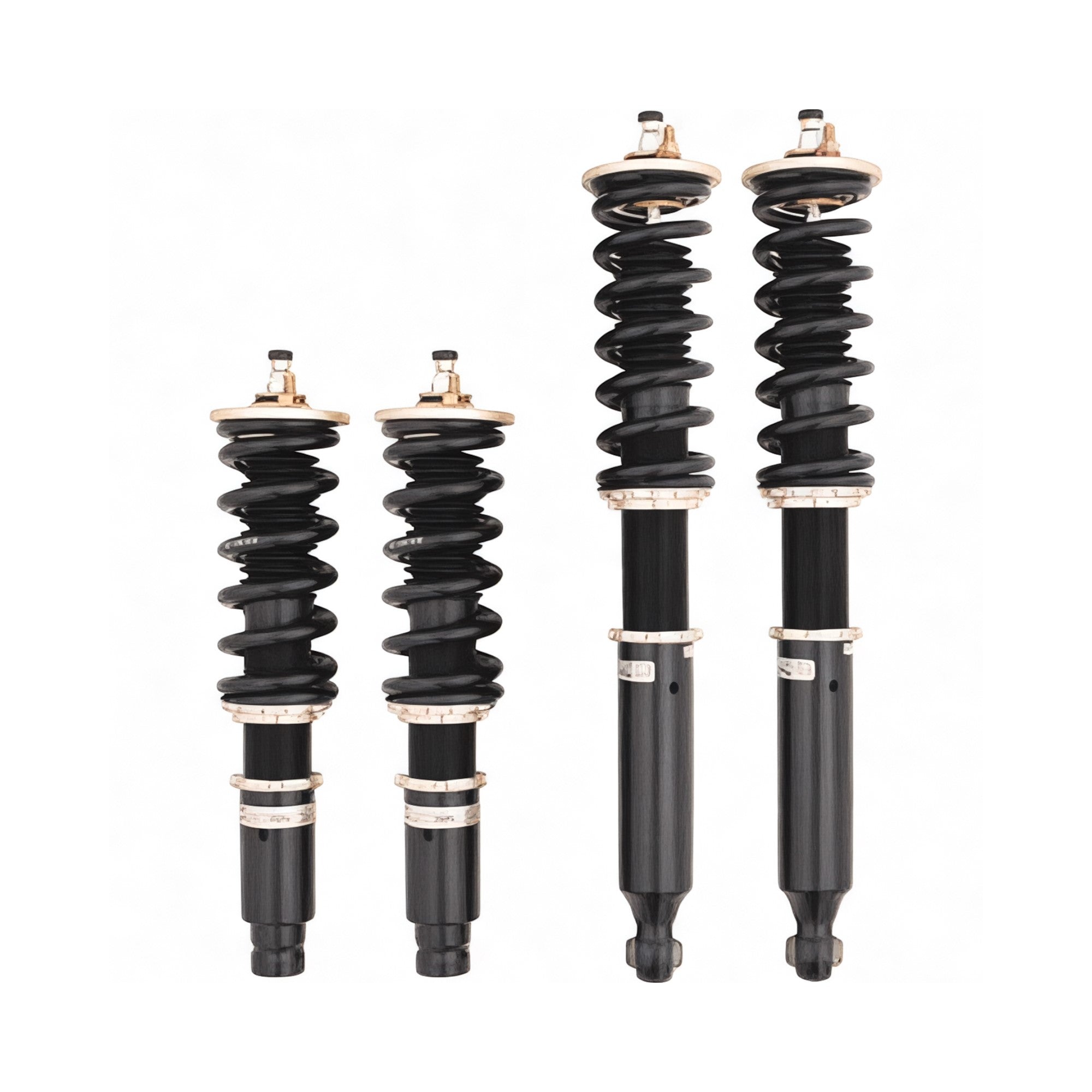

• BC Racing BR Series coilovers for the 1997-2001 Honda CR-V (RD1)
• Fits both FWD and AWD models
• 9 kg/mm front and 4 kg/mm rear spring rates
• 30 clicks of simultaneous compression and rebound adjustment
• Height adjustment independent of spring compression
• Approximately 1 inch below stock at the highest setting, 2.5 to 3 inches at the lowest
• Mono-tube shock design with a linear piston and damping curve
• Custom spring rates, Swift springs, and custom valving available
• Fully rebuildable
• 2-year warranty against manufacturer defect

Fits These Cars

• 1997-2001 Honda CR-V (RD1), FWD and AWD

Note: Fits both FWD and AWD RD1 models. Actual ride height varies with chassis tolerances. Fully rebuildable and backed by a 2-year warranty against manufacturer defect. One coilover set per order.
