AEM X-Series Universal Voltage Gauge - 52mm
If you're running an aftermarket stereo, a big fuel pump, upgraded headlights, and maybe an electric fan conversion, your stock alternator's working overtime and you've got no idea if your charging system's keeping up or if you're slowly draining your battery every time you drive. AEM's X-Series voltage gauge shows you exactly what your electrical system's doing in real time. The gauge displays voltage from 8 to 18 volts. You can see if your alternator's charging properly, if your battery's healthy, or if you're about to get stranded because your charging system's failing. This is a 52mm gauge that fits most aftermarket gauge pods and dash panels. It comes with the wiring harness and sensor. You're mounting the gauge, running the wires, and you're done. Now you know what your electrical system's doing instead of guessing.
Here's What Voltage Sag Tells You
Your car's electrical system should run at around 13.5 to 14.5 volts when the engine's running and the alternator's charging. That's your alternator maintaining the battery and powering everything in the car. If you're idling at a stoplight and your voltage drops to 12.5 or 12 volts, your alternator's not keeping up with the electrical load. You're pulling power from the battery to run everything and the battery's getting drained. Drive for an hour like that and your battery's going to be dead. The AEM voltage gauge shows you that voltage drop in real time. You see the number fall when you turn on the headlights, the A/C, and the stereo. If the voltage doesn't recover when you rev the engine, your alternator's not strong enough for your electrical load. You need a bigger alternator or you need to reduce the load. Without the gauge, you don't know there's a problem until your car won't start.
Track Charging System Performance Under Load
If you've upgraded your fuel pump, your ignition system, your stereo, or you've added auxiliary lights, you're pulling more power than the stock electrical system was designed for. The stock alternator on most Hondas is 80-100 amps. That's fine for a stock car. Add a 450-watt stereo amp, a high-flow fuel pump, LED headlights, and an electric fan, and you're pulling 120+ amps. Your alternator can't keep up. The voltage gauge lets you see what's happening. Idle at a stoplight with everything on and watch the voltage. If it's sitting at 13.8 volts, you're fine. The alternator's handling the load. If it drops to 12.8 or 12.5 volts, you're draining the battery. Rev the engine and see if the voltage comes back up. If it does, your alternator's marginal but it's working. If it doesn't, your alternator's toast or it's too small for your electrical system. Either way, you know you've got a problem and you can fix it before you're stuck on the side of the road.
52mm Size Fits Most Gauge Pods
AEM designed the X-Series gauges to fit standard 52mm gauge pods. That's the size most companies use for aftermarket gauge setups. If you've got an A-pillar pod, a dash pod, or a custom gauge panel, this gauge fits. The LED display's bright enough to read in direct sunlight and it dims automatically at night so it's not blinding you when you're driving. The gauge comes with a wiring harness and a voltage sensor. You're running power and ground to the gauge, connecting the voltage sensor to your battery or alternator output, mounting the gauge in your pod, and you're done. The gauge also has an analog output if you're running a data logger. You can record voltage during track sessions or dyno runs to see how your electrical system's performing under load.
When You Need This Gauge
You need a voltage gauge if you've done any electrical upgrades. Aftermarket stereo with a big amp? You need to know if your alternator's keeping up. Upgraded fuel pump for a turbo build? You need to monitor voltage to make sure the pump's getting consistent power. Electric fan conversion? Same thing. LED lights, HID headlights, auxiliary driving lights? All of that pulls power and you need to know if your charging system's handling it. If you're running a built engine with an aftermarket ECU and you're tracking the car, voltage stability matters. If your voltage sags during a track session, your ECU might cut fuel or spark to protect itself. That costs you power and it might even put you into limp mode. A voltage gauge tells you if your electrical system's the problem before you start chasing ghosts with your tune.
What You Get
- AEM X-Series universal voltage gauge - 52mm
- Voltage range: 8 to 18 volts
- Bright LED display (readable in direct sunlight, auto-dims at night)
- 52mm diameter (fits standard aftermarket gauge pods)
- Includes wiring harness and voltage sensor
- Analog output for data logging
- Universal fitment (works on any vehicle with 12V electrical system)
Note: This is a universal gauge - fits any vehicle with a 12-volt electrical system. Requires 52mm gauge pod or dash panel (not included). Installation requires running power, ground, and sensor wires - basic wiring skills needed. The gauge monitors voltage in real time - healthy charging system should show 13.5-14.5 volts with engine running. Lower voltage (12.5V or less) with engine running means your alternator's not keeping up or your battery's failing. If voltage drops when you turn on accessories (headlights, A/C, stereo) and doesn't recover when you rev the engine, your alternator's too small for your electrical load. Gauge is especially useful if you've upgraded your stereo, fuel pump, lighting, or added electric fans - all of these increase electrical demand on your charging system.
Installation Overview
This is a universal gauge. It doesn't care what car it goes in as long as you have a 12V electrical system and a 52mm (2-1/16 inch) mounting location. A-pillar pods, dash pods, custom panels, standalone gauge holders: if it's 52mm, this fits.
You'll need basic wiring skills and common hand tools. No special equipment is required to mount the gauge itself. If you plan to tap the AEMnet CAN-bus output into an existing AEM system, you'll want to be comfortable with your ECU or data logger wiring before you start.
The basic install runs like this:
- Mount the gauge in your pod or panel using the included bracket and knurled nuts.
- Run the power wire to a switched 12V source (a fused circuit that only lives when the ignition is on is the right call here).
- Run the ground wire to a solid chassis ground or battery negative.
- That's it for the voltmeter function. The gauge reads system voltage directly from the power and ground connections. No additional sensor wire, no transducer, no pressure port.
If you're using the analog output for a data logger or EMS, run that signal wire to the appropriate input on your logging device and configure the channel for a 0 to 5V voltage input. If you're tapping into AEMnet, connect the CAN-bus output to your AEMnet bus and configure your AEM device to recognize the gauge per AEM's documentation for your specific ECU or logger.
The configurable alarm threshold and peak recall are set through the gauge itself. AEM's instructions included with the gauge walk through the button sequence. It's straightforward once you have the gauge powered up.
Plan for 30 to 90 minutes depending on how clean you want the wire routing and whether you're integrating the data outputs.
AEM X-Series Voltage Gauge (30-0303) Technical Details
The AEM X-Series Voltage Gauge reads 8 to 18 volts, which covers everything from a weak, partially discharged battery up through a healthy charging system running at 13.5 to 14.5V. That range also catches overvoltage conditions, so if your regulator is going bad and pushing 15V or more, you'll see it before it fries something expensive.

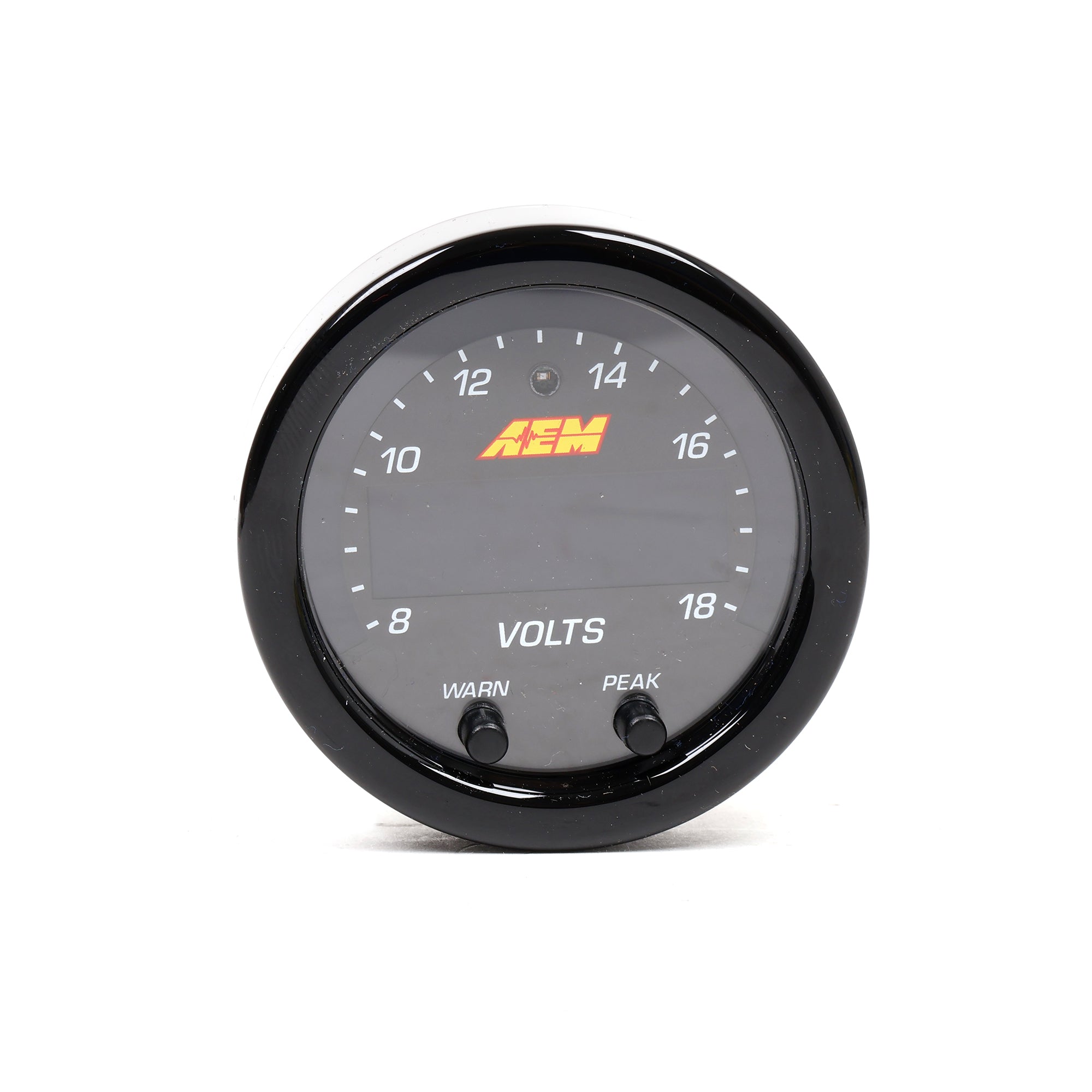

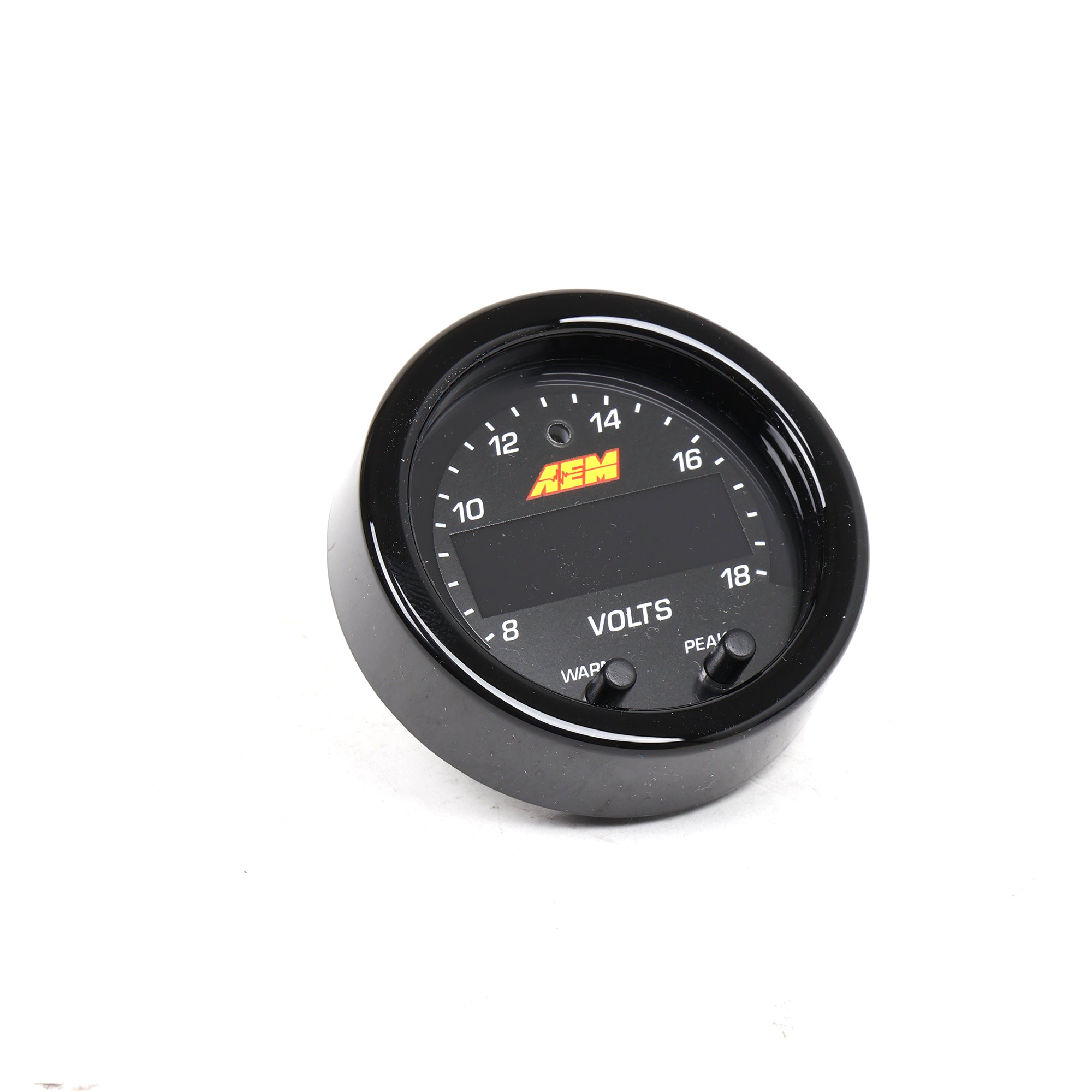

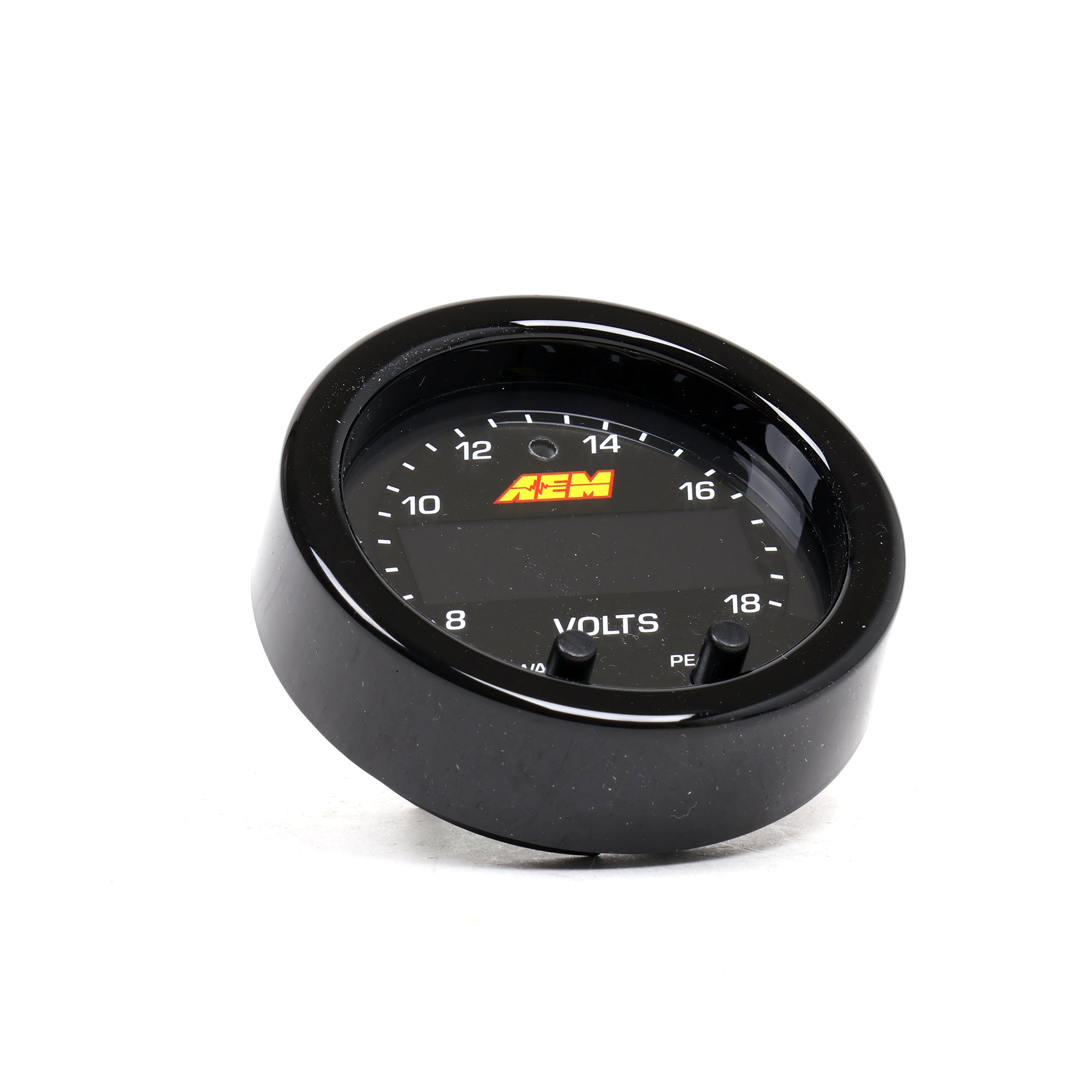

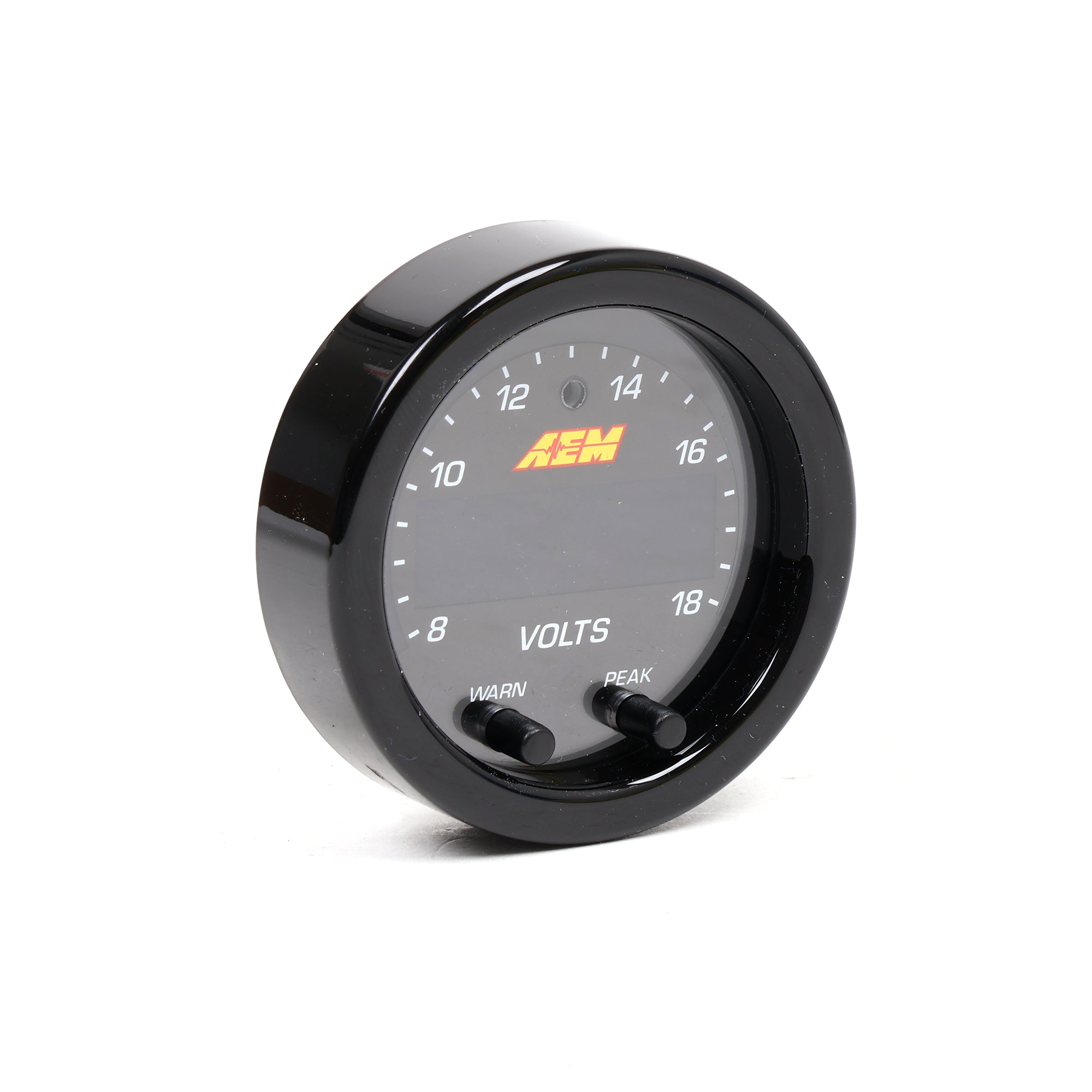

The display is a four-digit central LED readout surrounded by a ring of 24 green LEDs. It's a digital gauge, not an analog needle, so you're reading an actual number rather than trying to interpret where a needle is pointing. The outer LED ring gives you a quick visual sweep at a glance. Auto-dimming is built in via an ambient light sensor, so the gauge adjusts itself between day and night without you touching anything.

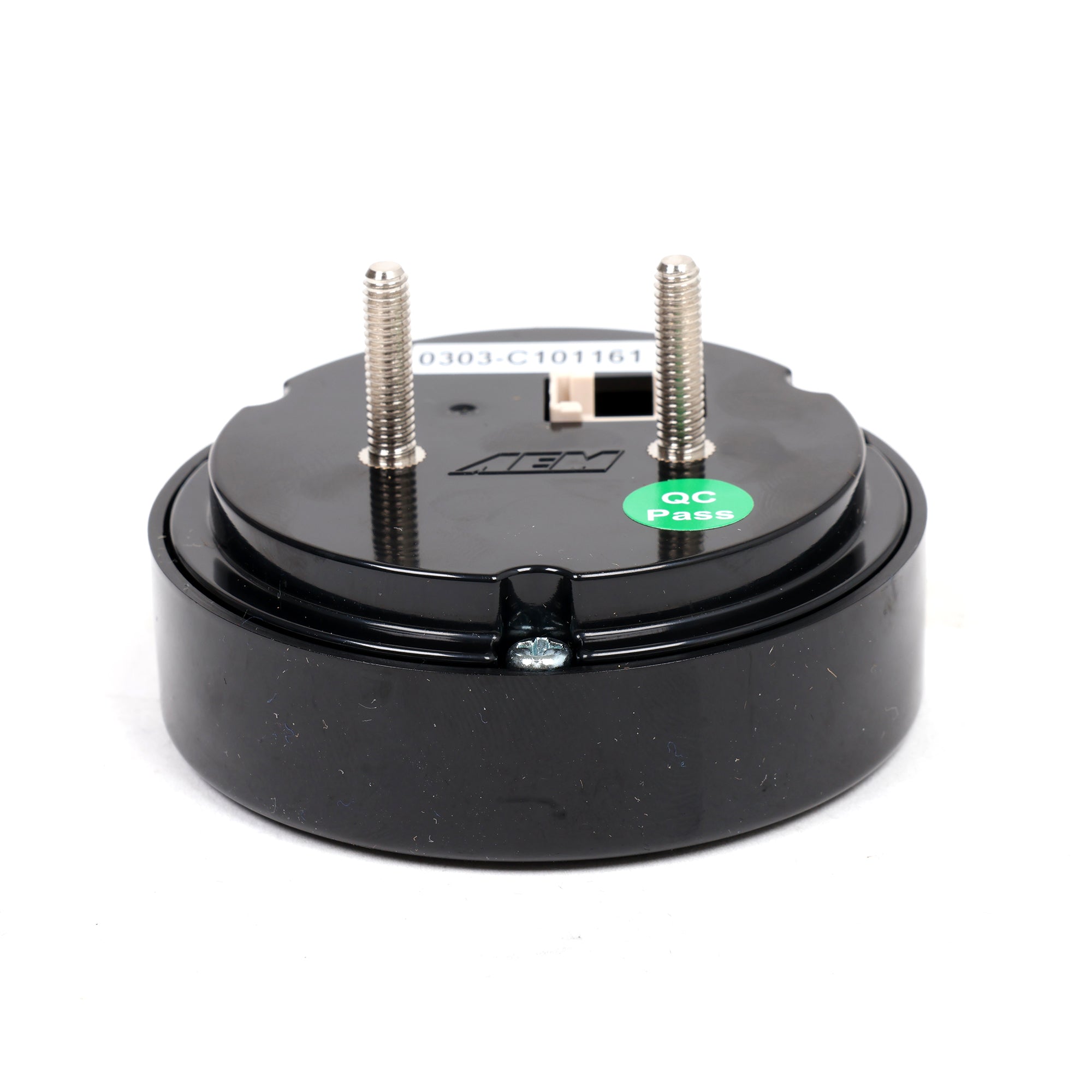

Physical size is 52mm (2-1/16 inches) in diameter, which is the standard size for aftermarket gauge pods from virtually every manufacturer. Overall depth behind the panel is under 0.825 inches, with a cup depth of just 0.200 inches. That shallow profile matters if you're mounting into an A-pillar pod or any location where clearance behind the panel is tight.
The gauge ships with a black bezel and a black faceplate labeled 'Volt.' A silver bezel and white faceplate accessory kit (30-0303-ACC) was available separately, but at least one major retailer has reported it as discontinued. If you need the silver/white look, confirm availability before you order because AEM may no longer supply that kit.
Alarm, Peak Recall, and Outputs

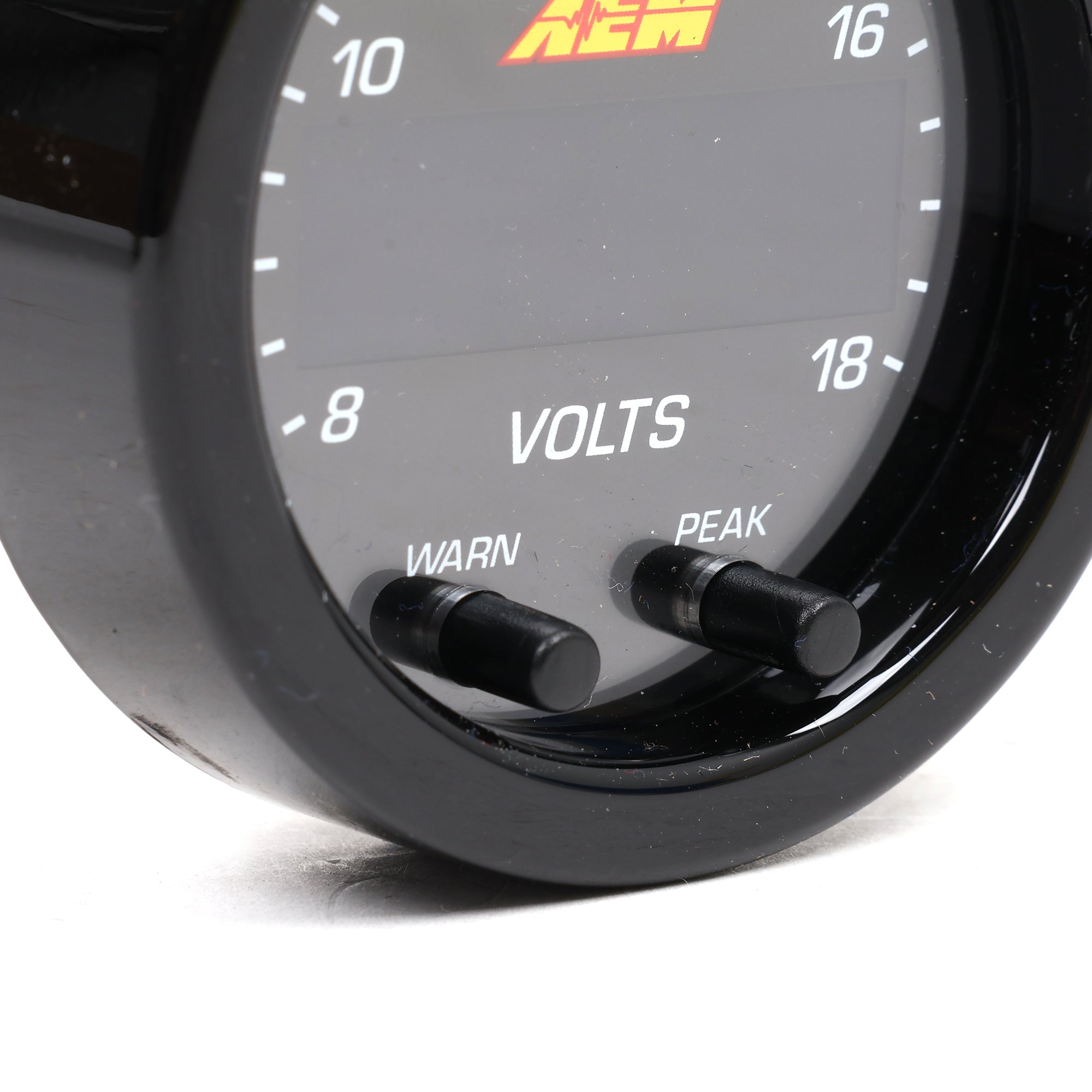

You can set a configurable warn threshold. When voltage hits that number, the display flashes to alert you. Peak recall stores the highest voltage reading and holds it across power cycles, so you can check it after a session even after the car has been shut off. You can clear the peak manually when you're ready.
Two outputs are included for data integration. The AEMnet CAN-bus output lets you daisy-chain this gauge into an AEM Infinity ECU, Series 2 EMS, AQ-1 Data Logger, or any third-party system that supports the AEMnet protocol. The 0 to 5V analog output works with any data logger or EMS that accepts a standard analog voltage signal. Connectors are positive-locking, so vibration and hard cornering won't back them out.
Weight is not published by AEM or any retailer. We won't guess.

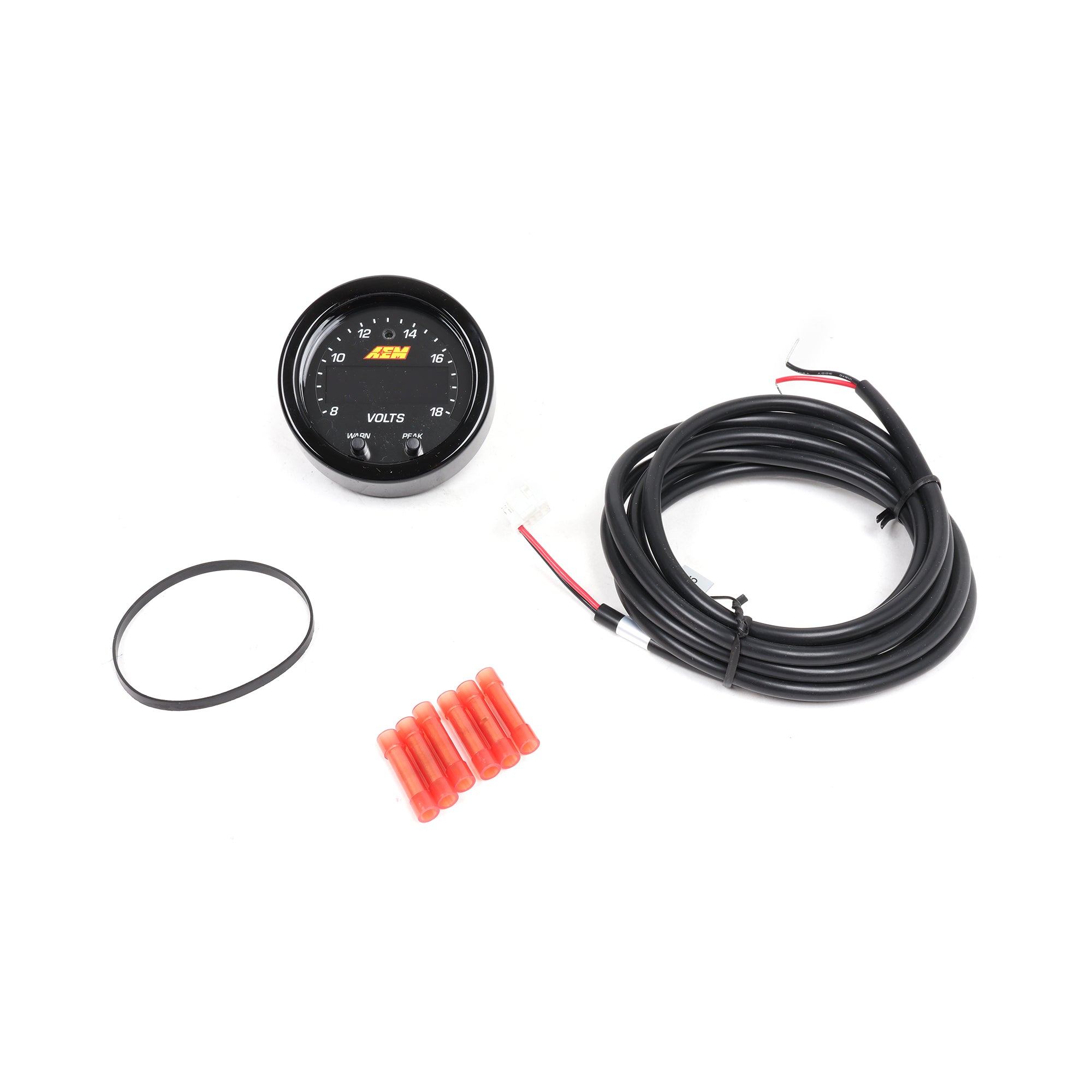

- (1) AEM X-Series Voltage Gauge, 52mm, black bezel and black faceplate (PN 30-0303)
- (1) Data cable
- (5) Butt connectors
The gauge reads voltage directly from the harness connections. There's no separate voltage sensor transducer in the kit because one isn't needed. A 52mm gauge pod or dash panel is not included. If you want the silver bezel and white faceplate option, the accessory kit (PN 30-0303-ACC) is sold separately.
