PRODUCT DETAILS
Radium Engineering Multi-Port Fuel Regulator
The Radium Engineering Multi-Port Fuel Regulator (MPR) in black is a high-performance fuel pressure regulator engineered for both simple and complex fuel systems. Its innovative design allows you to easily combine dual fuel pumps into a single feed line or split one feed line into a dual fuel rail setup, making it a versatile solution for high-flow performance applications. Whether you’re running a single fuel rail, dual banks, or a multi-pump setup, the MPR offers unmatched flexibility, precision, and reliability.
This Radium fuel pressure regulator features multiple port options that simplify installation by eliminating the need for extra “Y” fittings. The lower opposing return ports are designed for parallel flow with the pressure ports, improving efficiency and allowing for cleaner, more compact plumbing. The unit can be wall- or floor-mounted using the included M6 hardware and mounting bracket, making it adaptable to nearly any engine bay layout.
Built on the proven RA-Series regulator platform, the MPR introduces a tool-less pressure adjustment knob for easy fine-tuning. Each incremental detent equals roughly 1 psi of pressure change, allowing for precise control with tactile feedback. The 360-degree swiveling vacuum reference port with double O-ring sealing makes installation simple while ensuring leak-free operation. Whether you’re tuning a high-boost turbo setup or a naturally aspirated performance engine, the Radium MPR maintains stable and consistent fuel pressure under all conditions.
Constructed from high-quality anodized aluminum and finished in a sleek black coating, the MPR offers both durability and style. It’s fully compatible with gasoline, methanol, ethanol, and E85 fuel blends, ensuring long-term reliability in any high-performance environment. The regulator’s internal stainless steel return orifice promotes laminar flow, providing rock-solid fuel pressure stability even under extreme demand.
Key Features
- Multi-Port Design: Combine dual pumps or split single feed lines without extra fittings.
- Tool-Less Pressure Adjustment: Fine-tune fuel pressure easily with incremental detent feedback.
- 360° Swiveling Vacuum Port: Leak-free, double O-ring sealed vacuum reference with multiple fitting options.
- Flexible Mounting: Wall or floor mountable using provided M6 hardware and bracket.
- High-Flow Capability: Parallel flow return ports reduce restriction for efficient pressure control.
- Universal Fuel Compatibility: Works with gasoline, ethanol, methanol, and E85 blends.
- Durable Black Anodized Finish: Corrosion-resistant and stylish for performance applications.
Technical Specifications
- Minimum Pressure: 18.5 psi (1.3 bar)
- Maximum Pressure: Dependent on fuel pump relief valve
- Vacuum Reference: 1:1 rising rate with 360° rotation
- Fuel Ports: Multiple 6AN and 8AN ORB fittings with included plugs and adapters
- Material: CNC-machined aluminum, anodized black finish
- Mounting Options: Wall or floor mount using included bracket and hardware
- Fuel Compatibility: Gasoline, ethanol, methanol, E85, leaded, unleaded, and oxygenated fuels

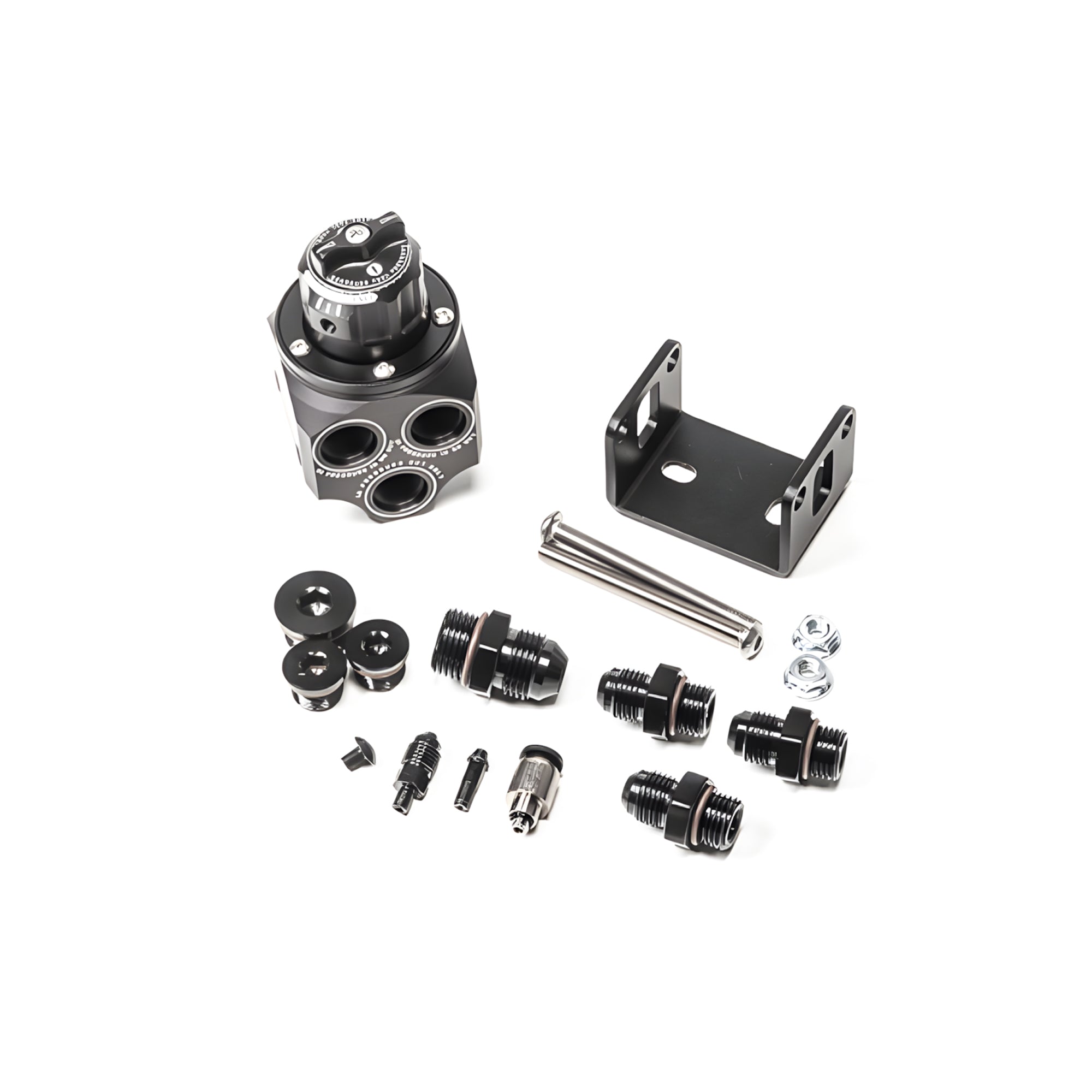

Included in the Box
- Main rotating assembly (black anodized)
- Mounting bracket with M6x1mm hardware
- 5mm barbed vacuum fitting and vacuum plug fitting
- 1/4" push-to-connect vacuum fitting
- 3AN male vacuum fitting
- 6AN ORB plug (x2) and 8AN ORB plug (x1)
- 6AN ORB to 6AN male adapter (x3)
- 8AN ORB to 8AN male adapter (x1)
The Radium Engineering Multi-Port Fuel Regulator – Black offers the perfect balance of functionality, adaptability, and visual appeal for any high-performance fuel system. From turbocharged imports to V8-powered track builds, this high-flow adjustable fuel pressure regulator ensures your engine receives consistent fuel delivery for maximum power and reliability.
