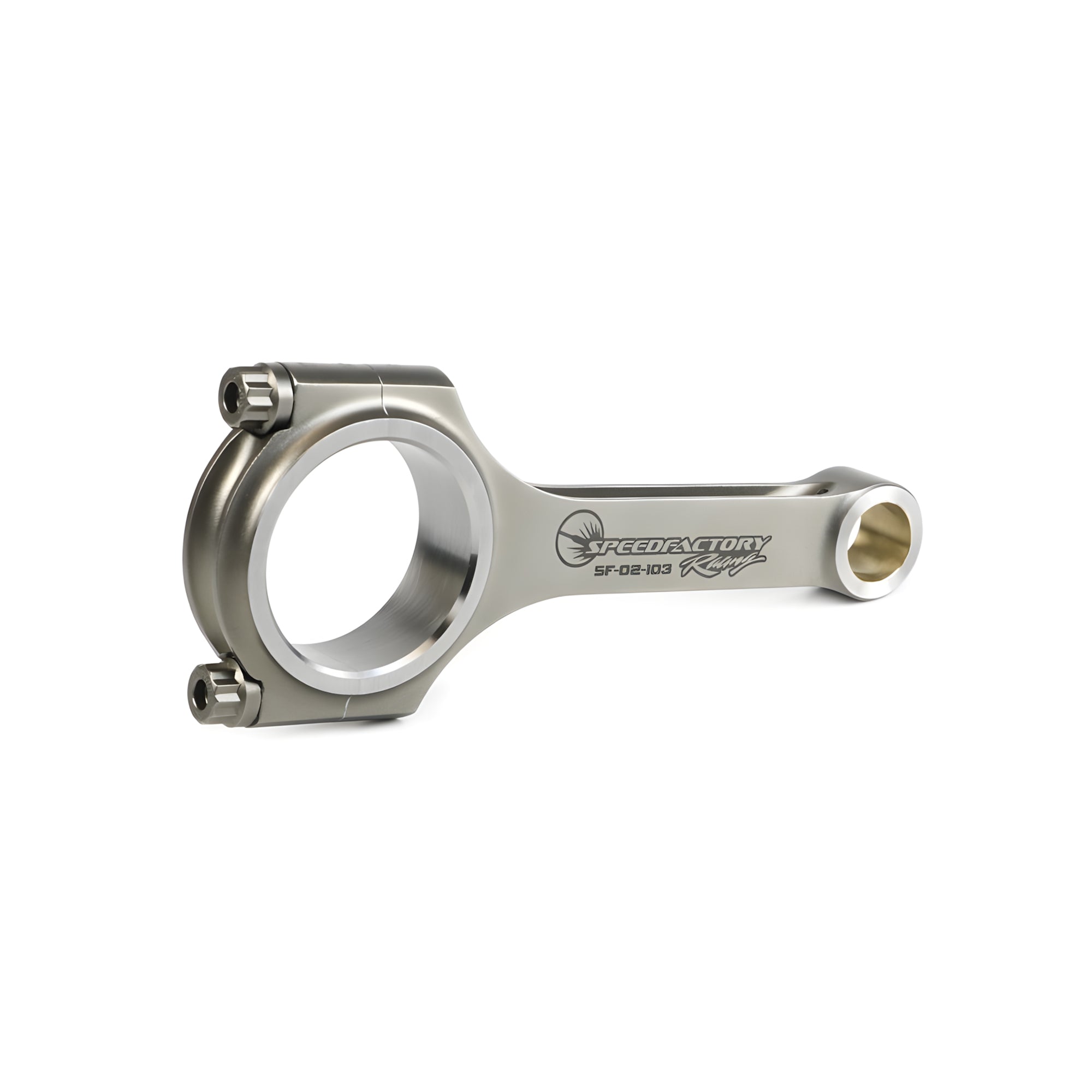

SpeedFactory Vitara H-Beam Connecting Rods for D16 Engines

SpeedFactory Vitara H-Beam Connecting Rods for D16 Engines

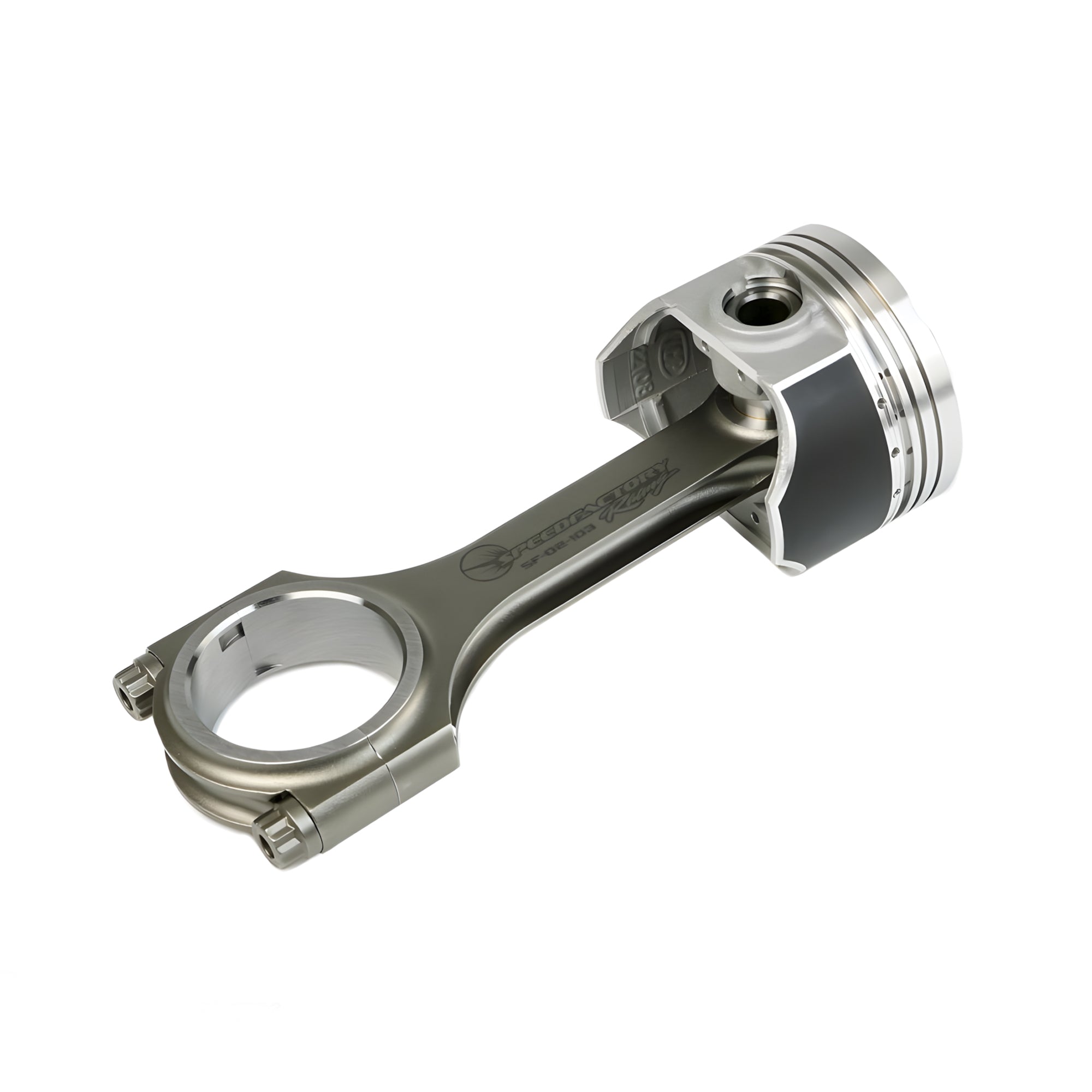

These SpeedFactory D16 H-beam rods are built specifically for all Honda D16 engines and ZC variants. They’re aimed right at Vitara piston turbo D16 builds in the 300–500hp street range, where you want something strong, simple, and repeatable. Unlike generic off-the-shelf rods, these long connecting rods for D16 engines put Vitara pistons at the correct deck height, which bumps compression, improves efficiency, and sharpens throttle response—without any block or girdle notching.

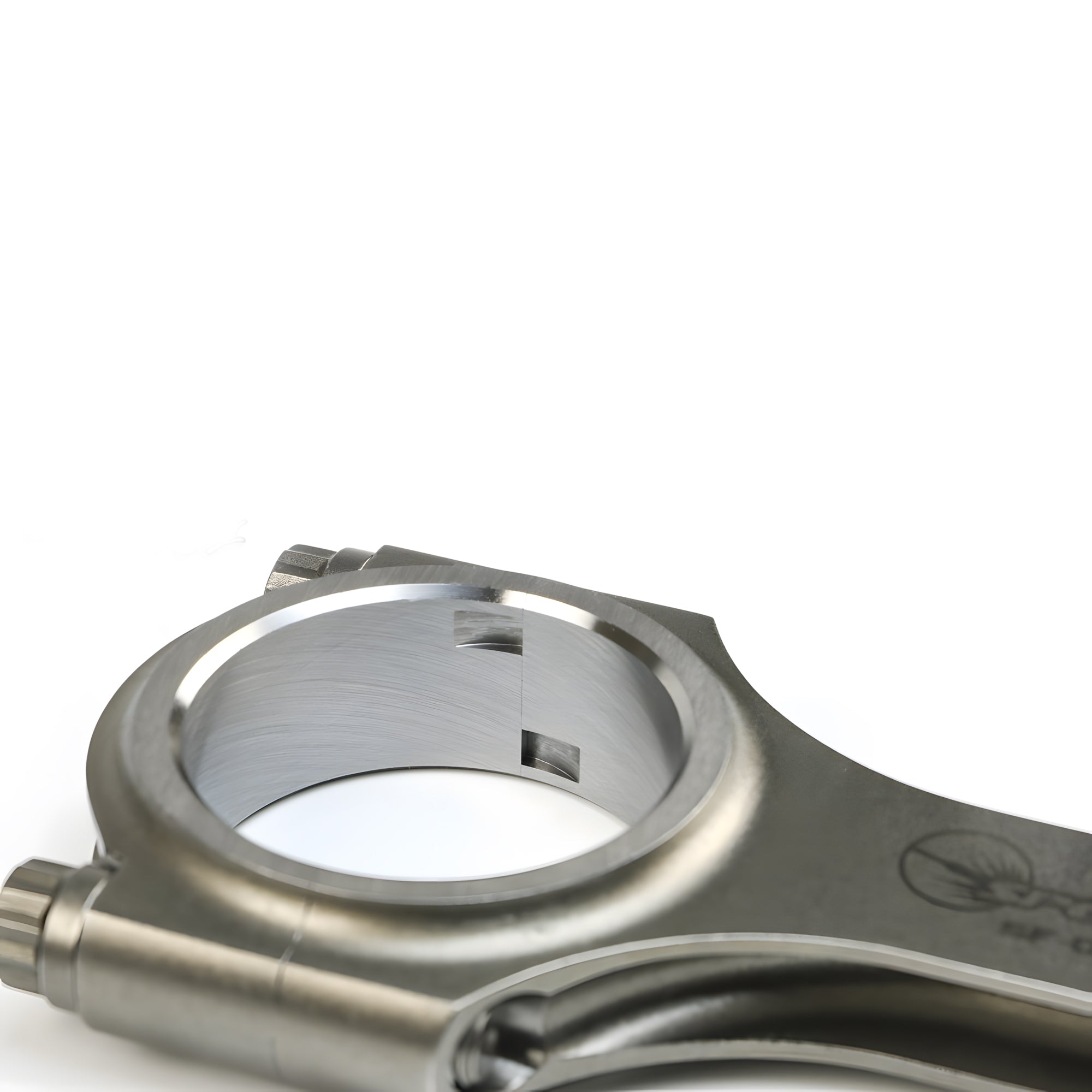

These D16 forged connecting rods use a 2-piece forged 4340 chromoly construction, then go through heat treatment, magnaflux inspection, CNC machining, and shot-peening. That combo gives you tough, lightweight D16 connecting rods that handle abuse. The big ends use precision alignment dowels to hold bore size and prevent cap walk, while the small ends use bronze alloy pin bushings for true floating wrist pin rods. Each SpeedFactory connecting rod for D16 comes with 3/8” ARP2000 rod bolts rated to 220,000 psi, and every set is balanced to +/- 1 gram. The rods are profiled to clear the factory girdle, so they drop into your turbo D16 without grinding.

Specifications

• Engine: Honda/Acura D16 (All) & ZC
• Material: Forged 4340 Chromoly Steel (4340 chromoly rods D16)

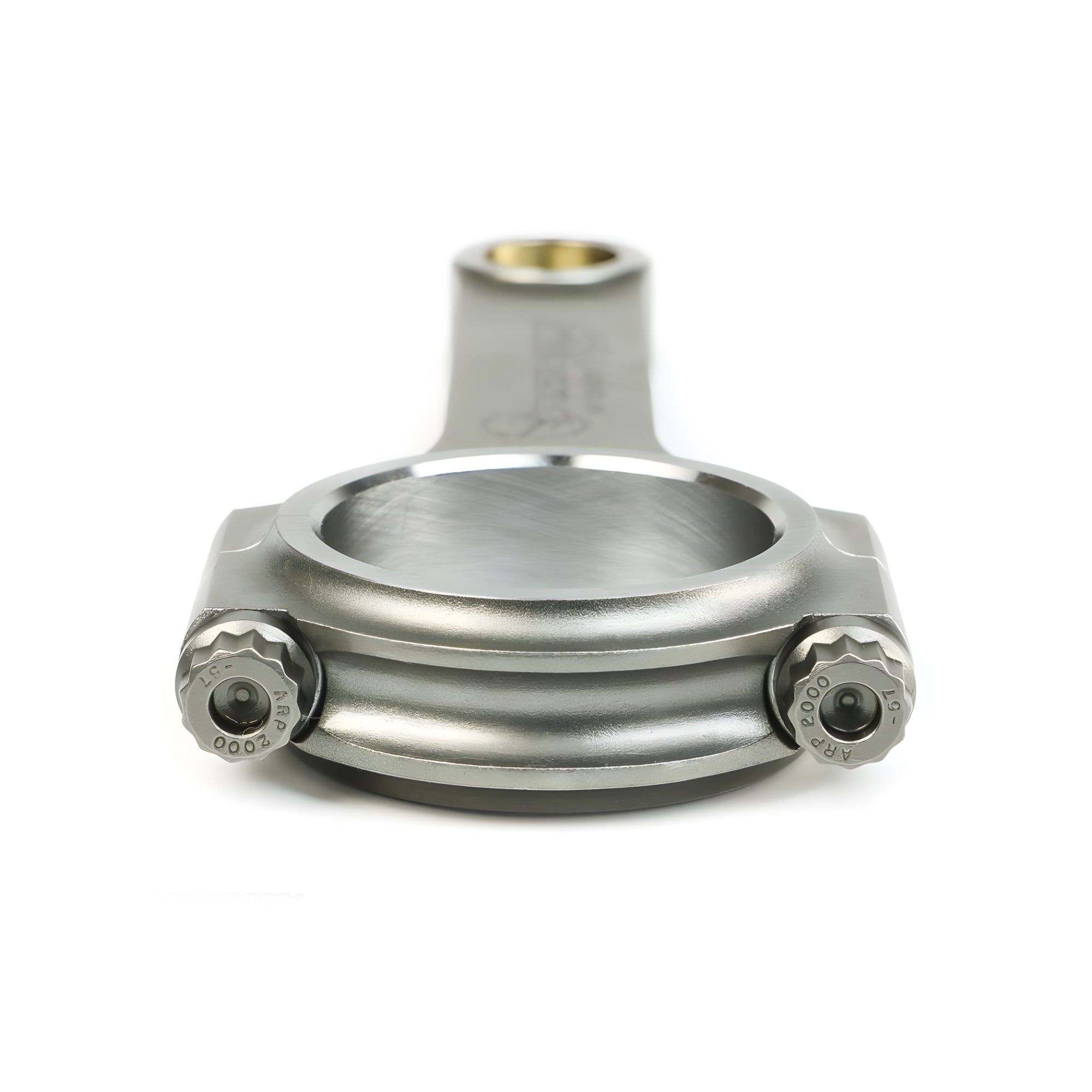

• Bolts: 3/8” ARP2000 (ARP2000 rod bolts D16)
• Weight: 473 grams (lightweight D16 connecting rods)
• Center to Center Length: 138.63mm – 5.458” (SpeedFactory long rod / high compression rods D16)
• Pin End Bore: 19.02mm – 0.748”
• Pin End Width: 18.2mm – 0.717”
• Big End Bore: 48mm – 1.890”
• Big End Width: 22.65mm – 0.892”
• Power Rating: 500 HP (realistic street turbo D16 connecting rods rating)

Approximate Vitara D16 Build Compression Ratios

• D16 Block with D16Y8 Head – 7.8:1 with standard rods, about 8.8:1 with SpeedFactory D16 H-beam long rods
• D16 Block with D16Z6/Y7/D15B Head – 7.6:1 with standard rods, about 8.5:1 with SpeedFactory H-beam rods
• D16 Block with D15B7/D16A6 Head – 7.3:1 with standard rods, about 8.1:1 with SpeedFactory Vitara H-beam rods D16

Key Features

• Forged SAE 4340 chromoly steel construction for serious strength in D16 builds
• Precision CNC machined rods for D16 engines and shot-peened for long-term durability
• Rod beam profiled to clear factory girdles—no block or girdle notching on typical Vitara builds
• Bronze alloy pin bushings with floating wrist pin rods D16-friendly for easy piston swaps
• Heat-treated, magnafluxed, and stress-relieved for reliable 300–500hp use
• 220,000 psi-rated 3/8” ARP2000 rod bolts included (no hardware guessing)
• Balanced to +/- 1 gram so all four cylinders share the load evenly
• Fits all Honda D16 engines and ZC when you want dedicated Vitara piston rods D16

Sold as a set of 4 or individually (SKU: SFR-02-103), SpeedFactory H-beam rods give your D16 a proven combo of strength, compression, and fitment that works on real street and track cars. We run these same SpeedFactory connecting rods D16 in our own turbo builds.
